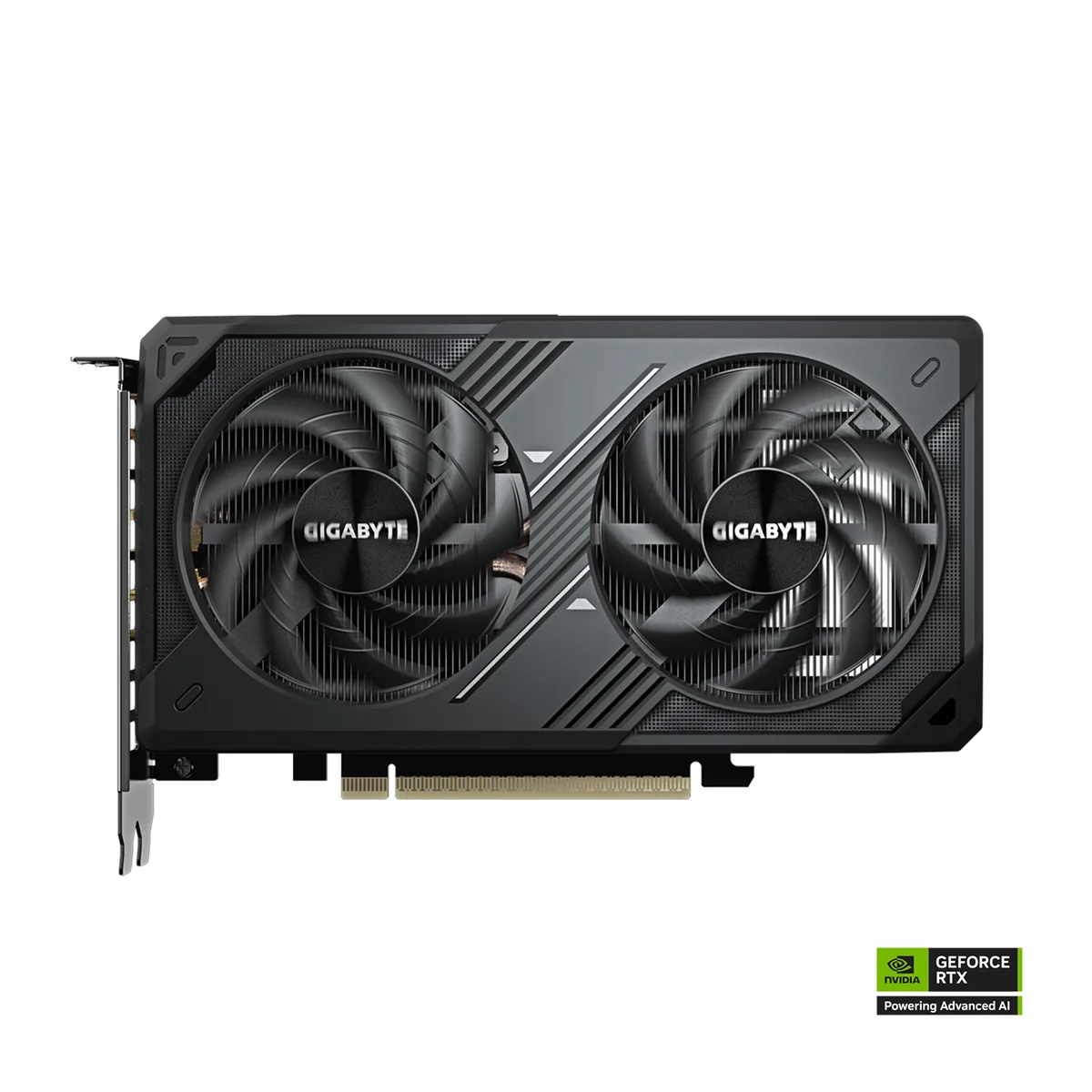

Black dual-fan graphics card with silver accents and metal backplate

GIGABYTE

GIGABYTE GV-N5060WF2MAX OC-8GD GeForce RTX 5060 graphics card

SKU CH-5S16-GWYQZ MPN GV-N5060WF2MAX OC-8GD

GeForce RTX 5060 graphics card with 3840 CUDA cores, 8 GB GDDR7 memory on a 128-bit bus, 2512 MHz core clock, PCIe 5.0 x8 interface, HDMI 2.1b and three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • Core Clock2512 MHz
  • CUDA Cores3840

Option WindForce

Struck-through versions exist but are not stocked here.

Edition RTX 5060 8GB OC MAX

Struck-through versions exist but are not stocked here.

  • GDDR7 memory at 28 Gbps feeds 3840 CUDA cores for high frame rates
  • Core clock hits 2512 MHz out of the box for extra speed
  • WINDFORCE cooling with Hawk fans and server-grade gel keeps temperatures low
  • PCI Express 5.0 x8 interface doubles bandwidth over PCIe 4.0

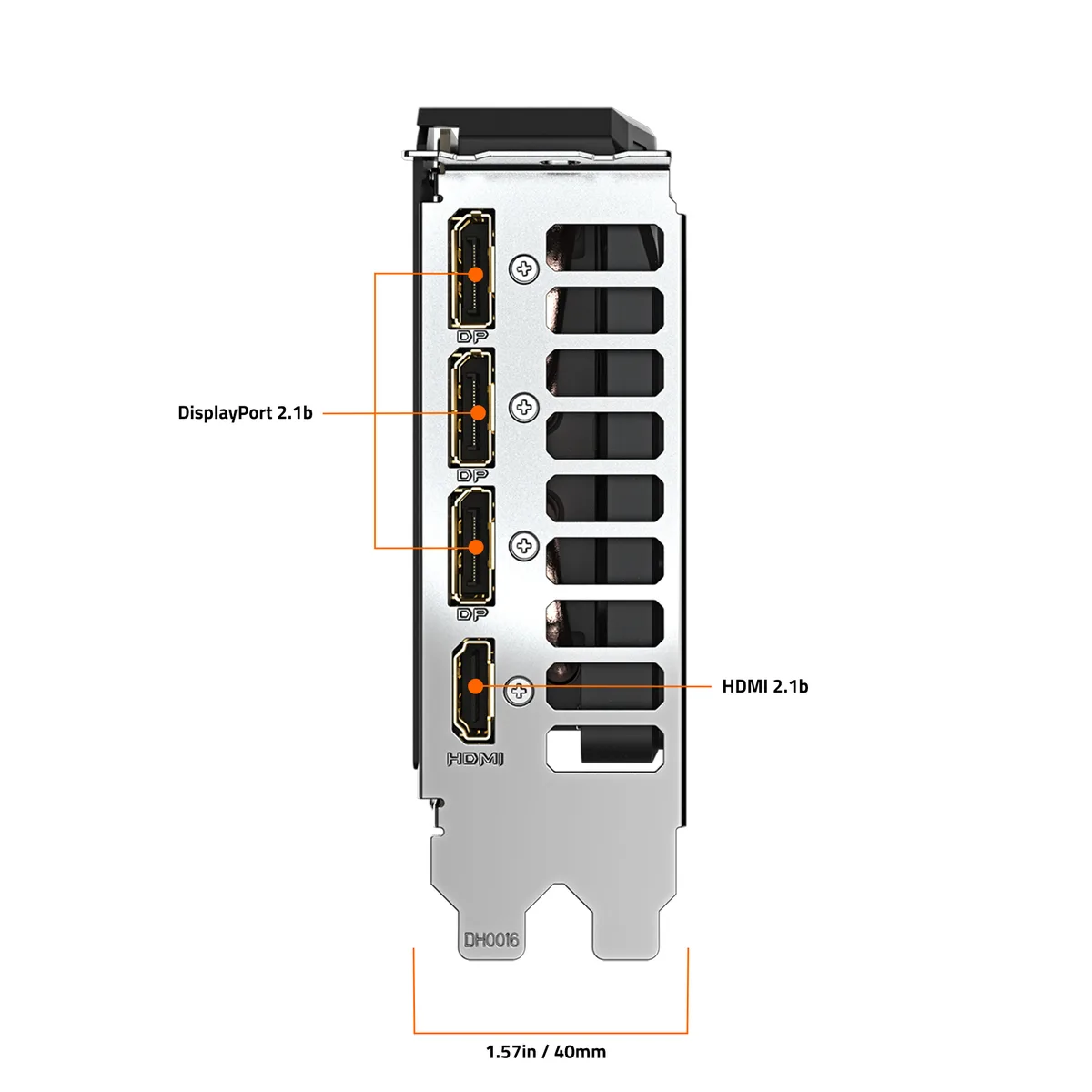

  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays

PCIe 5.0 x8 interface

This graphics card connects through a PCI Express 5.0 x8 slot and is built on the NVIDIA Blackwell architecture. It carries 3840 CUDA cores and an 8 GB GDDR7 frame buffer on a 128-bit bus. The GPU core runs at 2512 MHz with memory at 28 Gbps.

1080p gaming focus, not 4K

The card suits players who target high refresh rates at 1080p and want DLSS 4 with Multi Frame Generation. Content creators using NVIDIA Studio tools also benefit from the ninth-generation encoder. Users needing more VRAM for 4K textures or heavy compute workloads should consider a model with a wider memory bus.

128-bit GDDR7 memory bus

The 128-bit interface paired with GDDR7 memory defines the card's bandwidth ceiling. It delivers 28 Gbps effective clock speed across the narrow bus, which is the decisive factor for 1080p performance versus higher resolutions.

Highlights

  • GDDR7 memory at 28 Gbps feeds 3840 CUDA cores for high frame rates
  • Core clock hits 2512 MHz out of the box for extra speed
  • WINDFORCE cooling with Hawk fans and server-grade gel keeps temperatures low
  • PCI Express 5.0 x8 interface doubles bandwidth over PCIe 4.0
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive four displays

Specifications

BrandGIGABYTE
SeriesWINDFORCE
ModelGV-N5060WF2MAX OC-8GD
Part NumberGV-N5060WF2MAX OC-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
Core Clock2512 MHz
CUDA Cores3840
Effective Memory Clock28000 MHz (28 Gbps)
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
CoolerDouble Fans
Thermal Design Power145W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length199 mm
Card Dimensions (L x H)199 x 116 x 40 mm
Slot Width2 Slots
Package ContentsQuick guide
Shipping weight0.75 kg
Package size305 × 216 × 51 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the GV-N5060WF2MAX OC-8GD get during all-day gaming?

The WINDFORCE cooling system uses Hawk fans and server-grade thermal conductive gel to move heat away from the GPU core running at 2512 MHz, keeping temperatures controlled during extended sessions.

Which power connectors and PSU capacity does the GV-N5060WF2MAX OC-8GD require?

The card draws power through a single 12-pin connector and needs a power supply with at least one native 12VHPWR or 12V-2x6 cable plus enough headroom for the 3840 CUDA core GPU.

Will the GV-N5060WF2MAX OC-8GD run at full speed in a PCIe 4.0 motherboard slot?

The PCI Express 5.0 x8 interface is backward compatible, so the RTX 5060 operates normally in a PCIe 4.0 slot with only a small bandwidth difference that rarely affects 128-bit GDDR7 memory throughput.
