GIGABYTE
GIGABYTE GV-N5060WF2MAX OCV2-8GD GeForce RTX 5060 graphics card
GeForce RTX 5060 graphics card with 8 GB GDDR7 memory, 3840 CUDA cores, 2512 MHz boost clock, PCI Express 5.0, and triple DisplayPort 2.1b outputs
- InterfacePCI Express 5.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5060
- Core Clock2512 MHz
- Boost Clock2512 MHz
- 8GB GDDR7 memory at 28 Gbps delivers high bandwidth
- 3840 CUDA cores at 2512 MHz boost accelerate compute workloads
- PCI Express 5.0 interface doubles bus throughput over previous standard
- 1 HDMI 2.1b and 3 DisplayPort 2.1b outputs drive up to four 8K displays
- Compact 199 mm dual-fan design fits 2-slot ATX builds with 550 W PSU
GeForce RTX 5060 graphics card

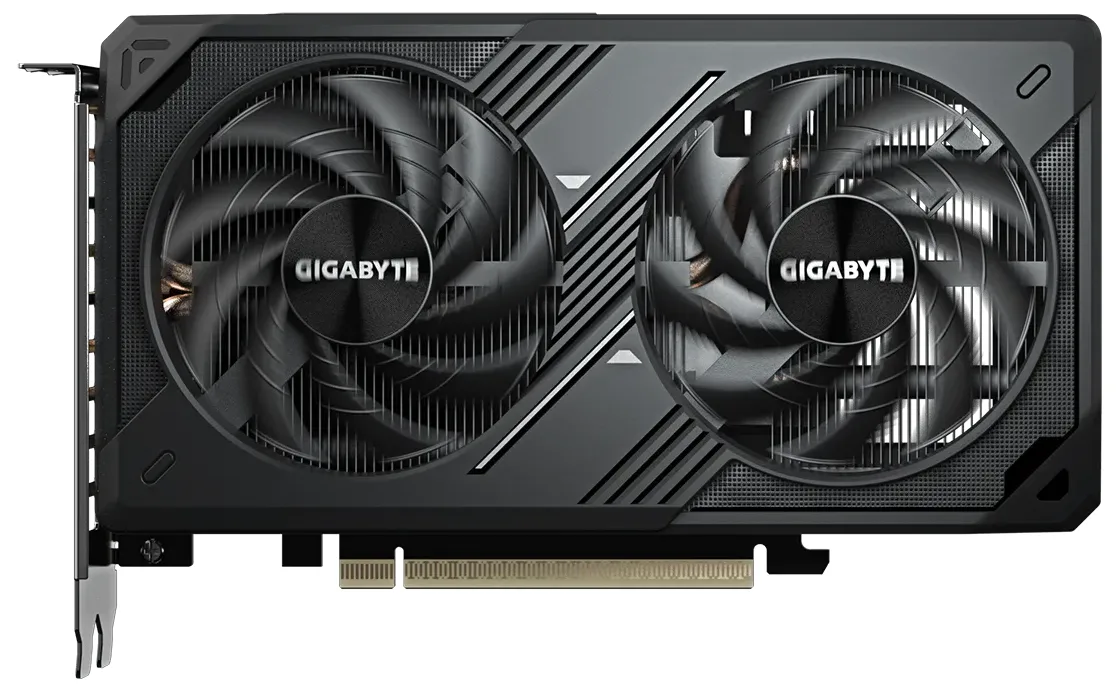

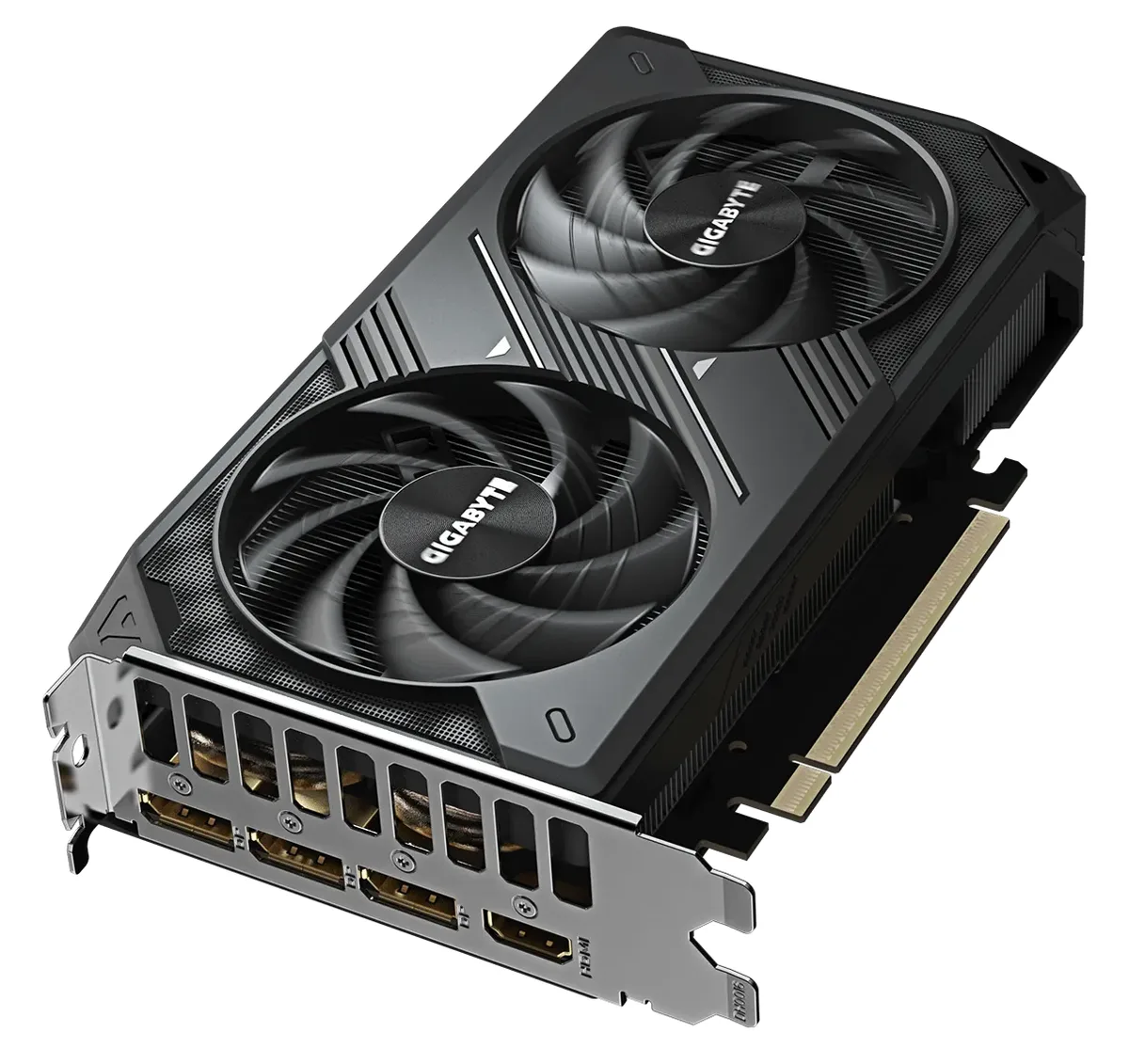

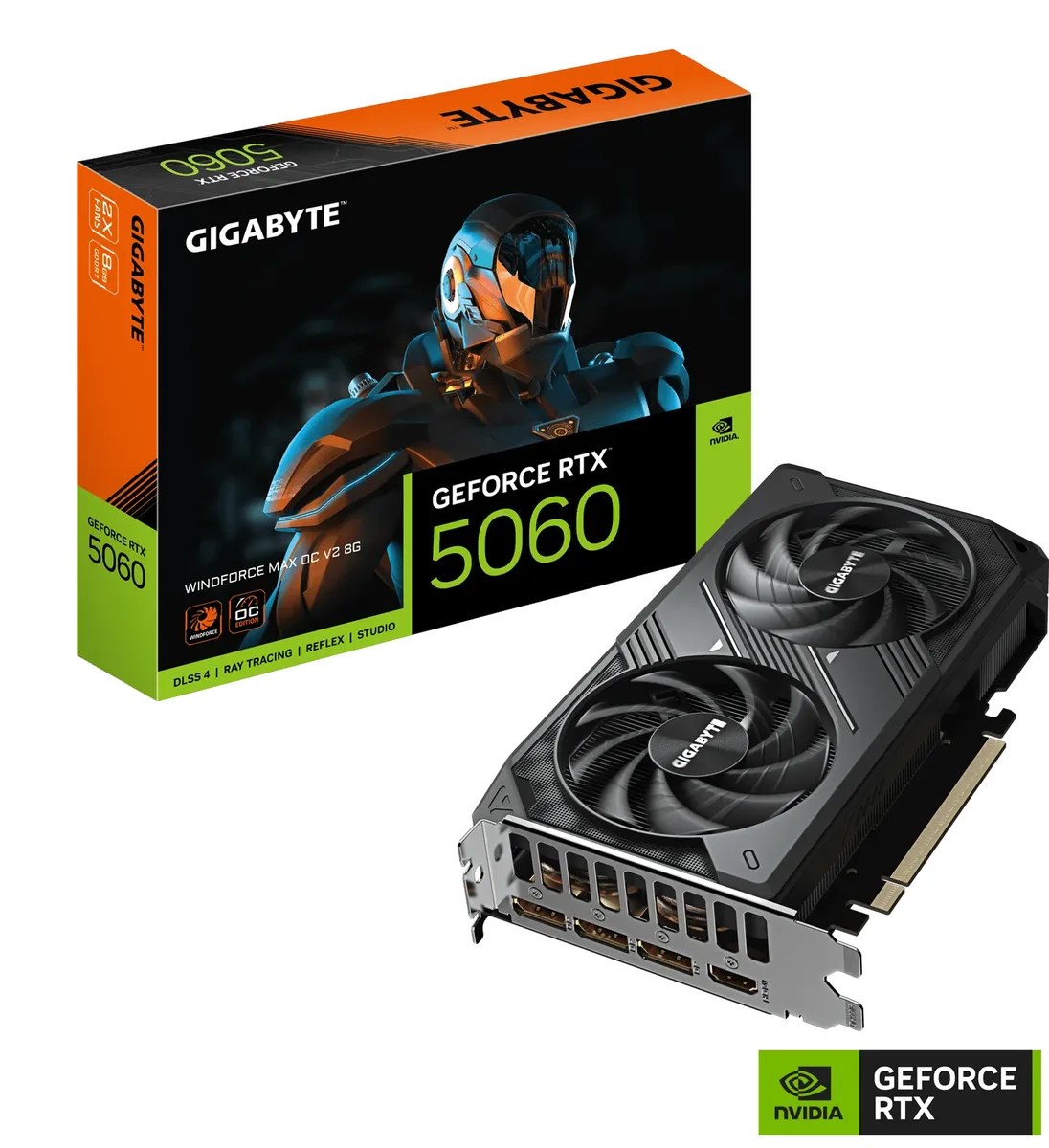

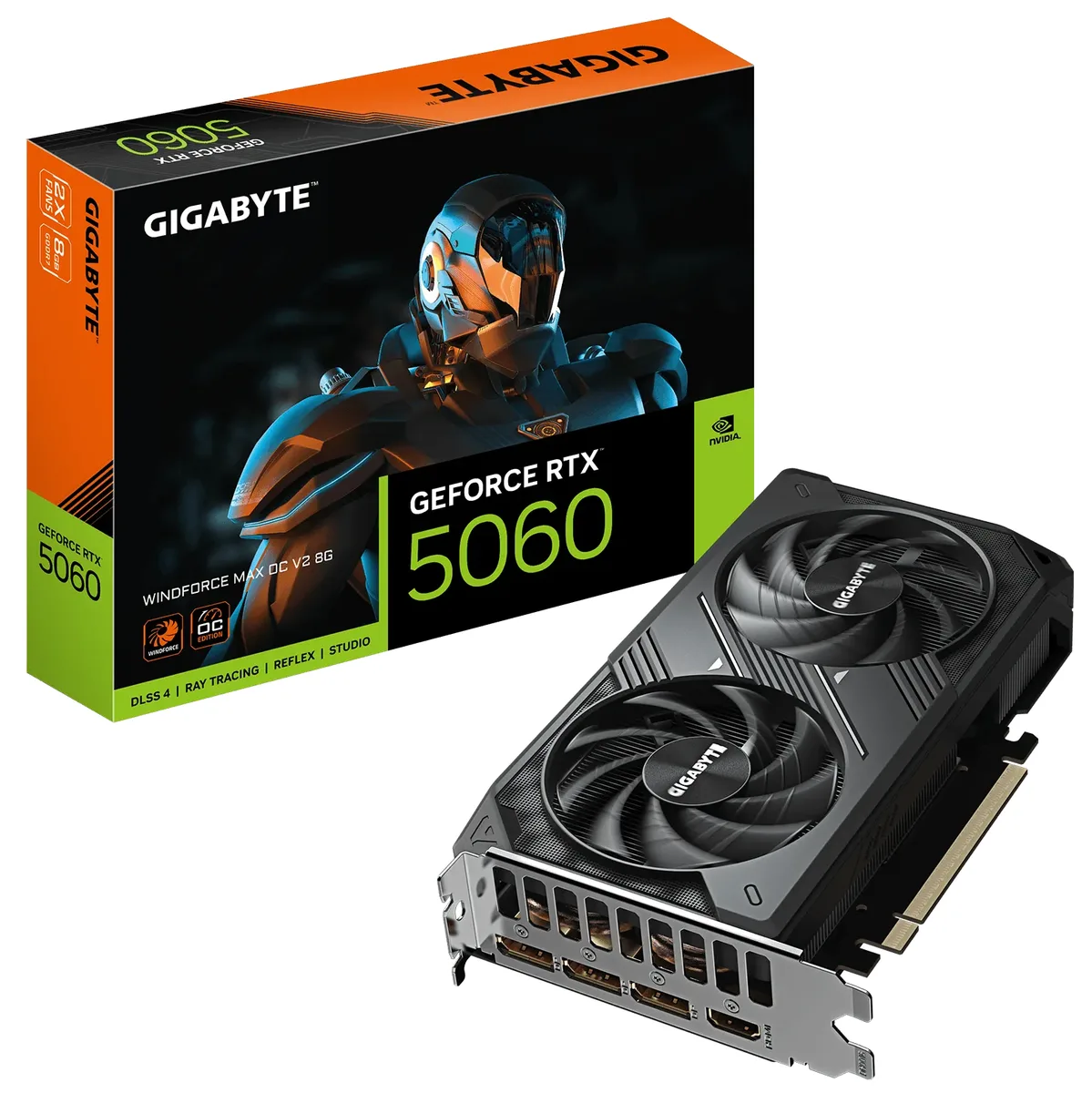

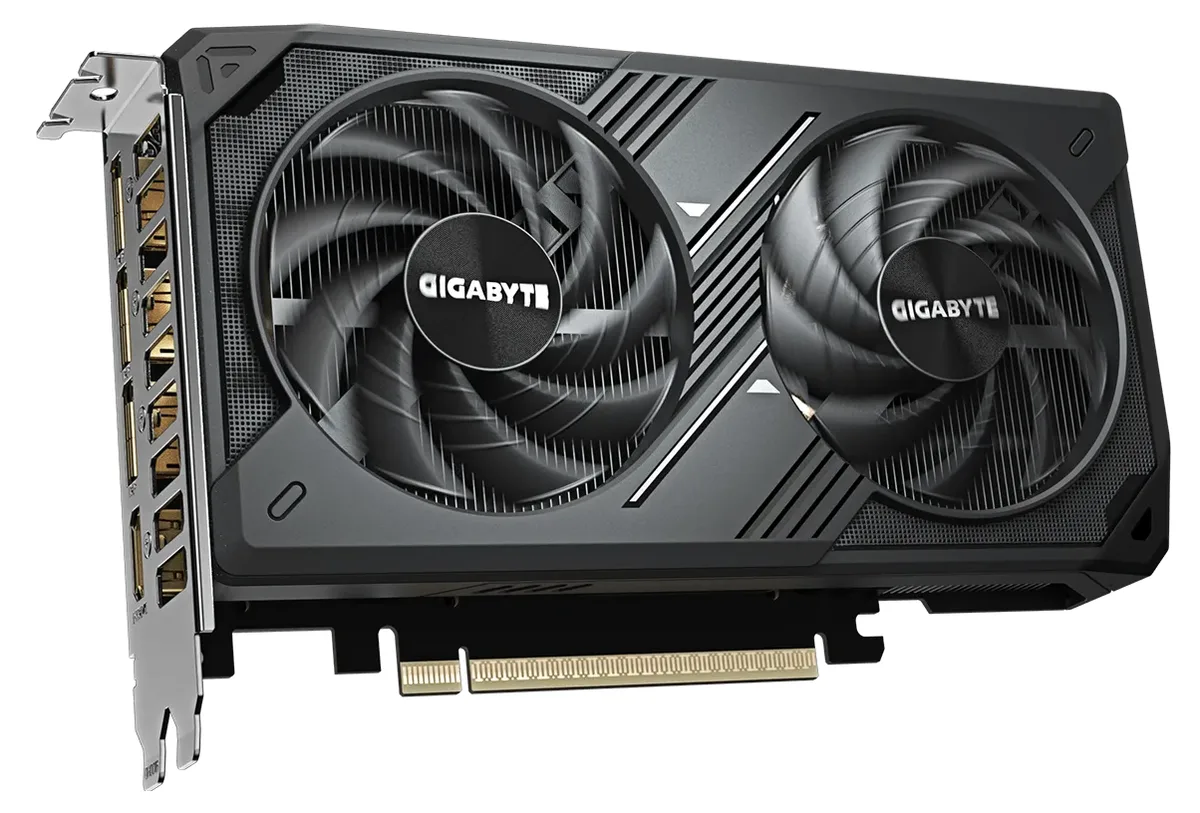

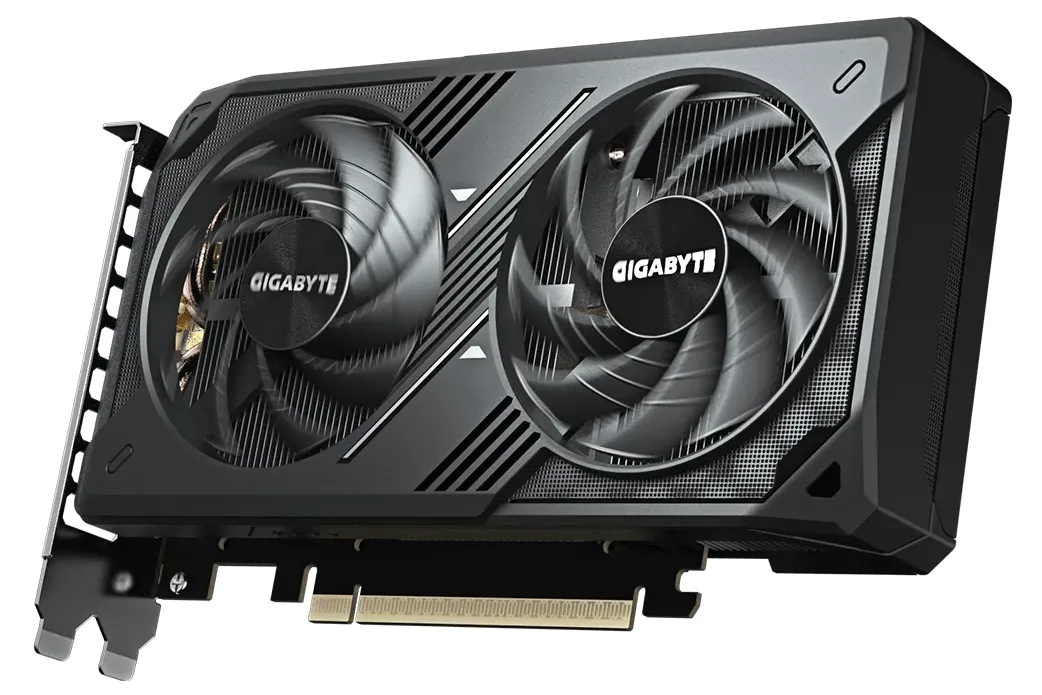

The GIGABYTE WINDFORCE MAX OC V2 8G is a GeForce RTX 5060 graphics card built for 1080p and 1440p gaming. It uses the NVIDIA Blackwell architecture with 3840 CUDA cores and 8GB of GDDR7 memory on a 128-bit bus. The core and boost clocks are both set at 2512 MHz. It connects through a PCI Express 5.0 x16 slot.
Build requirements and display outputs
The card needs a 550W power supply and a single 8-pin PCIe power connector. It occupies two expansion slots and measures 199 mm long, 116 mm wide and 40 mm high. Display outputs include one HDMI 2.1b port and three DisplayPort 2.1b connectors, supporting up to four monitors at a maximum resolution of 7680 x 4320.
Sustained load behaviour
A dual-fan cooler dissipates heat during extended gaming or compute sessions. The 28 Gbps memory bandwidth and 128-bit interface feed the GPU steadily, while the fixed 2512 MHz clock avoids frequency swings under load. DirectX 12 and OpenGL 4.6 support ensure compatibility with modern APIs for long-running workloads.
Highlights
- 8GB GDDR7 memory at 28 Gbps delivers high bandwidth
- 3840 CUDA cores at 2512 MHz boost accelerate compute workloads
- PCI Express 5.0 interface doubles bus throughput over previous standard
- 1 HDMI 2.1b and 3 DisplayPort 2.1b outputs drive up to four 8K displays
- Compact 199 mm dual-fan design fits 2-slot ATX builds with 550 W PSU
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | WINDFORCE MAX OC V2 8G |
| Part Number | GV-N5060WF2MAX OCV2-8GD |
| Interface | PCI Express 5.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 |
| Core Clock | 2512 MHz |
| Boost Clock | 2512 MHz |
| CUDA Cores | 3840 |
| Effective Memory Clock | 28000 MHz (28 Gbps) |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
| Max GPU Length | 199 mm |
| Card Dimensions (L x H) | L=199mm W=116mm H=40mm |
| Slot Width | 2 Slots |
| Shipping weight | 0.77 kg |
| Package size | 305 × 216 × 51 mm |
Questions about this item
How hot does the WINDFORCE MAX OC V2 8G run under sustained load?
The card uses a double-fan cooler in a two-slot ATX form factor measuring 199 mm long, 116 mm wide and 40 mm thick.
What power draw should I expect when the GeForce RTX 5060 runs all day?
NVIDIA recommends a 550 W power supply and the board draws auxiliary power through a single 8-pin connector.
Which motherboard slot and PSU connector must I already have for this GV-N5060WF2MAX OCV2-8GD?
You need a PCI Express 5.0 x16 slot and a power supply with an available 8-pin PCIe power cable.
