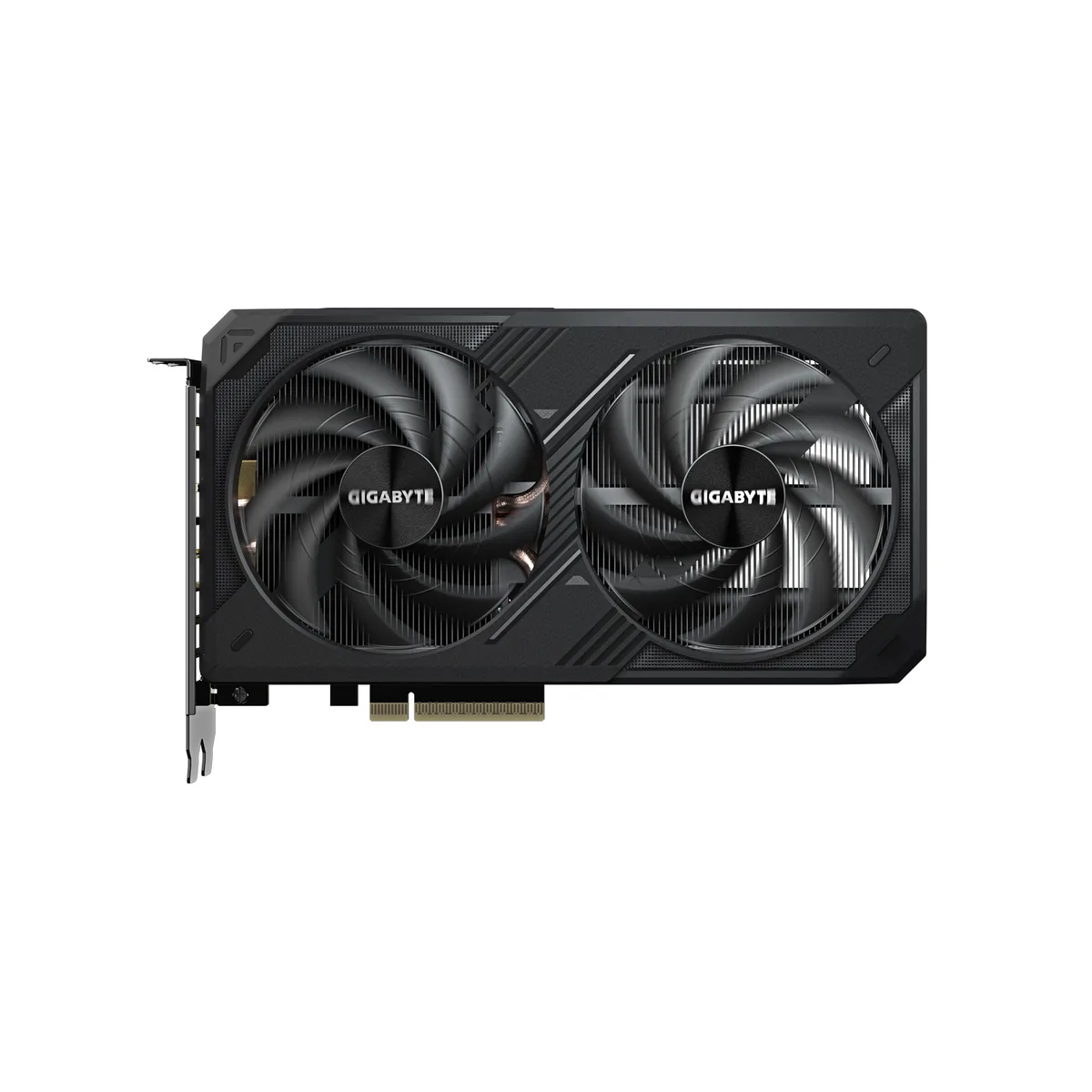

Black dual-fan ATX graphics card with silver accents, 208 mm long

GIGABYTE

GIGABYTE GV-N506TWF2-16GD RTX 5060 Ti 16GB graphics card

SKU CH-YSBJ-8X4TA MPN GV-N506TWF2-16GD

Refurbished GeForce RTX 5060 Ti with 16GB GDDR7 memory, 4608 CUDA cores at 2572 MHz, PCI Express 5.0 x8 interface, dual-fan WindForce cooler, one HDMI 2.1b and three DisplayPort 2.1b outputs.

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2572 MHz
  • CUDA Cores4608
  • 16 GB GDDR7 memory handles large textures and high resolutions
  • 4608 CUDA cores deliver strong parallel compute performance
  • Boost clock reaches 2572 MHz for responsive gaming and creative workloads
  • PCIe 5.0 x8 interface provides high bandwidth to modern platforms
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive up to four displays

WindForce RTX 5060 Ti 16GB for 1440p gaming

The GIGABYTE GV-N506TWF2-16GD is a refurbished graphics card built around the NVIDIA GeForce RTX 5060 Ti GPU. It delivers 4608 CUDA cores and 16GB of GDDR7 memory on a 128-bit bus. The board targets gamers and creators who need high frame rates at 1440p resolution. A dual-fan cooler keeps the 180W TDP in check inside standard ATX cases.

Sustained load behaviour with 180W TDP

Under continuous load the 180W power draw is fed through a single 8-pin connector and dissipated by the WindForce dual-fan assembly. The core clock holds at 2572 MHz while memory runs at an effective 28 GHz, providing stable throughput for extended sessions. The 2-slot, 208 mm long form factor fits most mid-tower chassis without blocking adjacent slots.

Compatibility checks before ordering

Verify that your motherboard offers a PCI Express 5.0 x8 slot and that your power supply includes an 8-pin PCIe cable for the 180W board. Ensure the case can accommodate a 208 mm long, 2-slot card with 40 mm thickness. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1b connectors supporting up to 7680 x 4320 resolution across four monitors.

Highlights

  • 16 GB GDDR7 memory handles large textures and high resolutions
  • 4608 CUDA cores deliver strong parallel compute performance
  • Boost clock reaches 2572 MHz for responsive gaming and creative workloads
  • PCIe 5.0 x8 interface provides high bandwidth to modern platforms
  • Triple DisplayPort 2.1b plus HDMI 2.1b drive up to four displays

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N506TWF2-16GD
Part NumberGV-N506TWF2-16GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2572 MHz
CUDA Cores4608
Effective Memory Clock28 GHz
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
CoolerDouble Fans
Thermal Design Power180W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length208 mm
Card Dimensions (L x H)208 x 120 x 40 mm
Slot Width2 Slots
Shipping weight0.82 kg
Package size295 × 216 × 51 mm

Questions about this item

How loud and hot does the WindForce double-fan cooler get when the RTX 5060 Ti draws its 180 W TDP all day?

The card uses a dual-fan WindForce cooler and a 180 W thermal design power; under sustained load the fans ramp to move heat off the 208 mm board while staying within the two-slot form factor.

My power supply only has a single 8-pin PCIe connector — is that enough for this GV-N506TWF2-16GD?

Yes, the card requires one 8-pin power connector and a PCI Express 5.0 x8 slot; ensure your PSU can deliver the 180 W board power plus system overhead.

Will the PCI Express 5.0 x8 interface slow down the RTX 5060 Ti if I install it in my older PCIe 4.0 motherboard?

The GPU operates at PCIe 5.0 x8 but is backward compatible with PCIe 4.0 and 3.0 slots; bandwidth reduction on older platforms is minimal for this 128-bit memory interface.
