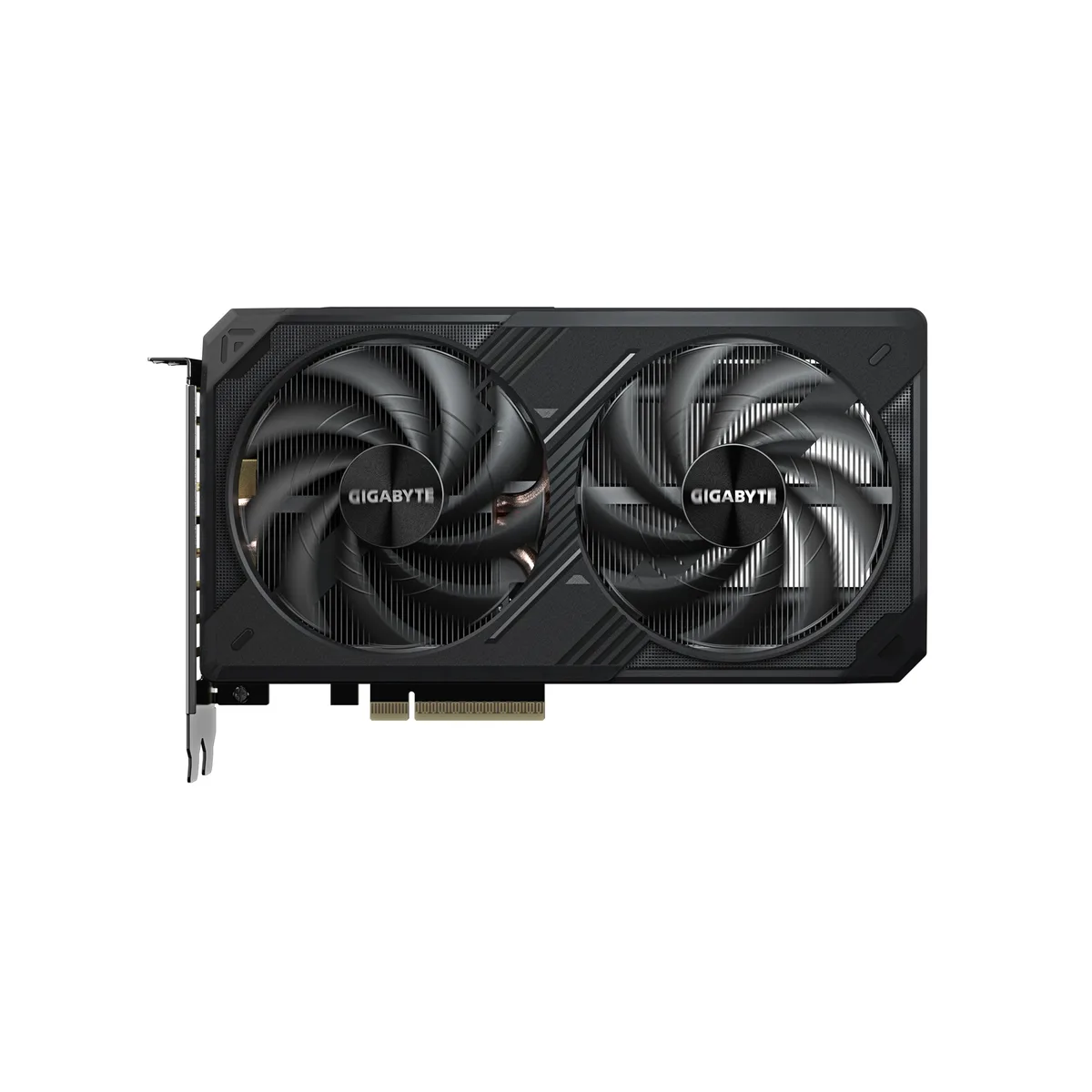

Black dual-fan ATX graphics card, 208 mm long, two-slot design

GIGABYTE

GIGABYTE GV-N506TWF2-8GD GeForce RTX 5060 Ti graphics card

SKU CH-VCXM-0H20G MPN GV-N506TWF2-8GD

Refurbished GeForce RTX 5060 Ti with 8GB GDDR7 memory, 4608 CUDA cores at 2572 MHz, dual-fan cooling and PCI Express 5.0 x8 interface

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2572 MHz
  • CUDA Cores4608
  • 8 GB GDDR7 memory drives high-resolution texture performance
  • 2572 MHz core clock accelerates compute-intensive workloads
  • 4608 CUDA cores enable parallel processing for creative tasks
  • PCI Express 5.0 x8 interface provides high-throughput system connectivity
  • Dual-fan WindForce cooler maintains thermal headroom under load

WindForce RTX 5060 Ti for 1080p and 1440p gaming

This refurbished GIGABYTE GV-N506TWF2-8GD graphics card targets gamers building a PCI Express 5.0 system who want an 8GB frame buffer at a lower cost. The GeForce RTX 5060 Ti chip delivers 4608 CUDA cores with a 2572 MHz core clock. A 128-bit GDDR7 interface running at 28 GHz supplies memory bandwidth for modern titles at high refresh rates.

Sustained load behaviour with 180W TDP and dual fans

The 180W thermal design power is managed by a dual-fan WindForce cooler in a two-slot ATX form factor. A single 8-pin power connector feeds the board while a 650W power supply is recommended for the full platform. Under extended gaming sessions the cooler maintains stable clocks without the acoustic spikes seen on smaller single-fan designs.

Compact 208 mm length fits most cases

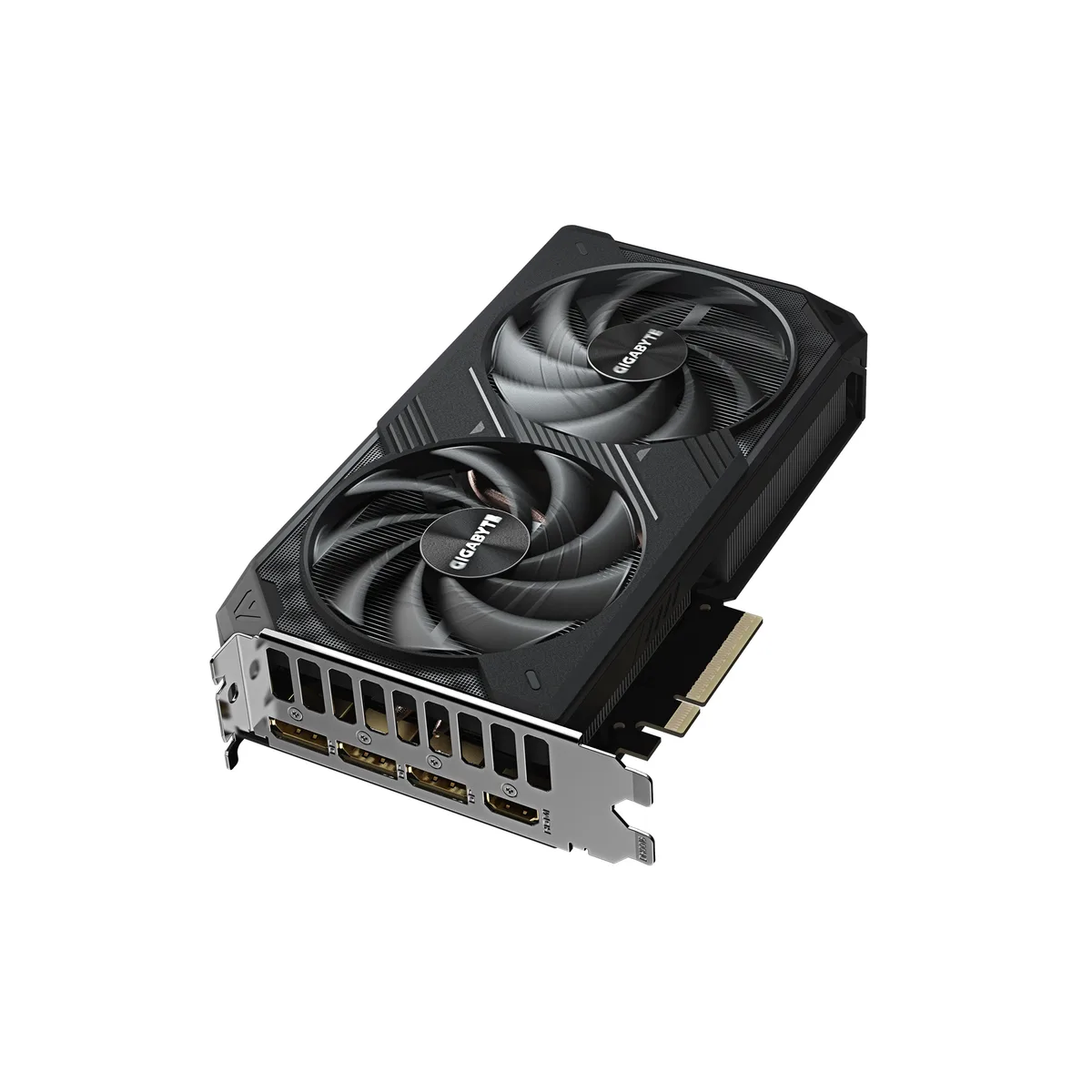

At 208 mm long and 40 mm thick the card clears mid-tower chassis and leaves room for cable routing behind the motherboard tray. The rear bracket provides one HDMI 2.1b port and three DisplayPort 2.1b outputs driving up to four displays at 7680 x 4320 resolution. HDCP support and VR readiness complete the connectivity package for mixed work and play setups.

Highlights

  • 8 GB GDDR7 memory drives high-resolution texture performance
  • 2572 MHz core clock accelerates compute-intensive workloads
  • 4608 CUDA cores enable parallel processing for creative tasks
  • PCI Express 5.0 x8 interface provides high-throughput system connectivity
  • Dual-fan WindForce cooler maintains thermal headroom under load

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N506TWF2-8GD
Part NumberGV-N506TWF2-8GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2572 MHz
CUDA Cores4608
Effective Memory Clock28 GHz
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length208 mm
Card Dimensions (L x H)208 x 120 x 40 mm
Slot Width2 Slots
Shipping weight0.82 kg
Package size432 × 279 × 114 mm

Questions about this item

How loud and hot does the WindForce dual-fan cooler get when the 180 W TDP card runs all day?

The 180 W TDP is managed by a dual-fan WindForce cooler in a two-slot ATX form factor measuring 208 x 120 x 40 mm.

What power connector and PSU headroom do I need for the 180 W TDP?

One 8-pin power connector feeds the card and the manufacturer recommends a 650 W PSU.

Will the PCI Express 5.0 x8 interface work in my older PCIe 4.0 motherboard slot?

The PCI Express 5.0 x8 interface is backward compatible with PCIe 4.0 and 3.0 slots, operating at the slot's native speed.
