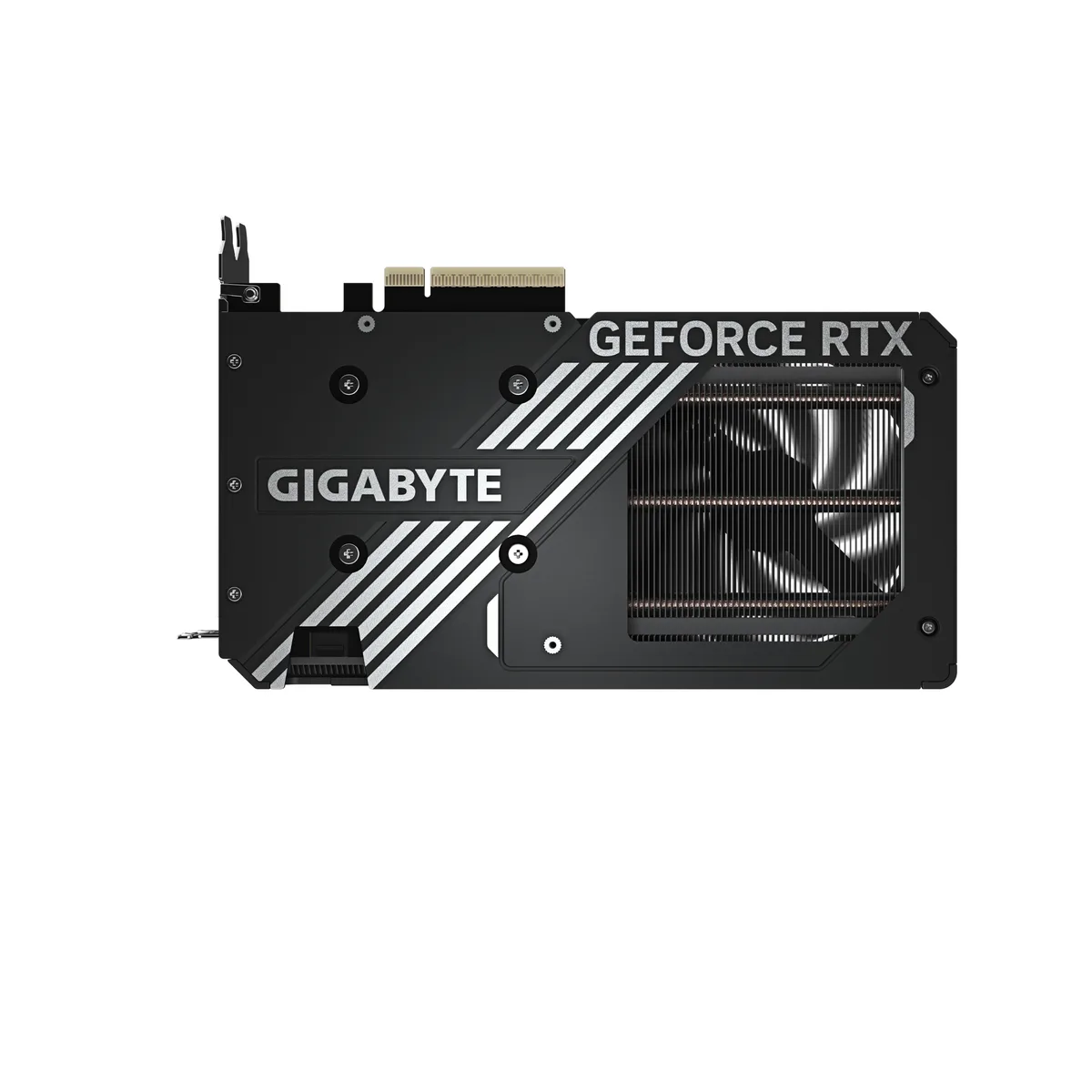

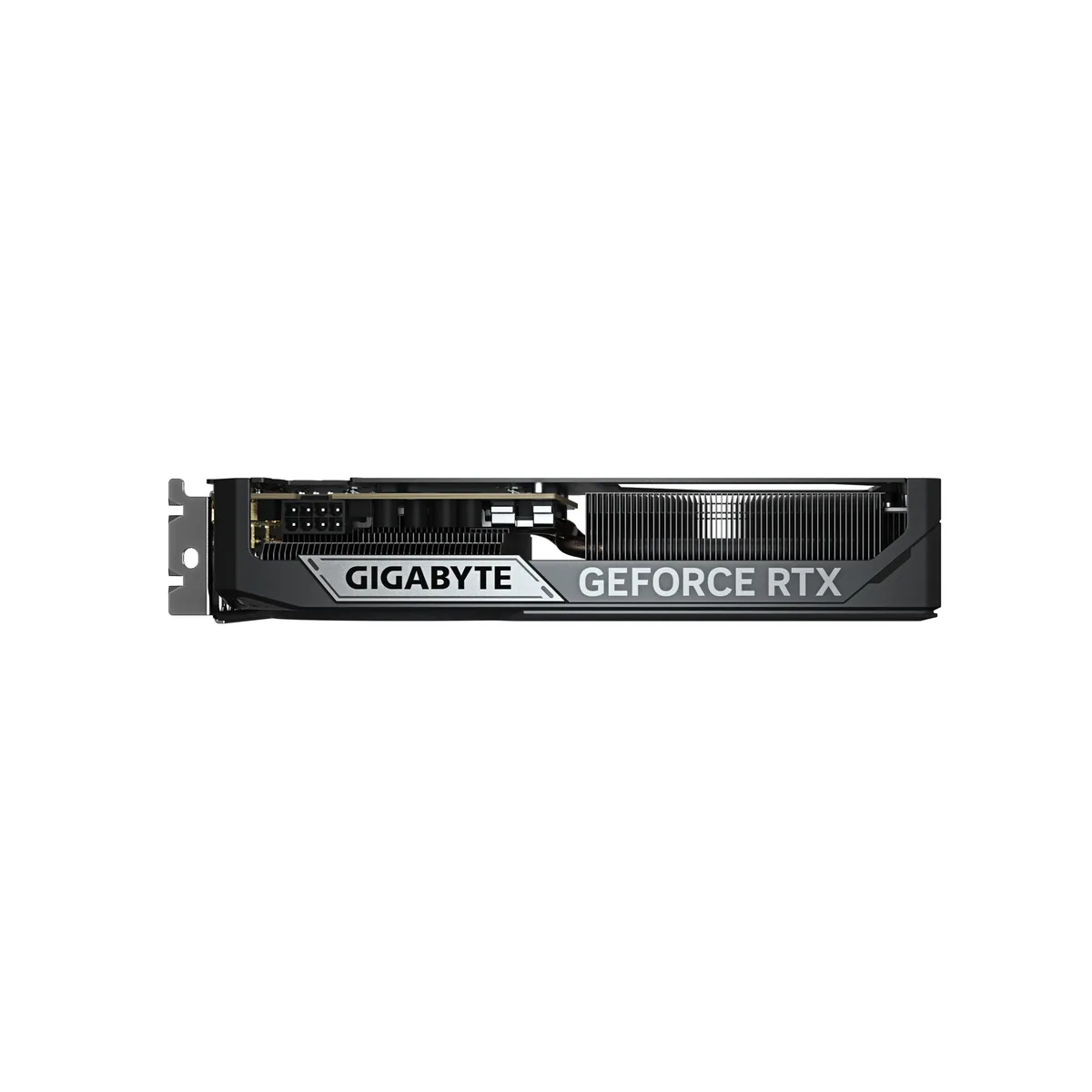

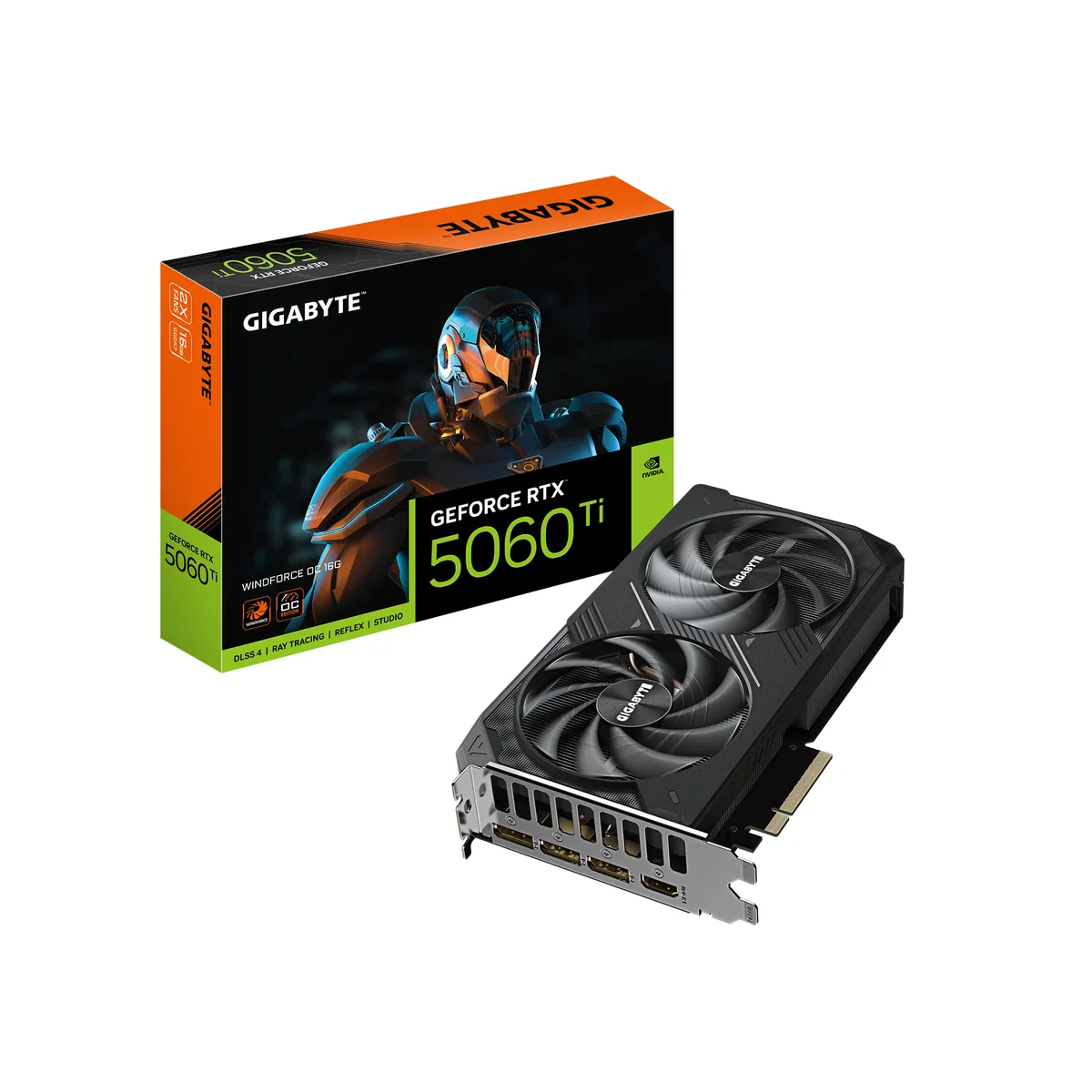

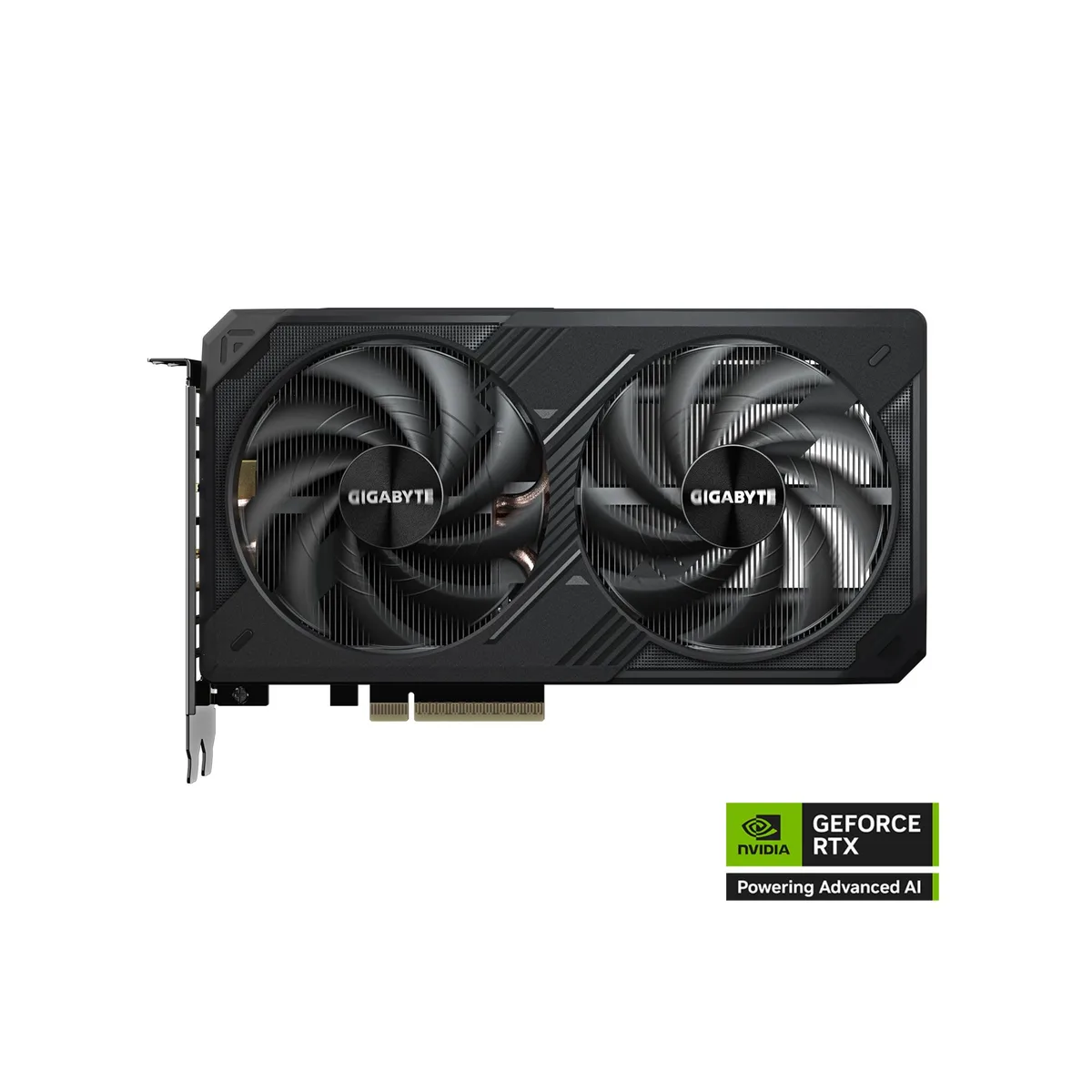

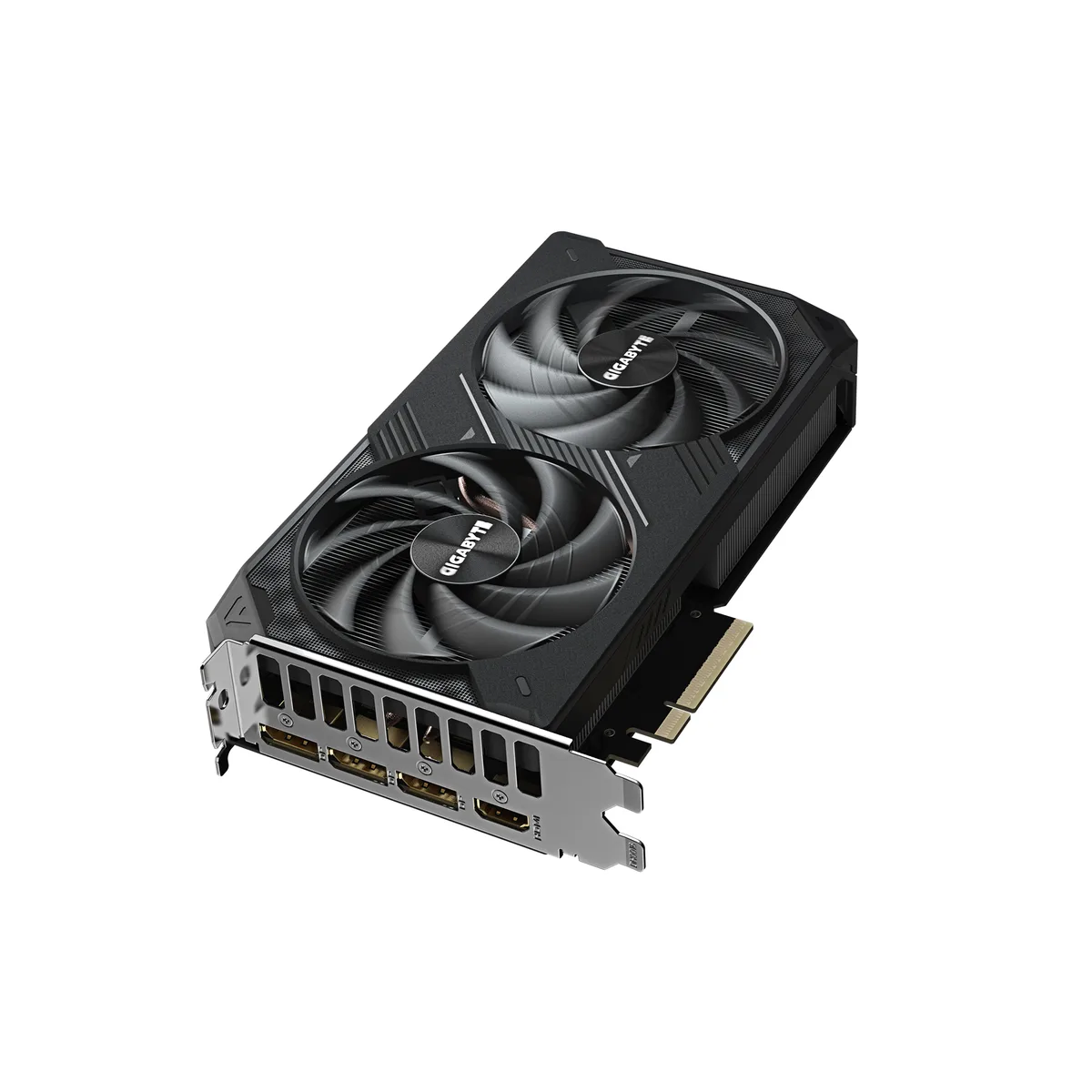

Black dual-fan graphics card with silver accents, 208 mm long, two-slot design

GIGABYTE

GIGABYTE GV-N506TWF2OC-16GD GeForce RTX 5060 Ti 16GB graphics card

SKU CH-N0DD-K4ZSS MPN GV-N506TWF2OC-16GD

A GeForce RTX 5060 Ti with 16 GB GDDR7 on a 128-bit bus, factory boosted to 2587 MHz and cooled by twin fans in a 208 mm dual-slot design

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2587 MHz
  • Effective Memory Clock28 GHz
  • 16GB GDDR7 memory enables high-resolution textures
  • 2587 MHz boost clock drives responsive frame rates
  • PCIe 5.0 x8 interface delivers fast data throughput
  • HDMI 2.1b plus three DisplayPort 2.1b outputs support four 8K displays
  • Dual-fan WindForce cooler maintains thermal headroom within 180W TDP

16GB GDDR7 for 1440p Gaming

The GIGABYTE GeForce RTX 5060 Ti WindForce is a graphics card built for 1440p gaming and creative workloads. It pairs 16GB of GDDR7 memory on a 128-bit bus with a 2587 MHz core clock. The PCI Express 5.0 x8 interface and 28 GHz effective memory clock deliver high throughput for modern titles. It fits a standard ATX form factor measuring 208 mm in length.

Upgrade from 8GB or 12GB Cards

Moving up from an 8GB or 12GB model is worthwhile when texture pools exceed the smaller buffer at 1440p or 4K. The 16GB capacity removes that bottleneck in current releases. A 650W power supply and a single 8-pin connector handle the 180W thermal design. The step is justified when your current card forces texture downgrades.

Two-Fan Cooler in a Dual-Slot Design

The double-fan cooler occupies two slots and 40 mm of depth, so it fits most mid-tower cases without clearance issues. Installation follows the standard PCIe 5.0 x8 slot and 8-pin power routine. The card supports four displays via one HDMI 2.1b and three DisplayPort 2.1b outputs. Ensure the case length accommodates 208 mm and the PSU cables reach the connector.

Highlights

  • 16GB GDDR7 memory enables high-resolution textures
  • 2587 MHz boost clock drives responsive frame rates
  • PCIe 5.0 x8 interface delivers fast data throughput
  • HDMI 2.1b plus three DisplayPort 2.1b outputs support four 8K displays
  • Dual-fan WindForce cooler maintains thermal headroom within 180W TDP

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N506TWF2OC-16GD
Part NumberGV-N506TWF2OC-16GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2587 MHz
Effective Memory Clock28 GHz
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length208 mm
Card Dimensions (L x H)208 x 120 x 40 mm
Slot Width2 Slots
Shipping weight0.82 kg
Package size295 × 211 × 51 mm

Questions about this item

How much case clearance does the 208 mm long, 2-slot WindForce card require?

The card measures 208 mm in length and occupies 2 slots, so the case must provide at least that much GPU length and two adjacent expansion slots.

Which power connector does the 180 W TDP board need and what PSU is recommended?

It draws up to 180 W through a single 8-pin connector; a 650 W power supply is the recommended minimum.

What cooler upkeep does the dual-fan WindForce design need over time?

Periodically remove dust from the two fans and heatsink fins with compressed air to keep temperatures stable.
