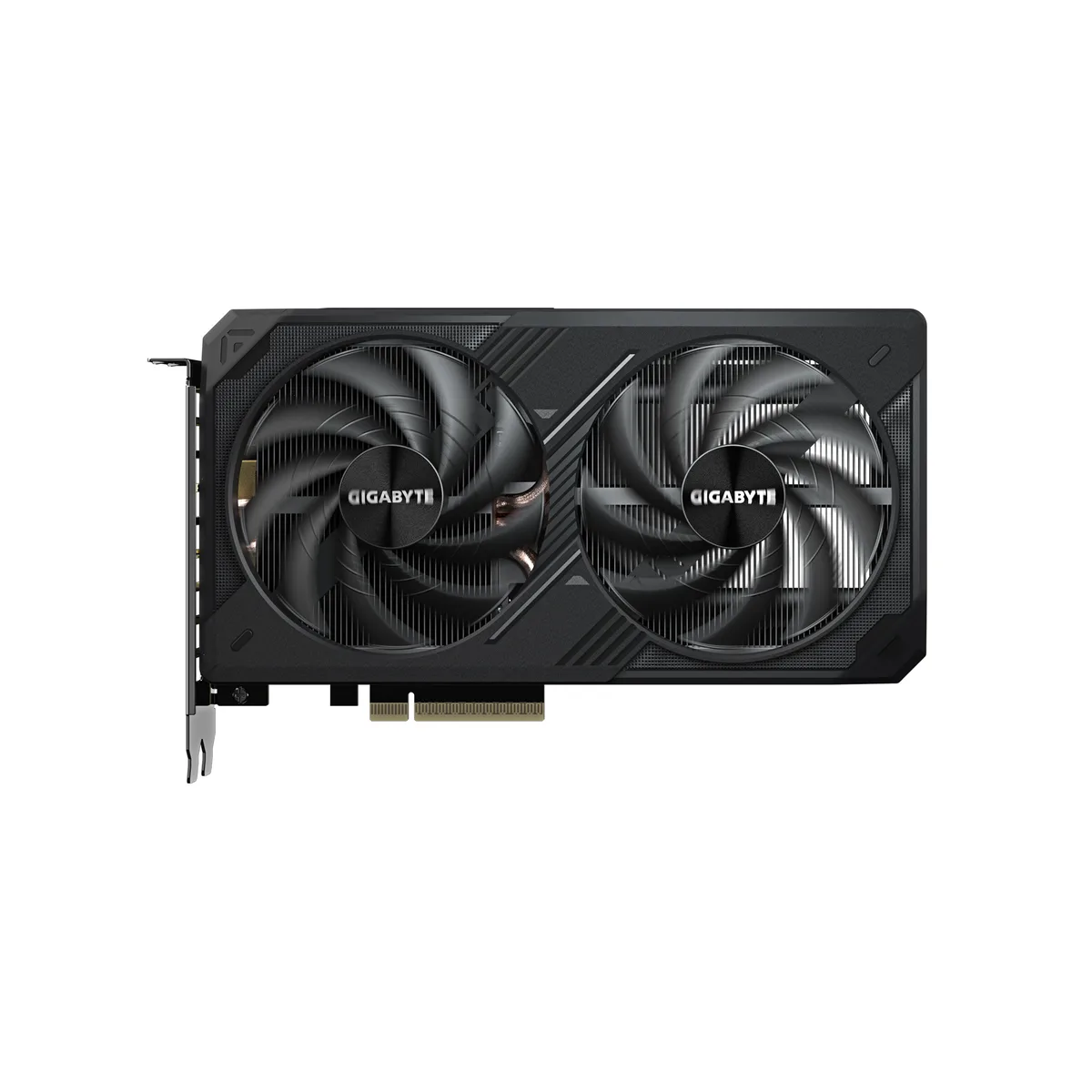

Black dual-fan ATX graphics card, 208 mm long, two-slot width

GIGABYTE

GIGABYTE GV-N506TWF2OC-16GD graphics card

SKU CH-J3Y5-HKJX1 MPN GV-N506TWF2OC-16GD

Refurbished GeForce RTX 5060 Ti with 16GB GDDR7 memory, 2587 MHz core clock, and WindForce dual-fan cooling

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • Core Clock2587 MHz
  • Effective Memory Clock28 GHz
  • 16GB GDDR7 memory delivers high bandwidth for 4K textures
  • Core clock reaches 2587 MHz for responsive gaming performance
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays
  • PCI Express 5.0 x8 interface provides fast data throughput
  • Dual-fan WindForce cooler keeps the 180W GPU within thermal limits

GIGABYTE WindForce RTX 5060 Ti 16GB Graphics Card

The GIGABYTE WindForce GeForce RTX 5060 Ti GV-N506TWF2OC-16GD is a refurbished GPU built for 1440p gaming and creative workloads. It features 16GB of GDDR7 memory on a 128-bit bus with a 2587 MHz core clock. The card supports up to four displays via one HDMI 2.1b and three DisplayPort 2.1b outputs.

Compatibility Check: PCIe 5.0 x8 Slot

Verify your motherboard provides a PCI Express 5.0 x8 slot and that your power supply meets the 650W recommendation with an available 8-pin connector. The card draws up to 180W TDP. Ensure your case can accommodate the 208 mm length and 40 mm thickness within a two-slot form factor.

Build Integration: Dual-Fan Cooling in a Compact

The dual-fan WindForce cooler handles the 180W thermal load within a 208 x 120 x 40 mm ATX frame occupying two slots. This compact footprint frees up space in smaller chassis while delivering high refresh-rate 4K output at 7680 x 4320 resolution. DirectX 12 Ultimate and OpenGL 4.6 support cover modern API requirements.

Highlights

  • 16GB GDDR7 memory delivers high bandwidth for 4K textures
  • Core clock reaches 2587 MHz for responsive gaming performance
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays
  • PCI Express 5.0 x8 interface provides fast data throughput
  • Dual-fan WindForce cooler keeps the 180W GPU within thermal limits

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N506TWF2OC-16GD
Part NumberGV-N506TWF2OC-16GD
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
Core Clock2587 MHz
Effective Memory Clock28 GHz
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power180W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length208 mm
Card Dimensions (L x H)208 x 120 x 40 mm
Slot Width2 Slots
Shipping weight0.82 kg
Package size295 × 211 × 51 mm

Questions about this item

What comes in the box with the GV-N506TWF2OC-16GD and what must I buy separately?

The card includes the dual-fan WindForce cooler, one 8-pin power connector and a 2-slot ATX bracket. You must supply a 650 W PSU with an 8-pin PCIe cable and a PCIe 5.0 x8 slot.

Should I choose the 16 GB GDDR7 version or a different capacity for 1440p gaming?

This model only exists as a 16 GB 128-bit GDDR7 variant; there is no other capacity to select.

What does the 2587 MHz core clock mean once the card is installed in my system?

That is the rated boost clock; actual frequency will vary with workload, power limit and thermals inside your case.
