GIGABYTE
GIGABYTE GV-N5070WF3-12GD GeForce RTX 5070 12GB graphics card
A refurbished GeForce RTX 5070 with 12GB GDDR7 memory, 6144 CUDA cores and a 2512 MHz core clock on a PCI Express 5.0 interface
- InterfacePCI Express 5.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5070
- Core Clock2512 MHz
- CUDA Cores6144
- 12 GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
- Core clock reaches 2512 MHz with 6144 CUDA cores for compute performance
- PCI Express 5.0 interface provides high-throughput data transfer
- Triple-fan WindForce cooler fits 282 mm length in ATX builds

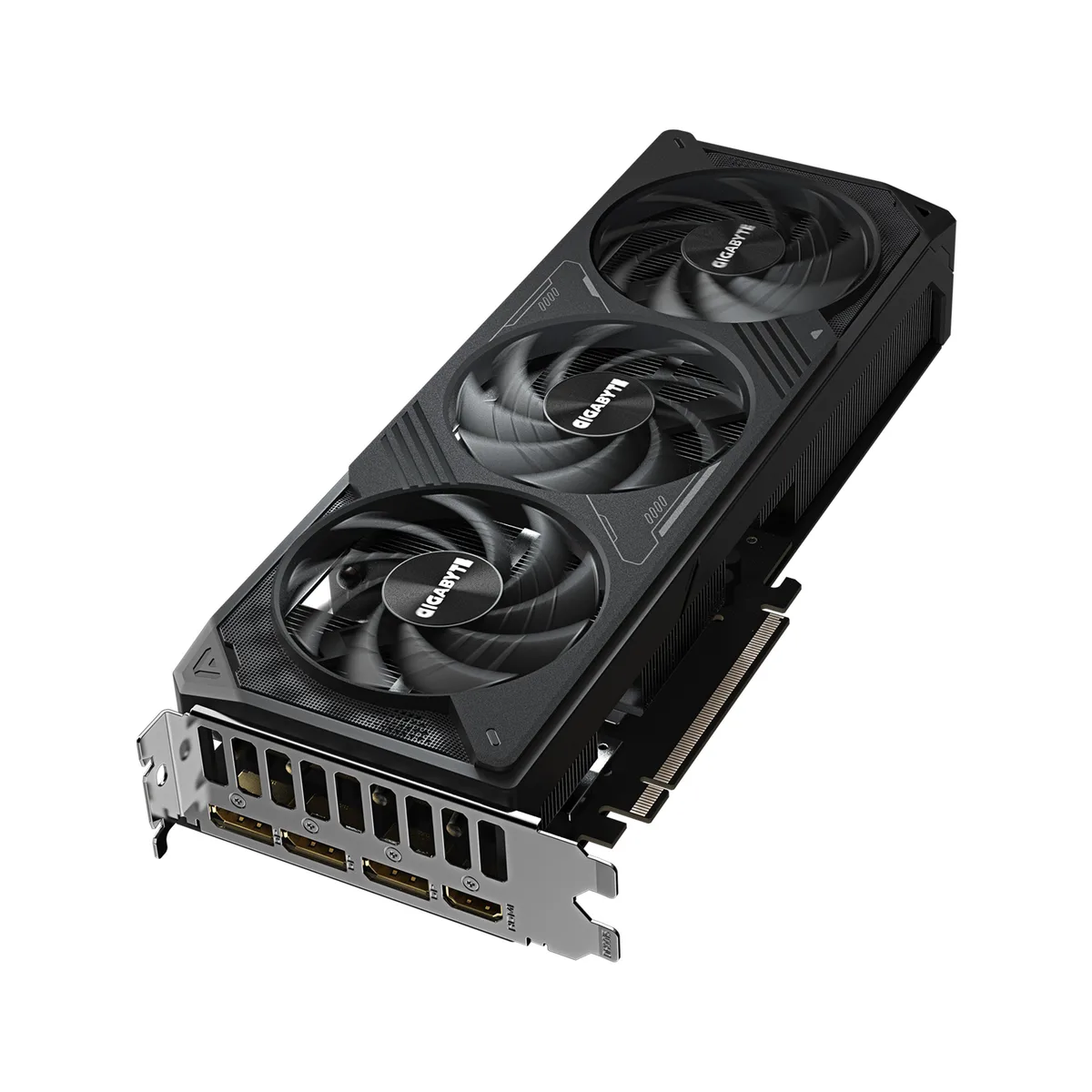

- HDMI 2.1b and three DisplayPort 2.1b outputs drive four displays up to 7680 x 4320
WindForce RTX 5070 12GB graphics card
The GIGABYTE WindForce GeForce RTX 5070 delivers 12GB of GDDR7 memory across a 192-bit interface. It targets PC builders who need a modern PCI Express 5.0 GPU for 1440p gaming and content creation workloads. The triple-fan cooler keeps the card within ATX dimensions at 282 mm length. A single 16-pin power connector draws from a recommended 750W supply.
Sustained load behaviour with 2512 MHz core clock
Under continuous load the GPU maintains its 2512 MHz core clock while the 28 Gbps memory feeds the 6144 CUDA cores. The WindForce triple-fan array moves heat away from the vapour chamber so frequencies stay stable during long rendering or gaming sessions. Thermal headroom remains consistent without throttle cycles. The 192-bit bus width matches the memory capacity for steady throughput.
12GB GDDR7 on a 192-bit bus decides fit
The 12GB GDDR7 frame buffer is the specification that determines whether this card suits your pipeline. It holds large textures and geometry for 1440p and entry 4K work, while the 192-bit width caps maximum bandwidth. If your projects exceed 12GB you will hit swapping; if they fit, the 28 Gbps speed feeds the compute units efficiently.
Highlights
- 12 GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
- Core clock reaches 2512 MHz with 6144 CUDA cores for compute performance
- PCI Express 5.0 interface provides high-throughput data transfer
- Triple-fan WindForce cooler fits 282 mm length in ATX builds
- HDMI 2.1b and three DisplayPort 2.1b outputs drive four displays up to 7680 x 4320
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | WindForce |
| Model | GV-N5070WF3-12GD |
| Part Number | GV-N5070WF3-12GD |
| Interface | PCI Express 5.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5070 |
| Core Clock | 2512 MHz |
| CUDA Cores | 6144 |
| Effective Memory Clock | 28 Gbps |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Recommended PSU Wattage | 750W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Features | Small Form Factor Ready |
| Form Factor | ATX |
| Max GPU Length | 282 mm |

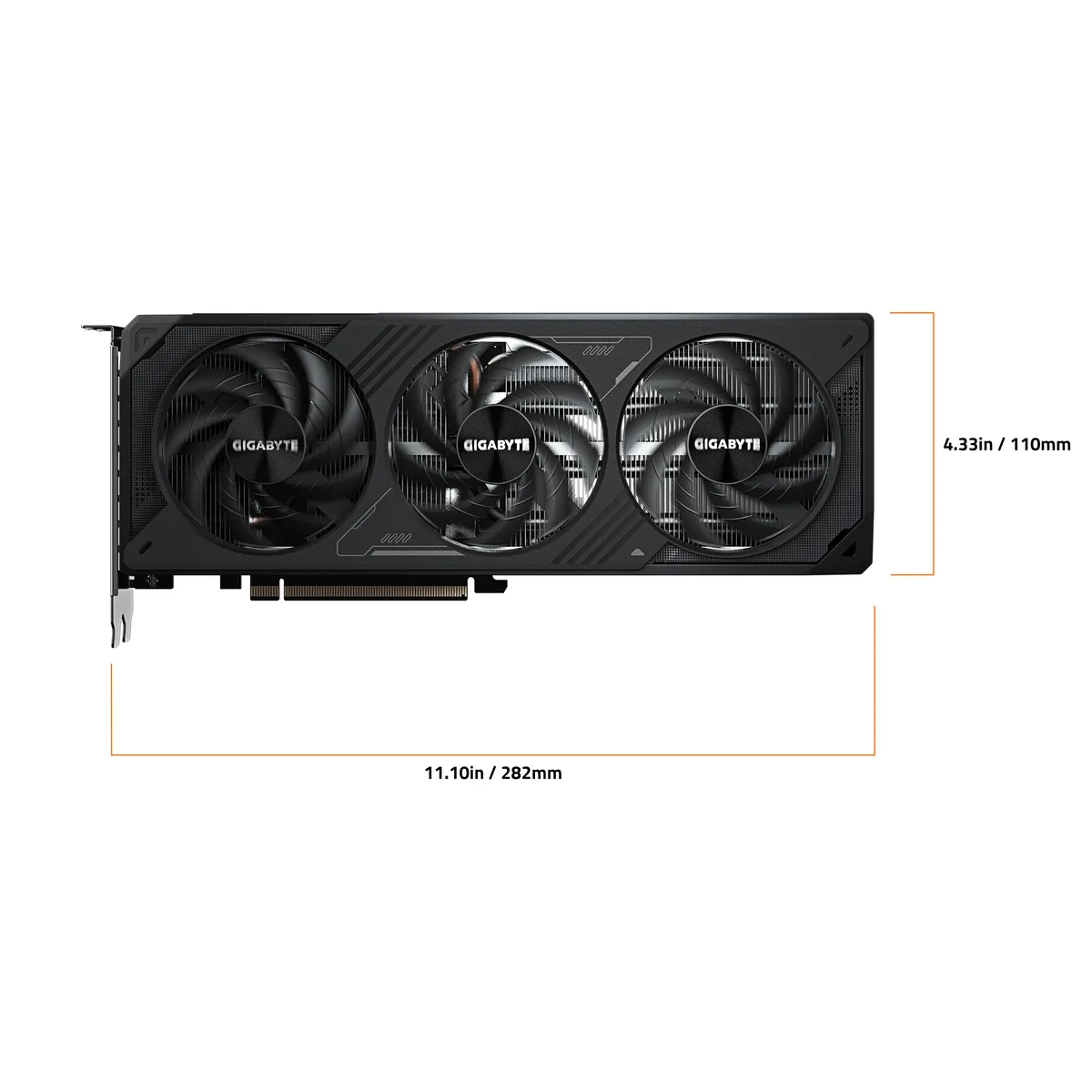

| Card Dimensions (L x H) | 282 x 110 x 50 mm |
| Shipping weight | 1.27 kg |
| Package size | 362 × 188 × 79 mm |
