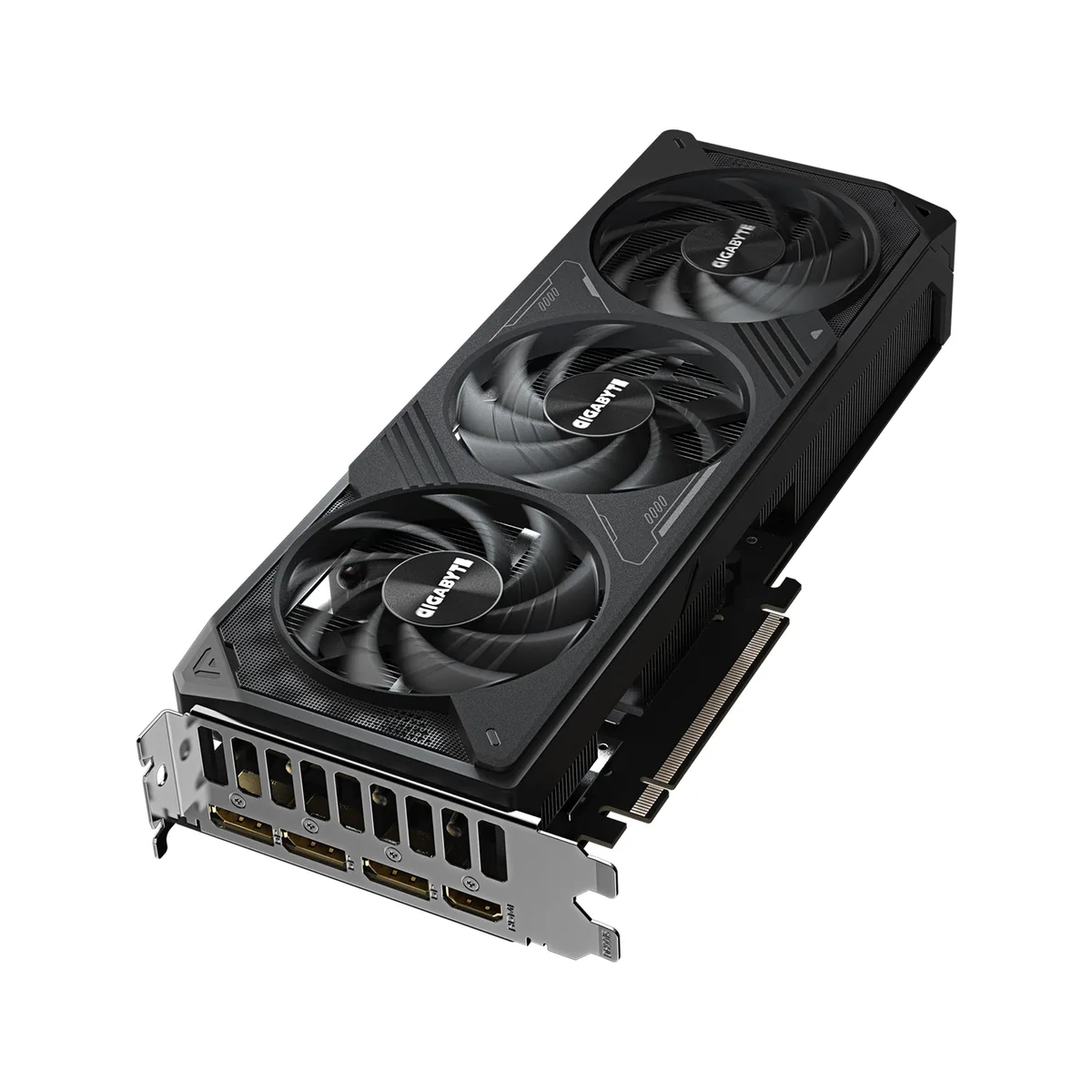

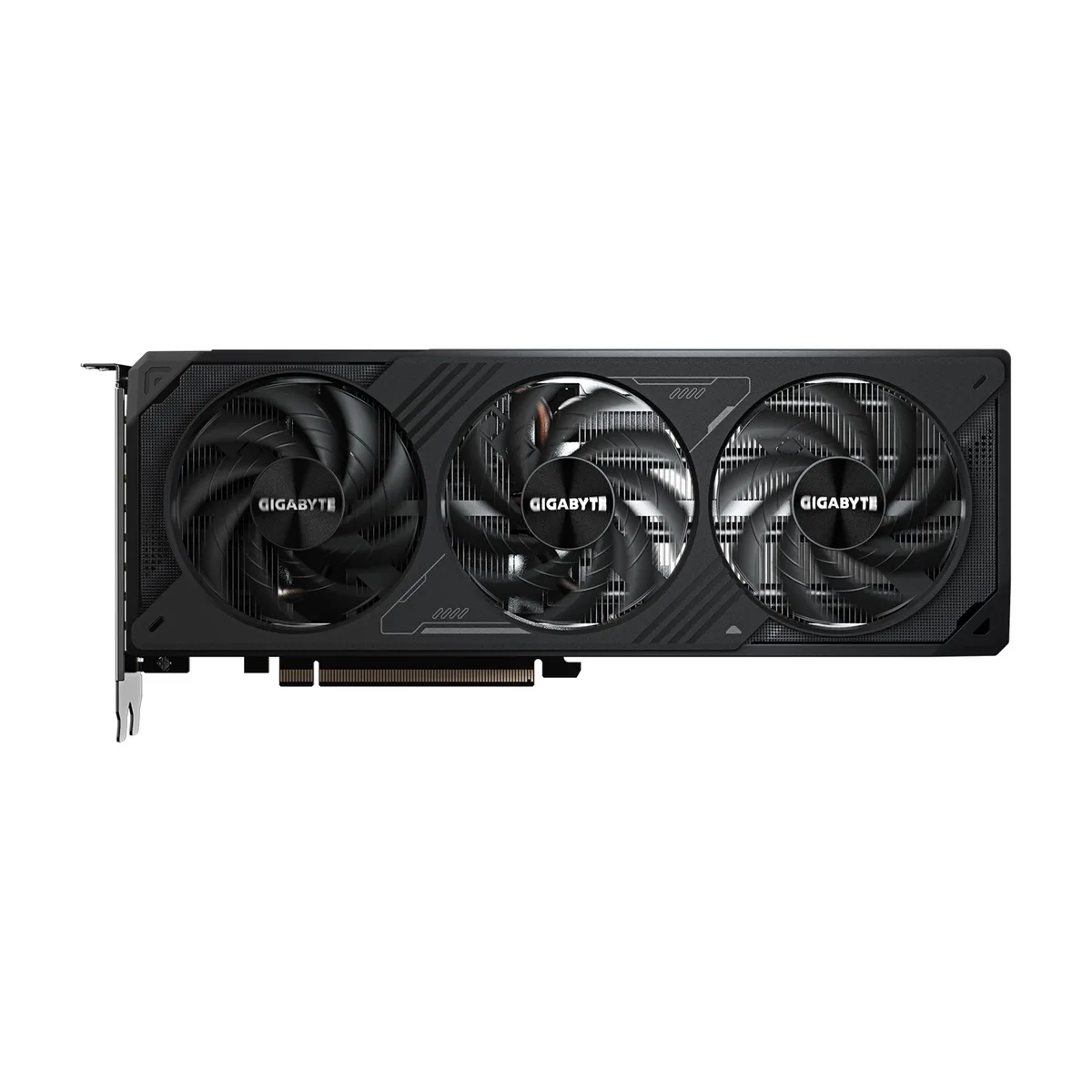

Black triple-fan graphics card, ATX form factor, 282mm long

GIGABYTE

GIGABYTE GV-N5070WF3-12GD GeForce RTX 5070 graphics card

SKU CH-9ANV-H0AP9 MPN GV-N5070WF3-12GD

GeForce RTX 5070 GPU with 12 GB GDDR7 memory, 6144 CUDA cores and a 2512 MHz core clock on a PCIe 5.0 interface

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070
  • Core Clock2512 MHz
  • CUDA Cores6144
  • 12 GB GDDR7 memory at 28 Gbps fuels high-resolution textures
  • 6144 CUDA cores accelerate rendering and AI workloads
  • PCI Express 5.0 interface delivers maximum bandwidth to the GPU
  • Triple-fan WindForce cooler keeps temperatures low in a 282 mm card
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays

WindForce RTX 5070 with 12 GB GDDR7

The GIGABYTE GV-N5070WF3-12GD is a GeForce RTX 5070 graphics card built for gamers and creators who need modern memory bandwidth. It connects through a PCI Express 5.0 slot and delivers 6144 CUDA cores with a 2512 MHz core clock. The 12 GB GDDR7 frame buffer runs on a 192-bit bus at 28 Gbps effective speed.

Triple-fan cooler and 16-pin power

The WindForce triple-fan cooler keeps the GPU within thermal limits during extended loads. A single 16-pin connector draws power from a 750 W supply, simplifying cable routing compared to multi-connector designs. The card also supports HDCP and is marked virtual-reality ready for headset use.

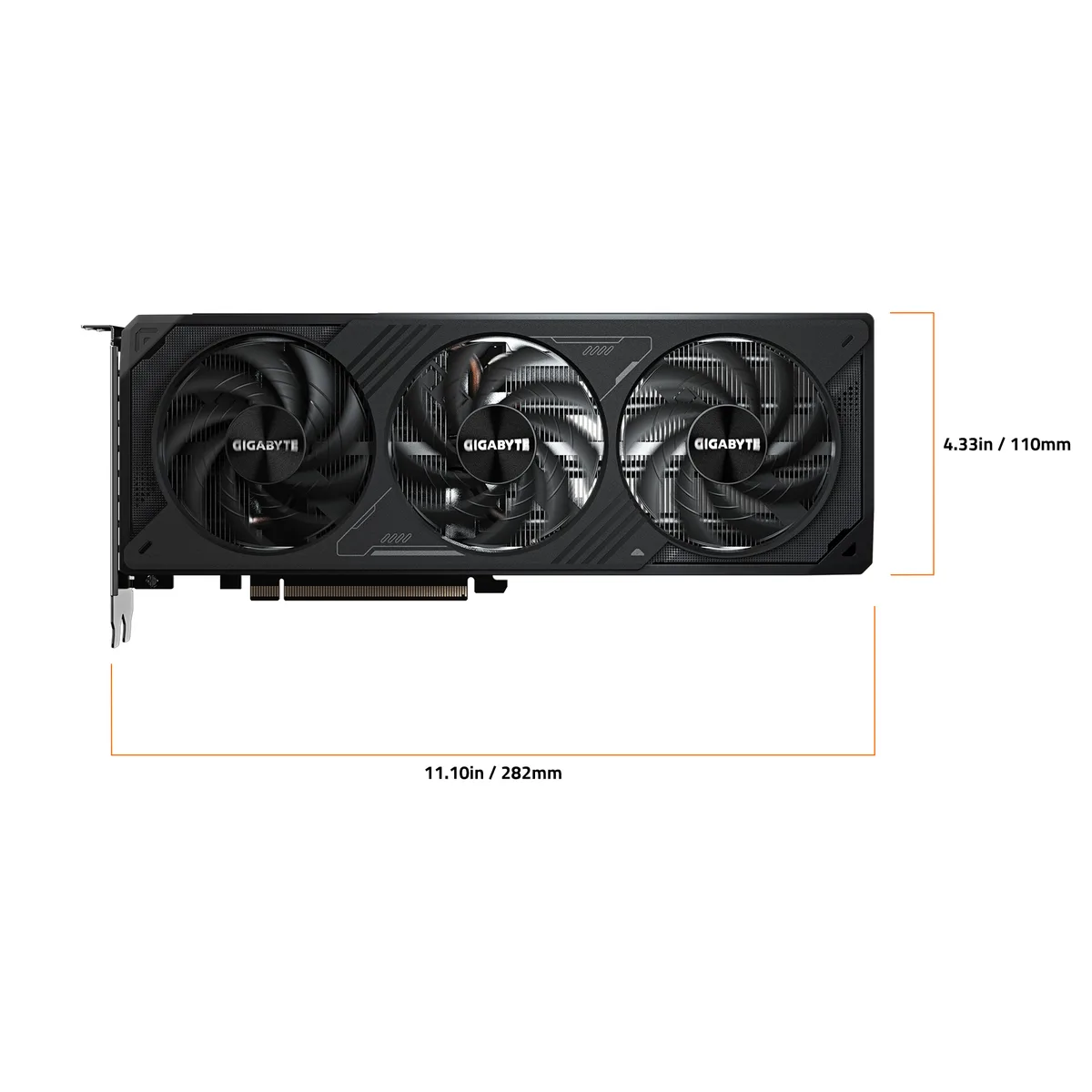

ATX form factor at 282 mm length

Measuring 282 mm long, the board fits most ATX cases but can exceed compact chassis limits. Installation requires a free PCIe 5.0 x16 slot and enough clearance for the 50 mm thickness. Builders should verify case length and power-cable bend radius before mounting.

Highlights

  • 12 GB GDDR7 memory at 28 Gbps fuels high-resolution textures
  • 6144 CUDA cores accelerate rendering and AI workloads
  • PCI Express 5.0 interface delivers maximum bandwidth to the GPU
  • Triple-fan WindForce cooler keeps temperatures low in a 282 mm card
  • HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N5070WF3-12GD
Part NumberGV-N5070WF3-12GD
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070
Core Clock2512 MHz
CUDA Cores6144
Effective Memory Clock28 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesSmall Form Factor Ready
Form FactorATX
Max GPU Length282 mm
Card Dimensions (L x H)282 x 110 x 50 mm
Shipping weight1.27 kg
Package size362 × 188 × 79 mm

Questions about this item

Will the 16-Pin power connector need periodic inspection or replacement?

The 16-Pin connector is rated for the card's power draw; inspect it during routine dust cleaning to ensure it remains fully seated and free of debris.

What thermal limit appears first when the 6144 CUDA cores run at 2512 MHz continuously?

The GPU will hit its factory temperature target before power or clock limits, causing the triple-fan cooler to ramp up and hold the core at its thermal ceiling.

How loud and hot does the triple-fan WindForce cooler get during all-day loads?

Under sustained load the three fans spin up to move heat from the 12GB GDDR7 memory and GPU, keeping the card within its thermal target while fan noise rises to an audible but not excessive level.
