Black triple-fan graphics card with silver accents and WindForce branding

GIGABYTE

GIGABYTE GV-N5070WF3OC-12GD GeForce RTX 5070 graphics card

SKU CH-6G67-YFY1A MPN GV-N5070WF3OC-12GD

GeForce RTX 5070 graphics card with 12 GB GDDR7 memory on a 192-bit bus and 6144 CUDA cores clocked at 2542 MHz

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070
  • Core Clock2542 MHz
  • CUDA Cores6144

Option WindForce

Struck-through versions exist but are not stocked here.

Edition RTX 5070 12G OC

  • RTX 5070 12G OC
  • RTX 5070 12G

Struck-through versions exist but are not stocked here.

  • 12 GB GDDR7 memory handles 4K textures at 28 Gbps
  • 6144 CUDA cores accelerate ray-traced workloads
  • Core clock reaches 2542 MHz for higher frame rates
  • PCIe 5.0 interface doubles host bandwidth to 5.0 GT/s
  • Four display outputs via HDMI 2.1b and three DisplayPort 2.1b

WindForce GeForce RTX 5070 12GB

This GIGABYTE WindForce graphics card uses the NVIDIA Blackwell architecture and a GeForce RTX 5070 GPU. It targets gamers and creators who want 12GB GDDR7 memory on a 192-bit interface. The board delivers 6144 CUDA cores and a 2542 MHz core clock for high frame rates and AI workloads.

WINDFORCE cooling and display outputs

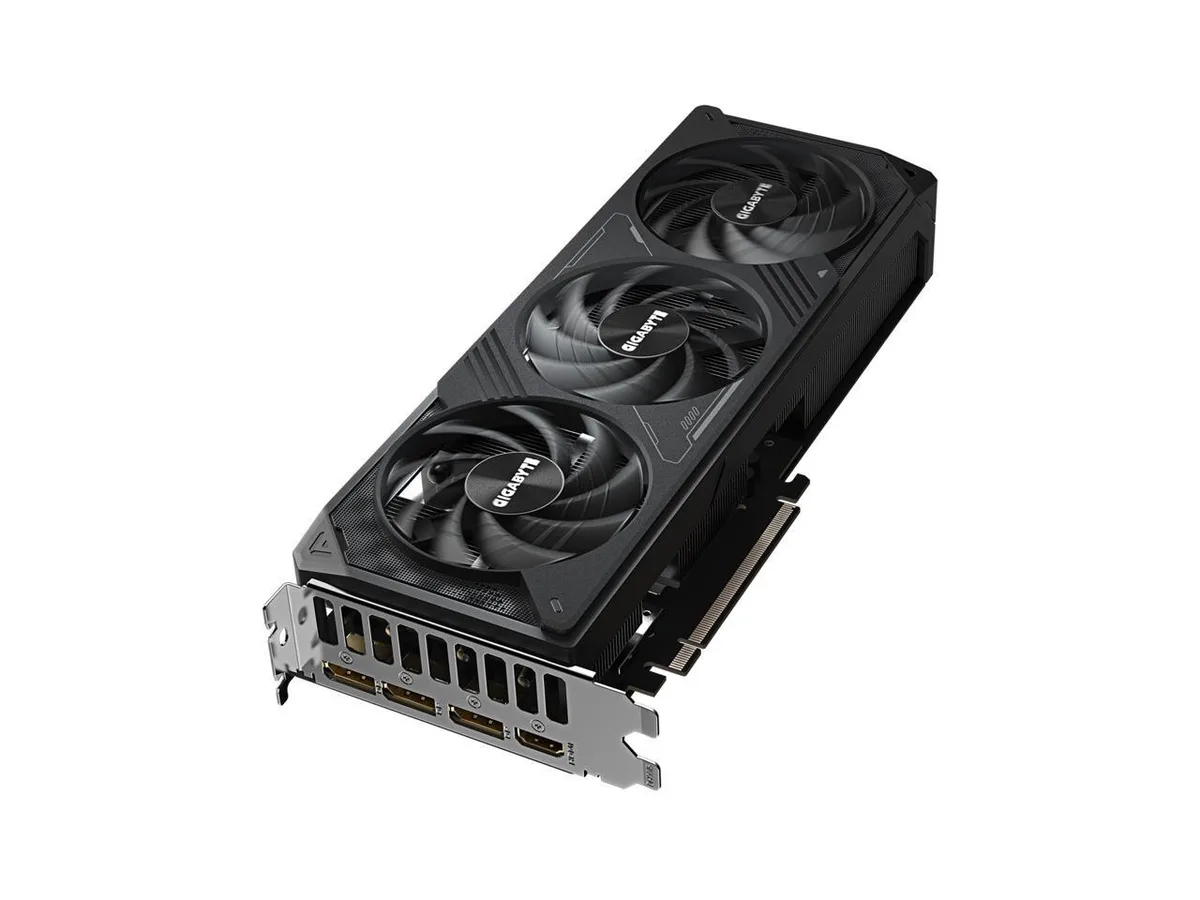

The WINDFORCE cooling system uses Hawk fans and server-grade thermal conductive gel to move heat away from the GPU. A reinforced structure adds rigidity during transport and installation. Video output comes from one HDMI 2.1b port and three DisplayPort 2.1b connectors, supporting up to four monitors simultaneously.

PCI Express 5.0 slot and power check

Verify that your motherboard provides a full-length PCI Express 5.0 slot and that your chassis has enough length clearance for a triple-fan card. Confirm the power supply carries the required 12VHPWR or PCIe 8-pin connectors for the GPU. Ensure case airflow can handle the heat output of a 12GB GDDR7 board.

Highlights

  • 12 GB GDDR7 memory handles 4K textures at 28 Gbps
  • 6144 CUDA cores accelerate ray-traced workloads
  • Core clock reaches 2542 MHz for higher frame rates
  • PCIe 5.0 interface doubles host bandwidth to 5.0 GT/s
  • Four display outputs via HDMI 2.1b and three DisplayPort 2.1b

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N5070WF3OC-12GD
Part NumberGV-N5070WF3OC-12GD
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070
Core Clock2542 MHz
CUDA Cores6144
Effective Memory Clock28 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesSmall Form Factor Ready
Form FactorATX
Max GPU Length282 mm

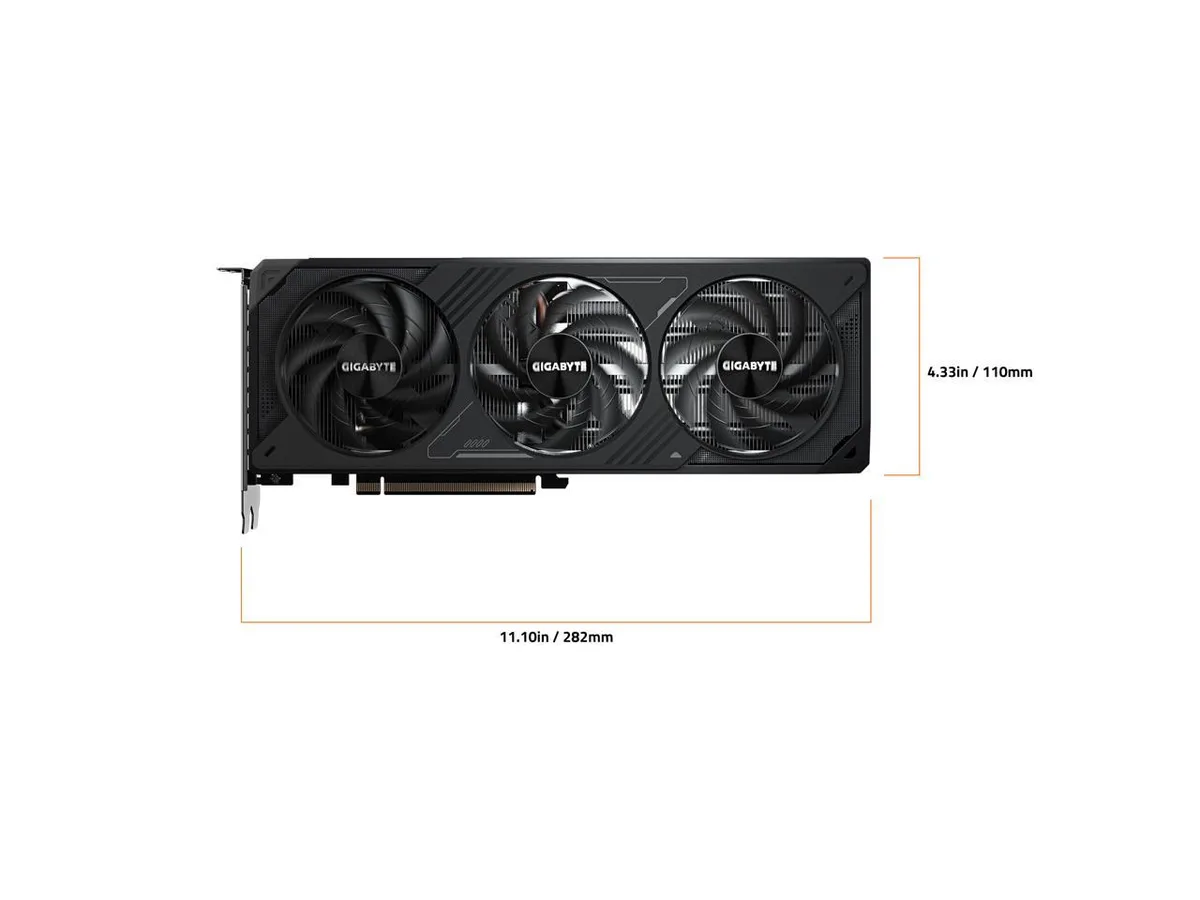

Card Dimensions (L x H)282 x 110 x 50 mm
Package Contents1. Quick guide
2. 1x 12V-2x6 to 2x PCIe 8pin adapter
Shipping weight1.27 kg
Package size362 × 191 × 83 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What bandwidth does the PCI Express 5.0 interface provide for the RTX 5070?

The PCI Express 5.0 interface supports the card's 28 Gbps memory speed and 6144 CUDA cores without bottlenecks in modern platforms.

What physical space and power connections does the GV-N5070WF3OC-12GD require?

The WINDFORCE triple-fan cooler occupies three slots and needs a 12VHPWR power connector plus case clearance for 12GB GDDR7 thermals.

Which driver step is often missed when installing this RTX 5070?

Install the latest NVIDIA app first to enable DLSS 4 and Tensor core features before launching games.
