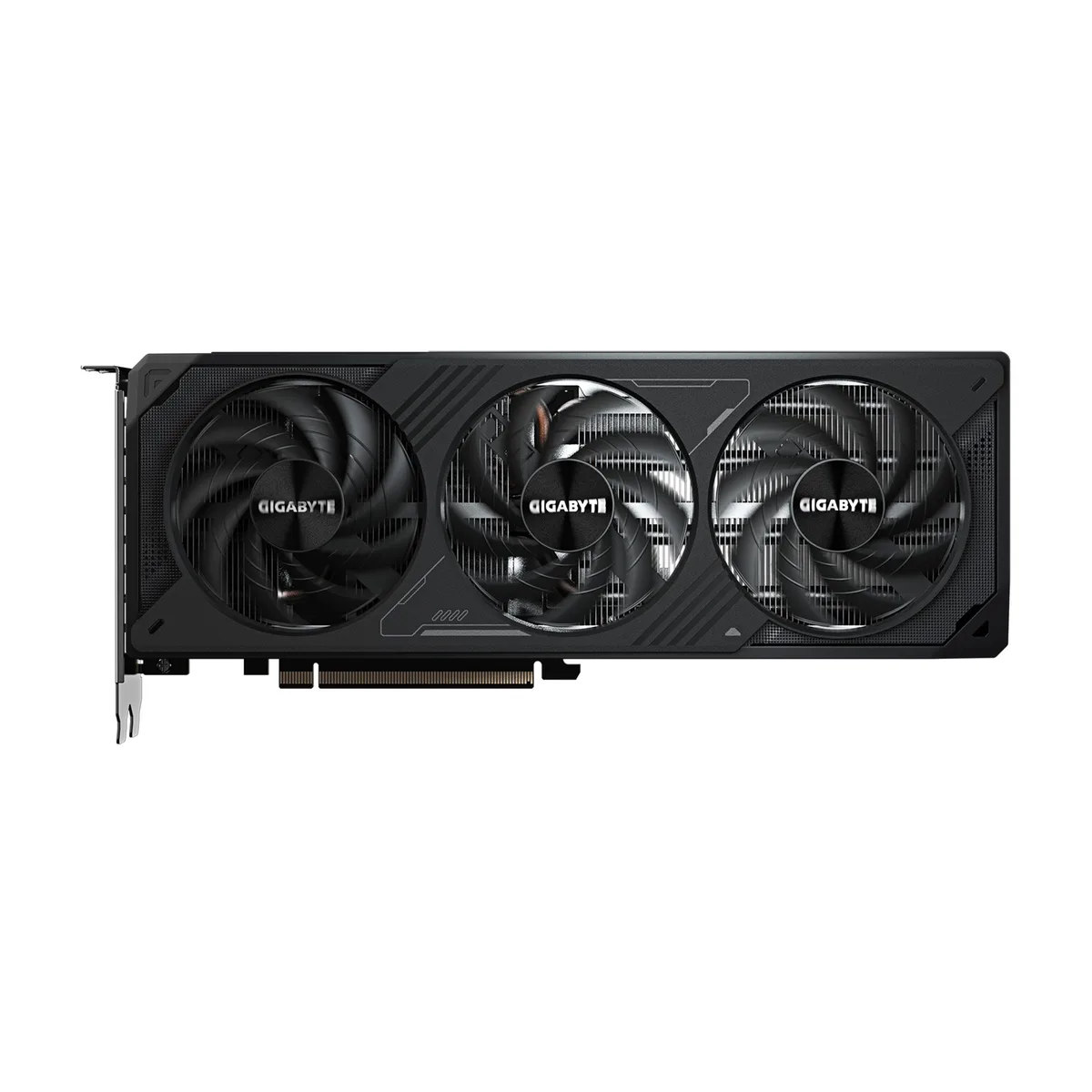

Black triple-fan graphics card, 282 mm long, silver heatsink visible through vents

GIGABYTE

GIGABYTE GV-N5070WF3OC-12GD WindForce RTX 5070 12GB graphics card

SKU CH-VDMV-8GC4N MPN GV-N5070WF3OC-12GD

GeForce RTX 5070 graphics card with 12 GB GDDR7 memory, 6144 CUDA cores, 2542 MHz core clock and triple-fan WindForce cooling on a PCIe 5.0 interface

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070
  • Core Clock2542 MHz
  • CUDA Cores6144
  • 12 GB GDDR7 memory at 28 Gbps for high-resolution textures
  • 6144 CUDA cores and 2542 MHz boost clock accelerate ray-tracing workloads
  • PCI Express 5.0 interface doubles host bandwidth versus previous link
  • Triple-fan WindForce cooler fits 282 mm length in standard ATX cases
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays

GeForce RTX 5070 12GB graphics card

The GIGABYTE WindForce GV-N5070WF3OC-12GD is a GeForce RTX 5070 graphics card with 12GB of GDDR7 memory on a 192-bit bus. It targets gamers and creators who want high frame rates at 1440p or entry 4K. The triple-fan cooler keeps the 2542 MHz boost clock stable under load.

Installation notes

The card uses a PCI Express 5.0 x16 slot and draws auxiliary power through a single 16-pin connector. A 750W power supply is recommended. Ensure the case can clear a 282 mm long ATX form-factor card and that the 16-pin cable is routed without sharp bends. Driver installation follows the standard NVIDIA package.

Pre-purchase checks

Verify the motherboard has a free PCIe 5.0 x16 slot and the chassis offers at least 282 mm of GPU length clearance. Confirm the power supply provides a native 16-pin connector or a certified adapter. Check that the display chain uses HDMI 2.1b or DisplayPort 2.1b to match the card's one HDMI and three DisplayPort outputs.

Highlights

  • 12 GB GDDR7 memory at 28 Gbps for high-resolution textures
  • 6144 CUDA cores and 2542 MHz boost clock accelerate ray-tracing workloads
  • PCI Express 5.0 interface doubles host bandwidth versus previous link
  • Triple-fan WindForce cooler fits 282 mm length in standard ATX cases
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive four 8K displays

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N5070WF3OC-12GD
Part NumberGV-N5070WF3OC-12GD
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070
Core Clock2542 MHz
CUDA Cores6144
Effective Memory Clock28 Gbps
Memory Size12GB
Memory Interface192-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesSmall Form Factor Ready
Form FactorATX
Max GPU Length282 mm

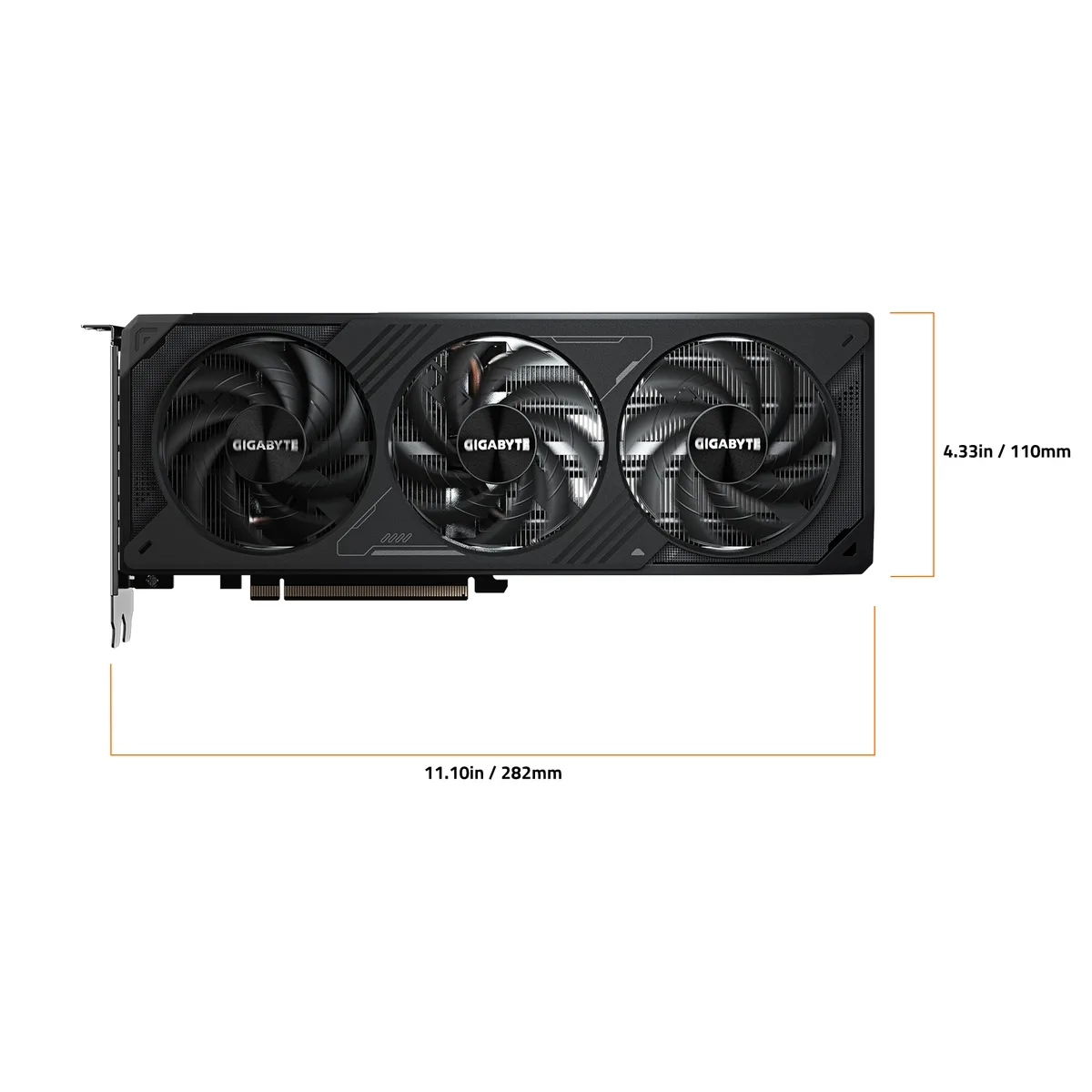

Card Dimensions (L x H)282 x 110 x 50 mm
Shipping weight1.27 kg
Package size362 × 191 × 83 mm

Questions about this item

How can I confirm the 2542 MHz core clock and 28 Gbps GDDR7 memory are running correctly after installing the GV-N5070WF3OC-12GD?

Open GPU-Z or the NVIDIA control panel and check the sensor tab; the core clock should read 2542 MHz and the memory clock 28 Gbps under load.

What comes in the box with the WindForce RTX 5070 12GB and what must I provide separately?

The card, a quick-install guide and a 16-pin power adapter are included; you must supply a 750 W PSU with a native 16-pin or 8-pin cables for the adapter.

Which version of this RTX 5070 should I choose if I need a compact build?

The GV-N5070WF3OC-12GD is Small Form Factor Ready at 282 mm length, so it fits most compact ATX cases that clear 282 mm.
