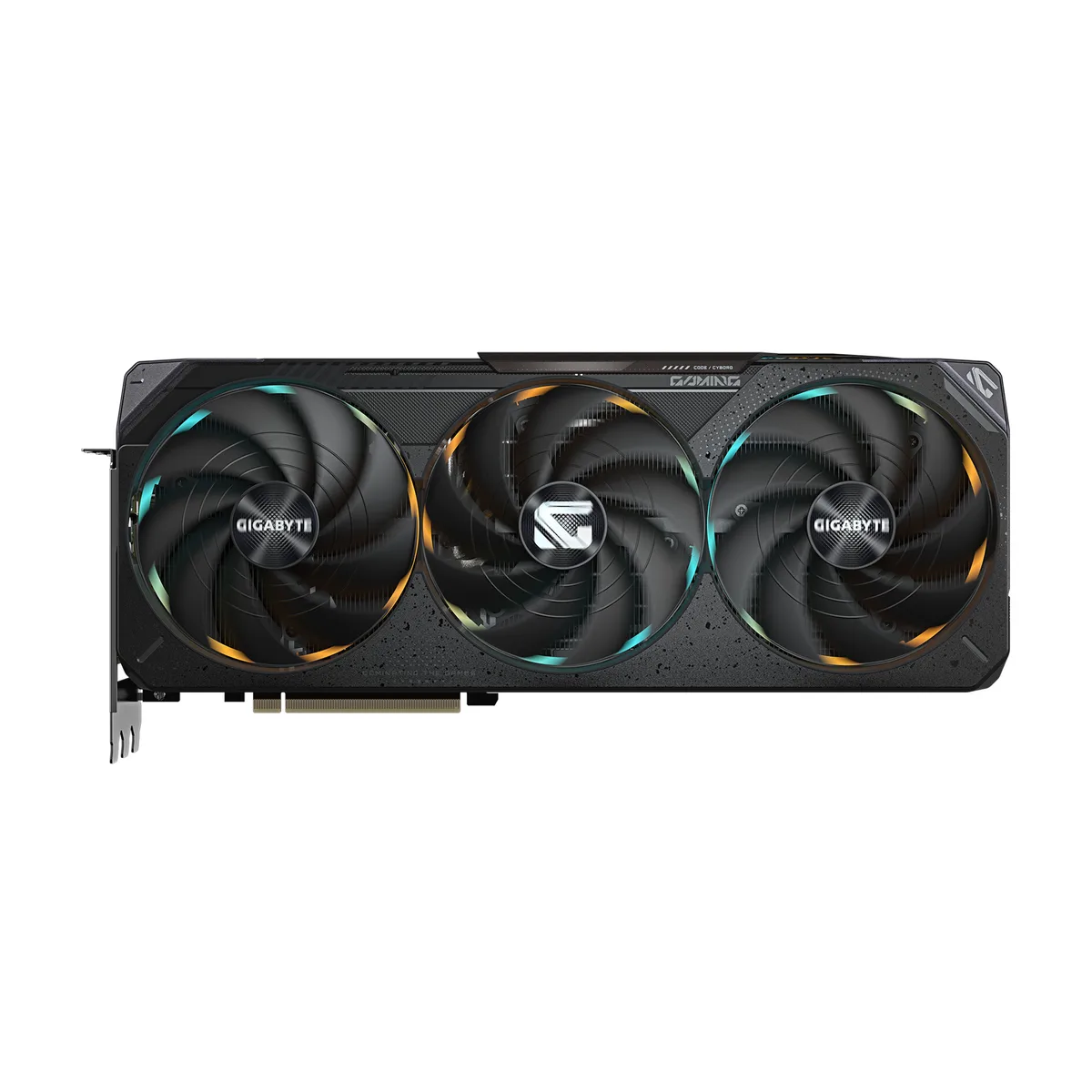

Black triple-fan graphics card, 342 mm long, 3.5-slot cooler

GIGABYTE

GIGABYTE GV-N507TGAMING OC-16GD graphics card

SKU CH-1MPS-9CVDM MPN GV-N507TGAMING OC-16GD

GeForce RTX 5070 Ti graphics card with 16GB GDDR7 memory, 8960 CUDA cores, PCIe 5.0 interface and triple-fan cooling

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070 Ti
  • CUDA Cores8960
  • Effective Memory Clock28 Gbps
  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 8960 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 interface doubles host bandwidth versus 4.0
  • 1 HDMI 2.1b plus 3 DisplayPort 2.1b drive four 8K displays
  • Triple-fan cooler keeps thermals in check inside a 3.5-slot ATX design

GeForce RTX 5070 Ti Gaming card

The GIGABYTE GV-N507TGAMING OC-16GD is a graphics card built on the NVIDIA GeForce RTX 50 Series architecture. It carries 8960 CUDA cores and 16GB of GDDR7 memory across a 256-bit interface running at 28 Gbps. The PCI Express 5.0 interface connects it to modern platforms. This hardware targets gamers and creators who need high frame rates at 4K resolution.

Sustained load behaviour

The triple-fan cooler and 3.5-slot thickness are designed to move heat away from the GPU during extended sessions. A 750W power supply is recommended to feed the single 16-pin connector without voltage droop. The card occupies 342 mm of length, so airflow inside the case remains the limiting factor for long-term clock stability.

Installation notes

Mounting requires a case that accepts a 342 x 142 x 70 mm ATX card and clears 3.5 expansion slots. The single 16-pin power connector must seat fully or the system will not post. Builders often forget to check that their PSU includes the native 12VHPWR cable or a certified adapter. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1b ports for up to four monitors.

Highlights

  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 8960 CUDA cores accelerate ray-tracing and AI workloads
  • PCI Express 5.0 interface doubles host bandwidth versus 4.0
  • 1 HDMI 2.1b plus 3 DisplayPort 2.1b drive four 8K displays
  • Triple-fan cooler keeps thermals in check inside a 3.5-slot ATX design

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-N507TGAMING OC-16GD
Part NumberGV-N507TGAMING OC-16GD
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070 Ti
CUDA Cores8960
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length342 mm

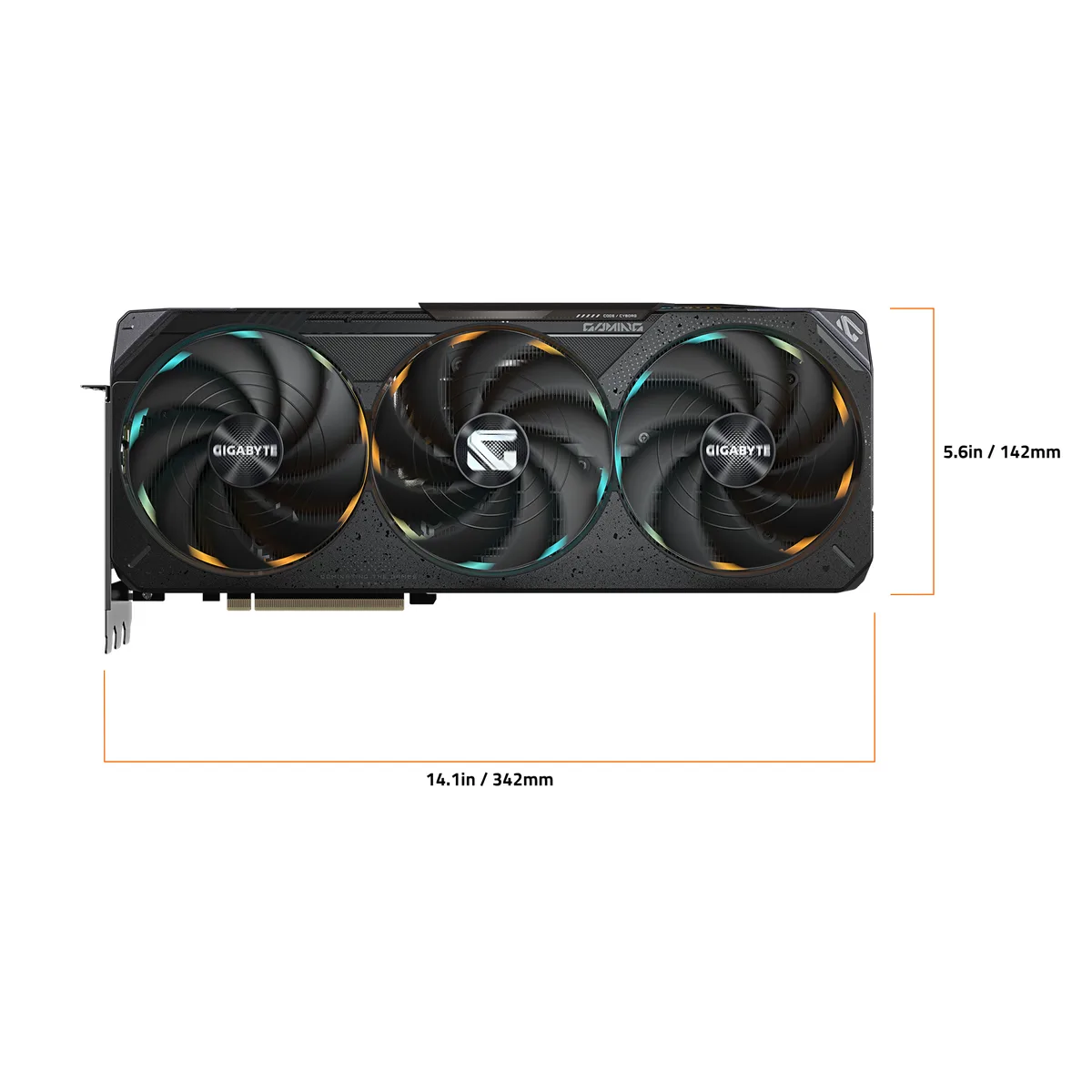

Card Dimensions (L x H)342 x 142 x 70 mm
Slot Width3.5 Slots
Shipping weight2.81 kg
Package size445 × 274 × 127 mm

Questions about this item

How much power does the 16-Pin connector draw under full load?

The card requires a 750W power supply and connects through a single 16-Pin connector to deliver the necessary wattage for the RTX 5070 Ti GPU.

What power supply wattage and connector does the RTX 5070 Ti need?

A 750W PSU with one 16-Pin connector is recommended for the GV-N507TGAMING OC-16GD.

Will the 3.5-slot, 342 mm card fit beside my older PCIe 3.0 devices?

The card occupies 3.5 slots and measures 342 mm long; it runs at PCI Express 5.0 but is backward compatible with PCIe 3.0 motherboards.
