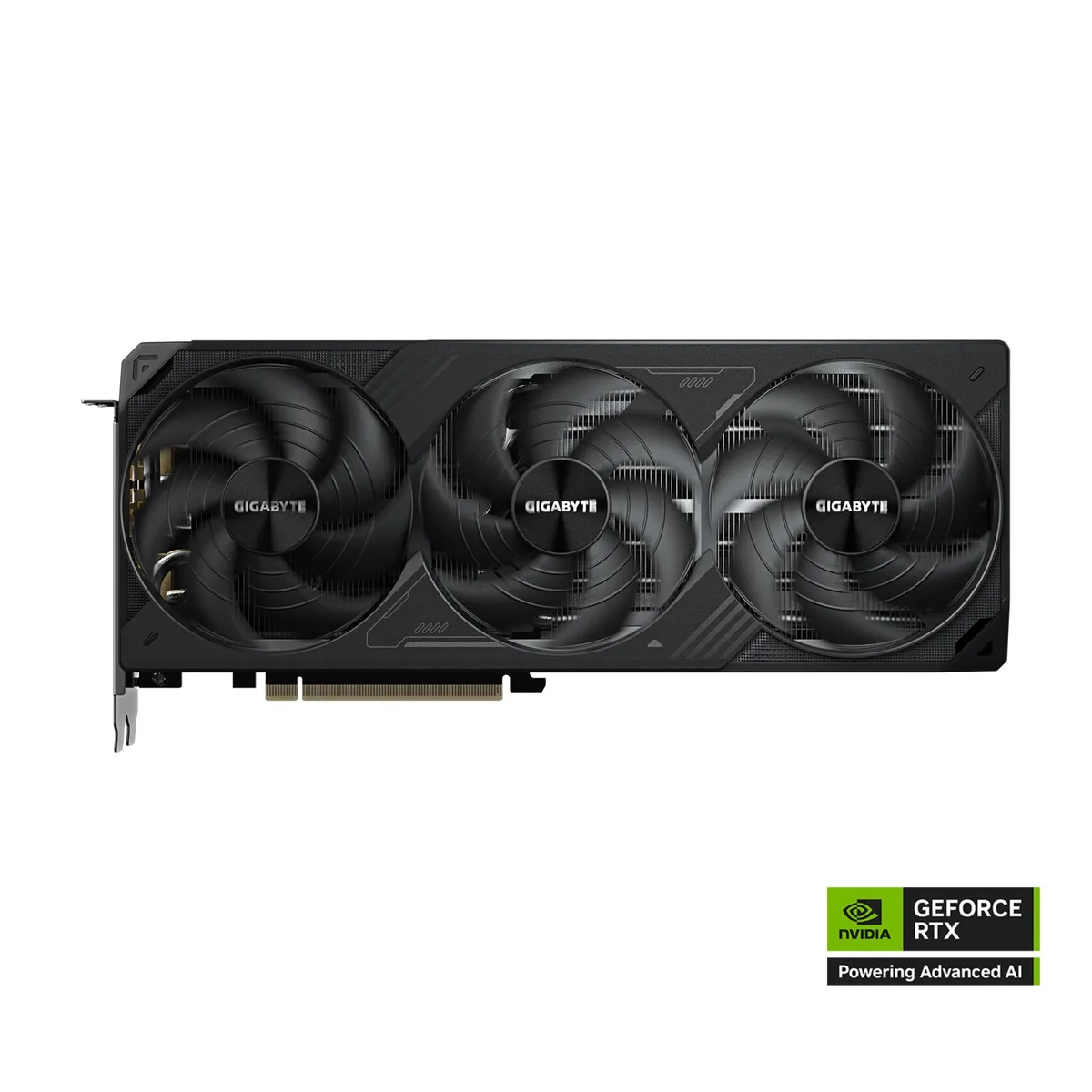

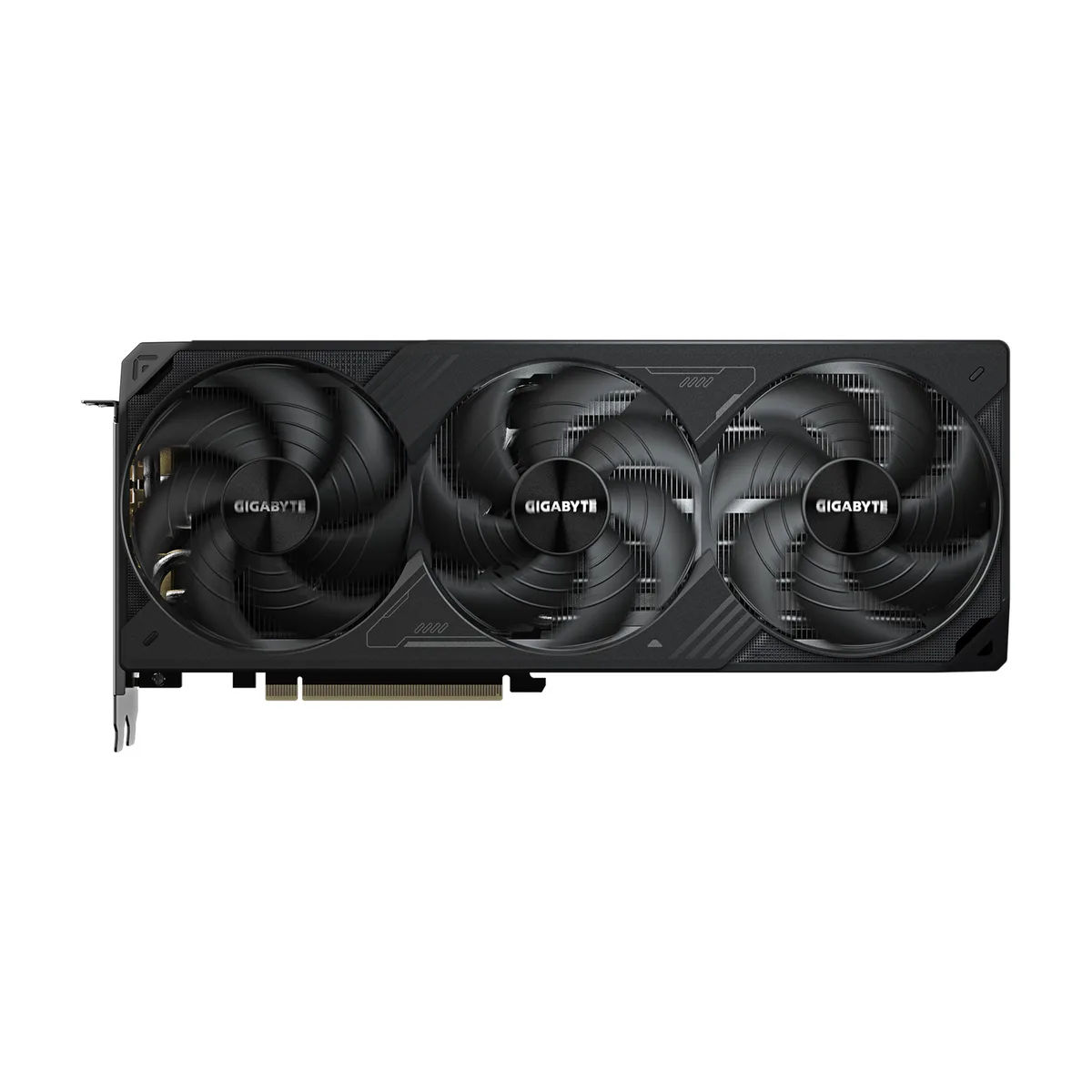

Black triple-fan graphics card, 304 mm long, 2.5-slot ATX form factor

GIGABYTE

GIGABYTE GV-N507TWF3-16GD GeForce RTX 5070 Ti graphics card

SKU CH-E3FV-127WK MPN GV-N507TWF3-16GD

16 GB GDDR7 GPU with 8960 CUDA cores, 2452 MHz boost clock and triple-fan cooling for 4K gaming

  • InterfacePCI Express 5.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5070 Ti
  • Core Clock2452 MHz
  • CUDA Cores8960
  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures
  • 8960 CUDA cores accelerate ray-tracing and AI workloads
  • Core clock of 2452 MHz delivers responsive frame rates
  • PCI Express 5.0 interface doubles bandwidth over previous link
  • Triple-fan WindForce cooler keeps thermals steady in 2.5-slot form factor

16 GB GDDR7 RTX 5070 Ti

The GIGABYTE WindForce GV-N507TWF3-16GD is a graphics card built around the NVIDIA GeForce RTX 5070 Ti GPU. It delivers 8960 CUDA cores clocked at 2452 MHz and 16 GB of GDDR7 memory on a 256-bit bus. The card targets enthusiasts who need high frame rates at 4K resolution and creators who rely on GPU acceleration.

PCI Express 5.0 interface limits

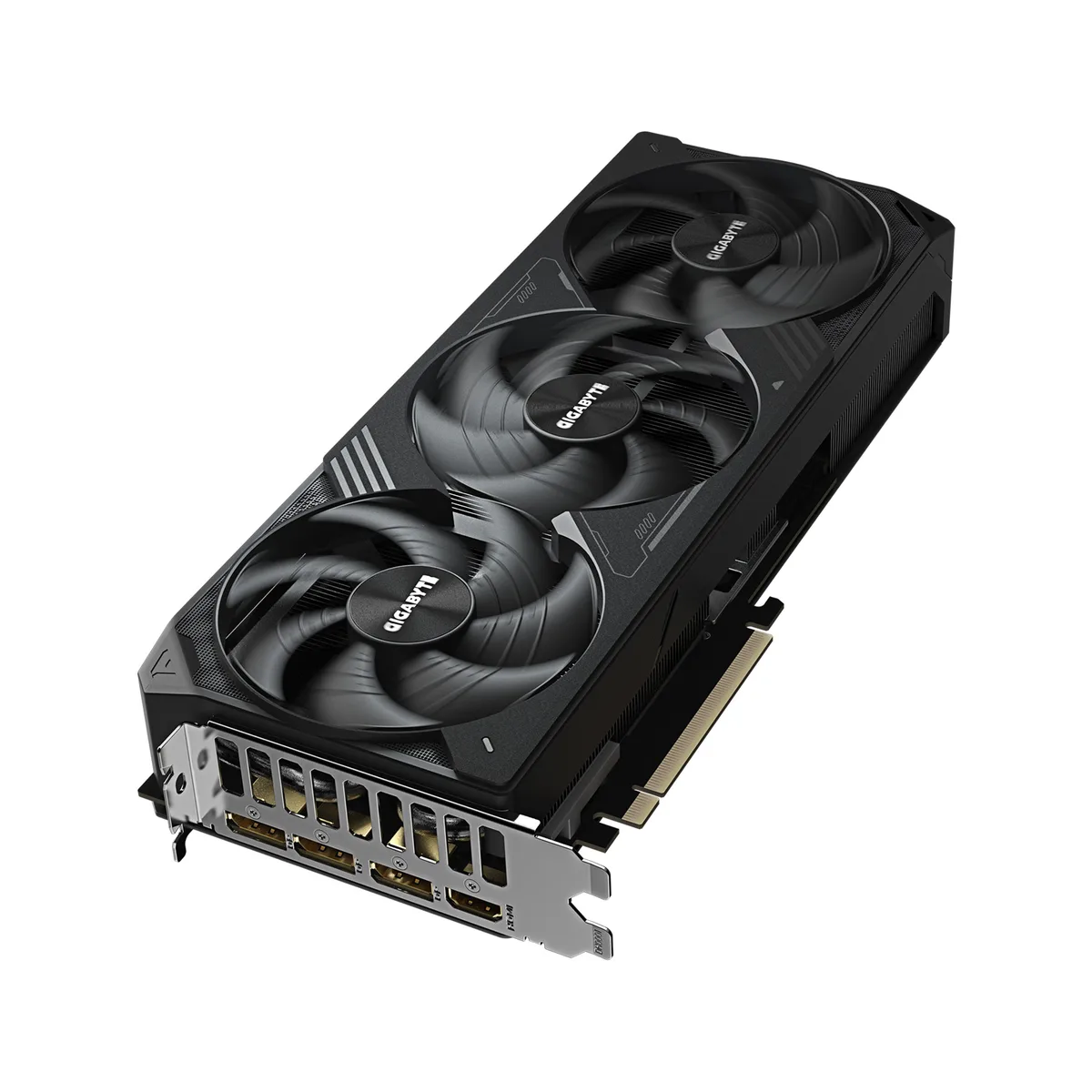

The board uses a PCI Express 5.0 x16 slot for maximum host bandwidth. Performance scales with the platform; older PCIe 4.0 or 3.0 motherboards will cap throughput at their respective ceiling. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1b connectors, supporting up to four simultaneous monitors at 7680 x 4320 resolution.

2.5-slot ATX installation notes

The triple-fan cooler occupies 2.5 expansion slots and measures 304 mm long, so verify case clearance before fitting. A single 16-pin power connector draws from a 750 W or larger PSU. Ensure the connector seats fully and that airflow reaches the heatsink; obstructed intake is the most common cause of thermal throttling.

Highlights

  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures
  • 8960 CUDA cores accelerate ray-tracing and AI workloads
  • Core clock of 2452 MHz delivers responsive frame rates
  • PCI Express 5.0 interface doubles bandwidth over previous link
  • Triple-fan WindForce cooler keeps thermals steady in 2.5-slot form factor

Specifications

BrandGIGABYTE
SeriesWindForce
ModelGV-N507TWF3-16GD
Part NumberGV-N507TWF3-16GD
InterfacePCI Express 5.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5070 Ti
Core Clock2452 MHz
CUDA Cores8960
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage750W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesSmall Form Factor Ready
Form FactorATX
Max GPU Length304 mm

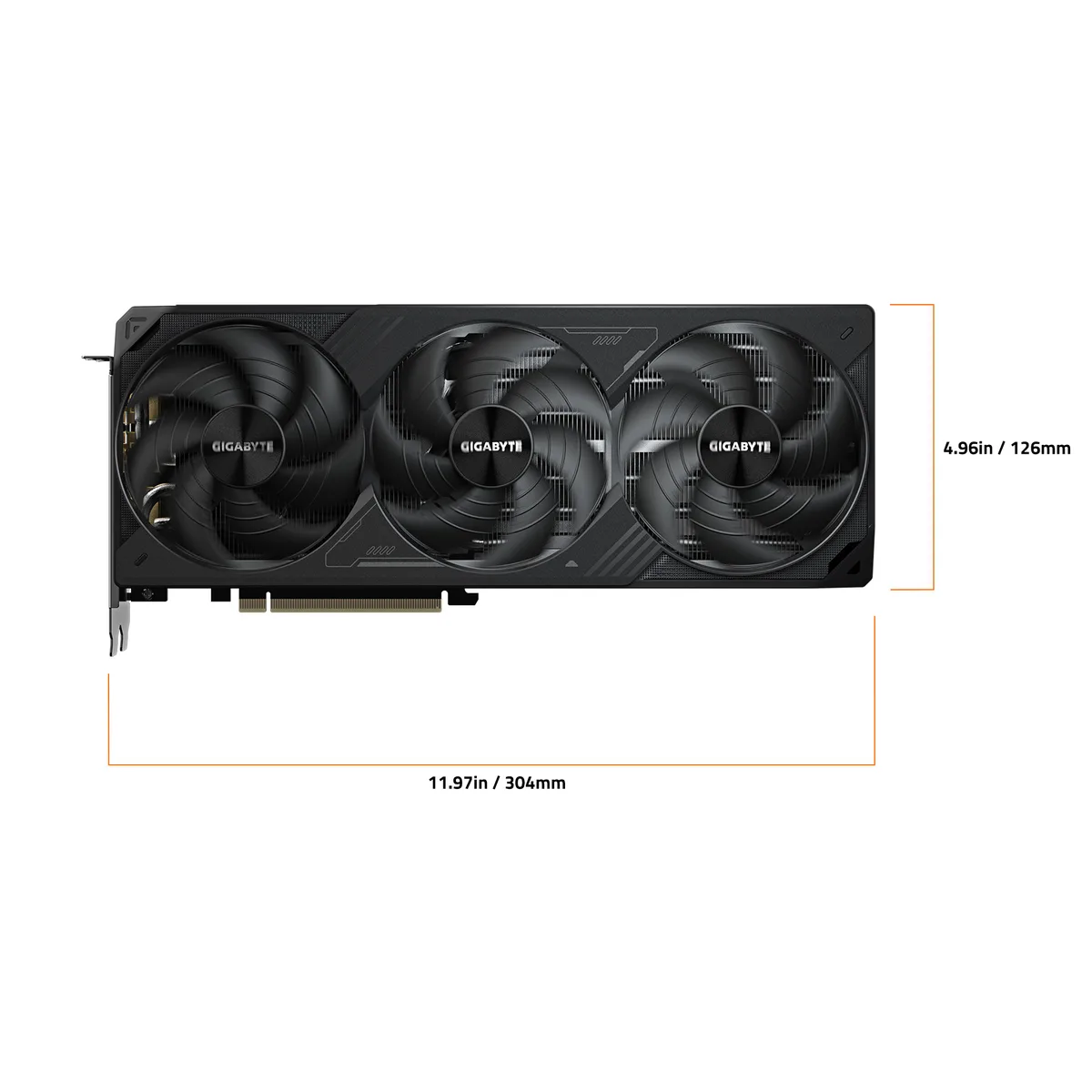

Card Dimensions (L x H)304 x 126 x 50 mm
Slot Width2.5 Slots
Shipping weight1.93 kg
Package size406 × 241 × 109 mm

Questions about this item

Should I choose the 16GB GDDR7 version or a smaller capacity?

This model only ships with 16GB of GDDR7 on a 256-bit bus, so there is no smaller capacity to select.

What does the 2452 MHz core clock mean once the card is installed?

The 2452 MHz boost clock is the peak frequency the GPU targets under load; actual sustained clocks will vary with temperature, power limit and workload.

How does the PCI Express 5.0 interface affect real-world throughput?

The card uses a PCIe 5.0 x16 slot, providing double the lane bandwidth of PCIe 4.0 for data transfers between GPU and system memory.
