GIGABYTE
GIGABYTE GV-N5080AERO OC-16GD graphics card
A GeForce RTX 5080 GPU with 16GB GDDR7 memory, PCI Express 5.0 interface and four display outputs supporting 7680 x 4320 resolution
- InterfacePCI Express 5.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5080
- Effective Memory Clock32 Gbps
- Memory Size16GB
- 16 GB GDDR7 memory at 32 Gbps for high-bandwidth workloads
- 256-bit memory interface supports 4K and 8K gaming at 7680 x 4320
- PCI Express 5.0 interface doubles bandwidth over previous standard
- HDMI 2.1b and three DisplayPort 2.1a outputs drive four displays
- WINDFORCE cooling keeps the RTX 5080 GPU stable under load
AERO GeForce RTX 5080 16GB
The GIGABYTE AERO GeForce RTX 5080 is a graphics card built for creators and gamers who need high frame rates at 4K resolution. It uses the NVIDIA GeForce RTX 50 Series GPU with 16GB of memory. The silver finish suits professional workstation builds.
32 Gbps GDDR7 on 256-Bit bus
The single specification that decides fit is the memory subsystem: 16GB GDDR7 running at 32 Gbps across a 256-Bit interface. This bandwidth feeds the RTX 5080 core for 4K gaming and heavy compute workloads. The PCI Express 5.0 link matches modern platform throughput.

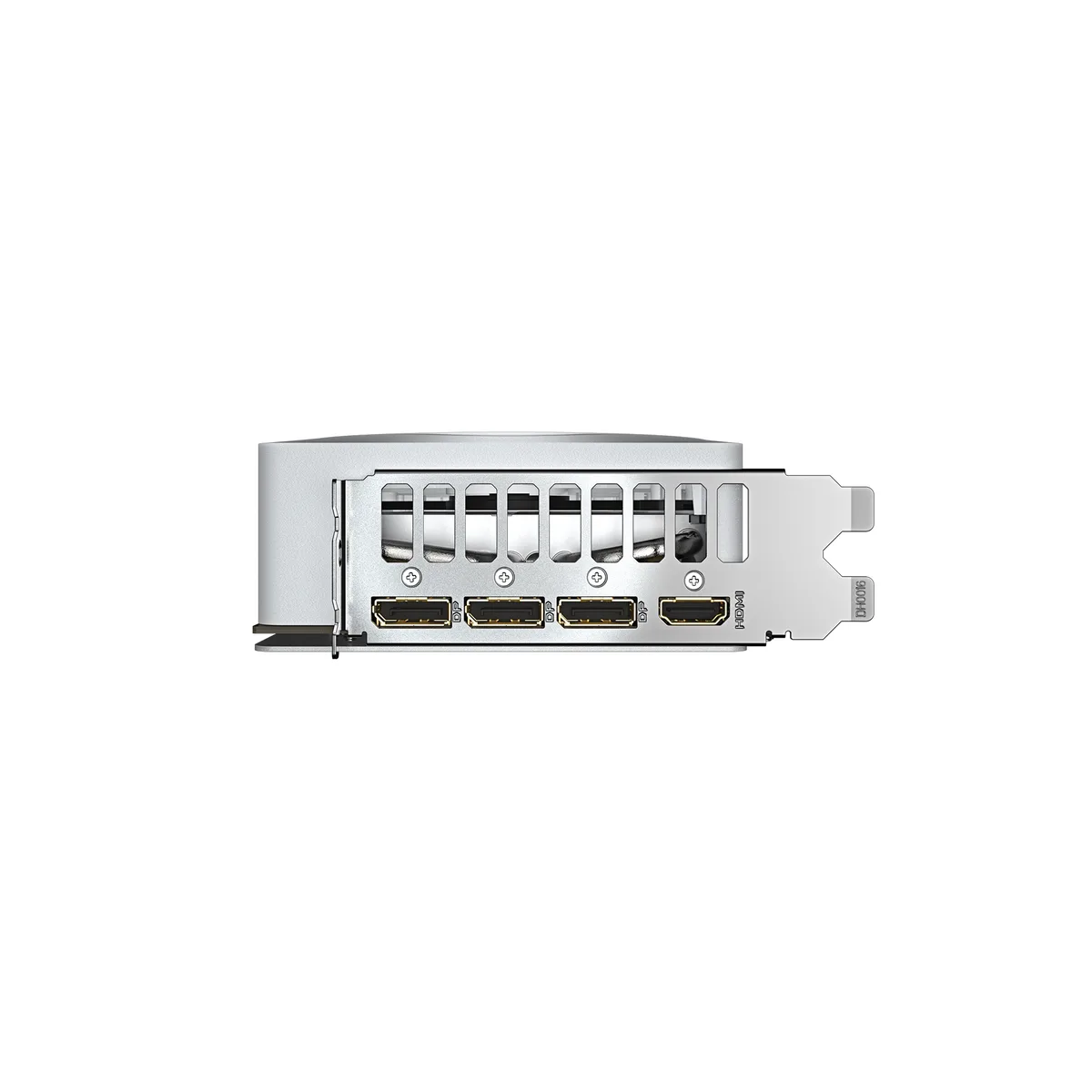

HDMI 2.1b plus three DisplayPort 2.1a
The output cluster drives up to four displays at 7680 x 4320 resolution. One HDMI 2.1b port and three DisplayPort 2.1a connectors handle high-refresh 4K panels or multi-monitor arrays. OpenGL 4.6 and VR readiness complete the feature set.
Highlights
- 16 GB GDDR7 memory at 32 Gbps for high-bandwidth workloads
- 256-bit memory interface supports 4K and 8K gaming at 7680 x 4320
- PCI Express 5.0 interface doubles bandwidth over previous standard
- HDMI 2.1b and three DisplayPort 2.1a outputs drive four displays
- WINDFORCE cooling keeps the RTX 5080 GPU stable under load
Specifications
| Brand | GIGABYTE |
|---|---|
| Series | AERO |
| Model | GV-N5080AERO OC-16GD |
| Part Number | GV-N5080AERO OC-16GD |
| Interface | PCI Express 5.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5080 |
| Effective Memory Clock | 32 Gbps |
| Memory Size | 16GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR7 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1a |
| Color | Silver |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Thermal Design Power | 360W |
| Recommended PSU Wattage | 850W |
| Power Connector | 1 x 16-Pin |
| HDCP Ready | Yes |
| Features | Small Form Factor Ready |
| Form Factor | ATX |
| Max GPU Length | 304 mm |
| Card Dimensions (L x H) | 304 x 126 x 50 mm |
| Shipping weight | 0.84 kg |
| Package size | 404 × 244 × 94 mm |
Questions about this item
How does the 32 Gbps memory clock affect performance in a built system?
The 32 Gbps effective clock on the 16GB GDDR7 frame buffer provides high bandwidth for 4K and 8K workloads, letting the RTX 5080 GPU move large textures and frame data quickly during gaming or rendering.
What does the PCI Express 5.0 interface mean for real-world throughput?
The PCIe 5.0 x16 connection doubles the per-lane signalling rate versus PCIe 4.0, giving the card maximum bus bandwidth for high-resolution assets and compute tasks on compatible motherboards.
What clearance and power connectors does the AERO 5080 need to fit in a case?
The card occupies a standard dual-slot width and draws power through a single 12VHPWR connector; verify your chassis length limit and power-supply cable before installing.
