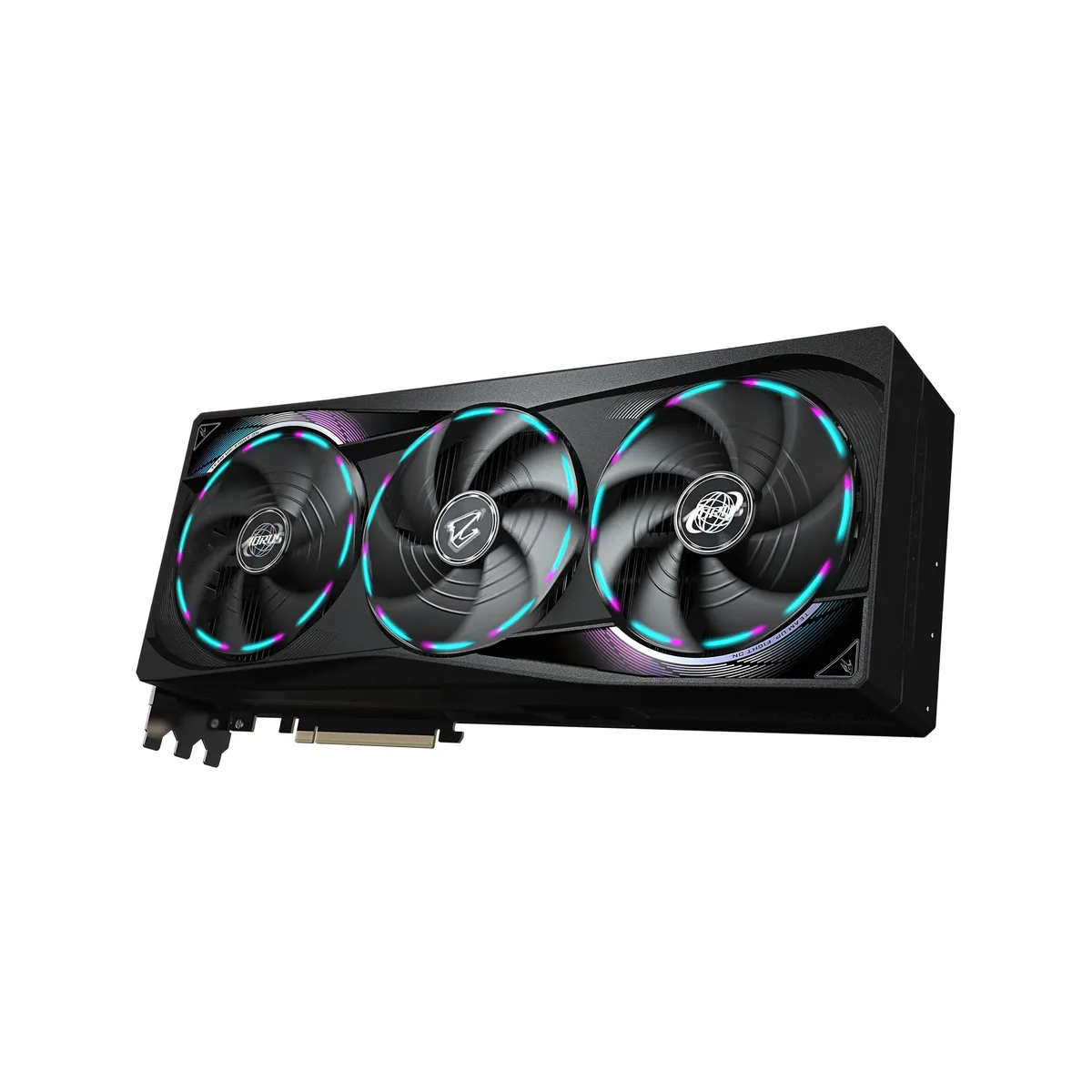

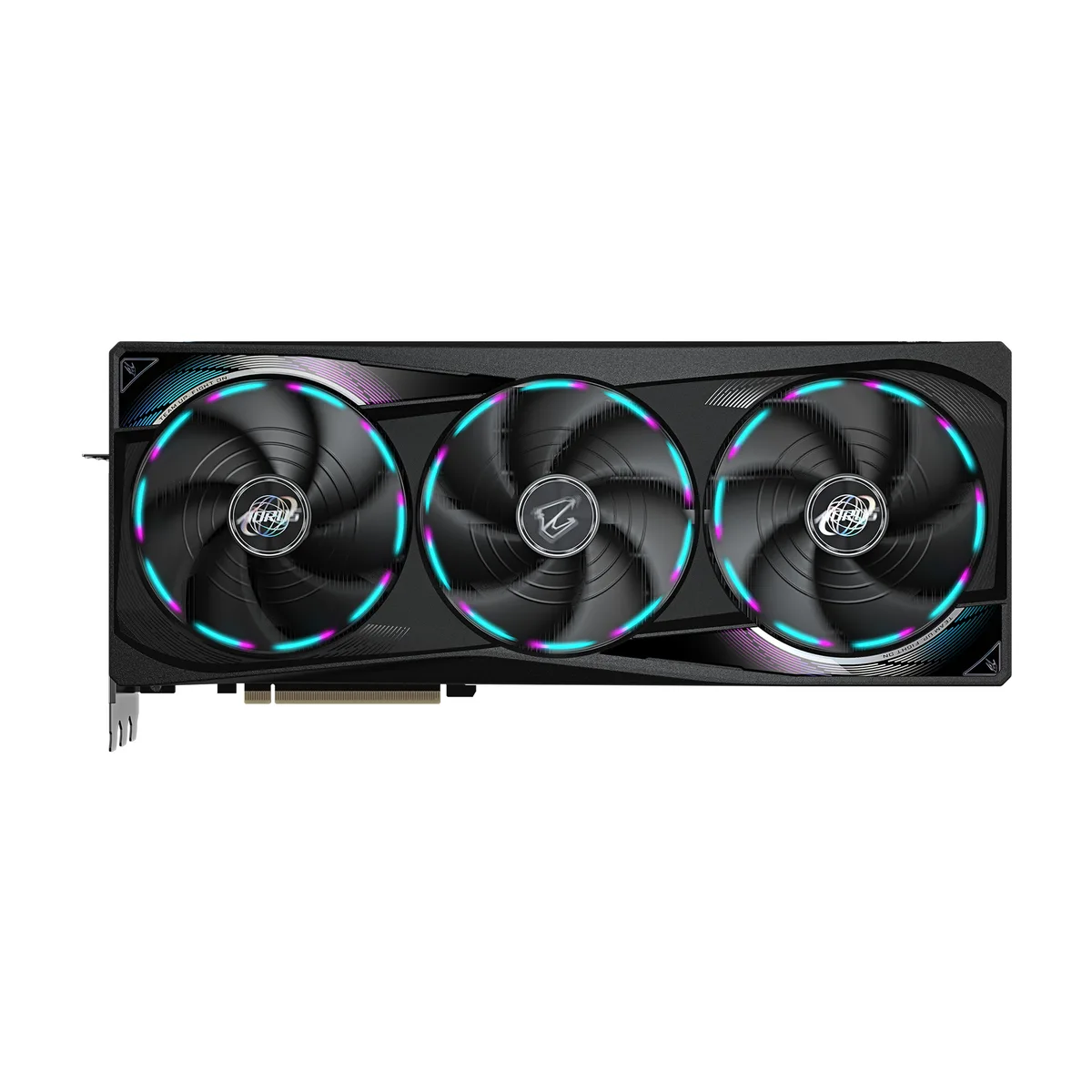

Black triple-fan graphics card, 360 mm long, 3.7-slot thickness

GIGABYTE

GIGABYTE GV-N5090AORUS M-32GD 32GB GDDR7 graphics card 2655 MHz triple fan

SKU CH-NEAE-NTKHK MPN GV-N5090AORUS M-32GD

Delivers 32 GB of GDDR7 memory on a 512-bit bus with 21,760 CUDA cores for high-resolution gaming and compute workloads

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5090
  • Core Clock2655 MHz
  • CUDA Cores21760
  • 32GB GDDR7 on a 512-bit bus feeds high-resolution workloads
  • 21760 CUDA cores accelerate ray-tracing and AI compute
  • 2655 MHz core clock drives peak gaming frame rates
  • PCI Express 5.0 x16 doubles host bandwidth over PCIe 4.0
  • HDMI 2.1b plus three DisplayPort 2.1b outputs support four 8K displays

RTX 5090 for high-end workstations

The GIGABYTE AORUS GeForce RTX 5090 equips 32GB GDDR7 memory on a 512-Bit interface with 21760 CUDA cores. It targets creators and researchers who need maximum frame-buffer capacity for 8K rendering, large language models, or complex simulation workloads.

Upgrade when 32GB VRAM is required

Moving from cards with less memory becomes worthwhile when textures, datasets, or model weights exceed the previous frame buffer and cause swapping. The 28 Gbps GDDR7 bandwidth and PCI Express 5.0 x16 link remove that bottleneck for supported platforms.

PCIe 5.0 x16 and display limits

The board requires a PCI Express 5.0 x16 slot and a 1000W power supply with one 16-Pin connector. It occupies 3.7 slots and measures 360 mm in length. Display outputs comprise one HDMI 2.1b and three DisplayPort 2.1b ports driving up to 7680 x 4320 resolution across four monitors.

Highlights

  • 32GB GDDR7 on a 512-bit bus feeds high-resolution workloads
  • 21760 CUDA cores accelerate ray-tracing and AI compute
  • 2655 MHz core clock drives peak gaming frame rates
  • PCI Express 5.0 x16 doubles host bandwidth over PCIe 4.0
  • HDMI 2.1b plus three DisplayPort 2.1b outputs support four 8K displays

Specifications

BrandGIGABYTE
SeriesAORUS
ModelGV-N5090AORUS M-32GD
Part NumberGV-N5090AORUS M-32GD
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5090
Core Clock2655 MHz
CUDA Cores21760
Effective Memory Clock28 Gbps
Memory Size32GB
Memory Interface512-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
CoolerTriple Fans
Thermal Design Power430W
Recommended PSU Wattage1000W
Power Connector1 x 16-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length360 mm

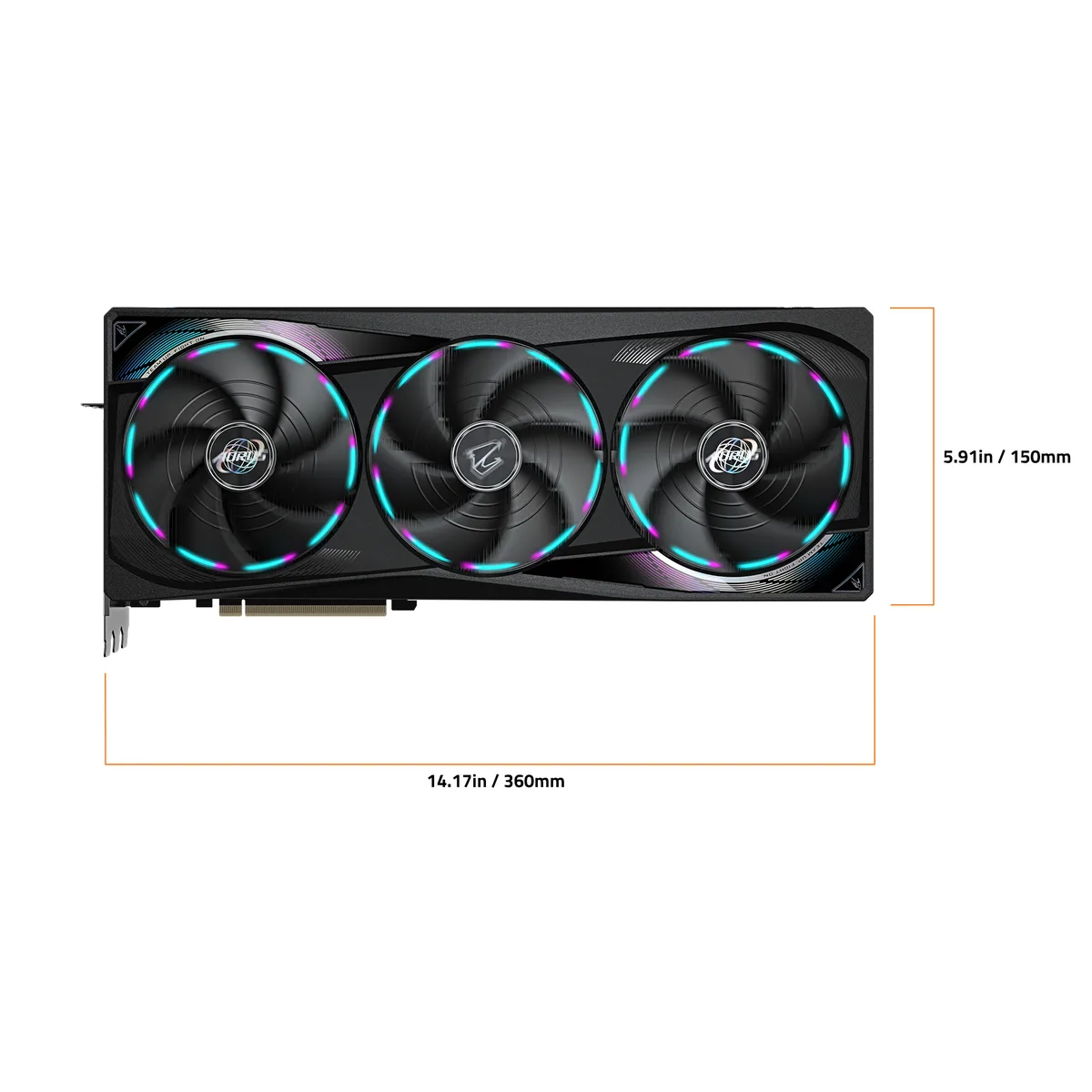

Card Dimensions (L x H)360 x 150 x 75 mm
Slot Width3.7 Slots
Shipping weight4.15 kg
Package size462 × 248 × 165 mm

Questions about this item

What case clearance does the 360 mm long, 3.7-slot wide card need?

The card measures 360 mm in length and occupies 3.7 expansion slots, so the chassis must provide at least that much length and vertical space for the triple-fan cooler.

Which power connector does the 16-pin plug use and what PSU wattage is recommended?

A single 16-pin connector supplies power; the manufacturer recommends a 1000 W power supply for the 430 W thermal design power.

When should the thermal paste on the GPU die be replaced?

Reapply thermal paste if temperatures rise noticeably after a few years of heavy load; the triple-fan cooler otherwise requires only occasional dust removal.
