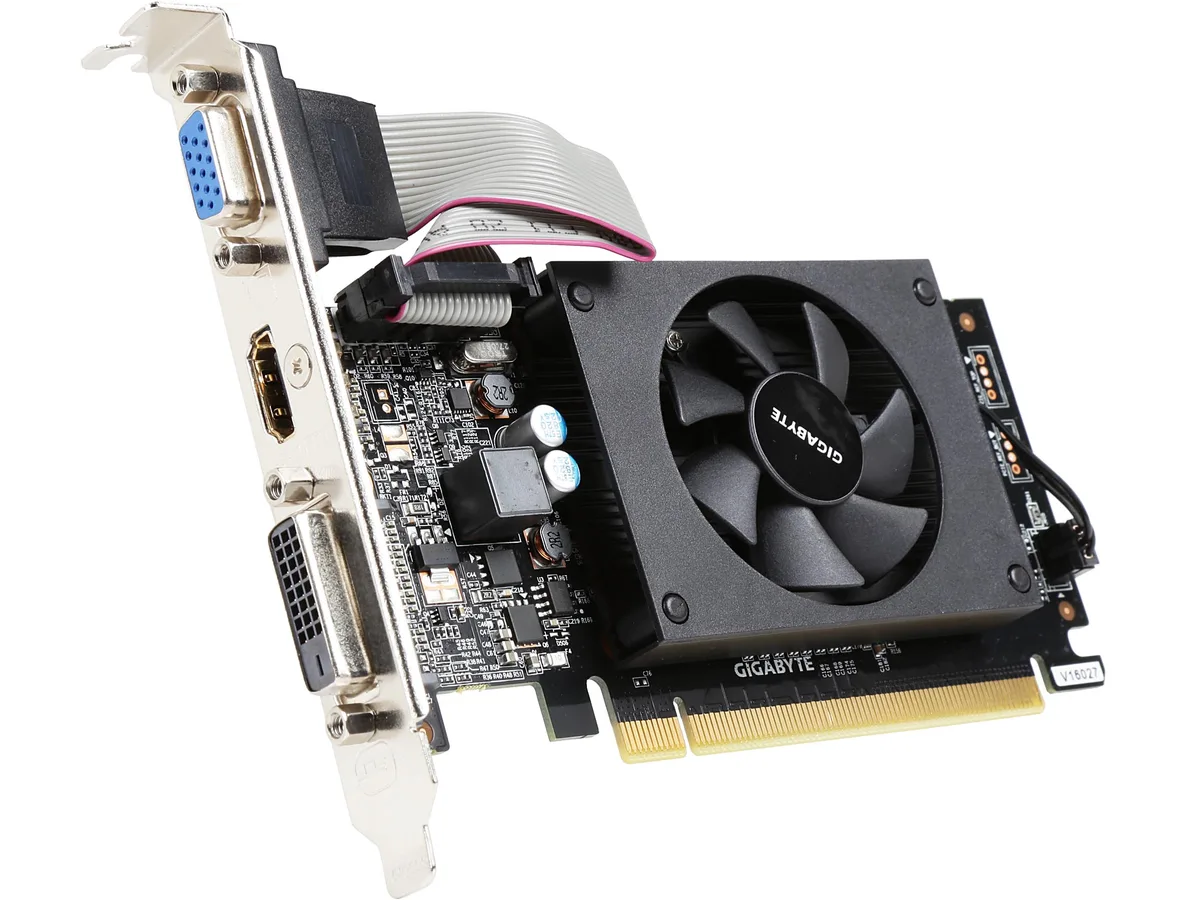

Low-profile black graphics card with single fan and metal bracket showing HDMI DVI and VGA ports

GIGABYTE

GIGABYTE GV-N710D3-2GL REV2.0 GeForce GT 710 2GB graphics card

SKU CH-XH80-3Y728 MPN GV-N710D3-2GL REV2.0

Low-profile GeForce GT 710 with 2 GB DDR3 memory, 64-bit bus, 954 MHz core clock, 1600 MHz effective memory clock, HDMI, DVI-D and VGA outputs, 20 W TDP and DirectX 12 support

  • InterfacePCI Express 2.0
  • Chipset ManufacturerNVIDIA
  • GPUGeForce GT 710
  • Core Clock954 MHz
  • Effective Memory Clock1600MHz
  • Memory Size2GB
  • 2GB DDR3 memory speeds up everyday editing and browsing
  • Core clock of 954 MHz delivers responsive desktop performance

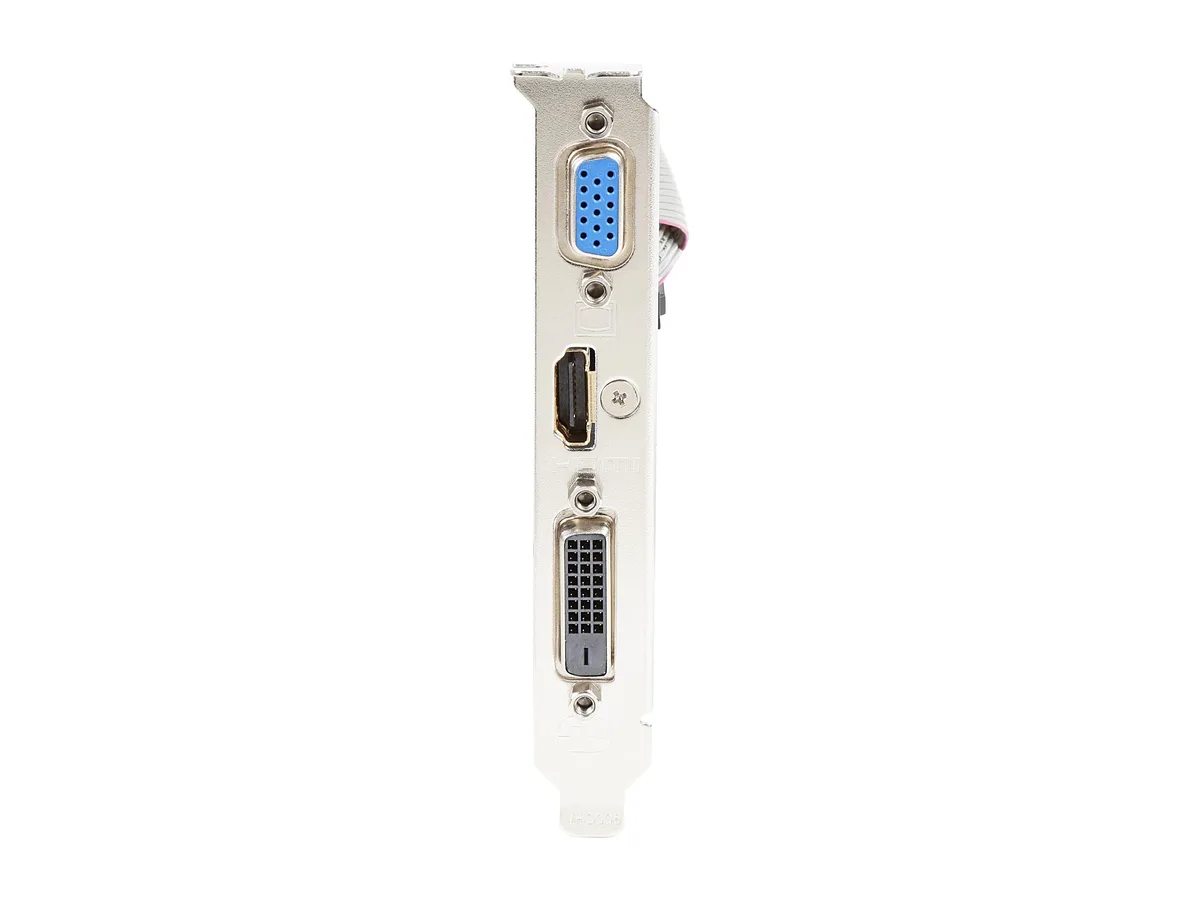

  • Three display outputs — HDMI, DVI-D and D-SUB — drive up to three monitors
  • Low-profile single-fan cooler fits compact cases with a 20W TDP
  • PCI Express 2.0 x8 interface works with a 300W system power supply

PCI Express 2.0 x8 graphics card

The GIGABYTE GV-N710D3-2GL REV2.0 is an entry-level GPU built around the NVIDIA GeForce GT 710. It adds 2GB of DDR3 video memory and a 64-bit bus to systems that rely on integrated graphics. The single-fan cooler keeps the 20W thermal design within a low-profile bracket. Home-office PCs and compact media boxes are the typical fit.

Interface limits at PCIe 2.0 x8 and DDR3 1600

The board runs on a PCI Express 2.0 x8 link, so bandwidth tops out at the 2.0 specification rather than newer 3.0 or 4.0 speeds. Memory operates at an effective 1600MHz across the 64-bit interface, which caps throughput for heavy texture loads. DirectX 12 and OpenGL 4.5 support is present, but shader performance matches the GT 710 class.

Check power, slots and display ports before ordering

A 300W system power supply is the minimum recommended by the manufacturer. The motherboard must provide a PCI Express x16 slot wired for at least x8 electrical lanes. Verify that your monitors can use Dual-link DVI-D, HDMI or D-SUB, because the card offers one of each. The low-profile bracket may need a full-height swap for standard cases.

Highlights

  • 2GB DDR3 memory speeds up everyday editing and browsing
  • Core clock of 954 MHz delivers responsive desktop performance
  • Three display outputs — HDMI, DVI-D and D-SUB — drive up to three monitors
  • Low-profile single-fan cooler fits compact cases with a 20W TDP
  • PCI Express 2.0 x8 interface works with a 300W system power supply

Specifications

BrandGIGABYTE
ModelGV-N710D3-2GL REV2.0
InterfacePCI Express 2.0
Chipset ManufacturerNVIDIA
GPUGeForce GT 710
Core Clock954 MHz
Effective Memory Clock1600MHz
Memory Size2GB
Memory Interface64-Bit
Memory TypeDDR3
DirectXDirectX 12
OpenGLOpenGL 4.5
Multi-Monitor Support3
HDMI1 x HDMI
D-SUB1 x D-SUB
DVI1 x Dual-link DVI-D
ColorBlack
Max ResolutionDigital: 4096 x 2160
Analog: 2048 x 1536
CoolerSingle Fan
Thermal Design Power20W
System RequirementsRecommended PSU: 300W
Form FactorLow Profile
Max GPU Length145 mm
Card Dimensions (L x H)5.67" x 2.68"
Slot WidthSingle Slot
Shipping weight0.30 kg
Package size226 × 142 × 36 mm

Questions about this item

Which version should I choose for a compact build?

This low-profile card fits small cases and uses a single-slot cooler, making it suitable for compact PCs.

What does the 954 MHz core clock deliver in daily use?

The 954 MHz GPU clock accelerates video editing, photo editing and web browsing compared to integrated graphics.

What does the PCI Express 2.0 interface mean for bandwidth?

The PCIe 2.0 x8 link caps throughput at the 2.0 generation speed, which is adequate for this 20 W card.
