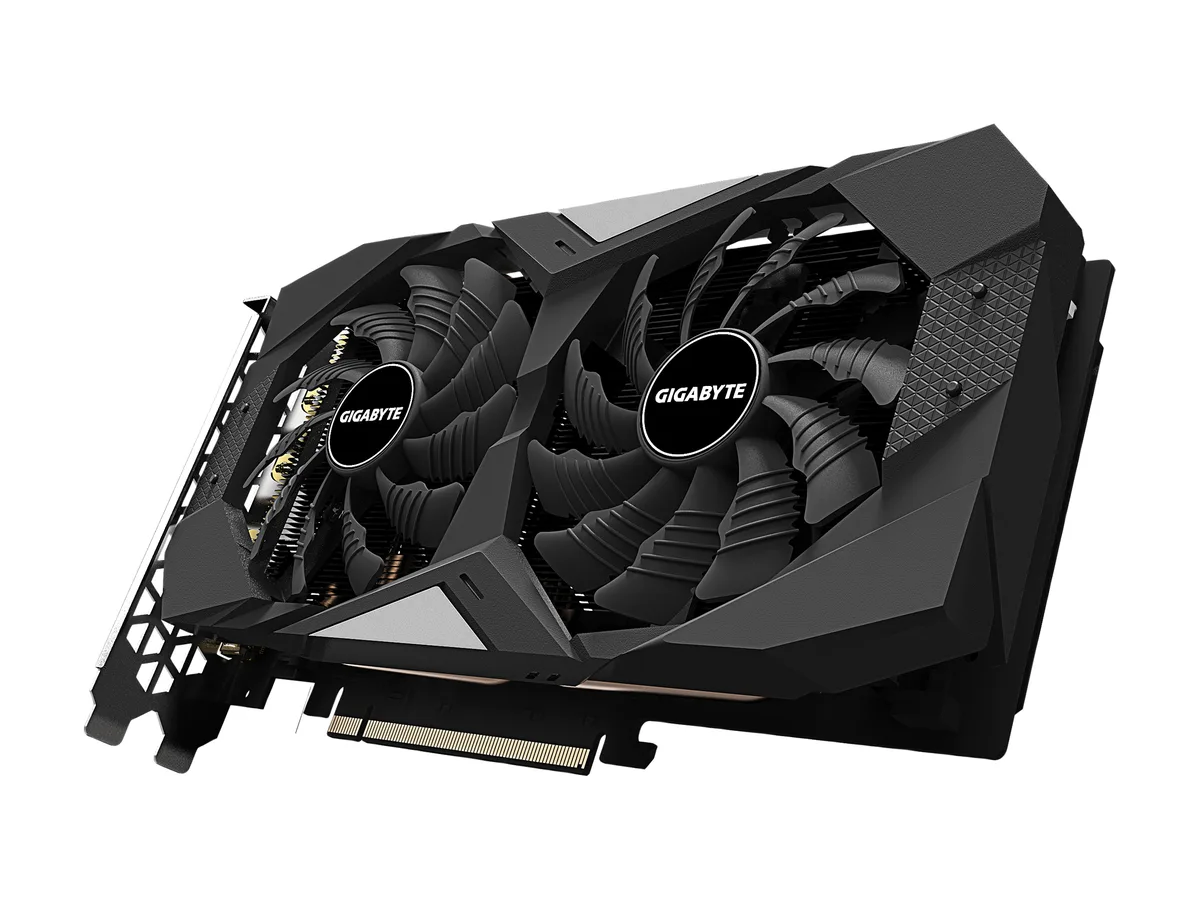

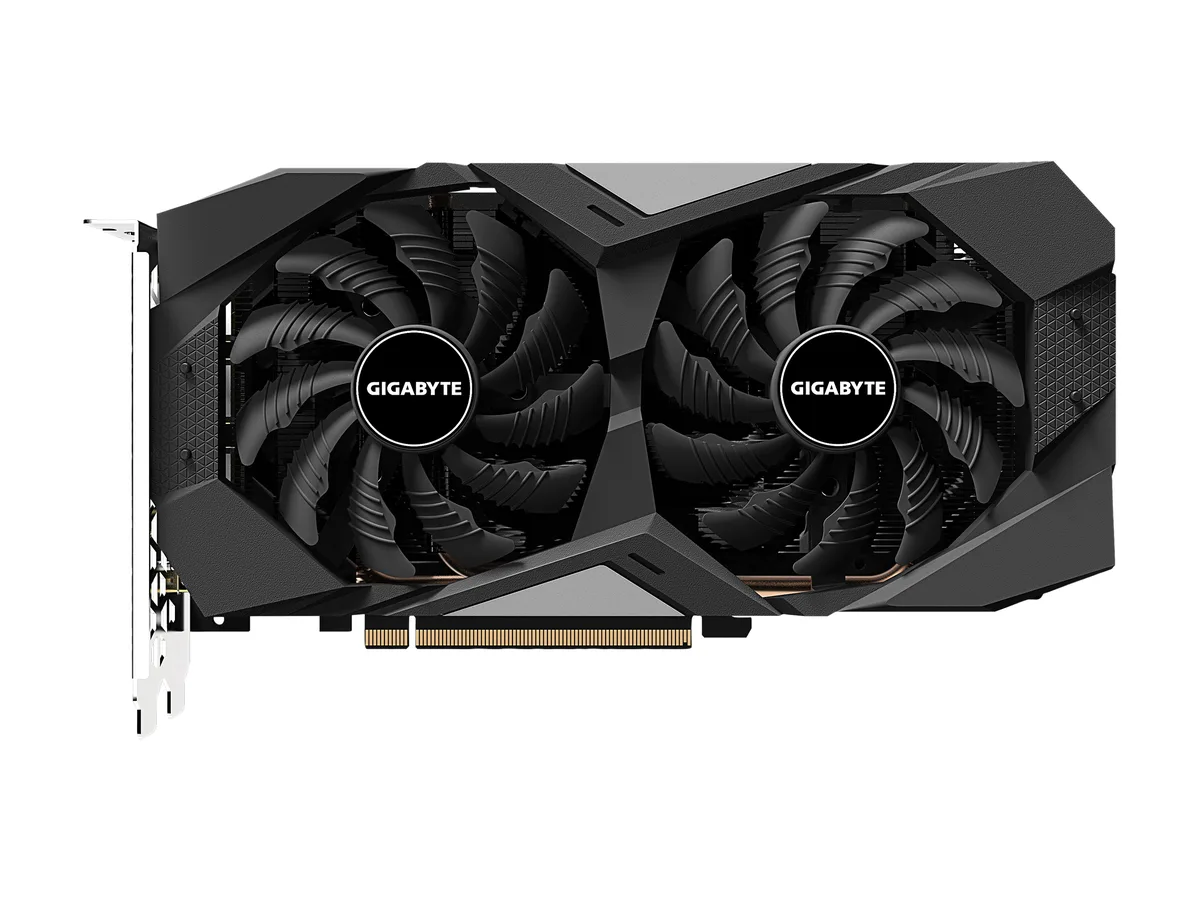

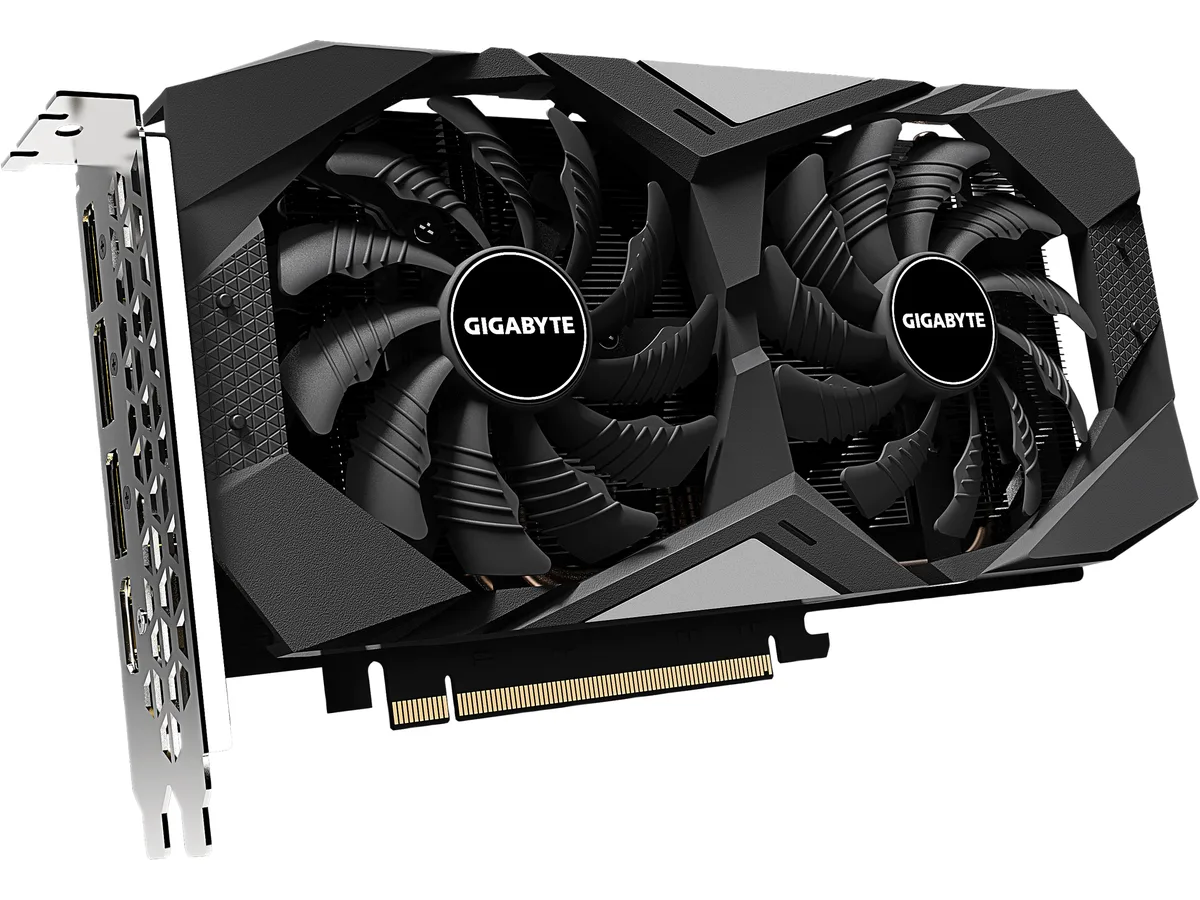

Dual-fan graphics card with black backplate, two-slot ATX form factor

GIGABYTE

GIGABYTE GV-R55XTOC-4GD Radeon RX 5500 XT graphics card

SKU CH-4TDG-50NN7 MPN GV-R55XTOC-4GD

Refurbished Radeon RX 5500 XT graphics card with 4GB GDDR6 memory, 1408 stream processors, WINDFORCE 2X cooling and PCI Express 4.0 interface

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500 XT
  • Core Clock1647 MHz
  • Boost Clock1845 MHz
  • Boost clock reaches 1845 MHz for responsive 1080p gaming
  • 4 GB GDDR6 on a 128-bit bus delivers 14000 MHz effective bandwidth
  • WINDFORCE 2X cooler with alternate-spinning fans keeps thermals in check
  • PCI Express 4.0 x16 interface doubles host bandwidth headroom

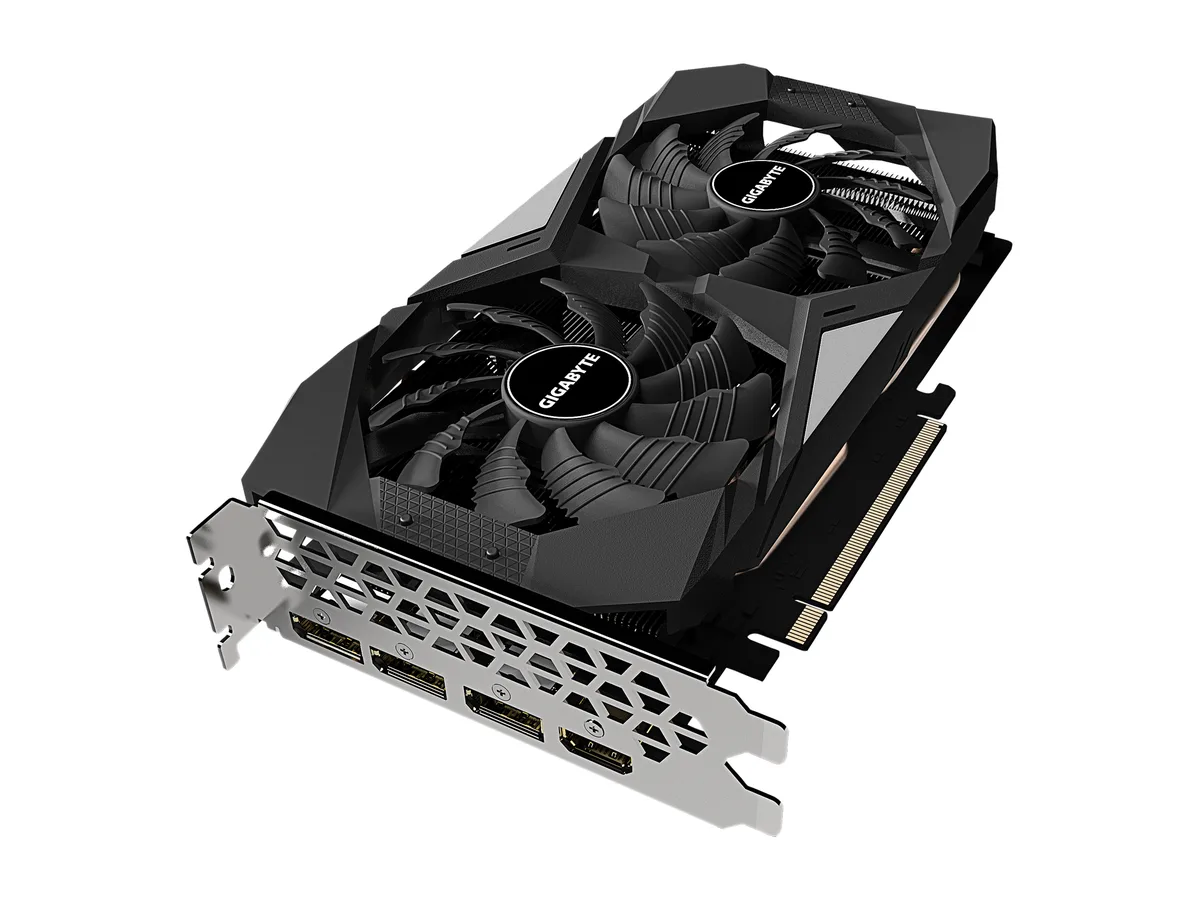

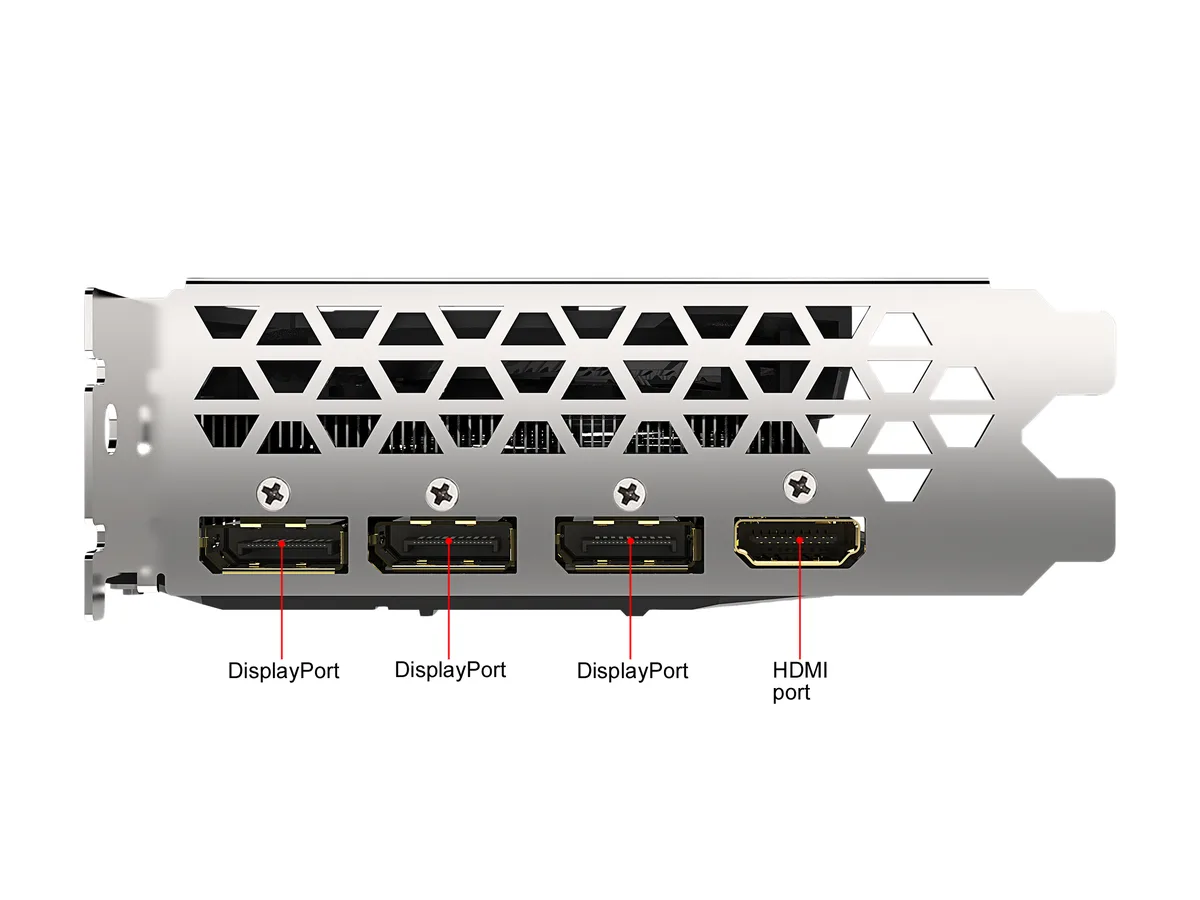

  • Four-display output via HDMI 2.0b and three DisplayPort 1.4 ports

What the card delivers

This GIGABYTE Radeon RX 5500 XT model targets 1080p gaming with a 1647 MHz core clock and 1845 MHz boost clock. Four gigabytes of GDDR6 memory on a 128-bit bus feed 1408 stream processors through a PCI Express 4.0 x16 link. Outputs include one HDMI 2.0b and three DisplayPort 1.4 connectors for up to four monitors.

Sustained load behaviour

The WINDFORCE 2X cooler uses alternate spinning fans and a back plate to manage the 140 watt thermal design power during extended sessions. A single 8-pin power connector draws from a supply rated at 450 watts or higher. Clock speeds hold at the rated boost while temperatures stay within the dual-slot, 225 mm length envelope.

PCI Express 4.0 x16 limits

The x16 electrical interface provides full bandwidth for the GPU and GDDR6 memory running at 14000 MHz effective. DirectX 12 and OpenGL 4.6 expose the feature set at the API level. Maximum digital resolution reaches 7680 x 4320 at 60 Hz across the available display outputs.

Highlights

  • Boost clock reaches 1845 MHz for responsive 1080p gaming
  • 4 GB GDDR6 on a 128-bit bus delivers 14000 MHz effective bandwidth
  • WINDFORCE 2X cooler with alternate-spinning fans keeps thermals in check
  • PCI Express 4.0 x16 interface doubles host bandwidth headroom
  • Four-display output via HDMI 2.0b and three DisplayPort 1.4 ports

Specifications

BrandGIGABYTE
ModelGV-R55XTOC-4GD
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500 XT
Core Clock1647 MHz
Boost Clock1845 MHz
Stream Processors1408
Effective Memory Clock14000 MHz
Memory Size4GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
Virtual Reality ReadyYes
CoolerWINDFORCE 2X
Thermal Design Power140W
System RequirementsSystem PSU Limitation (W): 450

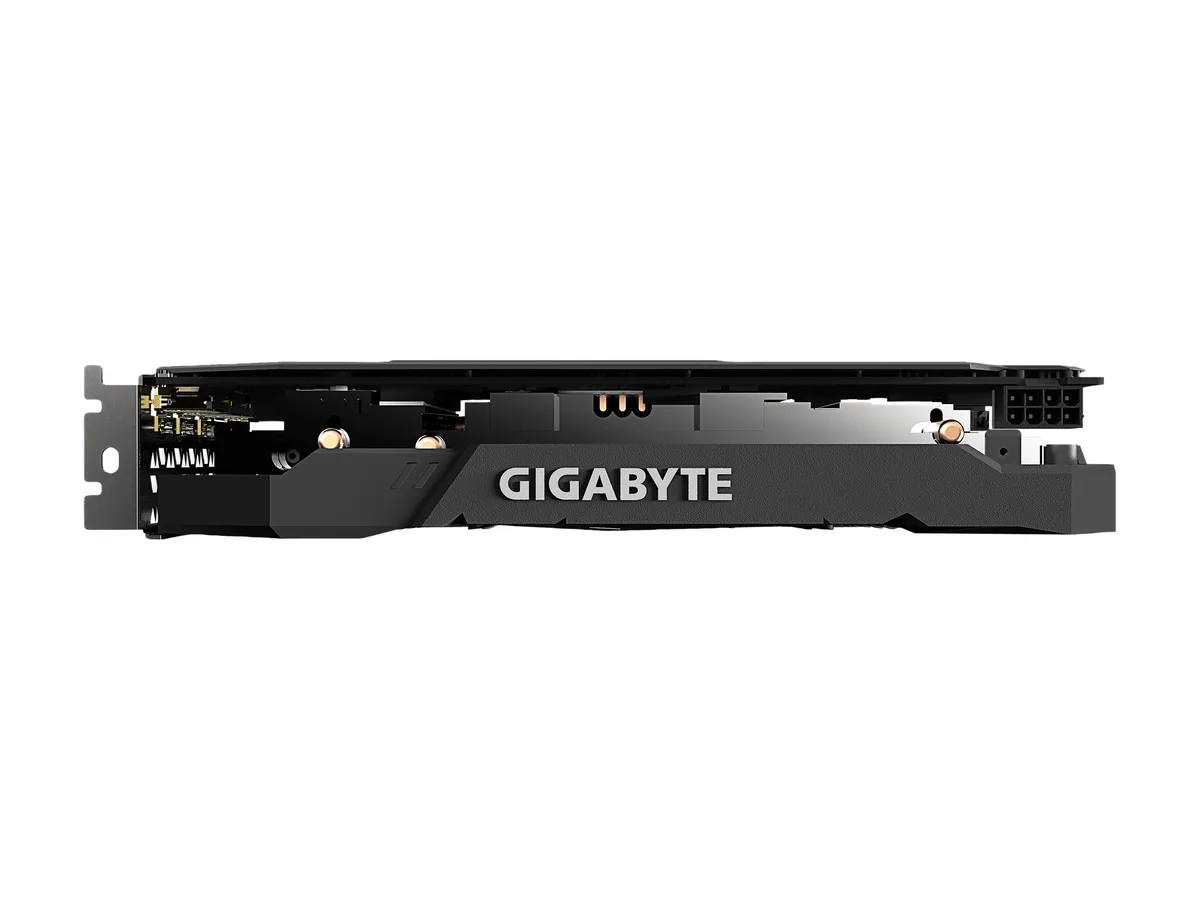

Power Connector8-Pin
FeaturesPowered by AMD Radeon RX 5500 XT
Integrated with 4GB GDDR6 128-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Protection Back Plate
PCI-Express 4.0 Support
Form FactorATX
Max GPU Length225 mm
Card Dimensions (L x H)8.86" x 4.69"
Slot Width2 Slots
Shipping weight0.88 kg
Package size335 × 236 × 61 mm

Questions about this item

How loud and hot does the WINDFORCE 2X cooler run when the card draws its 140W TDP all day?

The WINDFORCE 2X cooler uses alternate-spinning fans and a back-plate to move heat away from the GPU while it draws up to 140W.

What power supply and connector must my PC already have for this card to work?

A 450W power supply with one free 8-pin PCIe power connector is required.

Will the PCI Express 4.0 x16 interface work in my older motherboard that only has PCIe 3.0 slots?

Yes, the card is backward compatible with PCIe 3.0 x16 slots, though it will run at 3.0 speeds.
