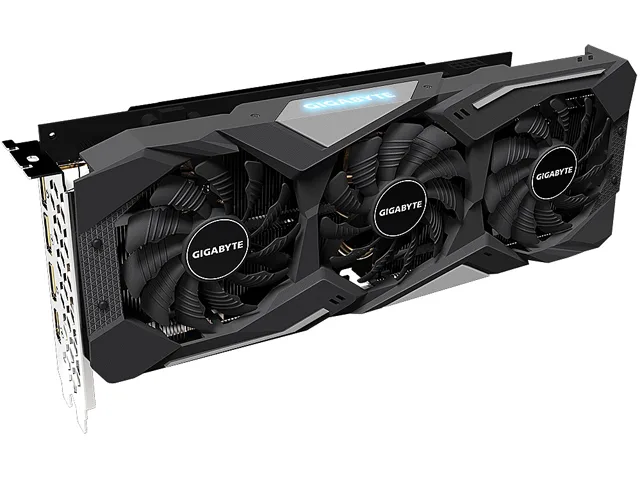

Black graphics card with three fans and metal backplate, ATX form factor

GIGABYTE

GIGABYTE GV-R56XTGAMING OC-6G Radeon RX 5600 XT graphics card

SKU CH-SHEG-YJ45T MPN GV-R56XTGAMING OC-6G

Refurbished Radeon RX 5600 XT GPU with 6 GB GDDR6 memory, 1620 MHz boost clock, WINDFORCE 3X cooling and RGB Fusion 2.0 lighting

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Boost Clock1620 MHz
  • Stream Processors2304
  • 6 GB GDDR6 memory drives smooth 1440p gameplay
  • Boost clock reaches 1620 MHz for responsive frame rates
  • WINDFORCE 3X cooler with alternate spinning fans keeps temperatures low
  • Four display outputs support multi-monitor and VR setups
  • PCI Express 4.0 x16 interface provides high bandwidth to the system

Radeon RX 5600 XT Gaming Card

The GIGABYTE GV-R56XTGAMING OC-6G is a refurbished graphics card built around the AMD Radeon RX 5600 XT GPU with 2304 stream processors and a 1620 MHz boost clock. It targets 1080p and 1440p gaming on a PCI Express 4.0 x16 platform. The 6GB GDDR6 frame buffer runs on a 192-bit bus at 12000 MHz effective speed.

PCIe 4.0 Slot and 450 W PSU

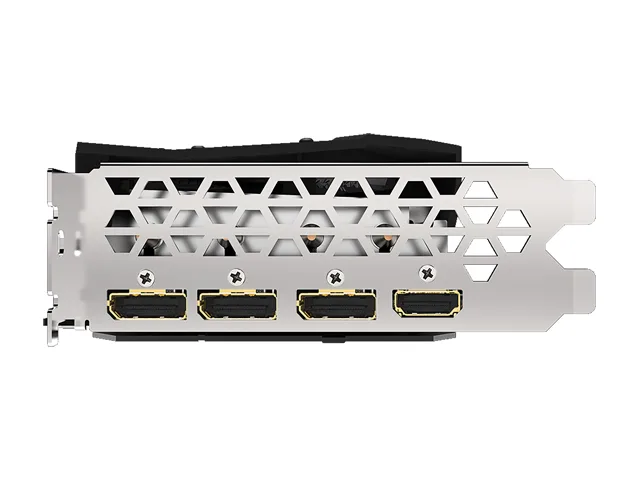

Verify that your motherboard provides a full-length PCI Express 4.0 x16 slot and that the case can accommodate a 280 mm long ATX-form-factor card. The board draws up to 160 W and requires one 8-pin power connector; the manufacturer recommends a 450 W power supply. Outputs comprise one HDMI 2.0b and three DisplayPort 1.4 connectors for up to four displays.

WINDFORCE 3X Cooling Under Load

The WINDFORCE 3X cooler uses alternate-spinning fans and a metal back plate to dissipate heat during extended sessions. Under sustained load the card maintains its 1620 MHz boost clock while keeping thermals in check, avoiding the throttle behaviour seen in shorter burst tests. RGB Fusion 2.0 lighting synchronises with compatible AORUS gear without affecting thermal performance.

Highlights

  • 6 GB GDDR6 memory drives smooth 1440p gameplay
  • Boost clock reaches 1620 MHz for responsive frame rates
  • WINDFORCE 3X cooler with alternate spinning fans keeps temperatures low
  • Four display outputs support multi-monitor and VR setups
  • PCI Express 4.0 x16 interface provides high bandwidth to the system

Specifications

BrandGIGABYTE
ModelGV-R56XTGAMING OC-6GD
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Boost Clock1620 MHz
Stream Processors2304
Effective Memory Clock12000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320 @ 60 Hz
Virtual Reality ReadyYes
CoolerWINDFORCE 3X
Thermal Design Power160W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector1 x 8-Pin
FeaturesPowered by AMD Radeon RX 5600 XT
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 - 16.7M colors synchronize with other AORUS devices
Metal Back Plate
PCI-Express 4.0 Support
Form FactorATX
Max GPU Length280 mm

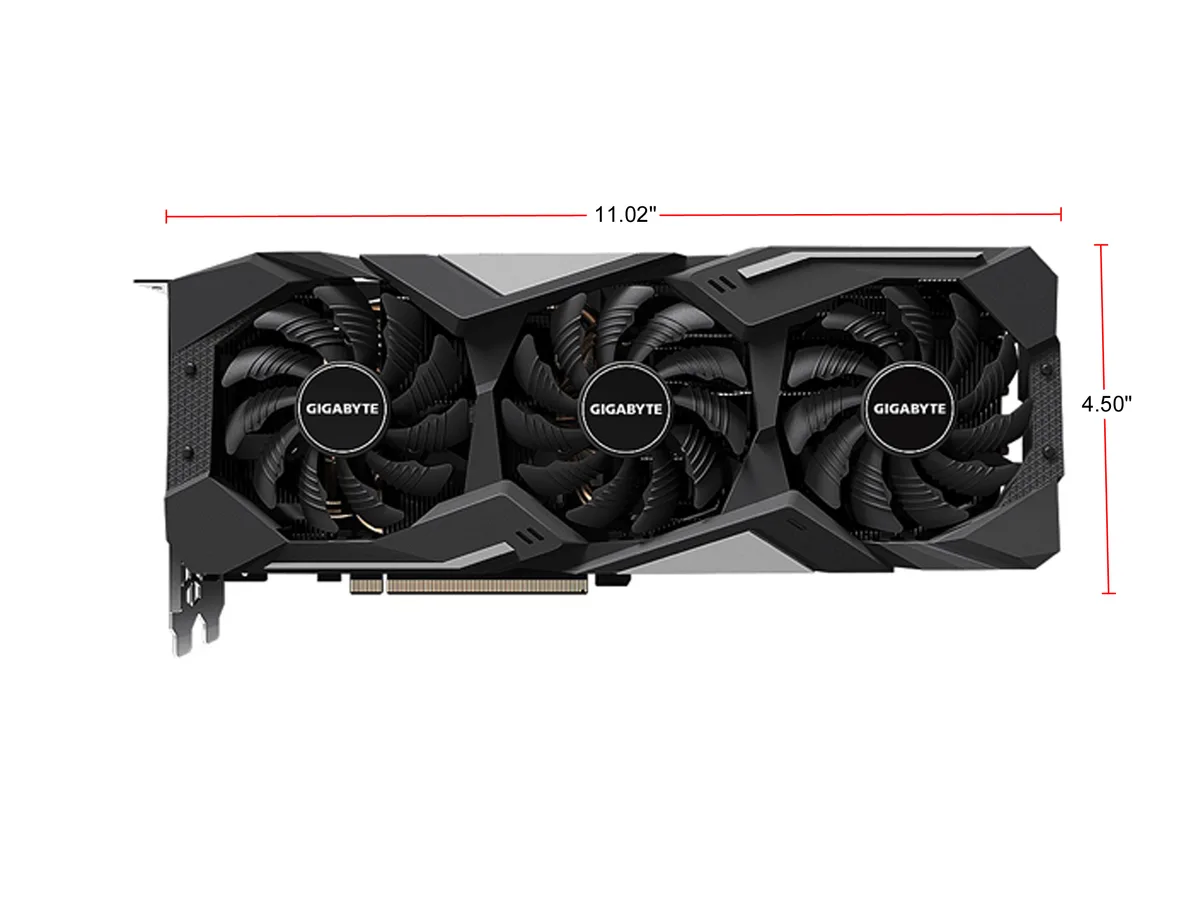

Card Dimensions (L x H)11.02" x 4.50"
Shipping weight1.57 kg
Package size409 × 236 × 91 mm

Questions about this item

Does the GV-R56XTGAMING OC-6G include any power cables or adapters in the box?

The card ships with the WINDFORCE 3X cooler, metal back plate and RGB Fusion 2.0 lighting already fitted. A single 8-pin PCIe power cable from your PSU is required and is not included.

Should I pick the 6 GB 192-bit GDDR6 version or a larger frame-buffer model for 1440p gaming?

This model provides 6 GB of GDDR6 across a 192-bit bus at 12000 MHz effective. For 1440p the 6 GB capacity is adequate in most current titles; only workloads that exceed 6 GB would need a larger frame buffer.

What does the 1620 MHz boost clock actually deliver once the card is installed in a PCIe 4.0 x16 slot with a 450 W PSU?

The factory overclock raises the boost clock to 1620 MHz across the 2304 stream processors, giving higher sustained frequencies in games while staying within the 160 W board power limit supported by the recommended 450 W PSU.
