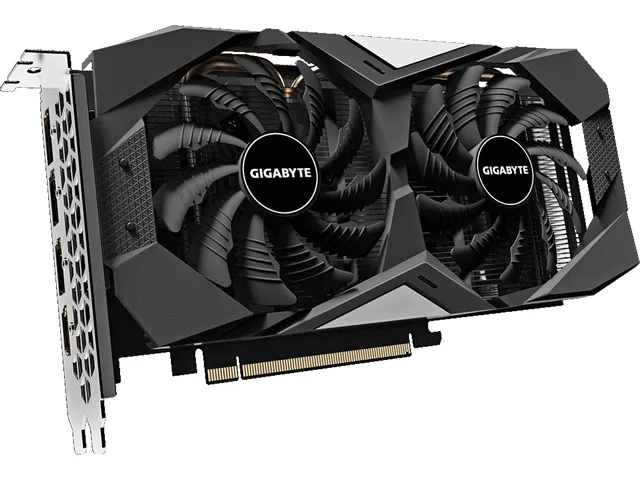

Black dual-fan graphics card with silver backplate, ATX form factor

GIGABYTE

GIGABYTE GV-R56XTWF2OC-6GD Radeon RX 5600 XT graphics card

SKU CH-9Y3C-K38R3 MPN GV-R56XTWF2OC-6GD

Refurbished Radeon RX 5600 XT with 6GB GDDR6, WINDFORCE 2X dual-fan cooling, and PCIe 4.0 for 1080p gaming

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Boost Clock1620 MHz
  • Stream Processors2304
  • Boost clock of 1620 MHz drives high frame rates
  • 6 GB GDDR6 on a 192-bit bus feeds the GPU at 12000 MHz
  • WINDFORCE 2X cooler with alternate spinning fans keeps temperatures low
  • PCI Express 4.0 x16 interface doubles host bandwidth
  • Four display outputs support multi-monitor setups up to 7680 x 4320

Radeon RX 5600 XT with 6GB GDDR6

The GIGABYTE GV-R56XTWF2OC-6GD is a mid-range graphics card built around the AMD RDNA architecture. It delivers 2304 stream processors and a 1620 MHz boost clock through a PCI Express 4.0 x16 slot. The board targets 1080p and 1440p gaming on a 450W power supply with one 8-pin connector.

Upgrade from older 4GB or 8GB mid-range cards

Moving from a 4GB model removes the texture-memory ceiling that forces lower settings in modern titles. The 6GB 192-bit GDDR6 buffer at 12000 MHz effective clock handles higher resolutions without stutter. If your current card already offers 6GB or more at similar bandwidth, the performance jump is modest.

PCI Express 4.0 x16 interface limits

The card runs on a PCIe 4.0 x16 link, providing up to 16 GT/s per lane. On a PCIe 3.0 platform the connection halves to 8 GT/s, which can reduce throughput in bandwidth-heavy scenes. The 192-bit memory bus and 6GB capacity also bound 4K performance, making 1440p the practical ceiling for high refresh rates.

Highlights

  • Boost clock of 1620 MHz drives high frame rates
  • 6 GB GDDR6 on a 192-bit bus feeds the GPU at 12000 MHz
  • WINDFORCE 2X cooler with alternate spinning fans keeps temperatures low
  • PCI Express 4.0 x16 interface doubles host bandwidth
  • Four display outputs support multi-monitor setups up to 7680 x 4320

Specifications

BrandGIGABYTE
ModelGV-R56XTWF2OC-6GD
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Boost Clock1620 MHz
Stream Processors2304
Effective Memory Clock12000 MHz
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
ColorBlack
Max Resolution7680 x 4320 @ 60 Hz
Virtual Reality ReadyYes
CoolerWINDFORCE 2X
Thermal Design Power160W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector1 x 8-Pin
FeaturesPowered by AMD Radeon RX 5600 XT
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Protection Back Plate
PCI-Express 4.0 Support
Form FactorATX
Max GPU Length228 mm
Card Dimensions (L x H)8.98" x 4.65"
Shipping weight0.85 kg
Package size353 × 267 × 61 mm

Questions about this item

What length clearance does the 228 mm WINDFORCE 2X card need inside the case?

The card measures 228 mm long and 8.98 inches by 4.65 inches, so allow at least that depth and height plus cable room for the 8-pin power connector.

Which power cable must be seated fully to avoid a no-post condition on this 160W board?

Connect one 8-pin PCIe power plug from a 450W or larger PSU; the card will not start if the connector is only partially inserted.

How often should the alternate-spinning fans and back-plate vents be cleaned to keep thermals steady?

Use compressed air every few months to clear dust from the two WINDFORCE fans and the rear back-plate cut-outs so airflow stays unobstructed.
