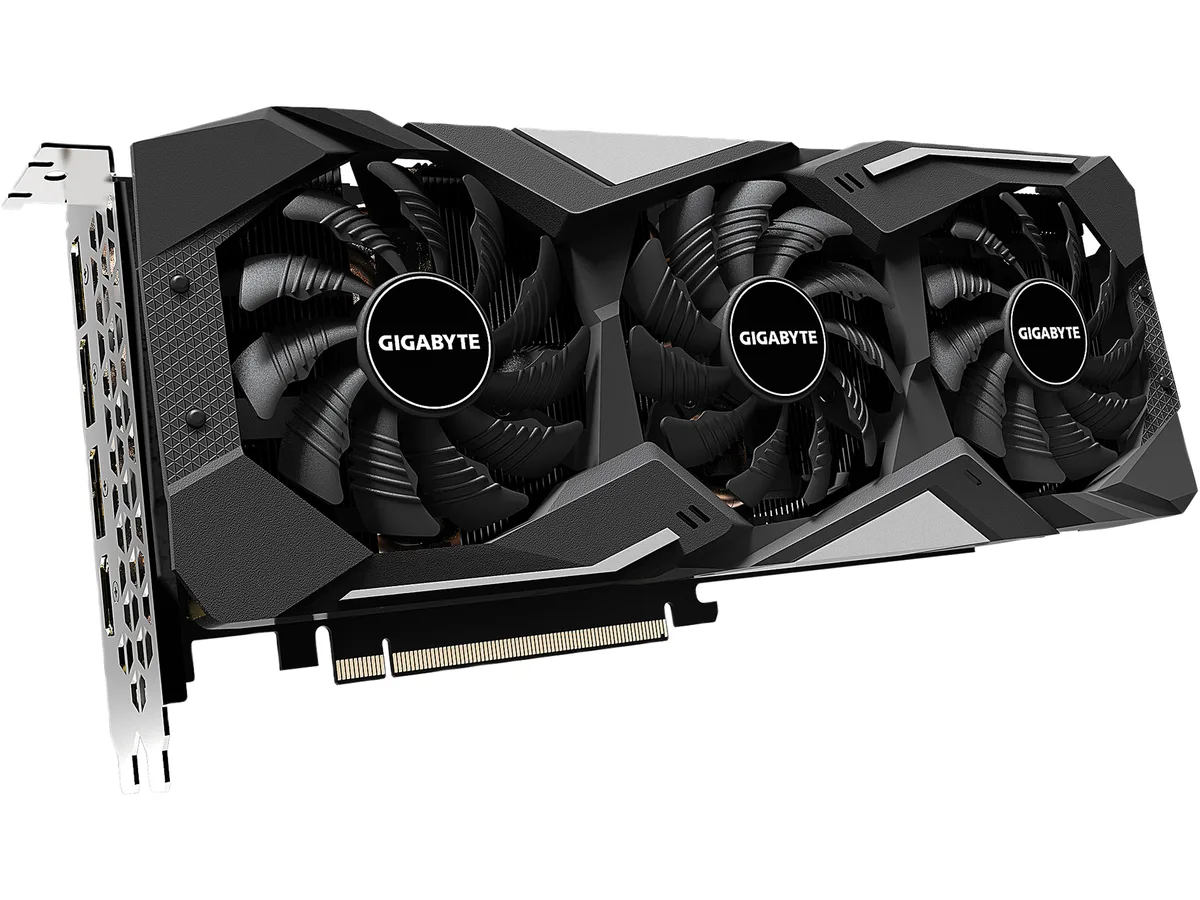

GIGABYTE Radeon RX 5700 GAMING OC triple-fan graphics card with metal backplate

GIGABYTE

GIGABYTE GV-R57GAMING OC-8GD Radeon RX 5700 8 GB graphics card

SKU CH-S75J-MZS0V MPN GV-R57GAMING OC-8GD

Refurbished Radeon RX 5700 graphics card with 8 GB GDDR6 memory, 2304 stream processors, WINDFORCE 3X triple-fan cooling and a 225 W power draw

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700
  • Core Clock1565 MHz
  • Boost Clock1750 MHz
  • Boost performance with 1750 MHz boost clock and 8 GB GDDR6 memory
  • Smooth 4K gaming via PCI Express 4.0 x16 and 256-bit memory interface
  • Cool, quiet operation from WINDFORCE 3X cooler with alternate spinning fans

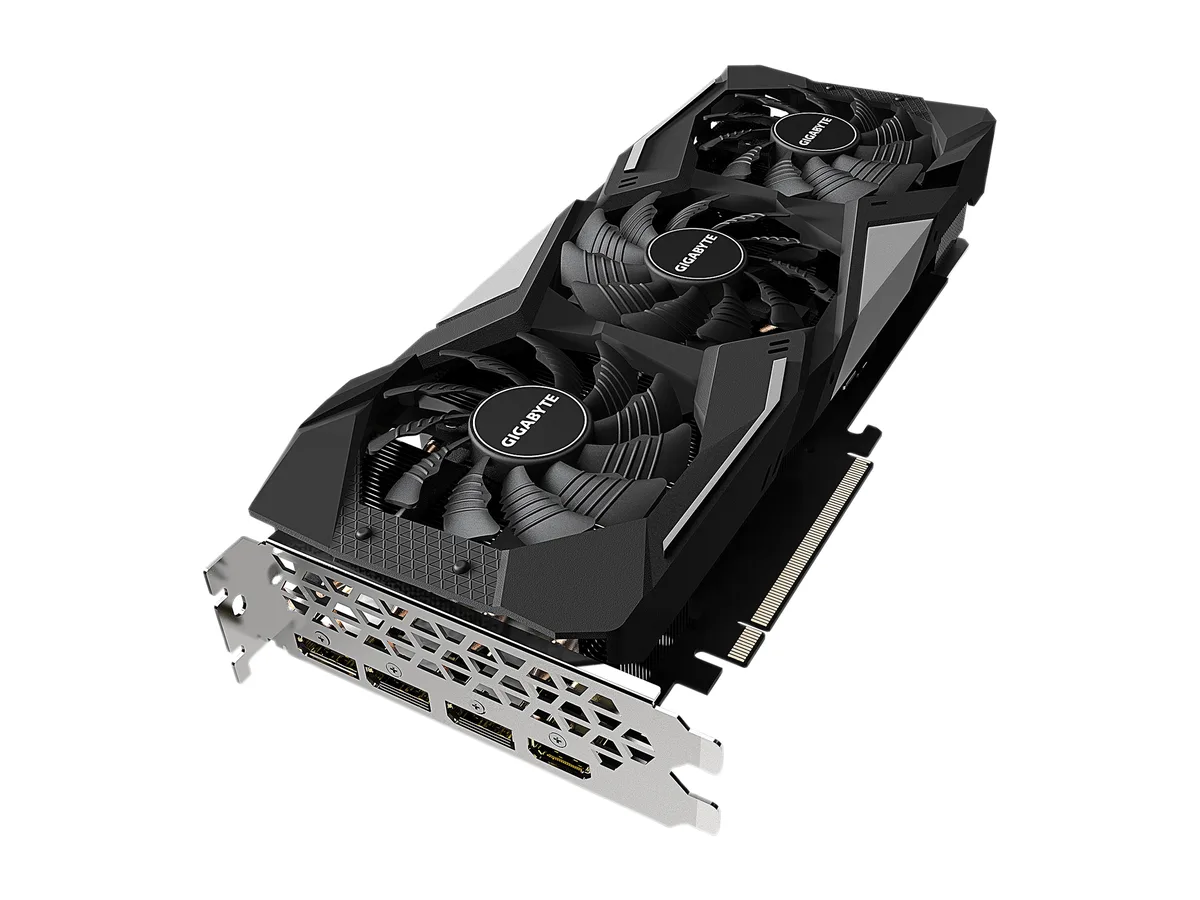

  • Flexible multi-monitor setups using three DisplayPort 1.4 and one HDMI 2.0b outputs
  • Factory overclocked core at 1565 MHz with 2304 stream processors for extra speed

GIGABYTE Radeon RX 5700 GAMING OC 8G

The GIGABYTE GV-R57GAMING OC-8GD is a PCI Express 4.0 x16 graphics card built around the AMD Radeon RX 5700 GPU. It targets enthusiasts and gamers who want 8 GB of GDDR6 memory on a 256-bit interface for 1440p play. The board occupies 2.5 slots and measures 280 mm in length, requiring a 600 W power supply and a single 8-pin connector.

WINDFORCE 3X cooling under sustained load

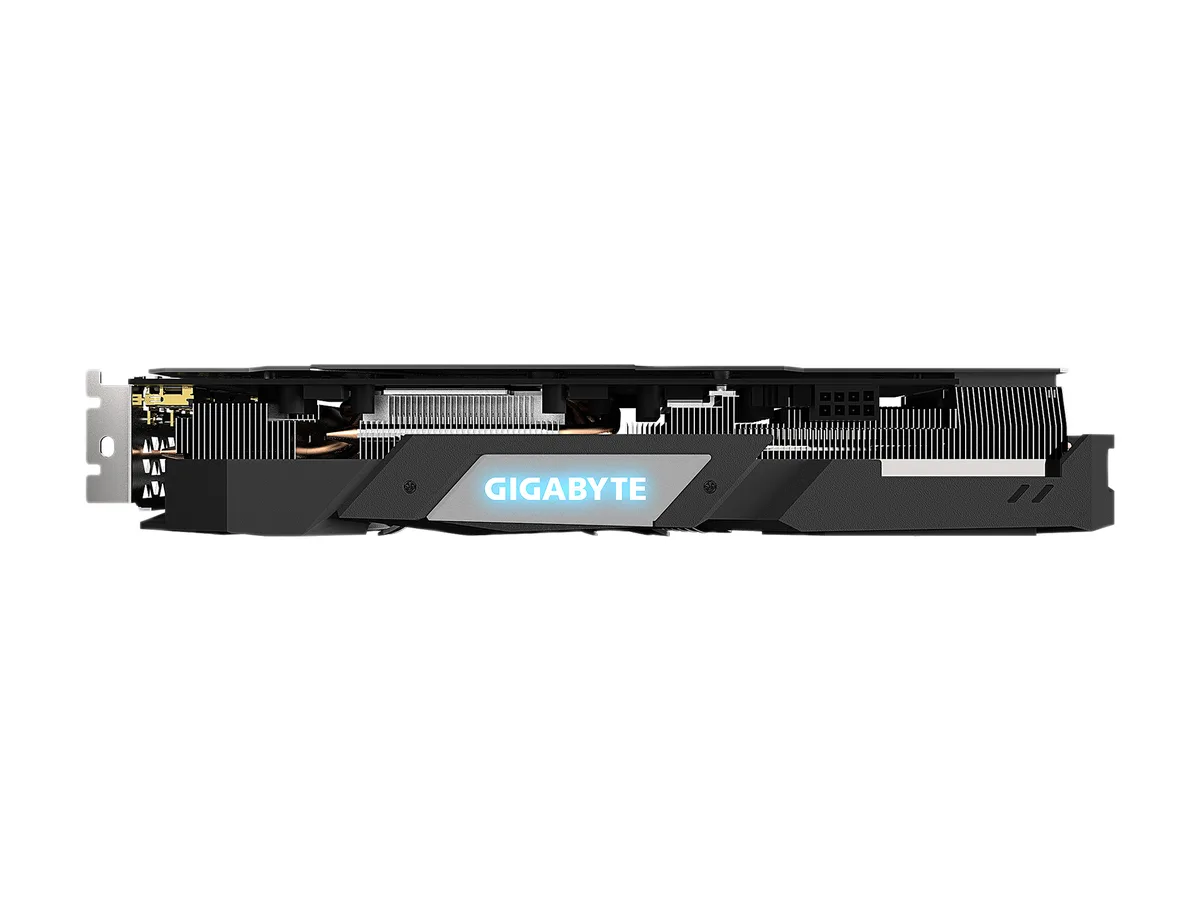

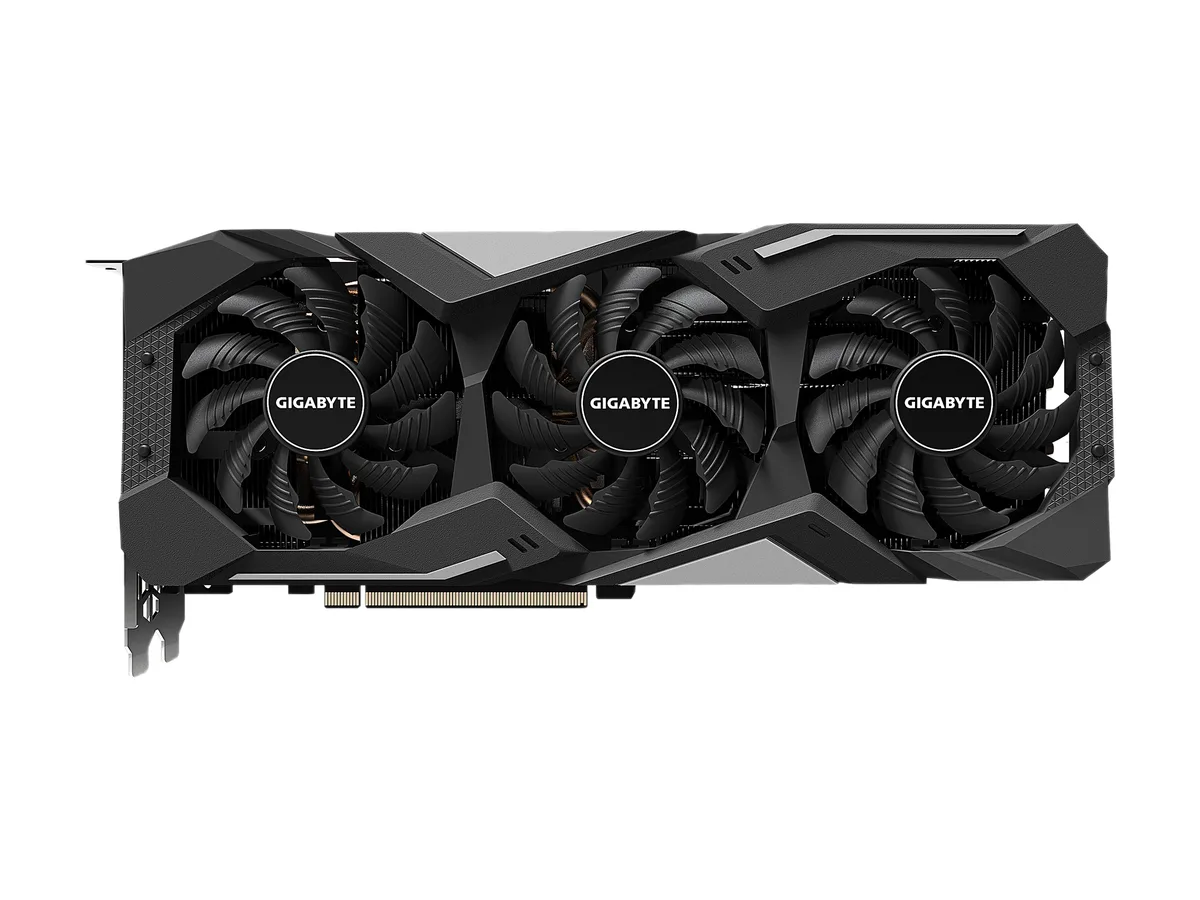

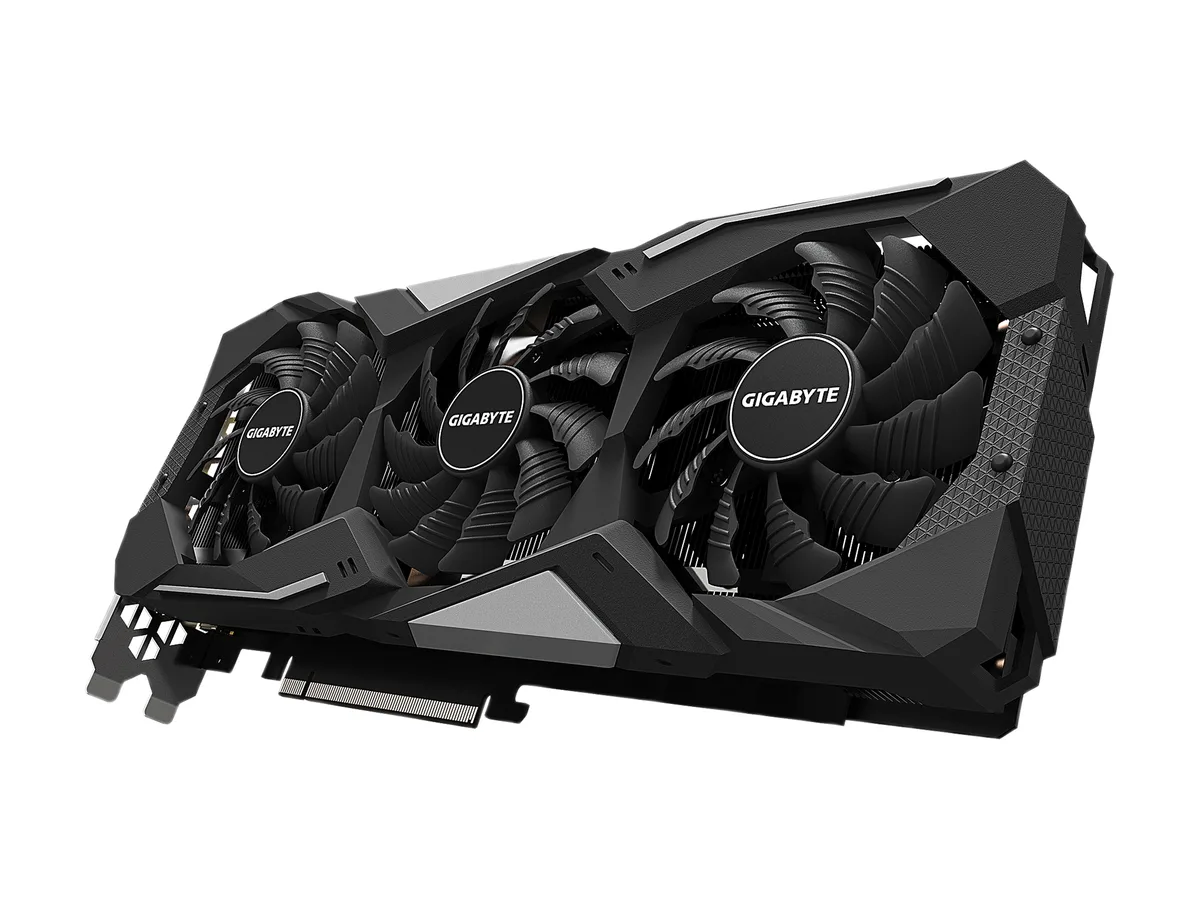

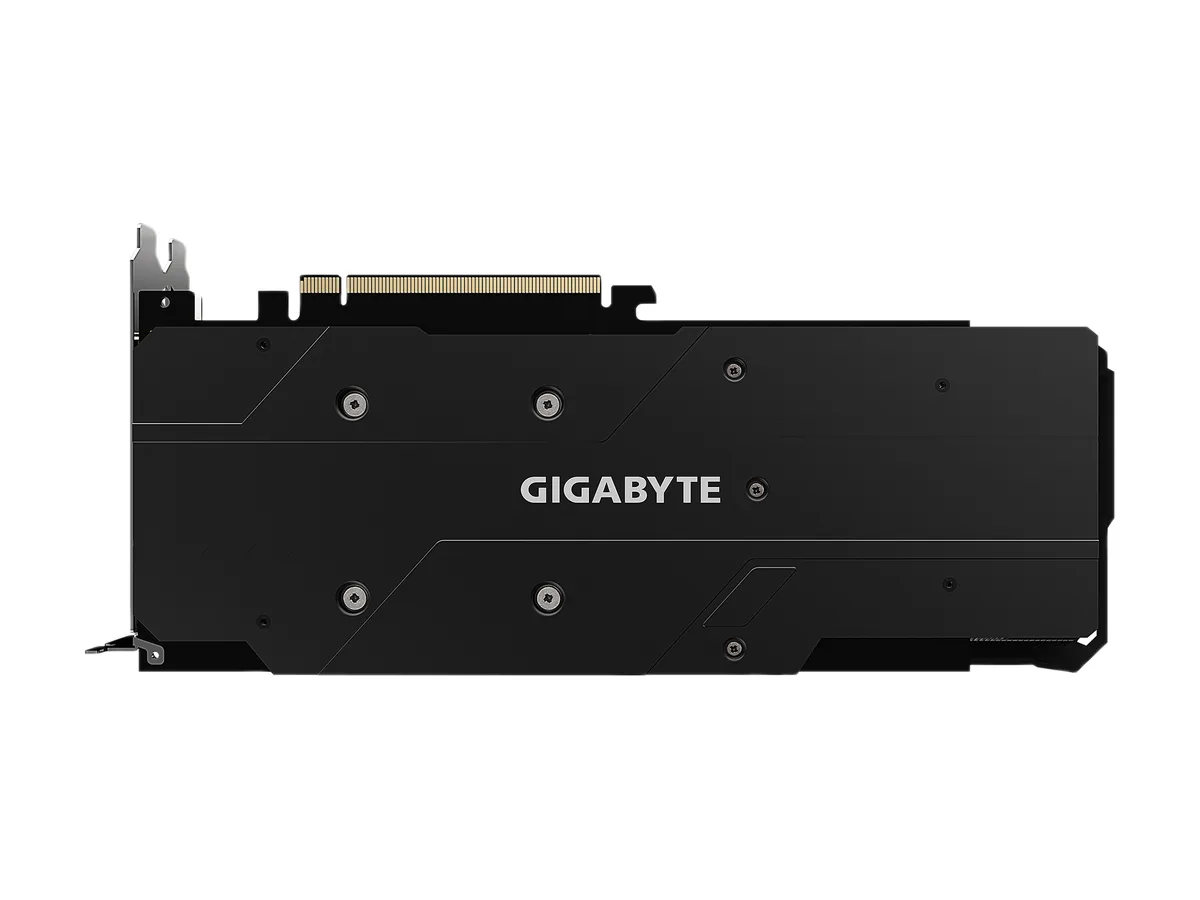

The WINDFORCE 3X cooler uses three alternate spinning fans and five direct touch copper heatpipes to manage the 225 W thermal design power. This layout keeps the GPU near its 1750 MHz boost clock during extended sessions rather than throttling after a short burst. A metal back plate adds structural rigidity and helps disperse residual heat away from the PCB.

8 GB 256-bit GDDR6 memory capacity

The 8 GB frame buffer connected through a 256-bit bus at 14000 MHz effective clock is the specification that determines whether this card fits a given workload. It provides enough bandwidth and capacity for high texture settings at 1440p and supports up to four displays via three DisplayPort 1.4 outputs and one HDMI 2.0b port.

Highlights

  • Boost performance with 1750 MHz boost clock and 8 GB GDDR6 memory
  • Smooth 4K gaming via PCI Express 4.0 x16 and 256-bit memory interface
  • Cool, quiet operation from WINDFORCE 3X cooler with alternate spinning fans
  • Flexible multi-monitor setups using three DisplayPort 1.4 and one HDMI 2.0b outputs
  • Factory overclocked core at 1565 MHz with 2304 stream processors for extra speed

Specifications

BrandGIGABYTE
ModelGV-R57GAMING OC-8GD
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700
Core Clock1565 MHz
Boost Clock1750 MHz
Stream Processors2304
Effective Memory Clock14000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
Eyefinity SupportYes
Virtual Reality ReadyYes
CoolerWINDFORCE 3X
Thermal Design Power225W
System RequirementsSystem PSU Limitation: 600W
Power Connector8-Pin
FeaturesPowered by AMD Radeon RX 5700
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 - synchronize with other AORUS devices
Metal Back Plate
PCI-Express 4.0 Support
Form FactorATX
Max GPU Length280 mm
Card Dimensions (L x H)11.02" x 4.49"
Slot Width2.5 slot
Shipping weight1.57 kg
Package size401 × 246 × 97 mm

Questions about this item

How loud and hot does the WINDFORCE 3X cooler get when the Radeon RX 5700 runs at its 225W thermal design power all day?

The WINDFORCE 3X cooler uses three alternate-spinning fans and five direct-touch copper heatpipes to move heat away from the GPU. At the rated 225W TDP the card stays within AMD thermal limits, and fan speed scales with load so noise rises only under sustained heavy work.

What power supply and connector must I already have for this GV-R57GAMING OC-8GD to work?

A 600W PSU with one free 8-pin PCIe power connector is required. The card draws up to 225W, so the supply must deliver that on the 12V rail alongside the rest of the system.

Will the PCI Express 4.0 x16 interface on this card work properly in my older motherboard that only has PCIe 3.0 slots?

Yes. The PCIe 4.0 x16 edge connector is backward compatible with PCIe 3.0 x16 slots. The card will run at PCIe 3.0 speeds, which still provides ample bandwidth for the Radeon RX 5700.
