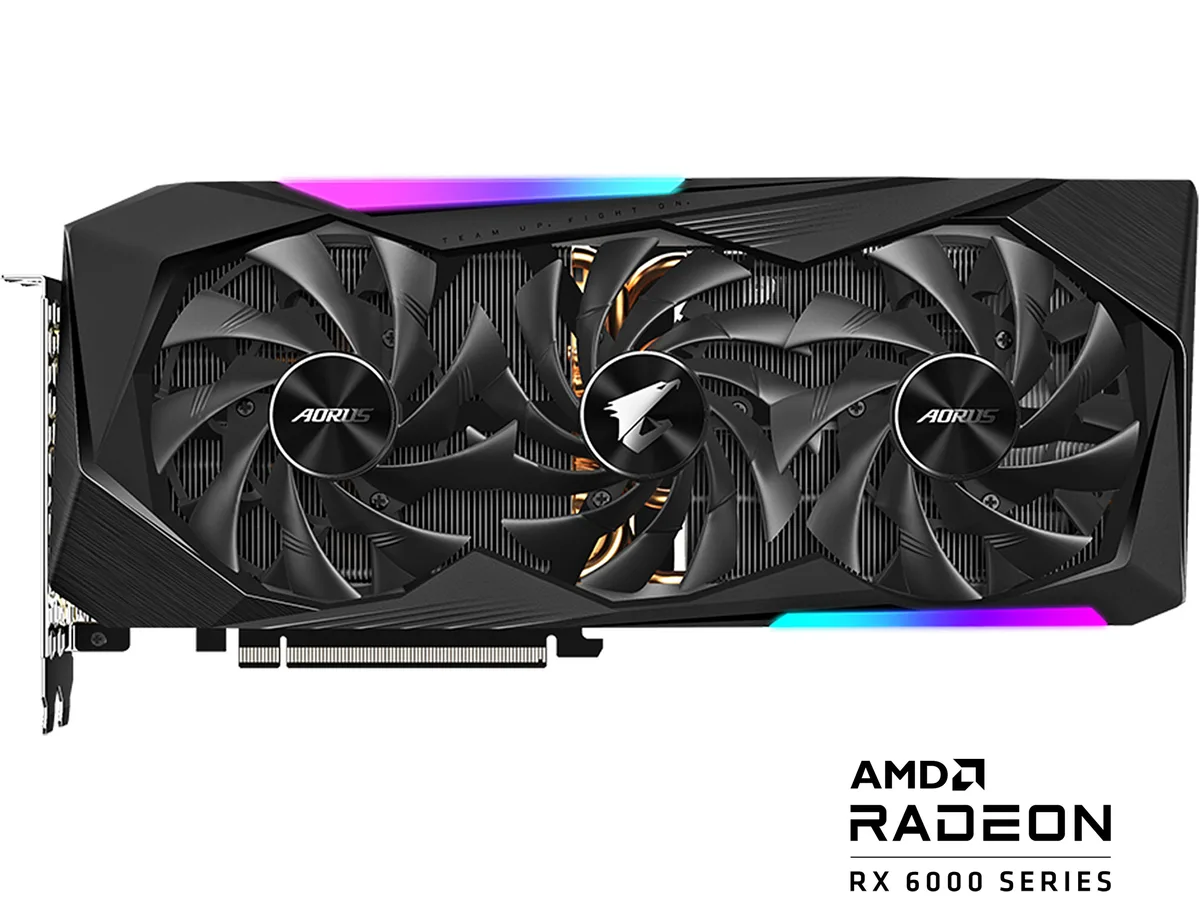

Large graphics card with three fans, metal backplate and LCD side display

GIGABYTE

GIGABYTE GV-R68AORUS M-16GD Radeon RX 6800 graphics card

SKU CH-9NRY-6NBYX MPN GV-R68AORUS M-16GD

Refurbished Radeon RX 6800 with 16GB GDDR6, triple-fan MAX-Covered cooling, dual BIOS and LCD Edge View

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800
  • Stream Processors3840
  • Effective Memory Clock16000 MHz
  • 16 GB GDDR6 memory at 16000 MHz enables high-resolution textures
  • MAX-Covered triple-fan cooling keeps the Radeon RX 6800 GPU running cool
  • LCD Edge View shows real-time stats without extra software
  • Dual BIOS lets you switch between performance and quiet profiles

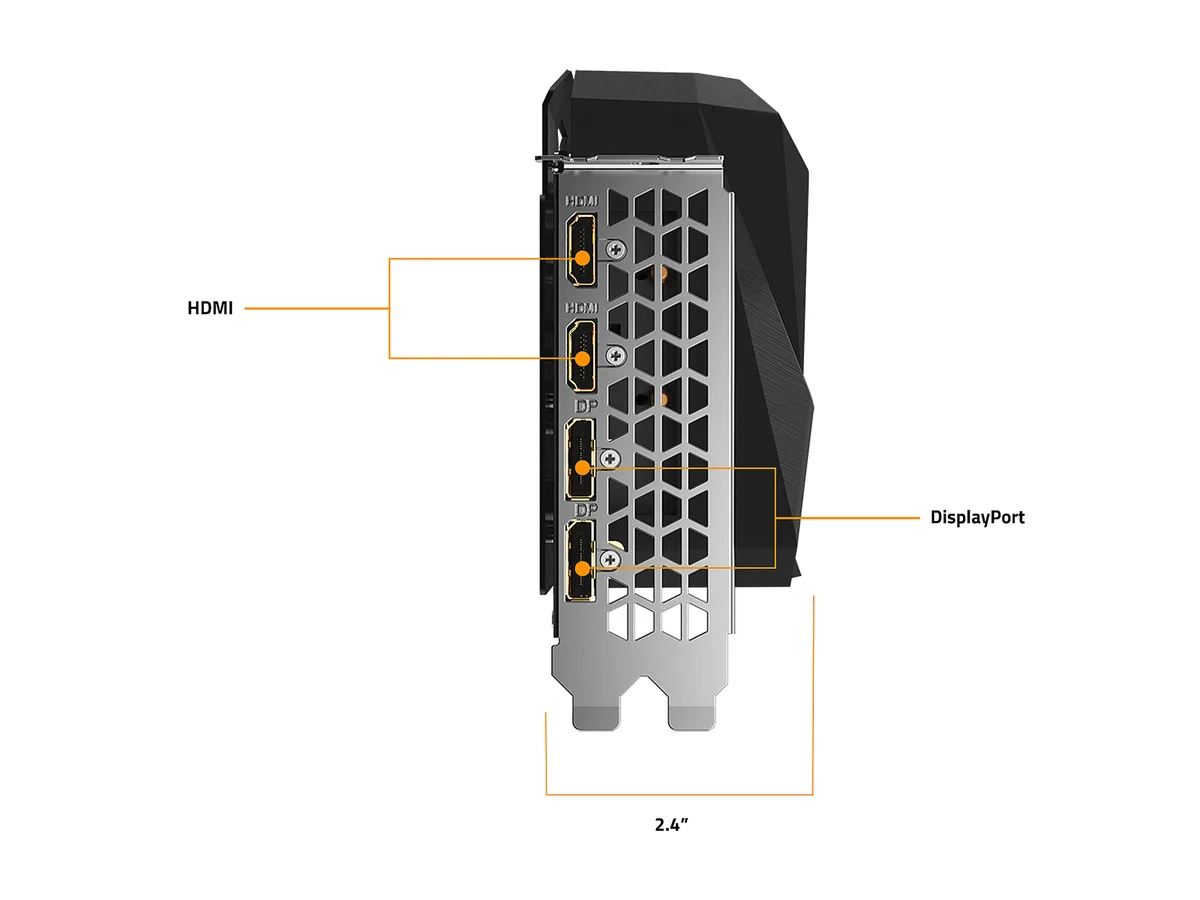

  • PCI Express 4.0 interface and 2 x HDMI 2.1 plus 2 x DisplayPort 1.4a drive four 8K displays

GIGABYTE AORUS Radeon RX 6800 Master

This graphics card uses the AMD Radeon RX 6800 GPU with 3840 stream processors and 16GB of GDDR6 memory across a 256-bit interface. It connects via PCI Express 4.0 and outputs to four displays through two HDMI 2.1 ports and two DisplayPort 1.4a connectors. The MAX-Covered triple-fan cooler and metal back plate manage thermals for a 650W PSU recommendation.

Upgrade from 8GB or older RDNA cards

Moving to 16GB of VRAM removes capacity limits in modern titles and heavy creative workloads at 1440p and 4K. The RDNA2 architecture adds DirectX 12 Ultimate support and higher clock speeds over first-generation RDNA boards. Dual BIOS lets you choose between performance and quieter operation without flashing firmware.

Check case length and power connectors

The card measures 324 mm long, so verify your chassis clearance before ordering. Your power supply must provide two 8-pin PCIe connectors for the board. Ensure the motherboard has a free PCI Express 4.0 x16 slot and that your monitor cables match HDMI 2.1 or DisplayPort 1.4a for full resolution support.

Highlights

  • 16 GB GDDR6 memory at 16000 MHz enables high-resolution textures
  • MAX-Covered triple-fan cooling keeps the Radeon RX 6800 GPU running cool
  • LCD Edge View shows real-time stats without extra software
  • Dual BIOS lets you switch between performance and quiet profiles
  • PCI Express 4.0 interface and 2 x HDMI 2.1 plus 2 x DisplayPort 1.4a drive four 8K displays

Specifications

BrandGIGABYTE
SeriesAORUS
ModelGV-R68AORUS M-16GD
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800
Stream Processors3840
Effective Memory Clock16000 MHz
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI 2.1
DisplayPort2 x DisplayPort 1.4a
Max Resolution7680 x 4320
CoolerTriple Fans
Recommended PSU Wattage650W
Power Connector2 x 8-Pin
FeaturesPowered by RDNA2 Radeon RX 6800
Integrated with 16GB GDDR6 256-bit memory interface
MAX-Covered cooling
LCD Edge View
RGB Fusion 2.0
Dual BIOS
Protection metal back plate
Form FactorATX
Max GPU Length324 mm
Shipping weight1.89 kg
Package size406 × 235 × 92 mm

Questions about this item

Will the 324 mm length and triple-fan cooler fit in a mid-tower case with a front radiator?

The card measures 324 mm long and uses a triple-fan MAX-Covered cooler, so verify your case’s GPU clearance with a front radiator installed before ordering.

How do I install the two 8-pin power connectors without triggering the dual-BIOS switch by mistake?

Seat each 8-pin connector firmly until it clicks; the dual-BIOS toggle sits near the bracket, so keep fingers clear of it while routing cables.

When should I replace the thermal pads on the 16 GB GDDR6 memory and GPU die?

Plan to repaste the GPU and refresh memory pads every two to three years, or sooner if junction temperatures climb above stock levels under load.
