GIGABYTE GV-R76XTGAMING OC-16GD Radeon RX 7600 XT graphics card

16GB GDDR6 Gaming Card

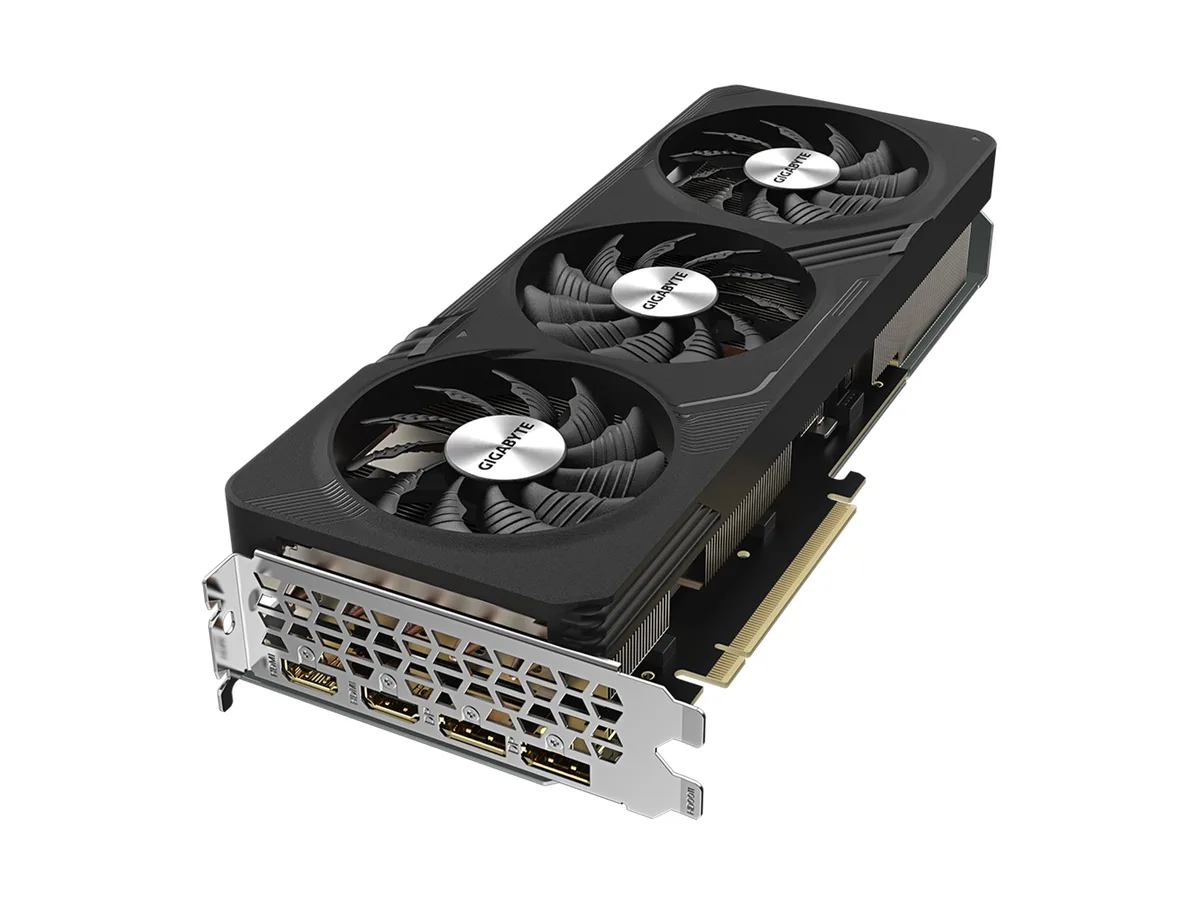

The GIGABYTE GV-R76XTGAMING OC-16GD is a Radeon RX 7600 XT graphics card built on the RDNA 3 architecture with 2048 stream processors. It delivers 16GB of GDDR6 memory across a 128-bit interface running at 18 Gbps. The board uses a PCI Express 4.0 x8 connection and supports up to four displays via two HDMI 2.1a and two DisplayPort 2.1 outputs. It targets 1080p and 1440p gaming with a 190W thermal design power and a recommended 600W power supply.

Step Up From 8GB 128-Bit Models

Moving from an 8GB 128-bit card to this 16GB version adds frame-buffer headroom for modern titles that exceed 8GB at high texture settings. The jump is worth it when games allocate more than 8GB of VRAM, reducing stutter caused by texture streaming to system memory. The 18 Gbps memory clock maintains bandwidth parity while the doubled capacity handles larger asset pools. A 600W PSU and two 8-pin connectors are required for stable operation.

WINDFORCE Triple-Fan Sustained Cooling

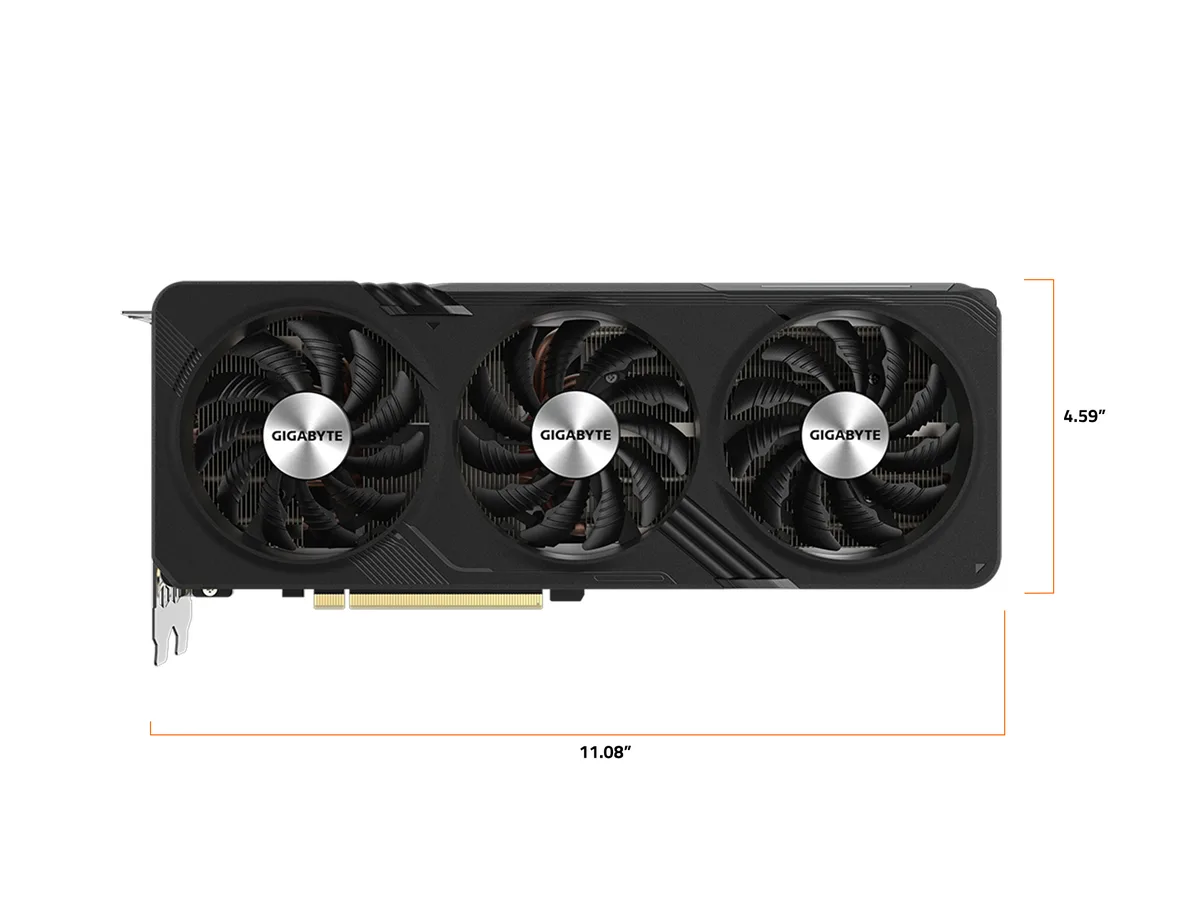

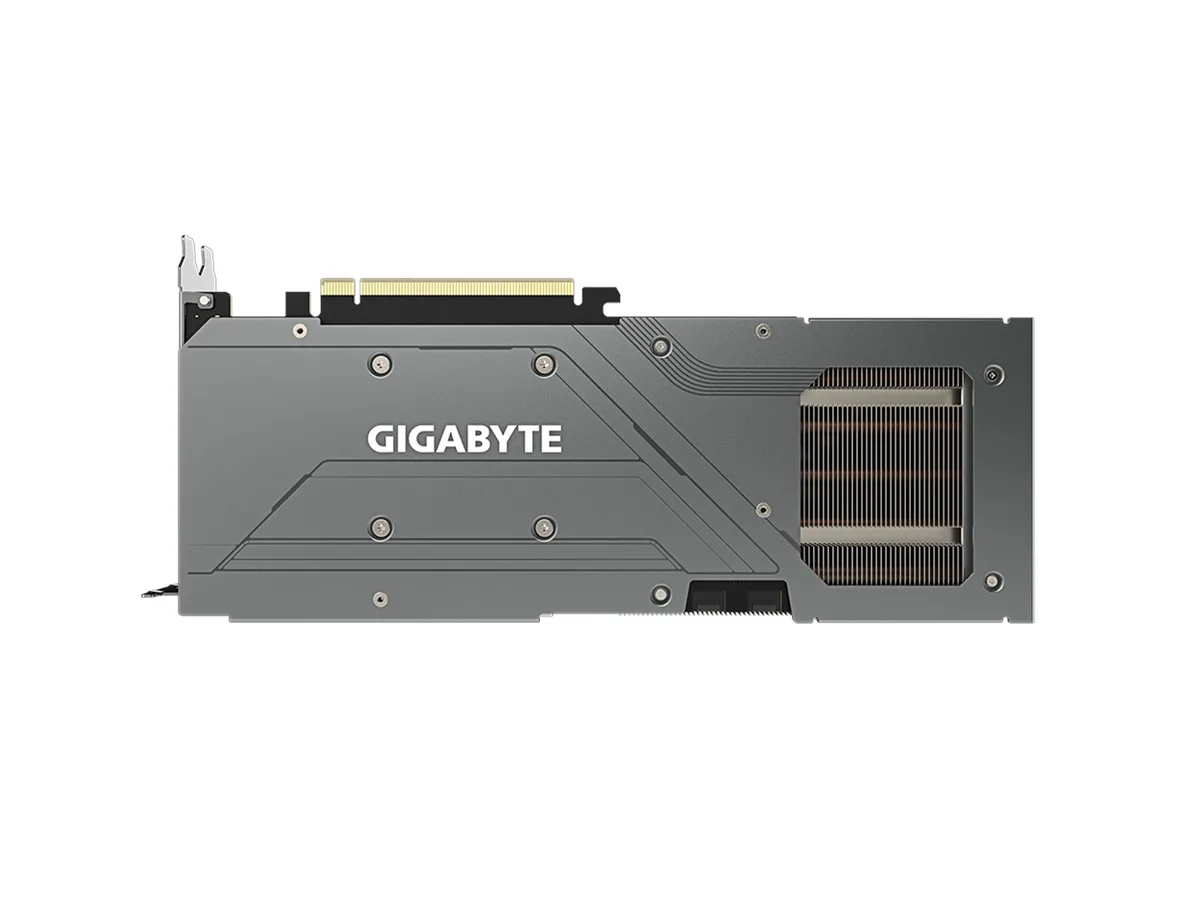

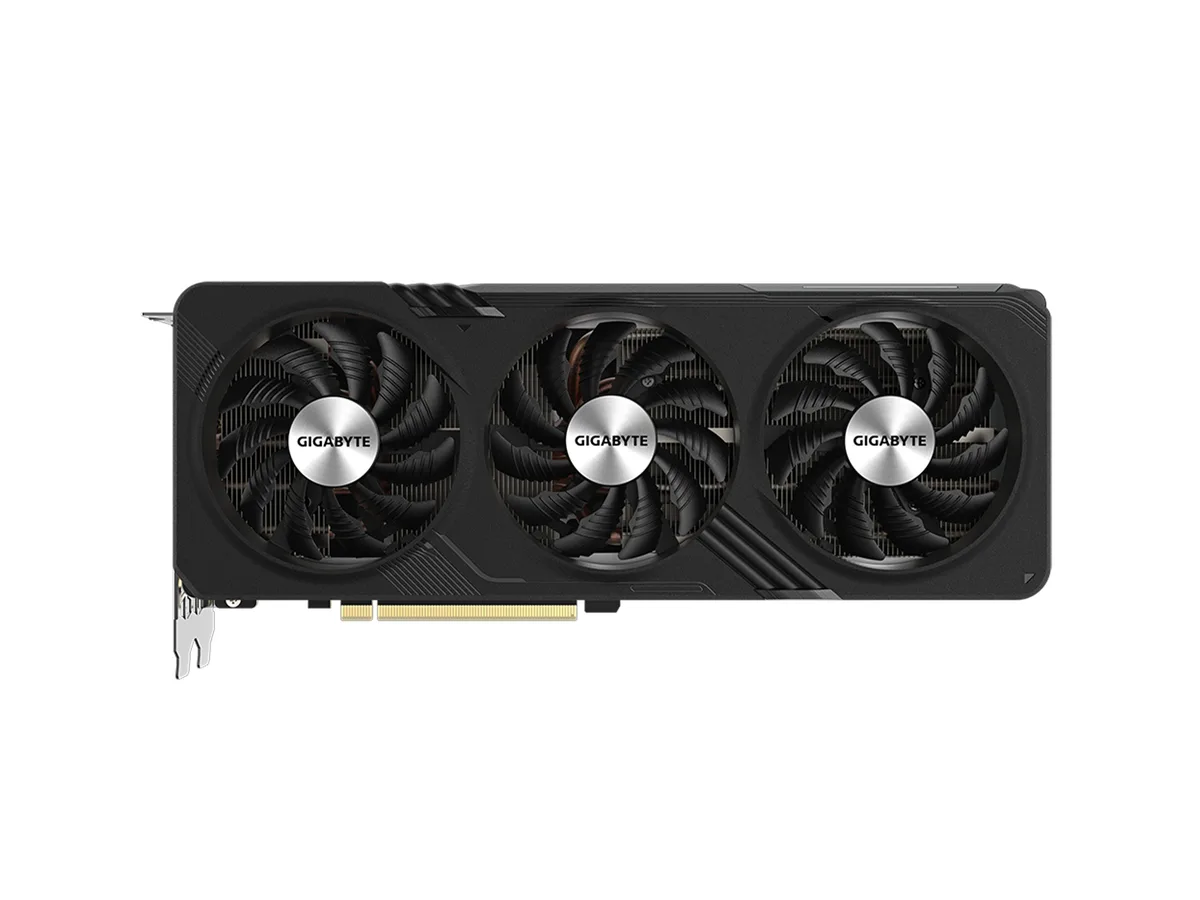

The WINDFORCE cooling system uses three fans and a metal backplate to dissipate heat during extended sessions. Under continuous load the card maintains its factory overclock without throttling, keeping the GPU within its 190W power envelope. The 2.5-slot, 281 mm ATX form factor fits standard mid-tower cases while providing enough fin area for steady airflow. HDMI 2.1a and DisplayPort 2.1 remain stable for long gaming or compute workloads.
