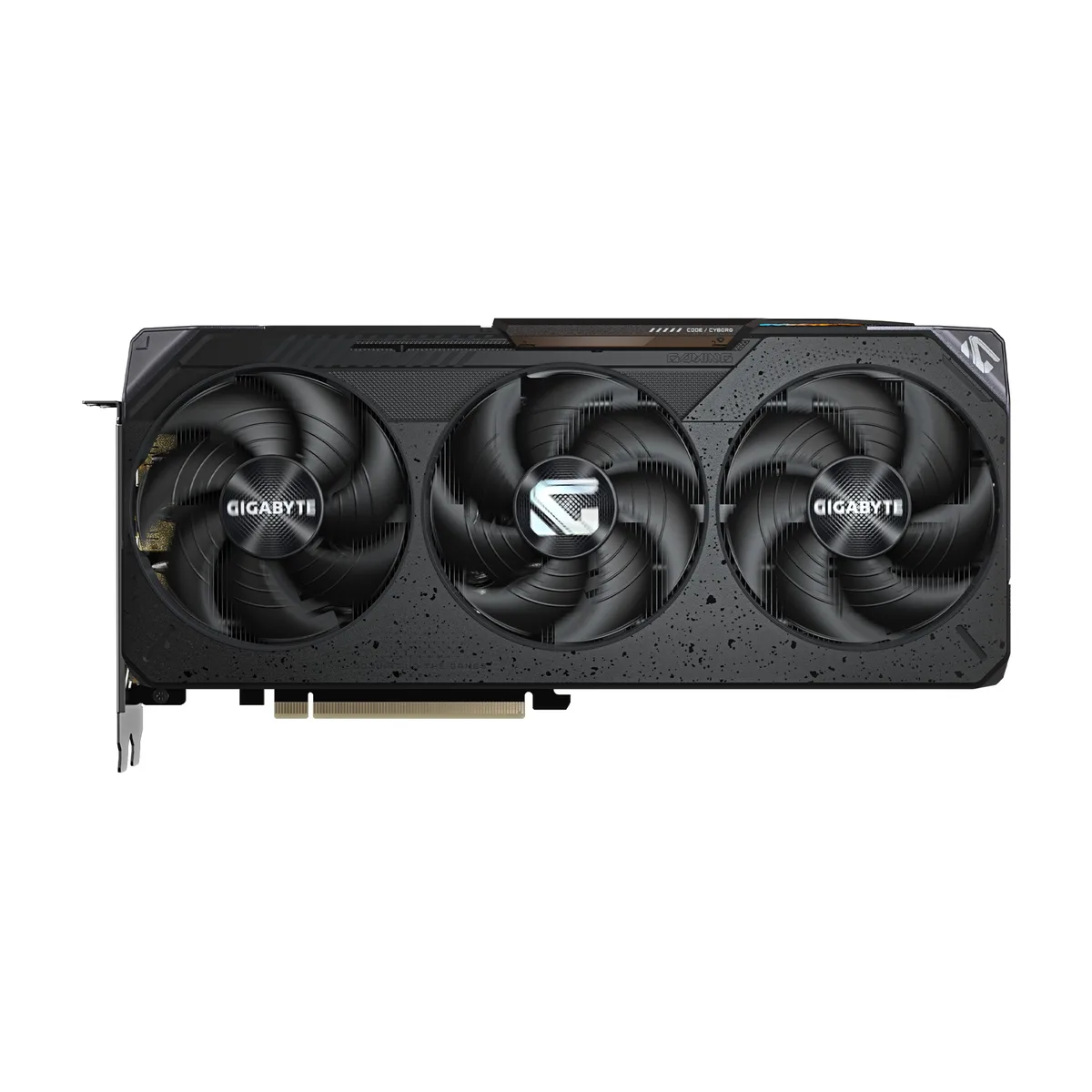

Black triple-fan ATX graphics card, 288 by 132 by 50 mm, 2.5 slots, Radeon RX 9070 16GB GDDR6

GIGABYTE

GIGABYTE GV-R9070GAMING OC-16GD Radeon RX 9070 16GB GDDR6 graphics card

SKU CH-AEPV-QWYCF MPN GV-R9070GAMING OC-16GD

Refurbished Radeon RX 9070 GPU with 16GB GDDR6, 3584 stream processors, boost clock 2700 MHz, PCI Express 5.0 x16, triple-fan cooler, 2 x HDMI, 2 x DisplayPort, 220W TDP, 750W PSU recommended.

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070
  • ArchitectureRDNA 4
  • Game Clock2210 MHz
  • 16 GB GDDR6 on a 256-bit bus gives high bandwidth for 4K textures
  • Boost clock reaches 2700 MHz for strong raster performance
  • Triple-fan cooler keeps the 220 W TDP card running cool
  • PCIe 5.0 x16 interface and two 8-pin power connectors supply ample throughput
  • Two HDMI and two DisplayPort outputs drive up to four displays

16GB GDDR6 Radeon RX 9070 Gaming Card

The GIGABYTE GV-R9070GAMING OC-16GD is a graphics card built around the AMD Radeon RX 9070 GPU with 16GB of GDDR6 memory on a 256-Bit interface. It targets gamers and creators who need high frame rates at 1440p or 4K resolution. The RDNA 4 architecture provides 3584 stream processors for compute and shading workloads. A PCI Express 5.0 x16 connection supplies the necessary host bandwidth.

Sustained Load Behaviour at 220W TDP

The card draws up to 220W and requires a 750W power supply fed by two 8-Pin connectors. A Game Clock of 2210 MHz represents the typical frequency under gaming load, while the Boost Clock reaches 2700 MHz when thermal headroom allows. The 20 Gbps effective memory clock keeps bandwidth stable during extended sessions. Triple fans on the ATX form factor move heat away from the 2.5-slot cooler to maintain these clocks.

Build Quality and Daily Connectivity

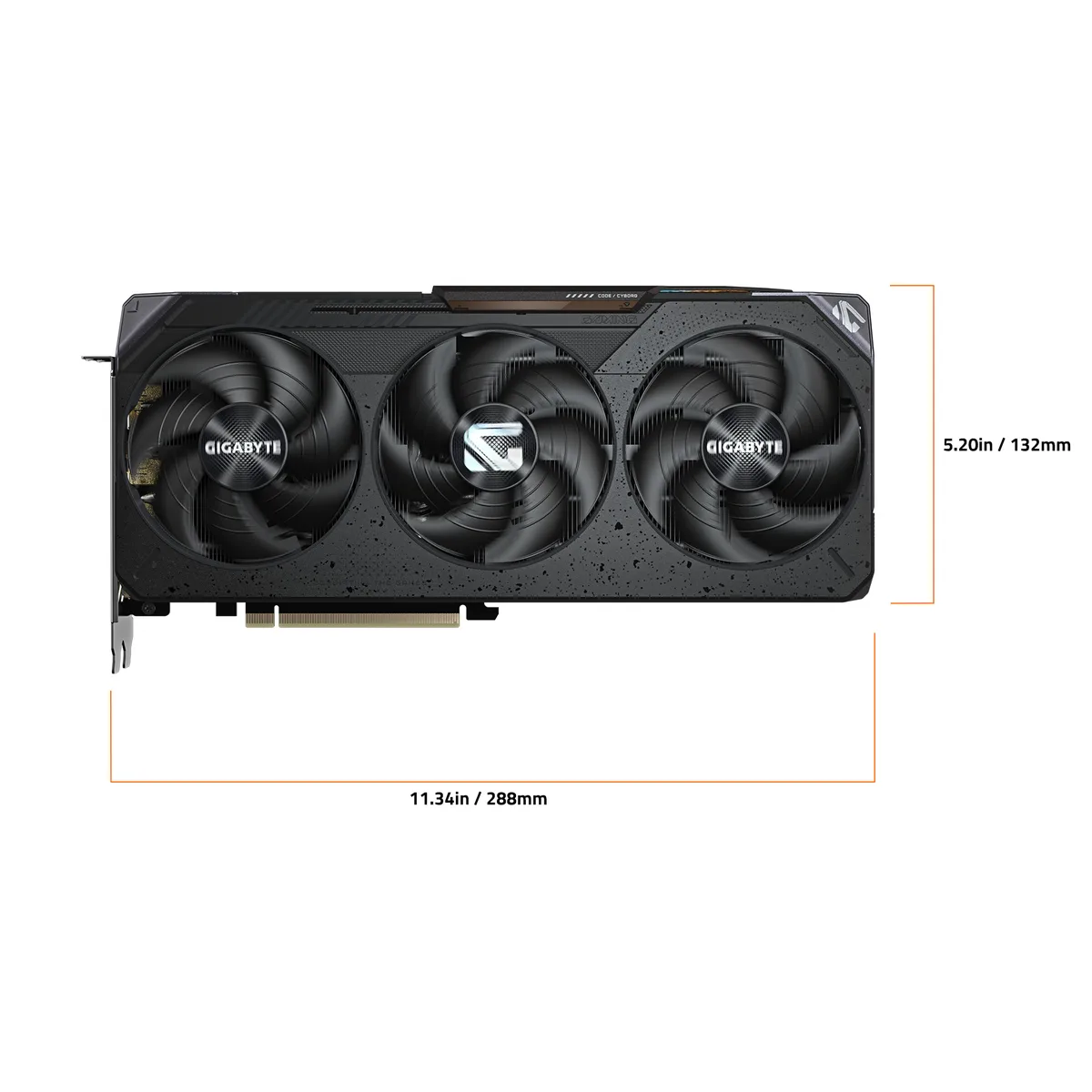

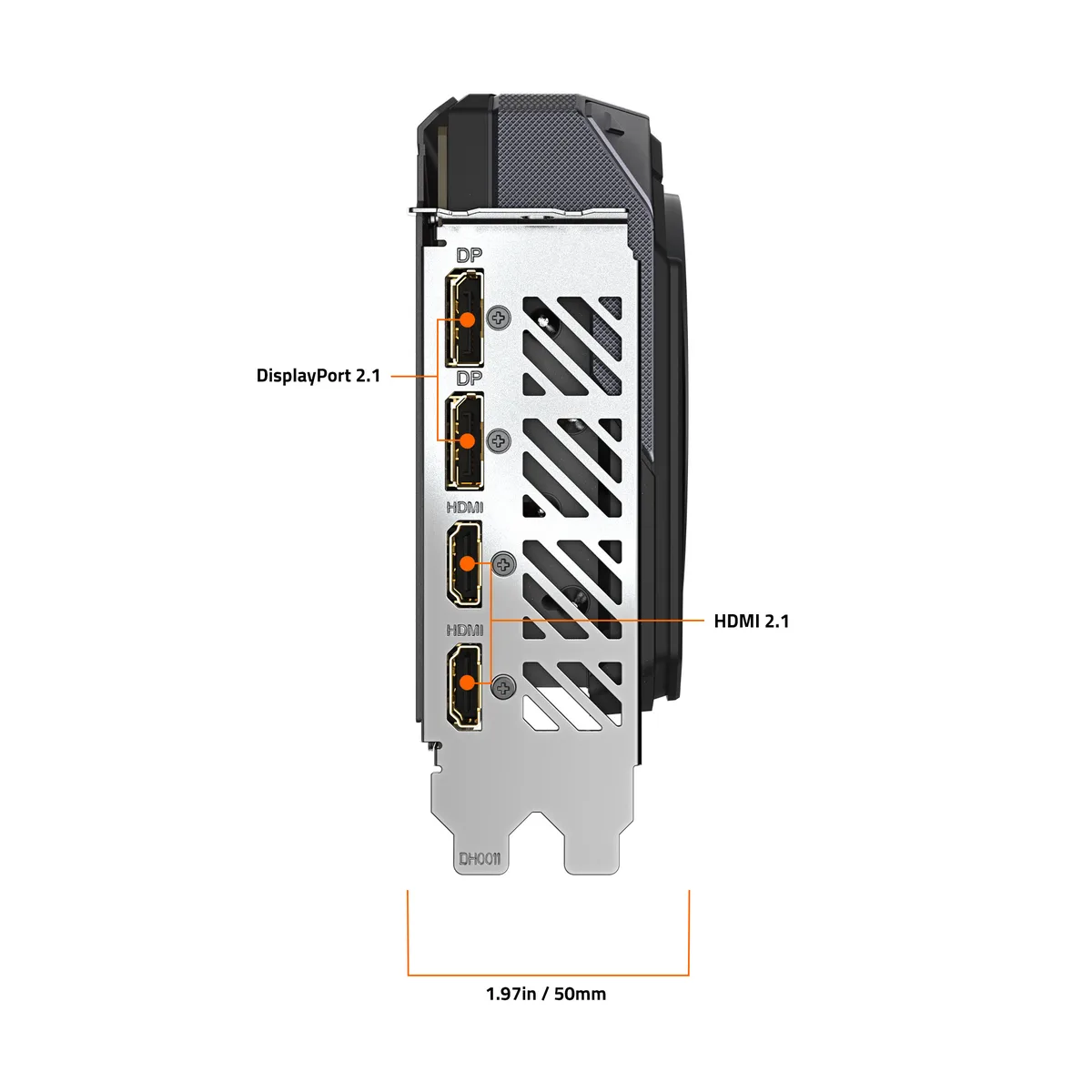

The black shroud measures 288 mm long, 132 mm high and 50 mm thick, occupying 2.5 expansion slots in a standard case. Two HDMI and two DisplayPort outputs drive up to four displays at a maximum resolution of 7680 x 4320. HDCP support and Virtual Reality readiness cover protected content and headset use. The 2025 listing date confirms current-generation positioning for modern builds.

Highlights

  • 16 GB GDDR6 on a 256-bit bus gives high bandwidth for 4K textures
  • Boost clock reaches 2700 MHz for strong raster performance
  • Triple-fan cooler keeps the 220 W TDP card running cool
  • PCIe 5.0 x16 interface and two 8-pin power connectors supply ample throughput
  • Two HDMI and two DisplayPort outputs drive up to four displays

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-R9070GAMING OC-16GD
Part NumberGV-R9070GAMING OC-16GD
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070
ArchitectureRDNA 4
Game Clock2210 MHz
Boost Clock2700 MHz
Stream Processors3584
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI
DisplayPort2 x DisplayPort
ColorBlack
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerTriple Fans
Thermal Design Power220W
Recommended PSU Wattage750W
Power Connector2 x 8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length288 mm
Card Dimensions (L x H)288 x 132 x 50 mm
Slot Width2.5 Slots
Shipping weight1.68 kg
Package size404 × 239 × 94 mm

Questions about this item

How loud and hot does the triple-fan cooler run when the 220 W TDP card is pushed to its 2700 MHz boost clock all day?

The card draws up to 220 W and uses a triple-fan design across a 2.5-slot frame; a 750 W PSU and two 8-pin connectors are required to sustain the 2700 MHz boost clock.

My motherboard only has PCI Express 4.0 slots — will the PCI Express 5.0 x16 interface still work?

The card uses a PCI Express 5.0 x16 edge connector that is backward compatible with PCI Express 4.0 and 3.0 slots, so it will function on older boards.

Will the 288 mm length and 2.5-slot width fit in my existing mid-tower case without blocking drive bays?

The card measures 288 mm long, 132 mm tall and occupies 2.5 slots; verify your case clearance and motherboard layout before installing.
