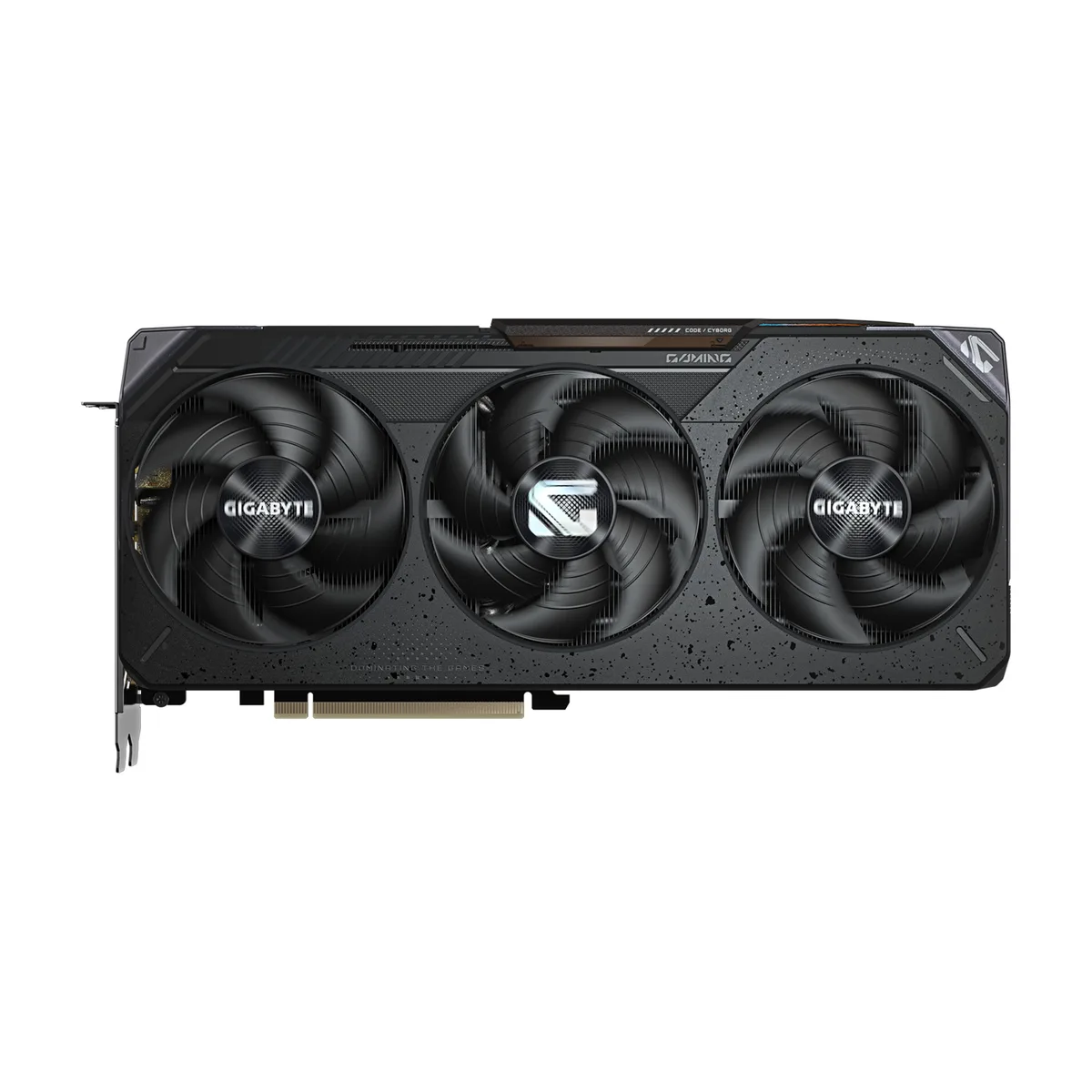

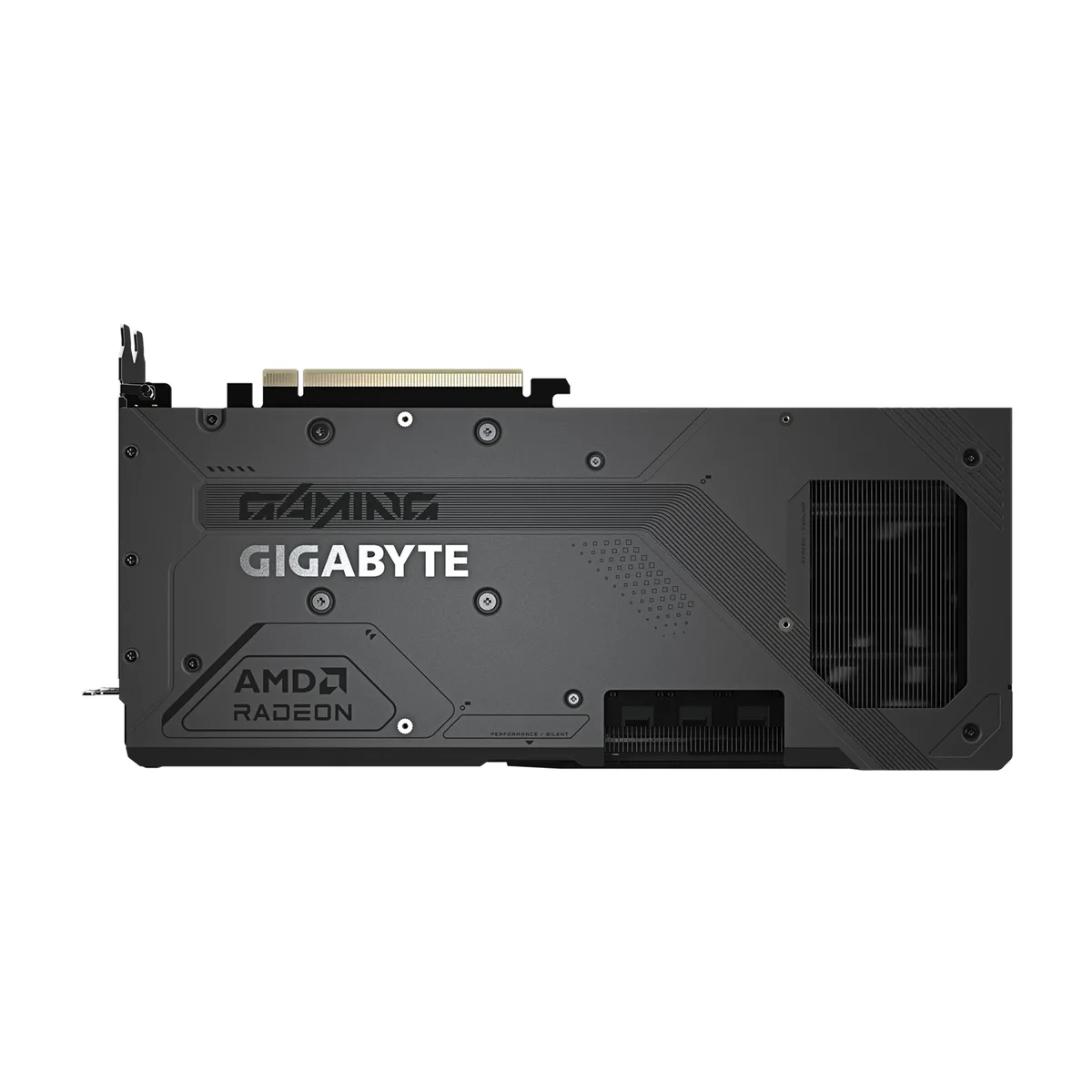

Triple-fan graphics card with dark shroud and backplate, 2.7-slot thick

GIGABYTE

GIGABYTE GV-R9070XTGAMING-16GD Radeon RX 9070 XT graphics card

SKU CH-7SAN-4F3WM MPN GV-R9070XTGAMING-16GD

AMD RDNA 4 graphics card with 16 GB GDDR6 on a 256-bit bus, 4096 stream processors, boost clock 2970 MHz, triple-fan cooler, PCIe 5.0 x16, dual HDMI and dual DisplayPort outputs

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9070 XT
  • ArchitectureRDNA 4
  • Game Clock2400 MHz

Option GAMING

  • AORUS
  • GAMING ICE
  • GAMING

Struck-through versions exist but are not stocked here.

Edition RX 9070 XT

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR6 on a 256-bit bus for high-resolution textures
  • Boost clock up to 2970 MHz for responsive 4K gaming
  • PCI Express 5.0 x16 interface doubles host bandwidth
  • Triple-fan cooler keeps the 304 W TDP card stable
  • Four display outputs support 7680 × 4320 multi-monitor setups

16 GB RDNA 4 graphics card

The GIGABYTE GV-R9070XTGAMING-16GD is a Radeon RX 9070 XT built on AMD RDNA 4 architecture with 16 GB of 256-bit GDDR6 memory. It targets enthusiasts who need high frame rates at 1440p or 4K and creators who rely on GPU compute. The card runs at a 2400 MHz game clock and can boost to 2970 MHz across its 4096 stream processors. PCI Express 5.0 x16 provides the host link.

Triple-fan cooler with 2.7-slot width

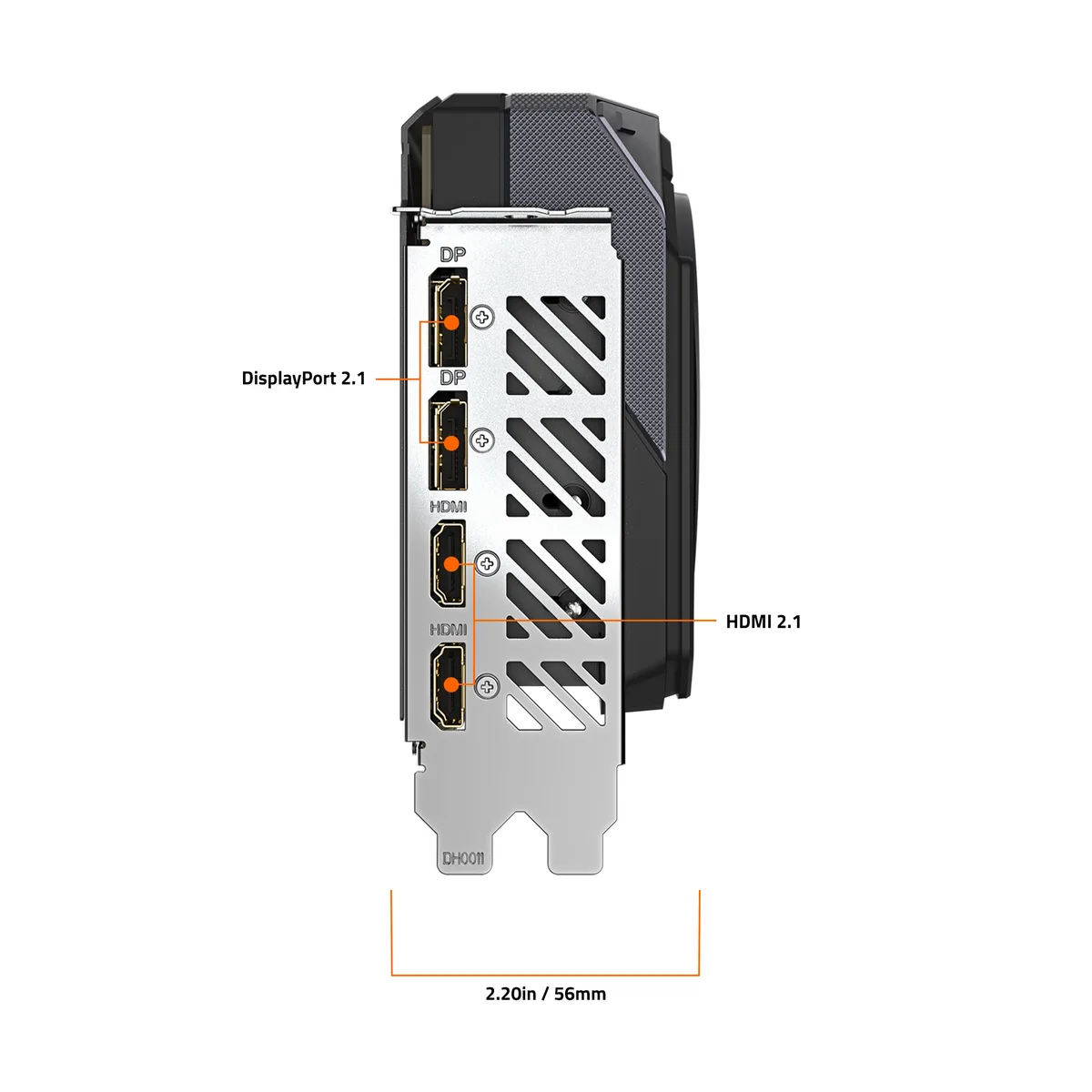

A triple-fan thermal solution dissipates the 304 W TDP inside a metal shroud that occupies 2.7 expansion slots. The board measures 288 mm long, 132 mm tall and 56 mm thick so it fits most mid-tower cases with adequate clearance. Three 8-pin power connectors feed the GPU from a recommended 850 W supply. Outputs include two HDMI and two DisplayPort sockets for up to four simultaneous displays at 7680 x 4320 resolution.

Check case length PSU cables and slot space

Verify that your chassis accepts a 288 mm card and has room for the 2.7-slot bracket height. Ensure the power supply delivers three 8-pin PCIe cables or suitable adapters for the 304 W board. Confirm the motherboard offers a PCI Express 5.0 x16 slot wired for full bandwidth. Driver support for DirectX 12 and OpenGL 4.6 is standard on current Windows and Linux distributions.

Highlights

  • 16 GB GDDR6 on a 256-bit bus for high-resolution textures
  • Boost clock up to 2970 MHz for responsive 4K gaming
  • PCI Express 5.0 x16 interface doubles host bandwidth
  • Triple-fan cooler keeps the 304 W TDP card stable
  • Four display outputs support 7680 × 4320 multi-monitor setups

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-R9070XTGAMING-16GD
Part NumberGV-R9070XTGAMING-16GD
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9070 XT
ArchitectureRDNA 4
Game Clock2400 MHz
Boost Clock2970 MHz
Stream Processors4096
Effective Memory Clock20000 MHz (20 Gbps)
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI
DisplayPort2 x DisplayPort
Max Resolution7680 x 4320
CoolerTriple Fans
Thermal Design Power304W
Recommended PSU Wattage850W

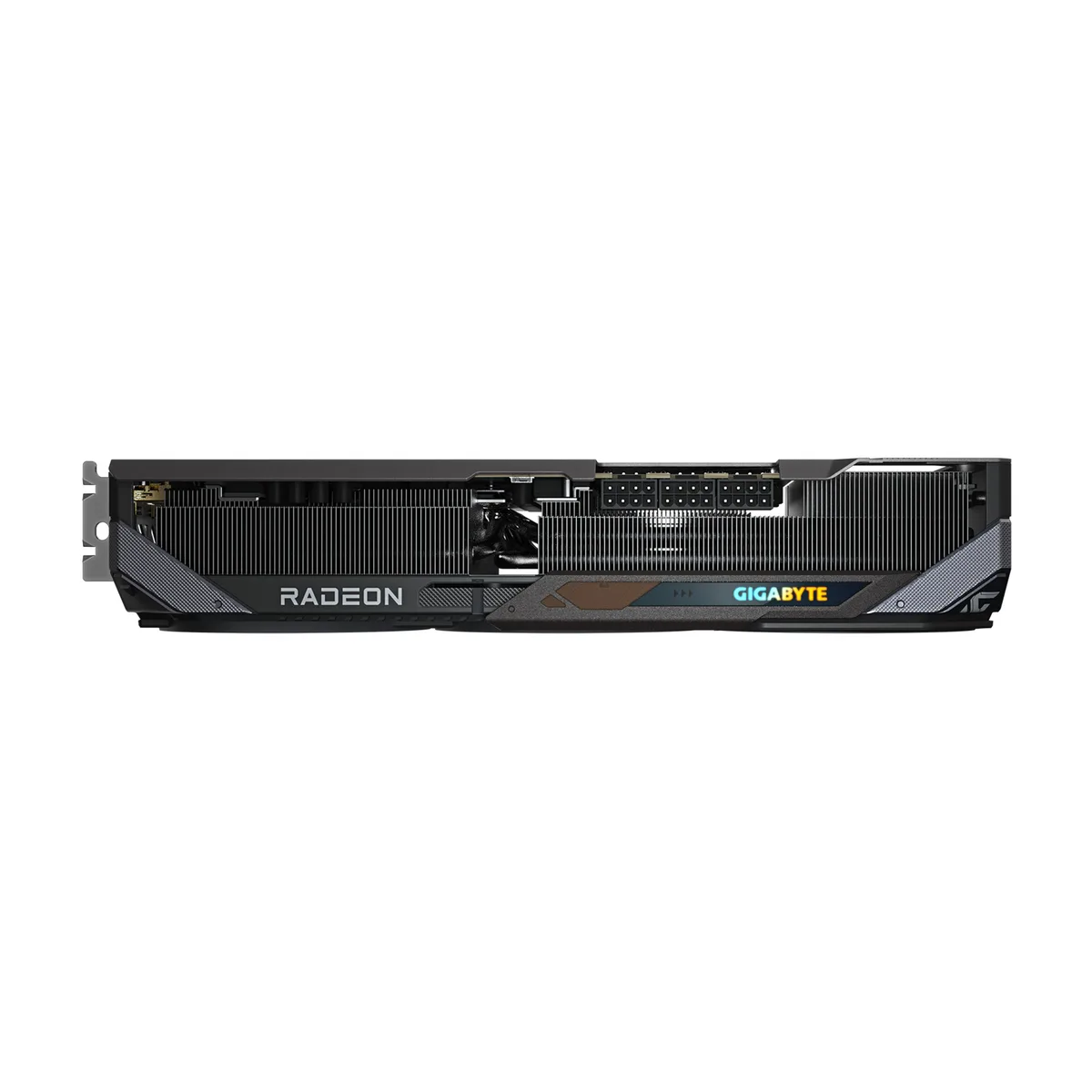

Power Connector3 x 8-Pin
HDCP ReadyYes
Max GPU Length288 mm

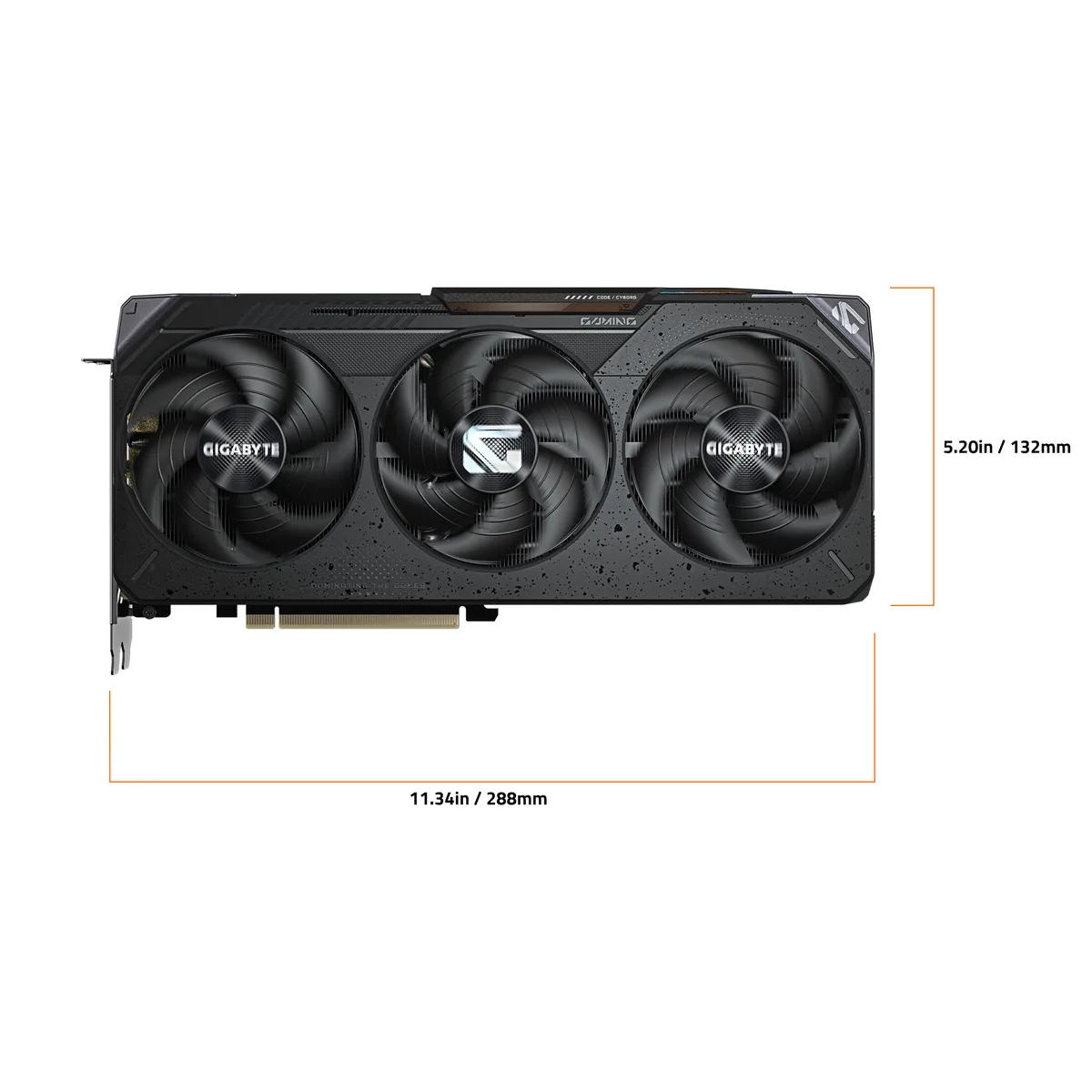

Card Dimensions (L x H)288 x 132 x 56 mm
Slot Width2.7 Slots
Shipping weight1.81 kg
Package size406 × 241 × 99 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the PCI Express 5.0 x16 interface cap the card at x8 electrical speed on older boards?

The card uses a full PCI Express 5.0 x16 link, so it negotiates the highest lane width the motherboard supports. On a 4.0 board it will run at 4.0 x16 bandwidth.

What case clearance and slot width does the 288 mm triple-fan cooler need?

The card measures 288 mm long, 132 mm tall and occupies 2.7 slots. Verify your case allows at least 288 mm GPU length and has three rear expansion brackets free.

How are the three 8-pin power connectors installed, and what mistake do builders make?

Plug three separate 8-pin cables from an 850 W PSU into each connector — do not use a single daisy-chained cable, which can overheat under the 304 W board power.
