GIGABYTE
GIGABYTE GVN2060IXOC-6GD Rev2 GeForce RTX 2060 graphics card
A compact ITX graphics card with 6GB GDDR6 memory, 1920 CUDA cores and a 90mm single-fan cooler for small-form-factor builds
- InterfacePCI Express 3.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 20 Series
- GPUGeForce RTX 2060
- Core Clock1695 MHz
- CUDA Cores1920
- 6 GB GDDR6 memory for high-resolution textures
- 1920 CUDA cores accelerate parallel workloads
- 1695 MHz core clock delivers responsive frame rates
- 170 mm ITX form factor fits small-form-factor builds
- 110 W TDP with single 8-pin power connector
170 mm ITX RTX 2060

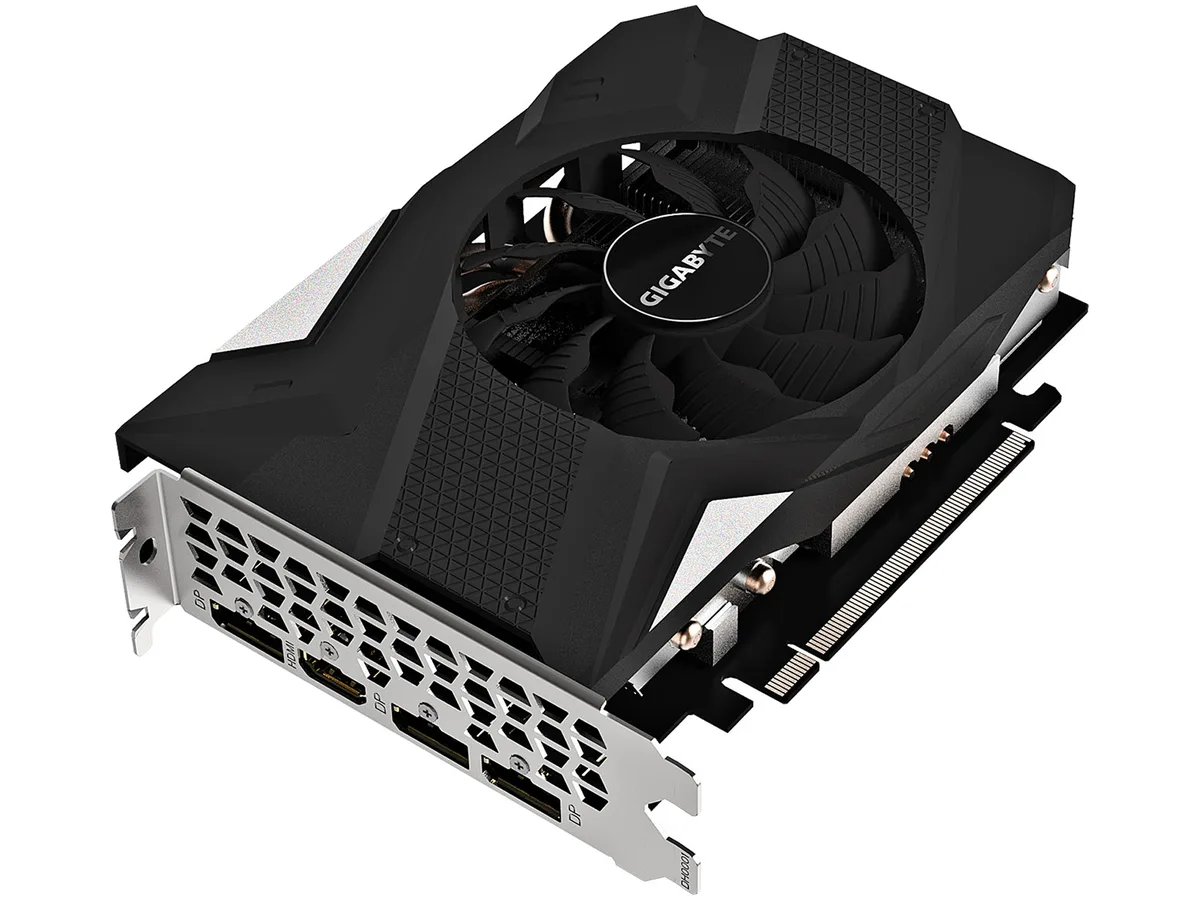

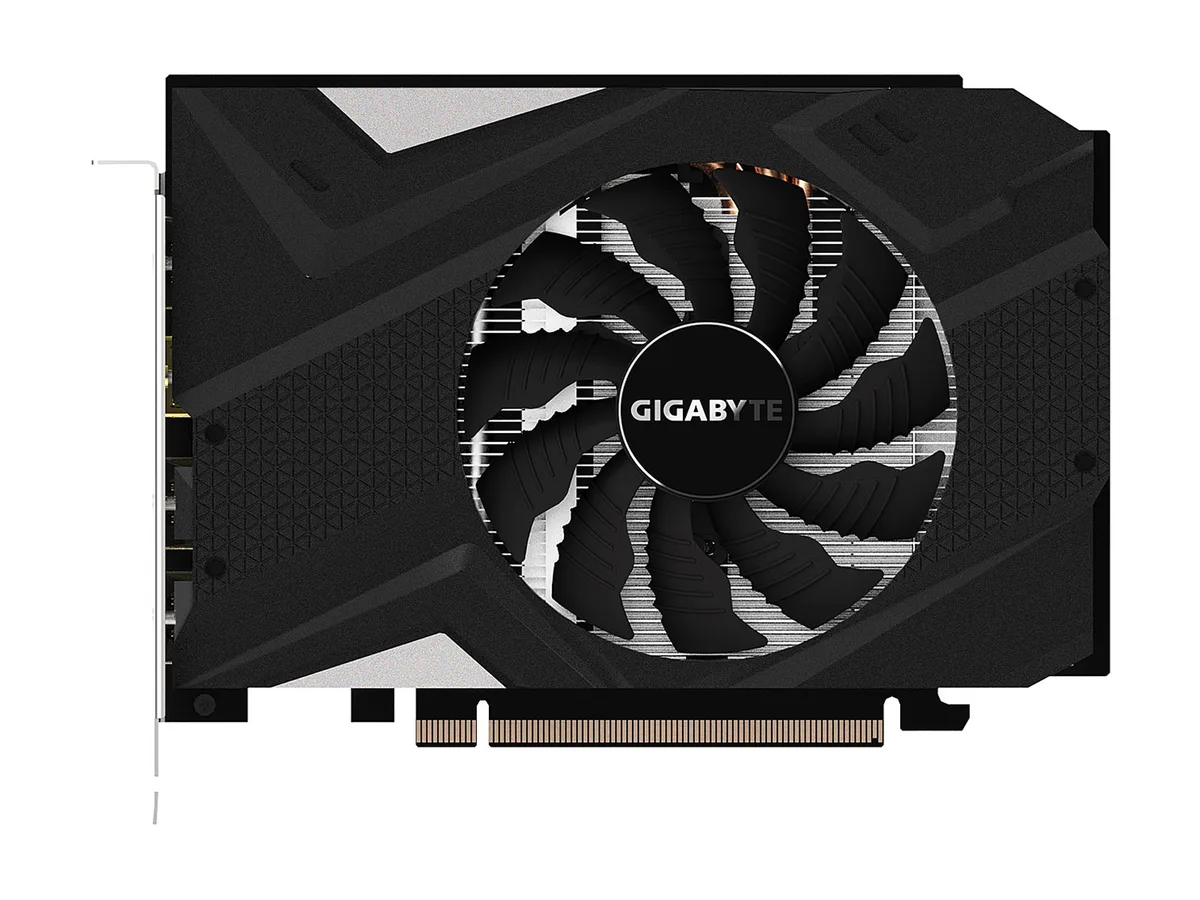

This GIGABYTE GeForce RTX 2060 is a refurbished graphics card built on the NVIDIA Turing architecture. It fits a 170 mm length and a two-slot ITX form factor, driven by a single 90 mm blade fan. The board delivers 1920 CUDA cores at a 1695 MHz core clock with 6GB GDDR6 memory across a 192-bit bus.
Suits compact 1080p builds not multi-GPU

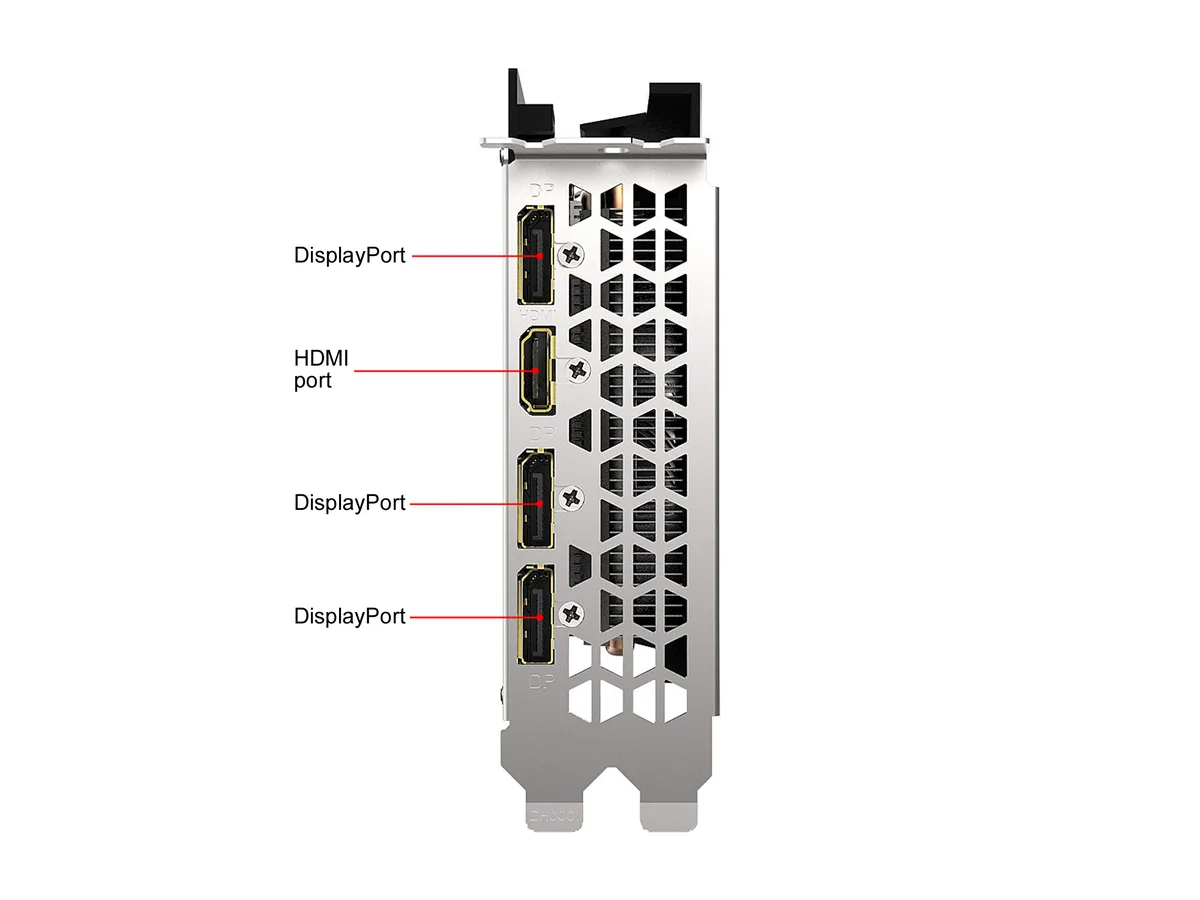

The card targets small-form-factor systems needing a 500 W PSU and one 8-pin power connector for 110 W TDP. It supports four monitors via HDMI 2.0b and three DisplayPort 1.4 outputs at up to 7680 x 4320 @ 60 Hz. SLI is not supported so multi-GPU users should look elsewhere.
6GB 192-bit GDDR6 decides fit
The 6GB GDDR6 frame buffer on a 192-bit interface sets the practical ceiling for texture-heavy workloads at 1080p or entry 1440p. Buyers needing more VRAM for higher resolutions or heavy compute should choose a card with a larger memory buffer.
Highlights
- 6 GB GDDR6 memory for high-resolution textures
- 1920 CUDA cores accelerate parallel workloads
- 1695 MHz core clock delivers responsive frame rates
- 170 mm ITX form factor fits small-form-factor builds
- 110 W TDP with single 8-pin power connector
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | GV-N2060IXOC-6GD rev. 2.0 |
| Interface | PCI Express 3.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 20 Series |
| GPU | GeForce RTX 2060 |
| Core Clock | 1695 MHz |
| CUDA Cores | 1920 |
| Effective Memory Clock | 14000 MHz |
| Memory Size | 6GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| Color | Black |
| Max Resolution | 7680 x 4320 @ 60 Hz |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Single Fan |
| Thermal Design Power | 110W |
| System Requirements | System PSU Limitation (W): 500 |
| Power Connector | 8-Pin |
| Features | Powered by GeForce RTX 2060 Integrated with 6GB GDDR6 192-bit memory interface 90mm unique blade fan 170mm compact card size |
| Form Factor | ITX |
| Max GPU Length | 170 mm |
| Card Dimensions (L x H) | 6.69" x 4.78" |
| Slot Width | 2 Slots |
| Shipping weight | 0.77 kg |
| Package size | 300 × 198 × 58 mm |
Questions about this item
How much case length does the 170 mm card need?
The ITX form factor measures 170 mm long and occupies 2 slots, so allow at least 170 mm of clear depth from the motherboard rear bracket.
Which power connector must be seated for the 110W TDP?
Connect a single 8-pin PCIe cable from a 500W or larger PSU; the card will not boot if the connector is only partially inserted.
When should the 90 mm blade fan be cleaned?
Remove dust from the single 90 mm fan every 6 to 12 months to maintain airflow over the compact heatsink.
