Green Mini-ITX board with two SO-DIMM slots and silver I/O shield

GIGABYTE

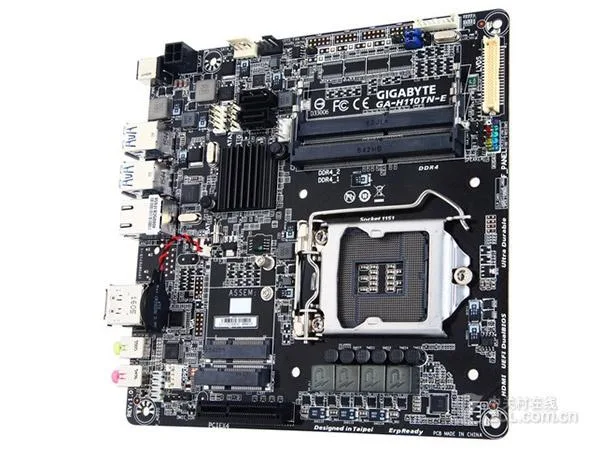

GIGABYTE H110TN-E Intel motherboard LGA 1151 H110 DDR4 32GB Mini-ITX

SKU CH-DNDP-S6DJD

Mini-ITX board with LGA 1151 socket, Intel H110 chipset, two DDR4 SO-DIMM slots for up to 32 GB, one PCI Express x4 slot, two SATA III ports and Intel Gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU Type1. Support Intel Core ™ i7 processor/Intel Core ™ i5 process
  • ChipsetIntel H110
  • Maximum Memory Supported32GB
  • PCI Slots1.1 x PCI Express x4 slots (The PCI Express x4 slot is PCI E
  • SATA RAID2XSATA III interface, 1xmSATA interface
  • Supports 6th-7th Gen Intel Core i7/i5/i3/Pentium/Celeron CPUs on LGA 1151 socket
  • Compact Mini-ITX form factor measuring 17x17 cm for small builds
  • Dual DDR4 SO-DIMM slots allow up to 32 GB system memory
  • Realtek ALC887 codec delivers 7.1-channel high-definition audio
  • Intel Gigabit LAN plus two SATA III and one mSATA ports for storage

Compact LGA 1151 Platform

The GIGABYTE H110TN-E is a Mini-ITX motherboard built around the Intel H110 chipset for LGA 1151 processors. It supports Core i7, i5, i3, Pentium and Celeron CPUs in that socket. The board fits small chassis while providing essential desktop connectivity.

Straightforward Mini-ITX Install

Two SO-DIMM slots accept DDR4 modules up to 32 GB total. A single PCI Express x4 slot and one full-size plus one half-size Mini PCIe slot handle expansion. The half-size slot can be tricky to seat; verify the standoff height before mounting. Only a SATA cable and I/O shield are included.

32 GB Memory Ceiling

Dual-channel DDR4 tops out at 32 GB, enough for office multitasking and light content work. Two SATA III ports and one mSATA connection cover storage needs. The Realtek ALC887 codec delivers 7.1 channel audio and Intel GbE LAN handles wired networking up to 1000 Mbit.

Highlights

  • Supports 6th-7th Gen Intel Core i7/i5/i3/Pentium/Celeron CPUs on LGA 1151 socket
  • Compact Mini-ITX form factor measuring 17x17 cm for small builds
  • Dual DDR4 SO-DIMM slots allow up to 32 GB system memory
  • Realtek ALC887 codec delivers 7.1-channel high-definition audio
  • Intel Gigabit LAN plus two SATA III and one mSATA ports for storage

Specifications

BrandGIGABYTE
SeriesGIGABYTE H110TN-E
ModelGIGABYTE H110TN-E
CPU Socket TypeLGA 1151
CPU Type1. Support Intel Core ™ i7 processor/Intel Core ™ i5 processor/Intel Core ™ i3 processor/Intel Pentium processor/Intel Celeron processor in LGA1151 package
2. L3 cache varies by CPU
ChipsetIntel H110
Maximum Memory Supported32GB
PCI Slots1.1 x PCI Express x4 slots
(The PCI Express x4 slot is PCI Express 3.0 compliant.)
2. 1 full-size Mini PCIe slot (MSATA_MPCIE2)
* MSATA_MPCIE2 slots can also be used as MSATA connectors.
3. 1 and a half Mini PCIe slots (MPCIE1)
(Mini PCIe slot compliant with PCI Express 2.0 standard).
SATA RAID2XSATA III interface, 1xmSATA interface
Audio Chipset1. Realtek ALC887 Codec
2. high definition audio
3. 2/4/5 1/7.1 channels
LAN Chipset1 x Intel GbE LAN Chip (10/100/1000 Mbit)
Onboard USBChipset:
4 USB 3.0/2 ports on the back panel
4 USB 2.0/1 ports via internal USB connector

Questions about this item

How do I verify the H110TN-E is working after installing a CPU and memory?

Connect the power supply, attach a monitor to the integrated graphics output, and power on; the system should POST and show the BIOS screen if the LGA 1151 processor and DDR4 SO-DIMM are seated correctly.

What accessories are included with the H110TN-E and what must I source myself?

The package contains the motherboard, one SATA cable, a chassis I/O back panel and the onboard metal battery; you will need to buy a compatible LGA 1151 processor, DDR4 SO-DIMM modules, storage drives and a power supply separately.

Which memory capacity should I choose for the H110TN-E given its 32 GB limit?

The board has two DDR4 SO-DIMM slots and supports a maximum of 32 GB total, so select a matched pair of modules whose combined capacity does not exceed that figure.
