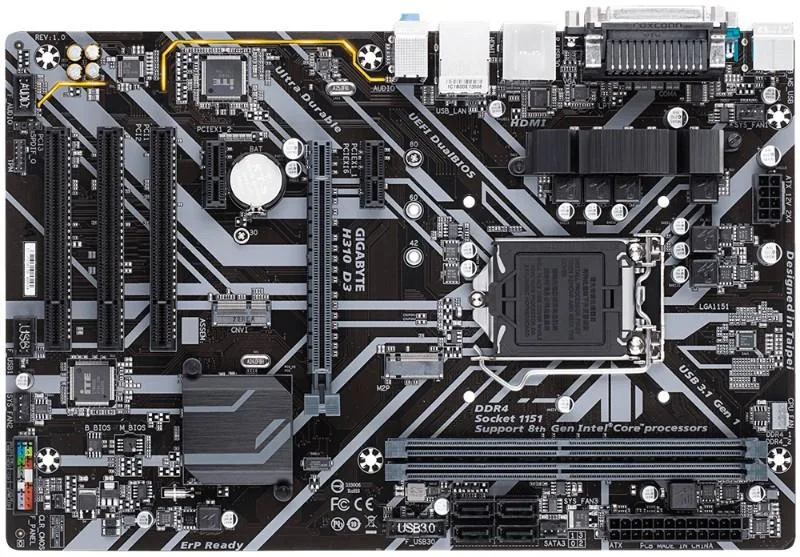

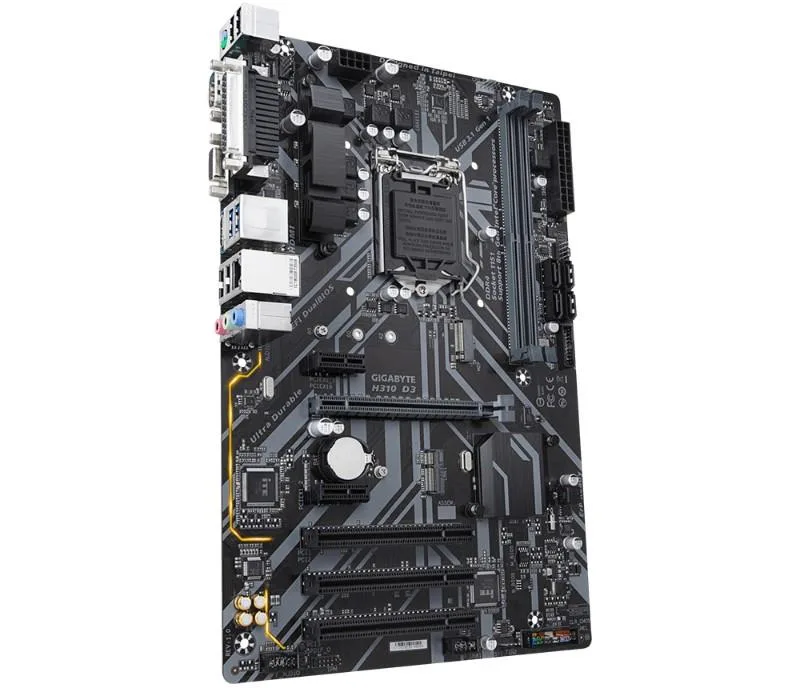

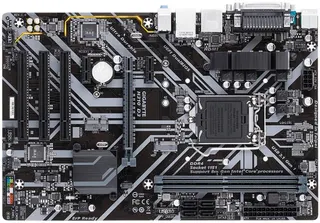

Green ATX motherboard with silver LGA 1151 socket and black DDR4 slots

GIGABYTE

GIGABYTE H310 D3 LGA 1151 DDR4 ATX Intel motherboard

SKU CH-13MF-6HZKQ

LGA 1151 ATX board with Intel H310 chipset, two DDR4 slots up to 2666 MHz, one M.2 slot, four SATA ports, HDMI 1.4 and 7.1-channel audio

  • CPU Socket TypeLGA 1151
  • ChipsetIntel H310
  • Form FactorATX
  • LGA 1151 socket supports 8th and 9th generation Intel Core processors
  • Intel H310 chipset provides essential platform features for everyday computing
  • Two DDR4 DIMM slots accept memory up to 2666 MHz for responsive performance
  • Four SATA III ports and one M.2 slot offer flexible storage expansion
  • HDMI 1.4 and 7.1-channel audio deliver integrated multimedia connectivity

Intel H310 ATX motherboard for LGA 1151 CPUs

This board uses the Intel H310 chipset and an LGA 1151 socket in an ATX layout. It accepts DDR4 memory up to 2666 MHz across two DIMM slots and provides a single M.2 slot for storage expansion. The design targets basic desktop builds running Windows 10 64-bit editions.

Suits entry-level office

Builders who need only one M.2 device, four SATA ports and 7.1-channel audio will find the I/O adequate. Systems requiring multiple M.2 slots, more than two memory modules or memory speeds above 2666 MHz should consider a different platform.

Bundled connectors simplify front-panel

The package includes headers for one USB 2.0 and one USB 3.1 Gen 1 front-port, three chassis-fan connectors, a CPU-fan header, a TPM header and an S/PDIF-out header. These onboard points let integrators wire case controls, extra cooling and digital audio without adapters.

Highlights

  • LGA 1151 socket supports 8th and 9th generation Intel Core processors
  • Intel H310 chipset provides essential platform features for everyday computing
  • Two DDR4 DIMM slots accept memory up to 2666 MHz for responsive performance
  • Four SATA III ports and one M.2 slot offer flexible storage expansion
  • HDMI 1.4 and 7.1-channel audio deliver integrated multimedia connectivity

Specifications

CPU Socket TypeLGA 1151
ChipsetIntel H310
Form FactorATX

Questions about this item

Do I need an LGA 1151 processor and DDR4 memory modules for this H310 board?

Yes, the board uses the LGA 1151 socket and has two DIMM slots that accept DDR4-SDRAM at 2133, 2400 or 2666 MHz, so a compatible CPU and DDR4 sticks are required.

Will my existing SATA drives and chassis fans connect to this motherboard?

The board provides four SATA III connectors and three chassis fan headers, so current SATA SSDs or hard drives and standard PWM or DC fans can be plugged in directly.

How can I confirm the HDMI 1.4 port is delivering video after assembly?

Connect a display to the HDMI 1.4 output, power on and look for the POST screen; the board’s PC health monitoring will also report fan speeds, temperatures and voltages in the BIOS once the system boots.
