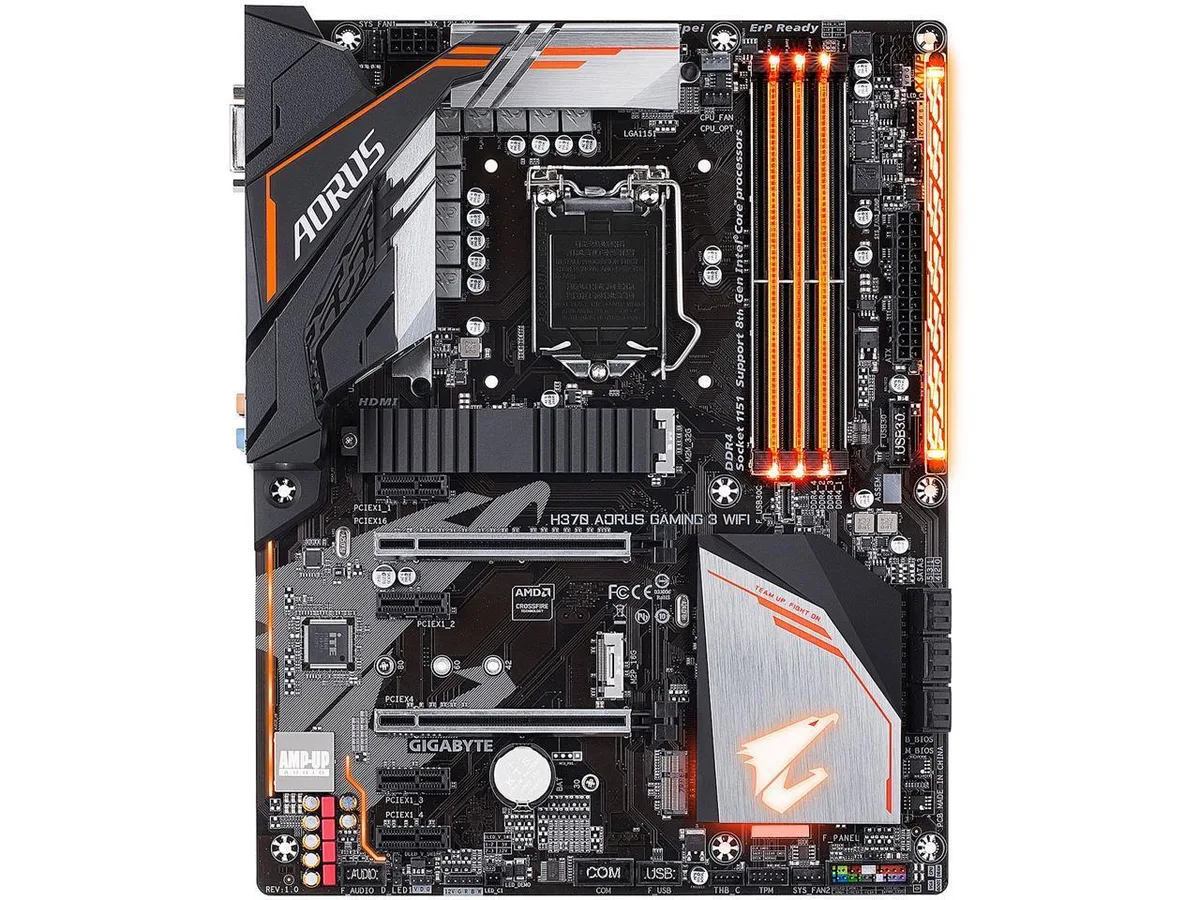

ATX motherboard, black PCB with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE H370 AORUS Gaming 3 WIFI Intel motherboard

SKU CH-XQ8W-QGAAA

ATX board for 8th-gen Intel CPUs on LGA 1151 with DDR4 to 2666, dual M.2, six SATA, HDMI 1.4, Intel gigabit LAN and onboard Wi-Fi module

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupport for 8th Generation Intel Core i7 processors/Intel Co
  • ChipsetIntel H370
  • Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support: 1
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, y
  • Supports 8th Gen Intel Core i7, i5, i3, Pentium and Celeron CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB at 2666 MHz with XMP support
  • HDMI 1.4 output drives 4096x2160@30 Hz with HDCP 2.2
  • Two M.2 slots for 2242, 2260, 2280 and 22110 PCIe or SATA SSDs
  • Realtek ALC1220 audio delivers 7.1-channel sound with S/PDIF out

Intel H370 ATX motherboard

The GIGABYTE H370 AORUS Gaming 3 WIFI is an ATX motherboard built around the Intel H370 chipset. It uses the LGA 1151 socket for 8th Generation Intel Core i7, i5, i3, Pentium and Celeron processors. The board includes an Intel CNVi wireless module for Wi-Fi and Bluetooth connectivity. It targets builders assembling a mainstream desktop system.

64 GB DDR4 across four slots

Four 288-pin DDR4 slots support up to 64 GB of system memory in dual-channel mode. Rated speeds are 2666, 2400 and 2133 MHz; 2666 MHz operation requires an 8th Generation Core i7 or i5 CPU. The board provides six SATA 6Gb/s ports with RAID 0, 1, 5 and 10 support. Two M.2 sockets accept 2242, 2260, 2280 and 22110 form-factor SSDs using PCIe x4, x2 or SATA interfaces.

Single x16 slot plus four x1 slots

One PCI Express 3.0 x16 slot runs at full x16 electrical speed for a graphics card. Four additional PCI Express 3.0 x1 slots handle add-in cards such as sound or capture devices. Video output comes from one HDMI 1.4 port (4096x2160@30 Hz, HDCP 2.2) and one DVI-D port. Audio uses the Realtek ALC1220 codec with 7.1-channel support, while networking is handled by an Intel Gigabit LAN controller.

Highlights

  • Supports 8th Gen Intel Core i7, i5, i3, Pentium and Celeron CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB at 2666 MHz with XMP support
  • HDMI 1.4 output drives 4096x2160@30 Hz with HDCP 2.2
  • Two M.2 slots for 2242, 2260, 2280 and 22110 PCIe or SATA SSDs
  • Realtek ALC1220 audio delivers 7.1-channel sound with S/PDIF out

Specifications

BrandGIGABYTE
ModelH370 AORUS Gaming 3 WIFI
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupport for 8th Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel H370
Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1GB
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x14 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Other Slots1 x M.2 Socket 1 connector for an Intel CNVi or a PCIe wireless module (CNVI)
* H370 AORUS GAMING 3 WI-FI includes the GC-CI22M_A CNVi wireless module.
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel GbE LAN
Max LAN Speed1Gbps
Wireless LANIntel CNVi 2x2 802.11 ac
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D port
HDMI1 x HDMI
RJ451 x RJ45
USB 3.11 x USB 3.1 Gen 2 Type-A port (red)
2 x USB 3.1 Gen 1 ports
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB Type-C port, with USB 3.1 Gen 2 support
Audio Ports6 Ports
Onboard USB1 x USB Type-C port, with USB 3.1 Gen 1 support
1 x USB 3.1 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
2 x RGB (RGBW) LED strip headers
1 x front panel header
1 x front panel audio header
1 x serial port header
1 x S/PDIF Out header
1 x Thunderbolt add-in card connector
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available appl

Questions about this item

Will this board run my 8th generation Core i5 without a BIOS update?

The supplier states the BIOS has been upgraded to the latest version, so 8th generation Core i5 processors are supported out of the box.

Can I use four DDR4 sticks at 2666 MHz?

Yes, the board has four 288 pin slots and supports DDR4 2666 when an 8th generation Core i7 or i5 is installed, up to a total of 64 GB in dual channel mode.

What M.2 SSD lengths and keys are accepted?

One M key slot takes 2242, 2260, 2280 and 22110 drives with PCIe x4 or x2; a second M key slot takes 2242, 2260 and 2280 drives with SATA or PCIe x2.
