GIGABYTE

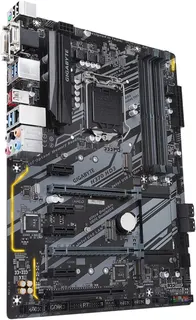

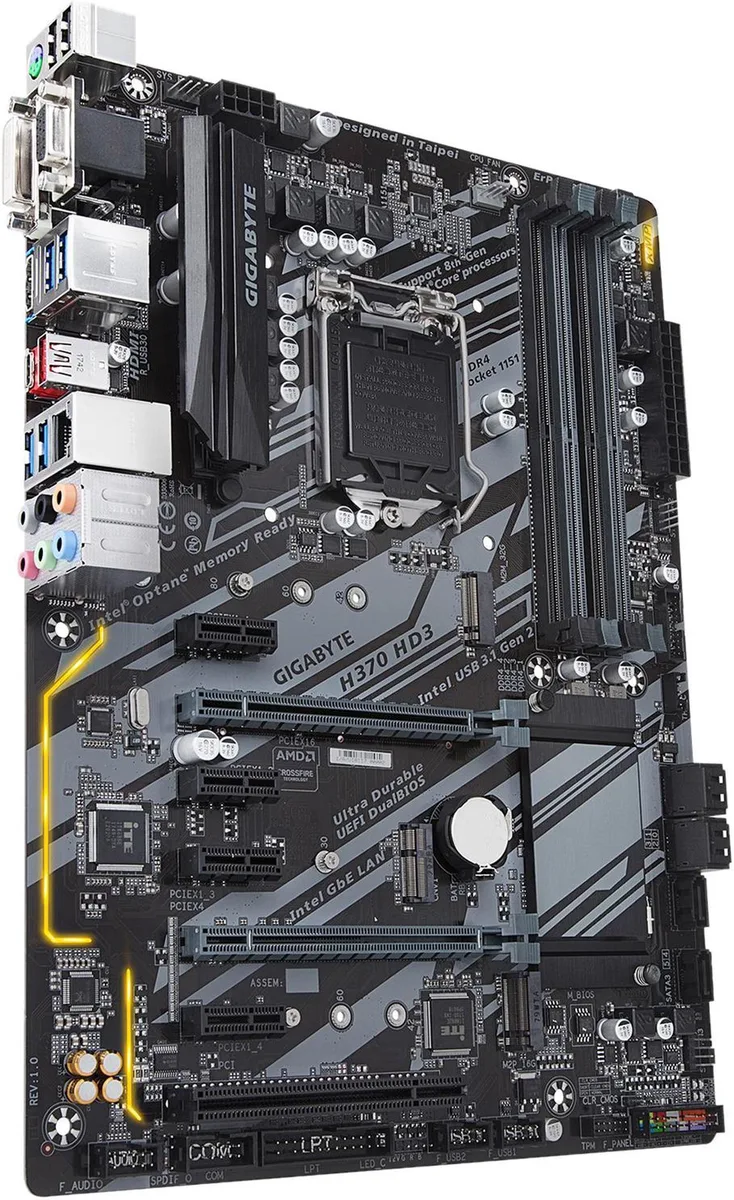

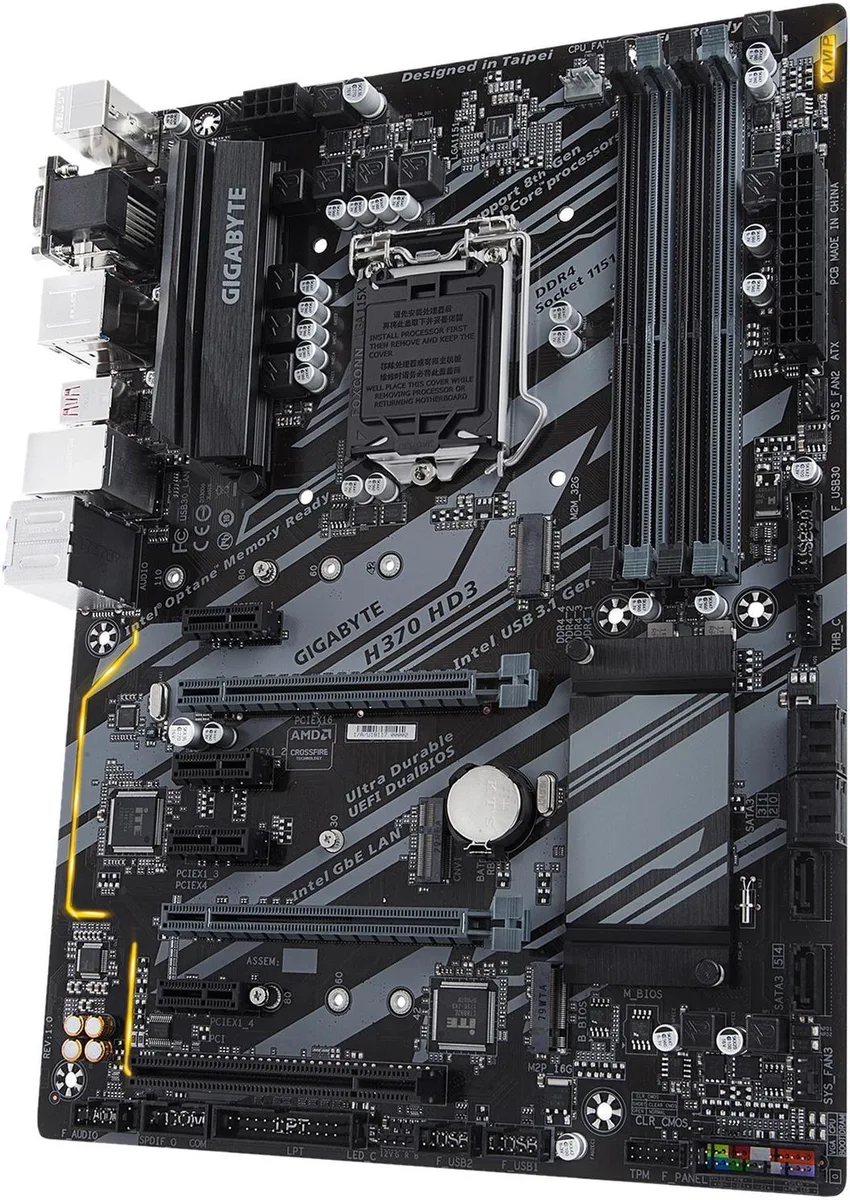

GIGABYTE H370 HD3 LGA 1151 ATX Intel motherboard
LGA 1151 ATX board with Intel H370 chipset, four DDR4 slots for up to 64 GB, one PCIe 3.0 x16 slot, four PCIe x1 slots, two M.2 connectors, six SATA ports and Realtek ALC887 audio
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeSupport for 9th and 8th Generation Intel Core i7/i5/i3 proce
- ChipsetIntel H370
- Onboard Video ChipsetIntegrated Graphics Processor - Intel HD Graphics support: 1
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, y
- Supports 9th and 8th Gen Intel Core CPUs via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB across four 288-pin slots
- Intel H370 chipset with PCI Express 3.0 x16 and four x1 expansion slots
- Six SATA 6Gb/s ports plus two M.2 connectors for 2242, 2260, 2280, 22110 SSDs
- Realtek ALC887 audio with 2, 4, 5.1, 7.1-channel and S/PDIF output
Platform foundation

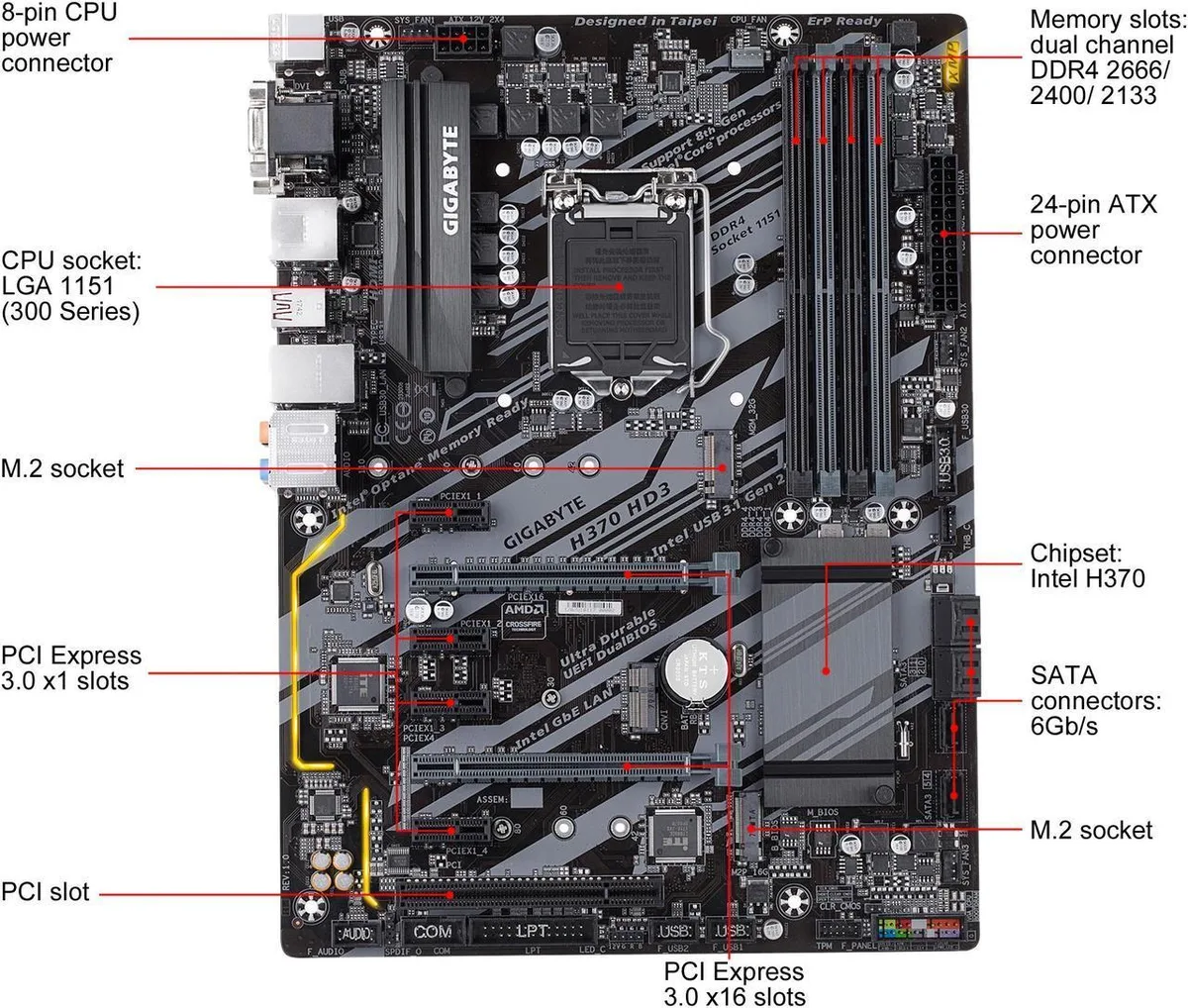

The GIGABYTE H370 HD3 is an ATX motherboard built on the Intel H370 chipset with an LGA 1151 socket for 300-series processors. It accepts 8th and 9th Generation Intel Core i7, i5 and i3 CPUs plus Pentium and Celeron models in the same package. Four 288-pin slots support dual-channel DDR4 memory up to 64 GB at 2666, 2400 or 2133 MHz. Integrated graphics are driven through a D-Sub port and a DVI-D port, each at 1920x1200@60 Hz.
Expansion and storage
One PCI Express 3.0 x16 slot runs at x16 for a graphics card, four PCI Express 3.0 x1 slots and a legacy PCI slot handle add-in cards. Two M.2 sockets accept 2242, 2260, 2280 and 22110 modules with PCIe x4 or x2 and SATA signalling. Six SATA 6 Gb/s ports offer RAID 0, 1, 5 and 10. Realtek ALC887 audio delivers up to 7.1-channel output with S/PDIF. Builders who need built-in Wi-Fi, extra USB 3.2 Gen 2 ports or a third full-length x16 slot should consider a Z-series board instead.
Memory speed gate
DDR4 2666 MHz and XMP profiles only activate when an 8th Generation Core i7 or i5 processor is installed; with a 9th Generation CPU or a Pentium or Celeron chip the memory runs at 2400 or 2133 MHz. This single CPU-memory dependency determines whether the board can reach its top rated memory frequency.
Highlights
- Supports 9th and 8th Gen Intel Core CPUs via LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB across four 288-pin slots
- Intel H370 chipset with PCI Express 3.0 x16 and four x1 expansion slots
- Six SATA 6Gb/s ports plus two M.2 connectors for 2242, 2260, 2280, 22110 SSDs
- Realtek ALC887 audio with 2, 4, 5.1, 7.1-channel and S/PDIF output
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | H370 HD3 |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Support for 9th and 8th Generation Intel Core i7/i5/i3 processors / Intel Pentium processors / Intel Celeron processors in the LGA1151 package * Not backward compatible with older generation of LGA 1151 CPUs |
| Chipset | Intel H370 |
| Onboard Video Chipset | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.2. Support for up to 3 displays at the same time Maximum shared memory of 1GB Actual support may vary by CPU. |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2666/ 2400/ 2133 * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel Core i7/i5 processor. |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4) |
| PCI Express x1 | 4 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.) |
| PCI Slots | 1 x PCI Slot |
| Other Slots | 1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI) |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G) |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Intel GbE LAN |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 1 x USB Type-C port, with USB 3.1 Gen 1 support 1 x USB 3.1 Gen 2 Type-A port (red) 4 x USB 3.1 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks |
| Onboard USB | 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers |
| Other Connectors | 1 x CPU fan header 3 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x parallel port header 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 8.9" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboar |
Questions about this item
Will this board accept a 9th generation Intel Core i5 processor?
Yes, the LGA 1151 300 Series socket supports 9th and 8th generation Core i7, i5, i3, Pentium and Celeron CPUs.
Can I run four sticks of DDR4 2666 memory at the rated speed?
DDR4 2666 is supported when an 8th generation Core i7 or i5 is installed; otherwise the memory will run at 2400 or 2133.
What M.2 SSD lengths and interfaces are compatible with the two M.2 sockets?
The first socket takes 2242, 2260, 2280 or 22110 PCIe x4 or x2 drives; the second takes 2242, 2260 or 2280 SATA or PCIe x2 drives.
