GIGABYTE
GIGABYTE H410M S2H Intel motherboard
Micro-ATX board for 10th Gen Intel CPUs with dual-channel DDR4 to 64 GB, PCIe 3.0 x16, PCIe 3.0 x2 M.2, four SATA 6 Gb/s ports and Realtek GbE LAN
- CPU Socket TypeLGA 1200
- CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
- ChipsetIntel H410
- Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
- Supports 10th Gen Intel Core i9, i7, i5, i3, Pentium and Celeron processors in LGA 1200 socket
- Dual-channel DDR4 up to 2933 MHz on two 288-pin DIMM slots with 64 GB maximum capacity
- Realtek ALC887 8-channel HD audio with high-quality capacitors for clear 7.1 surround sound
- M.2 socket 3 M key accepts 2242, 2260 and 2280 SATA and PCIe x2 SSDs
- GbE LAN with Realtek 8118 chip and bandwidth management for low-latency networking

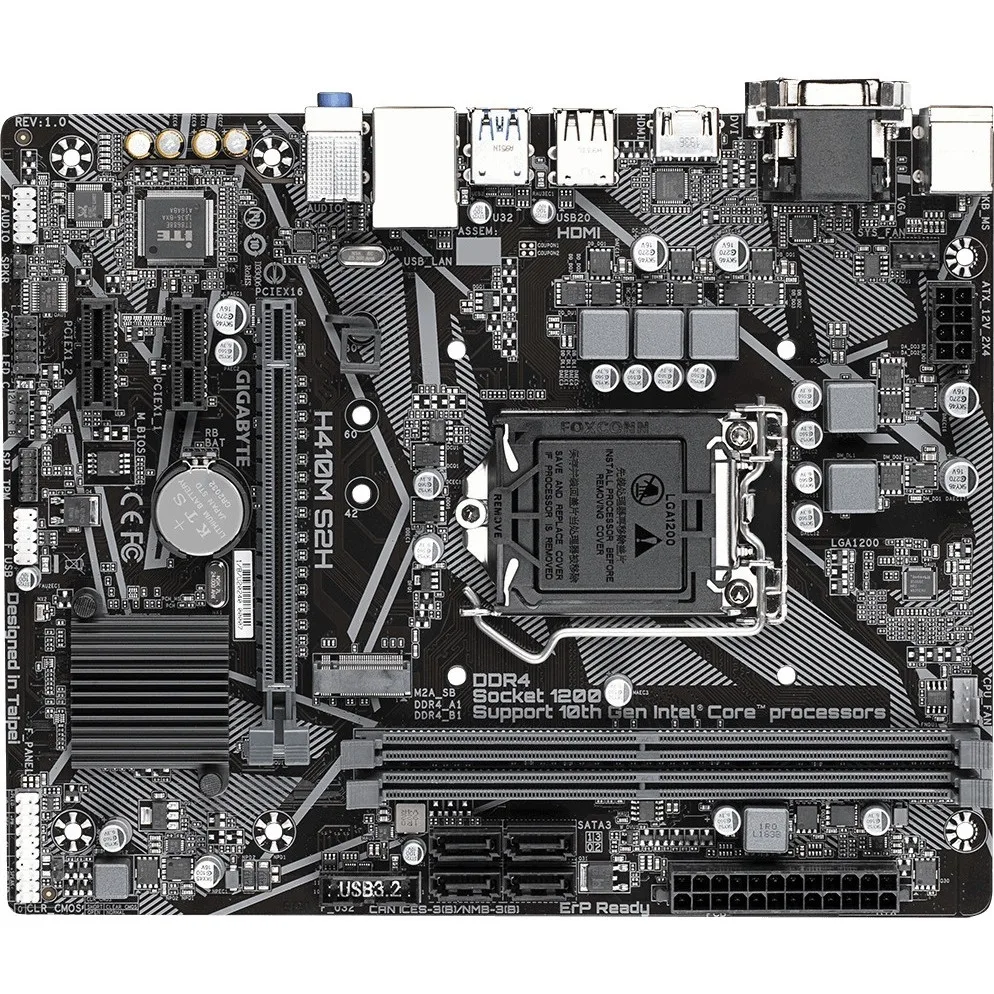

LGA 1200 Micro-ATX Board for 10th Gen Intel Builds
The GIGABYTE H410M S2H fits LGA 1200 processors from the 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron families. Its Intel H410 chipset delivers essential platform features in a compact Micro-ATX footprint. The board targets budget-conscious builders who need a reliable foundation for everyday computing or entry-level gaming.
Dual DDR4 Slots and PCIe 3.0 Expansion with One
Two 288-pin slots support up to 64GB of DDR4 memory running at 2933, 2666, 2400 or 2133 MHz depending on the installed CPU. A single PCI Express 3.0 x16 slot handles discrete graphics while two PCIe x1 slots accept add-in cards. Storage options include four SATA 6Gb/s ports and one M.2 connector accepting 2242, 2260 or 2280 drives with SATA or PCIe x2 interfaces.
Realtek ALC887 Audio and 8118 LAN

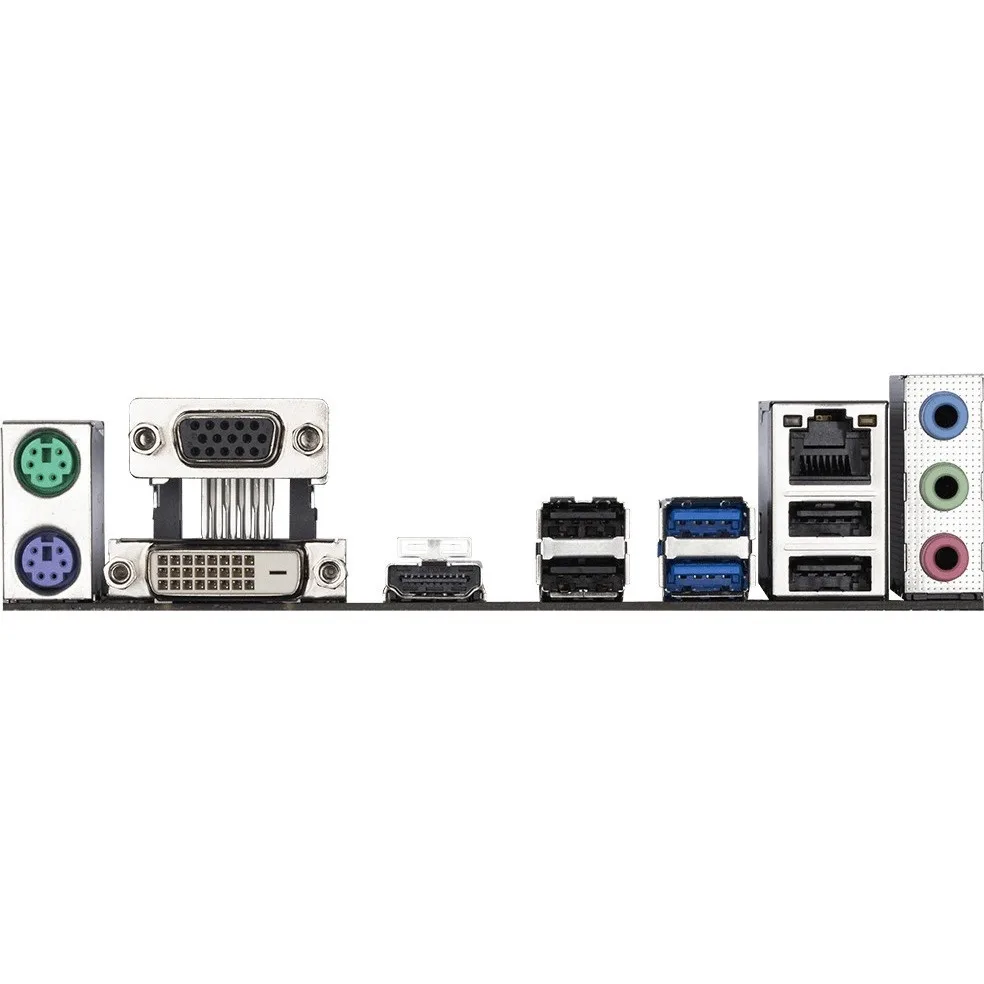

Onboard Realtek ALC887 provides 2, 4, 5.1 or 7.1-channel output through three rear jacks. The Realtek 8118 GbE LAN chip adds automatic bandwidth management for low-latency networking. Smart Fan 5 reads multiple temperature sensors and can stop hybrid fan headers when cooling demand is low. Rear I/O also includes HDMI, DVI-D, D-Sub, two USB 3.2 Gen 1 and four USB 2.0 ports.
Highlights
- Supports 10th Gen Intel Core i9, i7, i5, i3, Pentium and Celeron processors in LGA 1200 socket
- Dual-channel DDR4 up to 2933 MHz on two 288-pin DIMM slots with 64 GB maximum capacity
- Realtek ALC887 8-channel HD audio with high-quality capacitors for clear 7.1 surround sound
- M.2 socket 3 M key accepts 2242, 2260 and 2280 SATA and PCIe x2 SSDs
- GbE LAN with Realtek 8118 chip and bandwidth management for low-latency networking
Specifications
| Brand | GIGABYTE |
|---|---|
| Model | H410M S2H |
| CPU Socket Type | LGA 1200 |
| CPU Type | Support for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package |
| Chipset | Intel H410 |
| Onboard Video Chipset | Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. Support for up to dual-display at the same time Maximum shared memory of 512MB |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 |
| PCI Express x1 | 2 x PCI Express x1 slot (The PCI Express slots conform to PCI Express 3.0 standard.) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
| Audio Chipset | Realtek ALC887 |
| Audio Channels | 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. |
| LAN Chipset | Realtek GbE LAN chip |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
| Onboard USB | 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header |
| Other Connectors | 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 8.9" x 7.3" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector |
| Features | I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LE |
| Shipping weight | 0.70 kg |
| Package size | 265 × 235 × 52 mm |
Questions about this item
Will a 10th Gen Intel Core i5 fit the LGA 1200 socket?
Yes, the LGA 1200 socket supports 10th Gen Intel Core i9, i7, i5, i3, Pentium and Celeron processors.
How many DDR4 DIMMs can I install and what is the maximum capacity?
Two 288-pin DDR4 slots support up to 64 GB total in dual-channel mode.
Can I add an M.2 NVMe SSD and a SATA SSD at the same time?
Yes, the M.2 slot accepts 2242, 2260 or 2280 drives using either PCIe x2 or SATA, while four SATA 6Gb/s ports remain available for additional drives.
