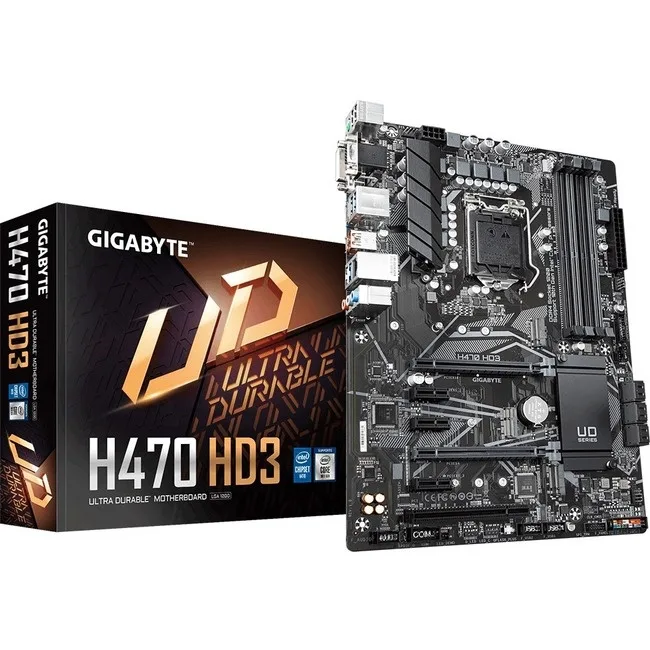

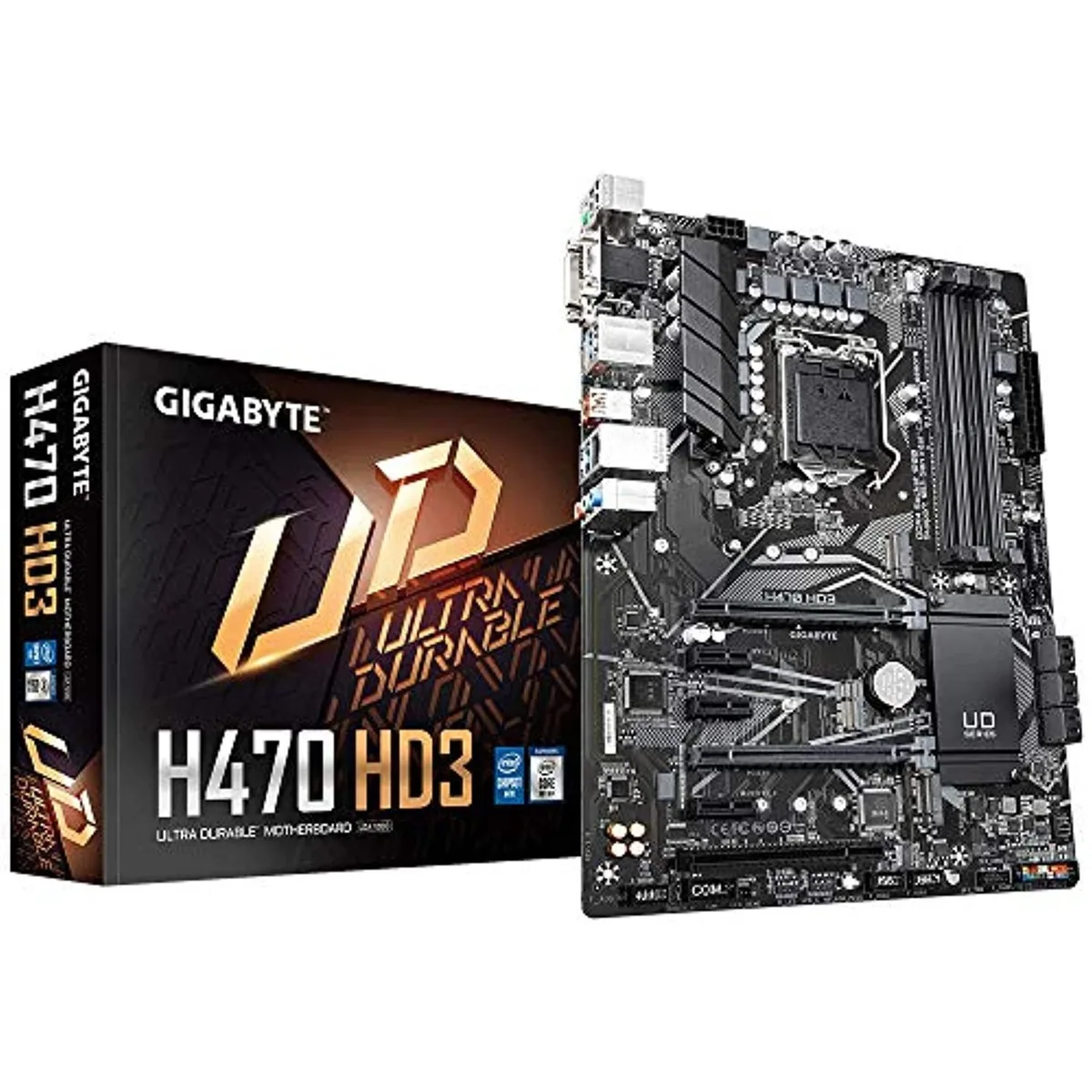

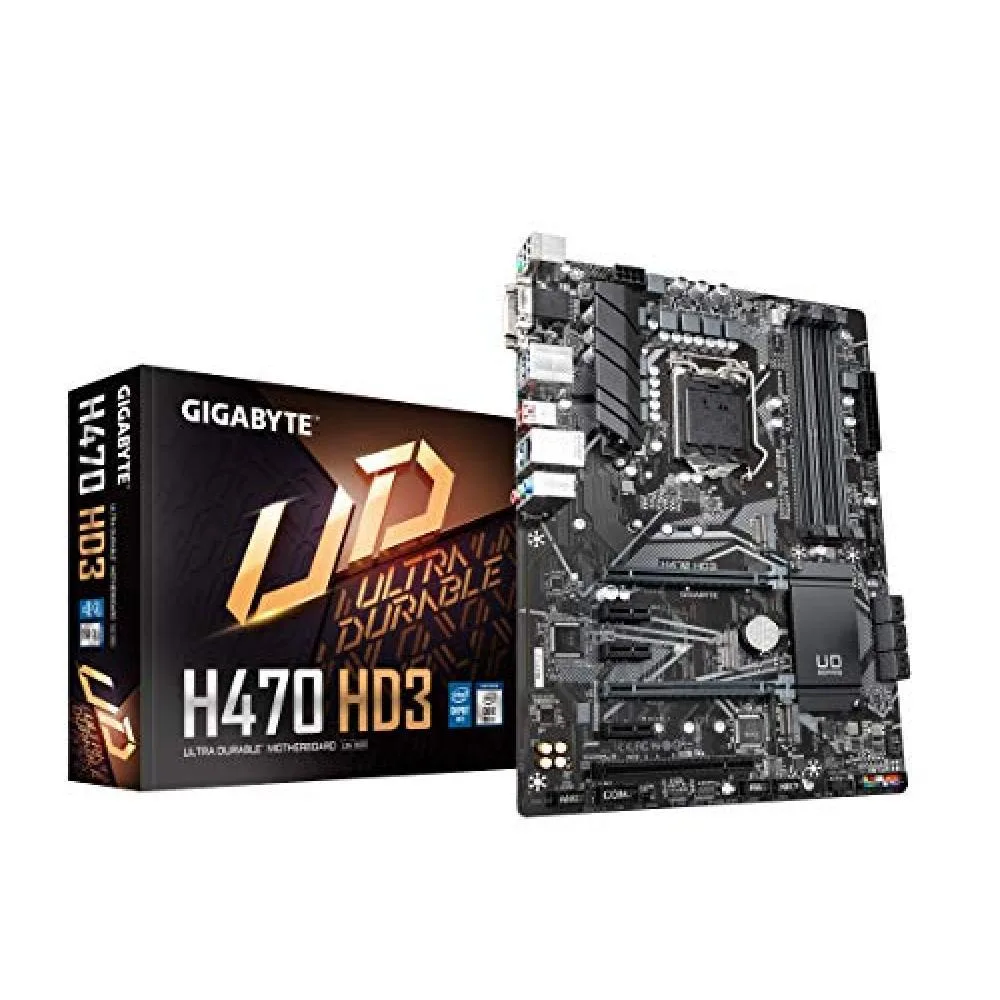

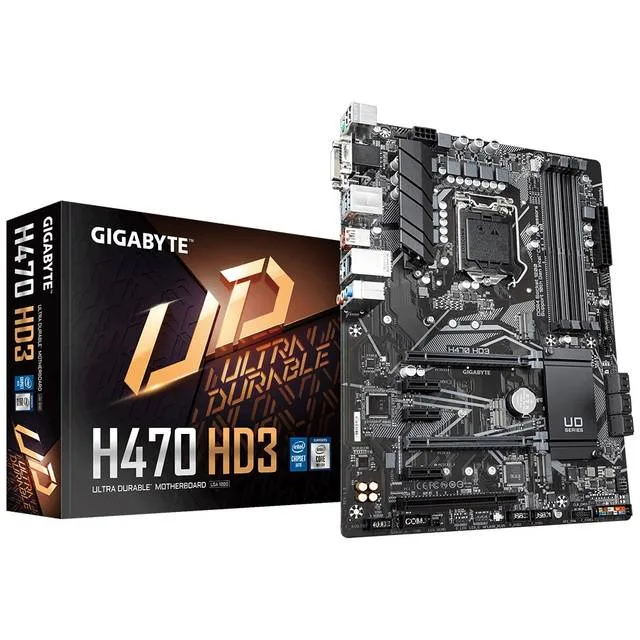

Rectangular ATX motherboard in dark grey and black with silver heatsinks and multiple expansion slots

GIGABYTE

GIGABYTE H470 HD3 Intel Motherboard LGA 1200 ATX

SKU CH-80J3-1S0KD MPN H470 HD3

ATX motherboard for LGA 1200 CPUs with dual NVMe M.2 slots, six SATA ports and 128 GB DDR4 support

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
  • ChipsetIntel H470
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • 4 DDR4 slots up to 128 GB dual-channel memory
  • Dual M.2 connectors for NVMe PCIe Gen3 x4 SSDs
  • Intel GbE LAN with cFosSpeed traffic acceleration
  • Realtek ALC887 7.1-channel audio with multiple display outputs

Socket LGA 1200 ATX Motherboard

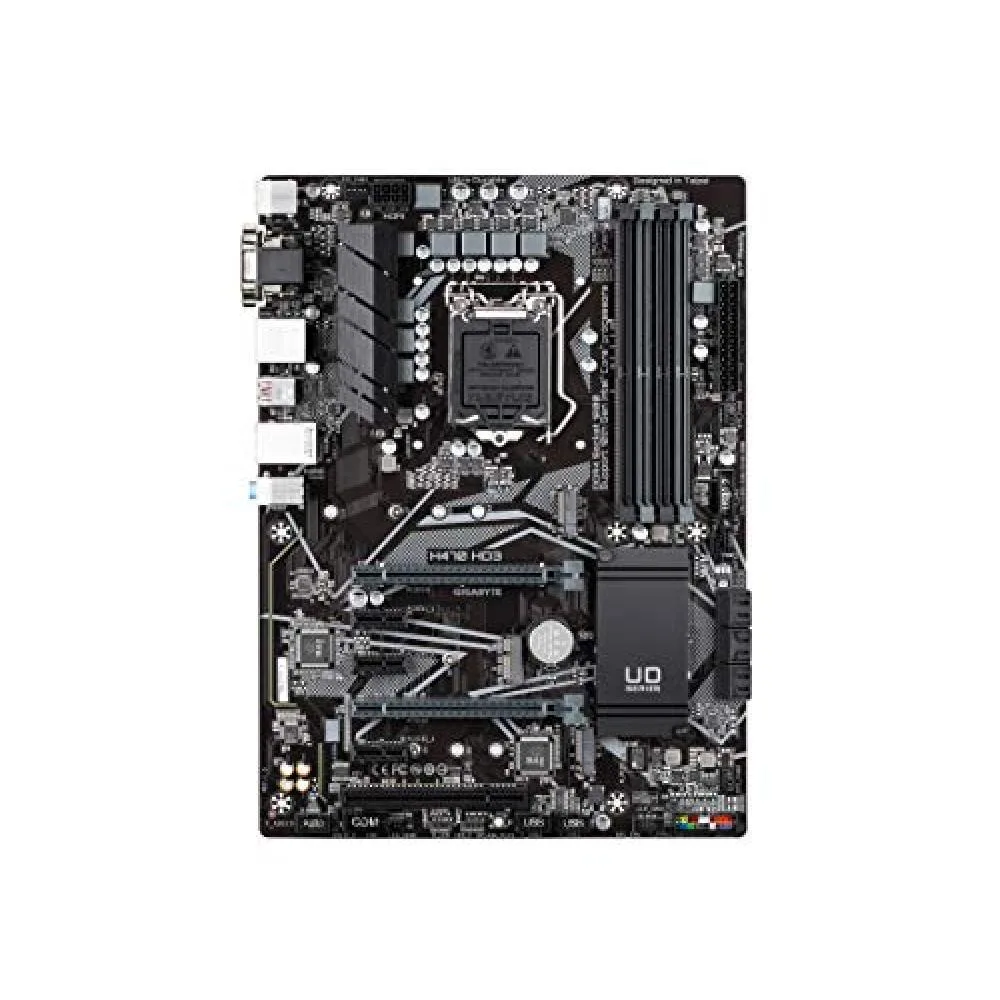

The GIGABYTE H470 HD3 fits the Intel LGA 1200 socket and accepts 10th Generation Core i9, i7, i5, i3, Pentium and Celeron processors. Four DDR4 DIMM slots support up to 128 GB in dual-channel mode. The board provides two M.2 connectors for PCIe Gen3 x4 or SATA SSDs, six SATA 6Gb/s ports and a single PCI Express 3.0 x16 slot alongside three x1 slots and one legacy PCI slot.

Smart Fan 5 Thermal Management

Smart Fan 5 uses multiple onboard temperature sensors to adjust fan speeds across hybrid headers that can stop fans completely at low load. A direct 6+2 phase digital VRM with lower RDS(on) MOSFETs delivers stable power to the CPU while keeping component temperatures in check. The Intel GbE LAN controller works with cFosSpeed traffic-shaping software to reduce network latency without adding acoustic noise.

Q-Flash Plus and RGB Fusion 2.0

Q-Flash Plus lets you update the BIOS using a USB drive without installing the CPU, memory or graphics card. RGB Fusion 2.0 controls multi-zone addressable and standard RGB LED strips through dedicated headers. Anti-sulfur resistors protect key circuits from environmental corrosion, and the M.2 E-key slot accepts a CNVi wireless module for Wi-Fi upgrades.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • 4 DDR4 slots up to 128 GB dual-channel memory
  • Dual M.2 connectors for NVMe PCIe Gen3 x4 SSDs
  • Intel GbE LAN with cFosSpeed traffic acceleration
  • Realtek ALC887 7.1-channel audio with multiple display outputs

Specifications

BrandGIGABYTE
ModelH470 HD3
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
ChipsetIntel H470
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x13 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
PCI Slots1 x PCI Slot
Other Slots1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2M_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
Intel Optane ReadyIntel Optane Memory Ready
* System Acceleration with Intel Optane Memory enabled on the M2M_SB connector only.
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps

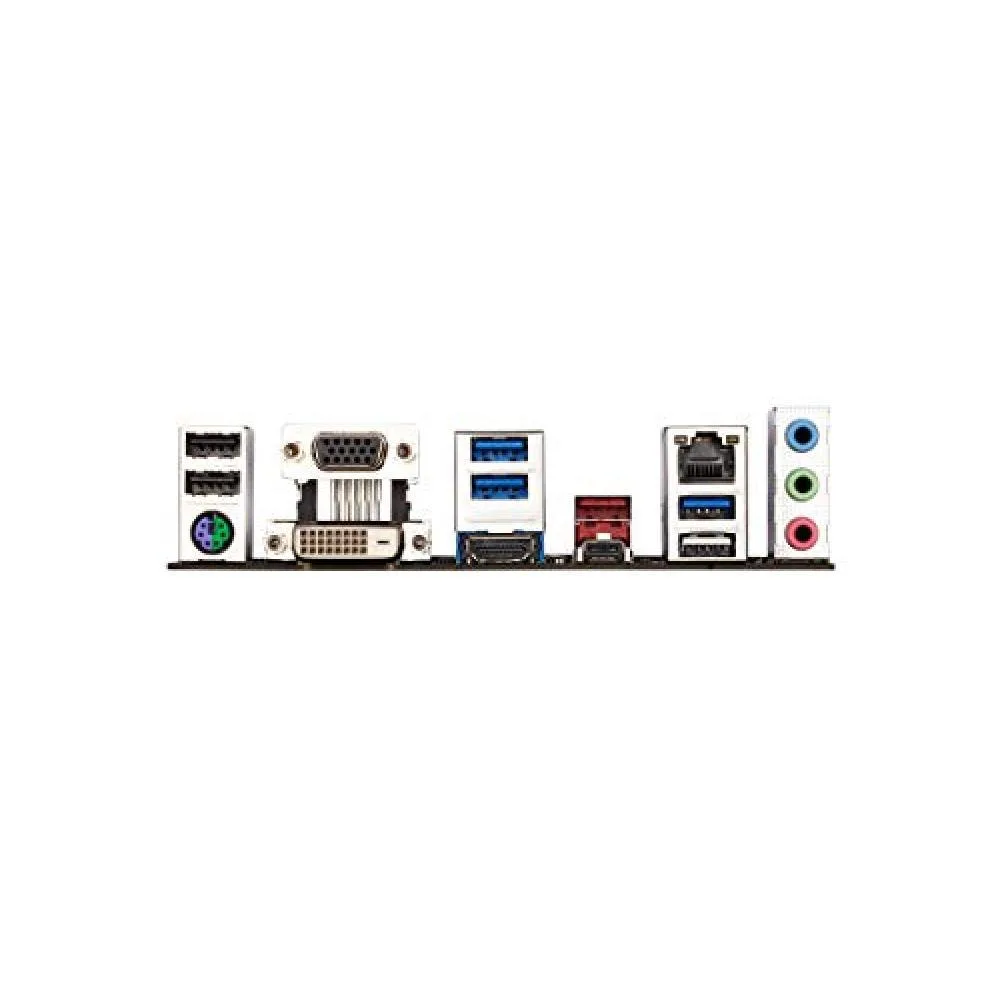

Back I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x USB Type-C port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 8.9"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported fu
Shipping weight1.23 kg
Package size325 × 260 × 54 mm

Questions about this item

How do I install the 10th Gen Intel Core processor into the LGA 1200 socket, and what step do people often miss?

Align the CPU notches with the socket keys, lower it gently, and close the retention lever; the step often missed is removing the protective plastic cover from the socket before seating the processor.

What maintenance or replacement will the onboard Realtek ALC887 audio need later?

The Realtek ALC887 codec is soldered to the board and requires no user maintenance; if audio fails, the motherboard itself would need replacement.

Which limit appears first when the VRM runs under sustained load?

The 6+2 phase digital VRM with lower RDS(on) MOSFETs is designed for 10-core CPUs; thermal throttling of the VRM heatsink is the first limit under heavy continuous power draw.
