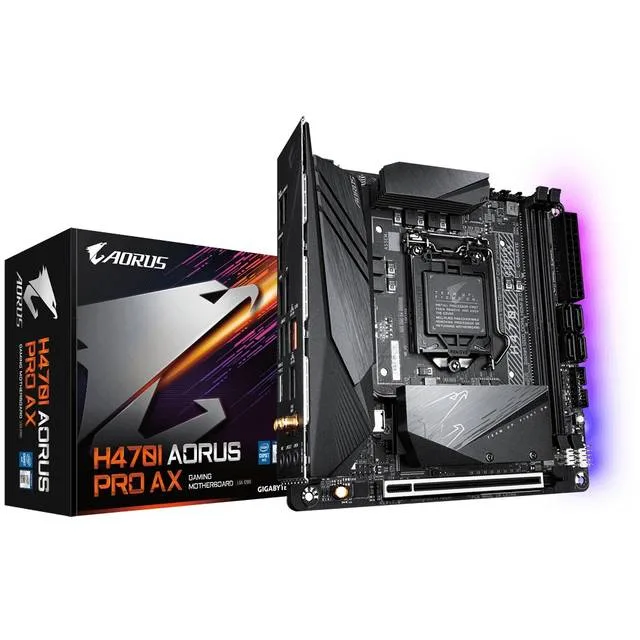

Compact Mini-ITX board with black heatsinks, silver I/O shield and AORUS branding

GIGABYTE

GIGABYTE H470I AORUS PRO AX Intel motherboard

SKU CH-G7EM-3ZVG2

Mini-ITX board for 10th Gen Intel Core with dual M.2 slots, 2.5 GbE LAN, Wi-Fi 6 and HDMI 2.0 output

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
  • ChipsetIntel H470
  • Onboard Video ChipsetIntegrated Graphics Processor+PARADE PS175 chip: 1 x HDMI po
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
  • Supports 10th Gen Intel Core i9, i7, i5, i3 processors in LGA 1200 socket
  • Direct 5+1 phase digital VRM with DrMOS for stable power delivery
  • Dual M.2 slots for SATA and PCIe SSDs up to 2280 length
  • Dual Intel LAN with 2.5GbE and 1GbE ports for fast wired networking
  • HDMI 2.0 output with 4096x2160 at 60 Hz for 4K display support

Compact LGA 1200 mini-ITX board

The GIGABYTE H470I AORUS PRO AX fits 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors in an LGA 1200 socket. It targets builders who need full desktop features in a small chassis without sacrificing connectivity or power delivery.

64 GB dual-channel DDR4 ceiling

Two 288-pin slots accept DDR4 up to 2933 MHz with Core i9 or i7 CPUs and up to 2666 MHz with Core i5, i3, Pentium or Celeron CPUs. The 64 GB maximum covers most gaming and workstation workloads; memory-heavy tasks such as large-scale video editing or virtualisation clusters will hit the ceiling.

Dual LAN and WiFi 6 ready

An Intel 2.5GbE controller and a second Intel GbE controller provide 2.5 Gbps plus 1 Gbps wired throughput with cFosSpeed traffic shaping. Onboard Intel WiFi 6 802.11ax 2T2R connects to the included AORUS antenna for wireless networking. A pre-installed I/O shield and Q-Flash Plus BIOS update button simplify assembly and maintenance.

Highlights

  • Supports 10th Gen Intel Core i9, i7, i5, i3 processors in LGA 1200 socket
  • Direct 5+1 phase digital VRM with DrMOS for stable power delivery
  • Dual M.2 slots for SATA and PCIe SSDs up to 2280 length
  • Dual Intel LAN with 2.5GbE and 1GbE ports for fast wired networking
  • HDMI 2.0 output with 4096x2160 at 60 Hz for 4K display support

Specifications

BrandGIGABYTE
ModelH470I AORUS PRO AX
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
ChipsetIntel H470
Onboard Video ChipsetIntegrated Graphics Processor+PARADE PS175 chip:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version, HDCP 2.3, and HDR.
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Maximum shared memory of 512MB
Number of Memory Slots2x288pin (DDR4)
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_SB)
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 PCIe x4/x2 SSD support) (M2Q_SB)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220-VB codec
* The back panel line out jack supports DSD audio.
Audio Channels2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN ChipsetIntel 2.5GbE LAN chip
Second LAN ChipsetIntel GbE LAN chip
Max LAN Speed2.5Gbps + 1Gbps
Wireless LANIntel Wi-Fi 6 AX201
WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5.1
Back I/O Ports1 x DisplayPort
2 x HDMI ports
1 x USB Type-C port, with USB 3.2 Gen 1 support
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x SMA antenna connectors (2T2R)
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Clear CMOS jumper
1 x chassis intrusion header
1 x Q-Flash Plus button
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesI/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
F
