Green micro-ATX board with silver heatsinks and black slots

GIGABYTE

GIGABYTE H470M DS3H Intel motherboard

SKU CH-JBXY-H9DV1 MPN H470M DS3H

Micro-ATX board for 10th Gen Intel Core with dual M.2 slots, four DDR4 DIMMs up to 128 GB, Intel GbE LAN and Realtek ALC887 audio

  • CPU Socket TypeLGA 1200
  • CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processor
  • ChipsetIntel H470
  • Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support: 1 x
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardIntel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 24
  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory
  • Dual M.2 connectors provide NVMe PCIe 3.0 x4 and SATA storage options
  • Intel Gigabit LAN with cFosSpeed software optimises network traffic
  • Realtek ALC887 codec delivers 7.1-channel high-definition audio

Socket LGA 1200 Micro-ATX board

This motherboard uses the Intel H470 chipset and fits 10th Generation Intel Core i9, i7, i5, i3, Pentium and Celeron processors in the LGA 1200 package. It is built for mainstream desktop systems that need a compact Micro-ATX form factor with integrated graphics output options.

Check CPU cooler clearance and power phases

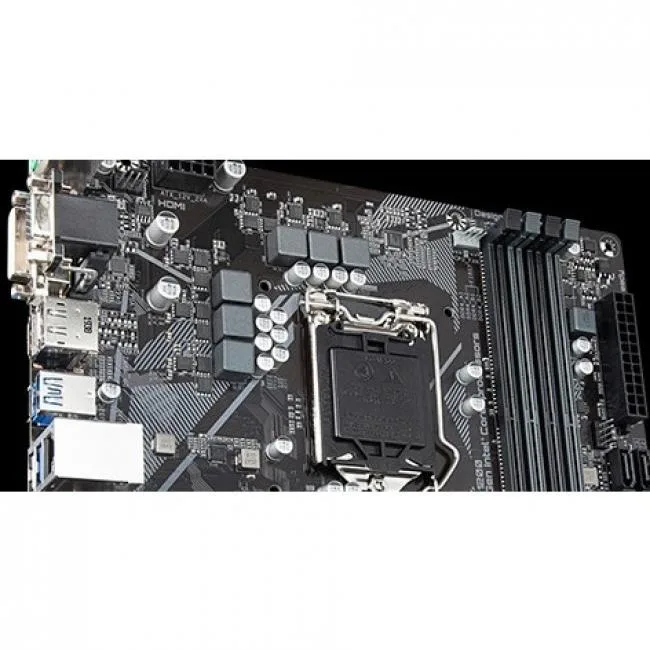

Verify that your chosen LGA 1200 cooler fits the Micro-ATX layout and the 4+2 hybrid digital VRM area. Ensure your power supply provides the required CPU and main board connectors for the 10th Generation Intel platform before installation.

Dual M.2 slots and cFosSpeed software

Two M.2 connectors accept 2242, 2260, 2280 and 22110 PCIe x4 or x2 drives, plus one slot also supports SATA modes. The bundled cFosSpeed internet accelerator software prioritises network traffic for lower latency during gaming or video calls.

Highlights

  • Supports 10th Gen Intel Core processors via LGA 1200 socket
  • Four DDR4 slots accept up to 128 GB dual-channel memory
  • Dual M.2 connectors provide NVMe PCIe 3.0 x4 and SATA storage options
  • Intel Gigabit LAN with cFosSpeed software optimises network traffic
  • Realtek ALC887 codec delivers 7.1-channel high-definition audio

Specifications

BrandGIGABYTE
ModelH470M DS3H
CPU Socket TypeLGA 1200
CPU TypeSupport for 10th Generation Intel Core i9/i7/i5/i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 packag
ChipsetIntel H470
Onboard Video ChipsetIntegrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 512MB
Number of Memory Slots4x288pin (DDR4)
Memory StandardIntel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
PCI Express x12 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P)
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC887
Audio Channels2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
1 x DisplayPort
1 x USB Type-C port, with USB 3.2 Gen 1 support
3 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported fu
Shipping weight1.03 kg
Package size265 × 265 × 54 mm

Questions about this item

Does the board include a CPU cooler or do I need to buy one for my LGA 1200 processor?

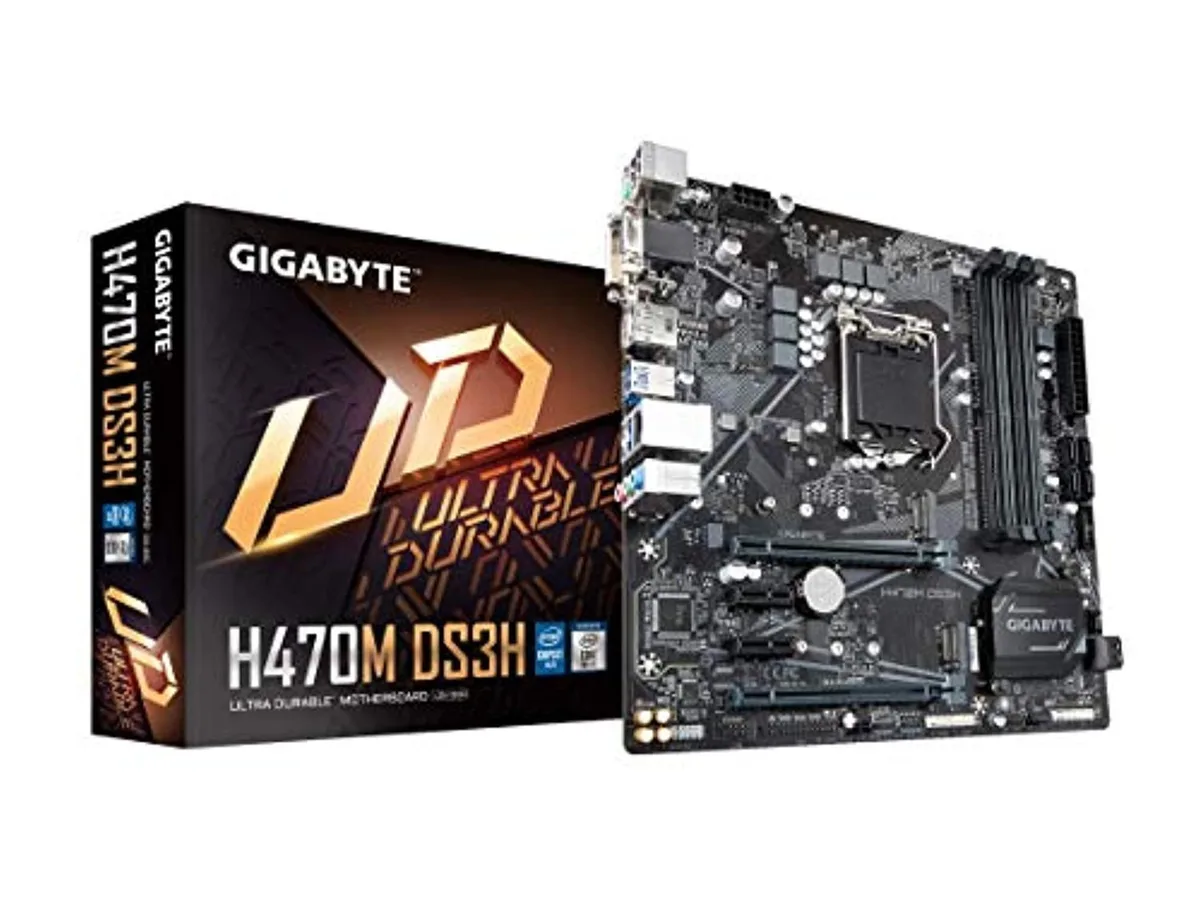

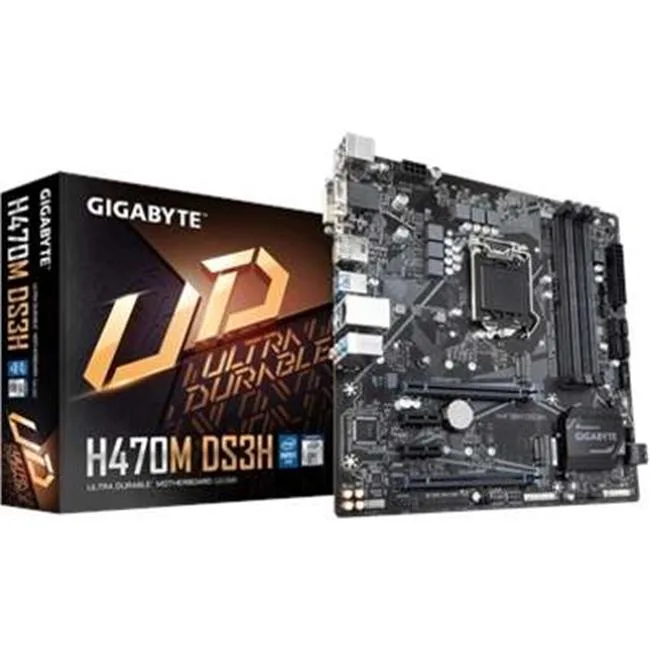

The motherboard does not ship with a CPU cooler; you must supply your own LGA 1200 compatible cooler. The box contains the board, I/O shield, SATA cables, M.2 screws, driver disc and manual.

Which M.2 slot should I use for a 2280 NVMe drive to get PCIe 3.0 x4 speed?

Either M2Q or M2P accepts a 2280 NVMe SSD at PCIe 3.0 x4; both are wired for x4 throughput.

What memory speed will I see with a Core i5 10th Gen installed?

With a Core i5 the board officially supports DDR4 up to 2666 MHz; faster modules will run at that ceiling.
