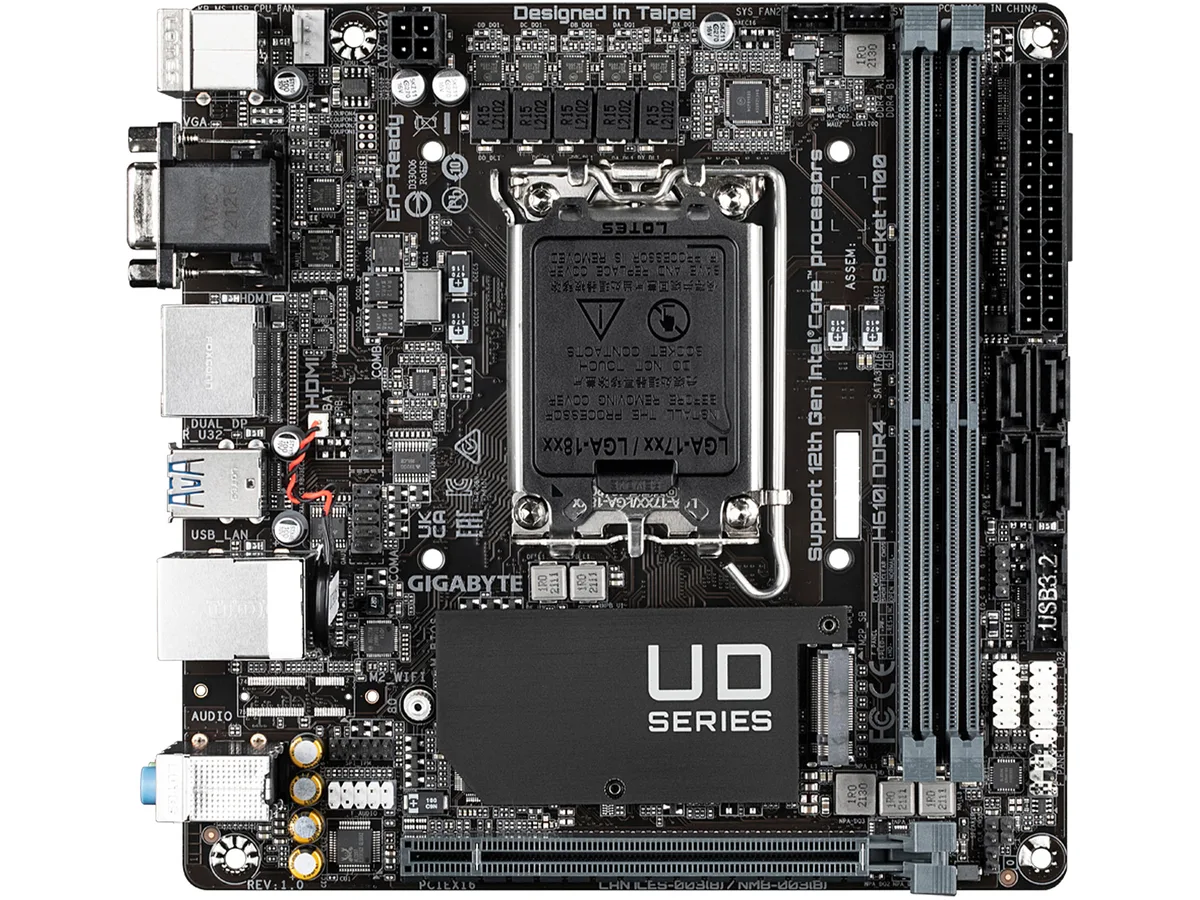

Gigabyte H610I DDR4 Mini-ITX motherboard, black PCB, silver heatsinks, LGA 1700 socket, two DDR4 slots, one PCIe x16 slot

GIGABYTE

GIGABYTE H610I DDR4 Intel motherboard

SKU CH-Q8VF-S7HR1 MPN H610I DDR4

Mini-ITX board for 12th and 13th Gen Intel CPUs with DDR4 3200, single M.2 slot, PCIe 4.0 x16 and Intel GbE LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron P
  • ChipsetIntel H610
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 3200
  • LGA 1700 socket supports 12th and 13th Gen Intel Core processors
  • Dual-channel DDR4 3200 memory up to 64 GB for responsive multitasking
  • PCIe 4.0 x16 slot enables modern graphics cards at full speed
  • Single M.2 2280 slot with PCIe 3.0 x4 for fast NVMe storage
  • Intel GbE LAN with cFosSpeed reduces latency in busy networks

Mini-ITX H610 Board for 12th and 13th Gen Intel

This Mini-ITX motherboard uses the Intel H610 chipset and an LGA 1700 socket. It supports 12th and 13th Gen Intel Core, Pentium Gold and Celeron processors. Two DDR4 slots accept up to 64GB of dual-channel memory at 3200 MT/s with Intel XMP 2.0 profiles. The compact form factor suits small chassis builds.

PCIe 4.0 Graphics Slot and PCIe 3.0 M.2 Storage

A single PCIe 4.0 x16 slot provides the only expansion lane for a discrete graphics card. Storage is limited to one M.2 2280 socket running at PCIe 3.0 x4 or x2 plus four SATA 6Gb/s ports. No additional PCIe or M.2 connectors are present so add-in cards and extra NVMe drives cannot be fitted.

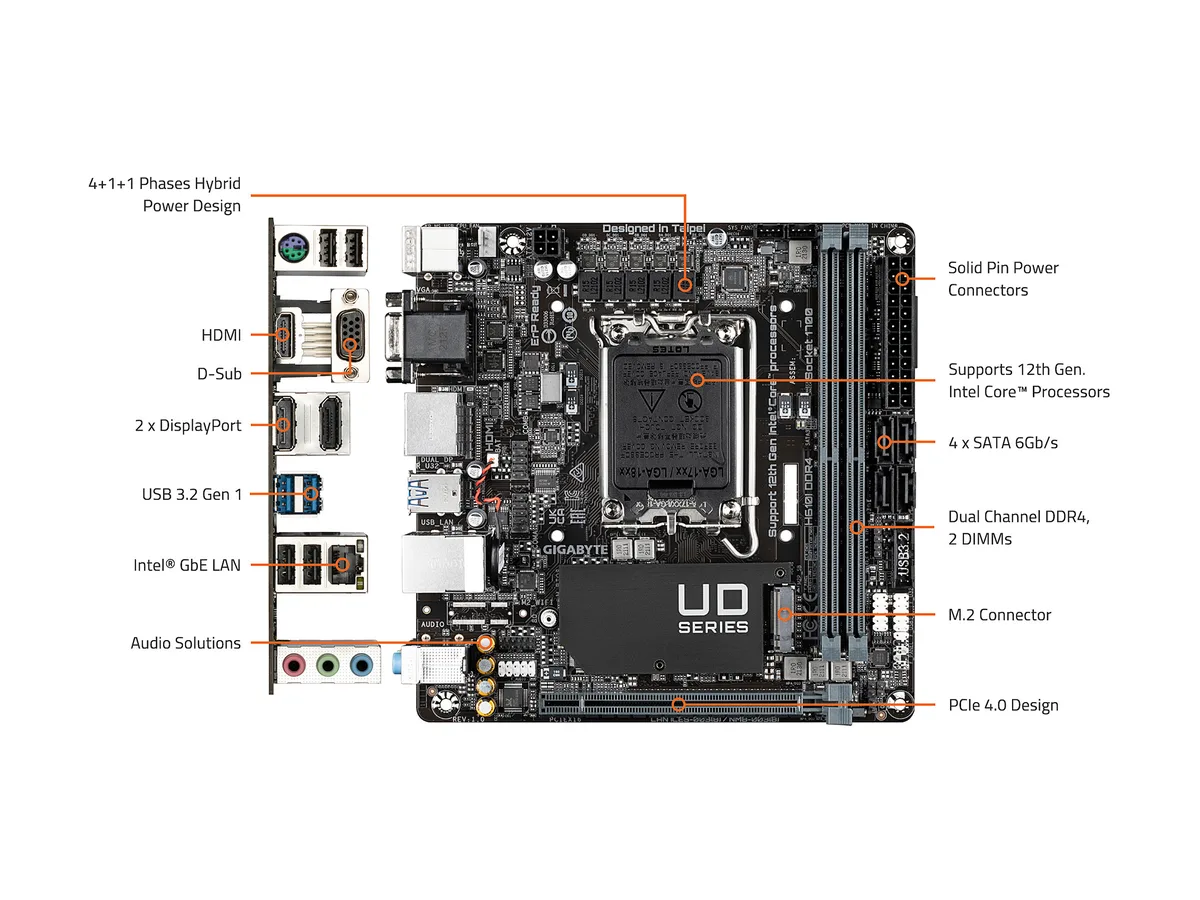

4+1+1 Hybrid Digital VRM with Solid Pin Power

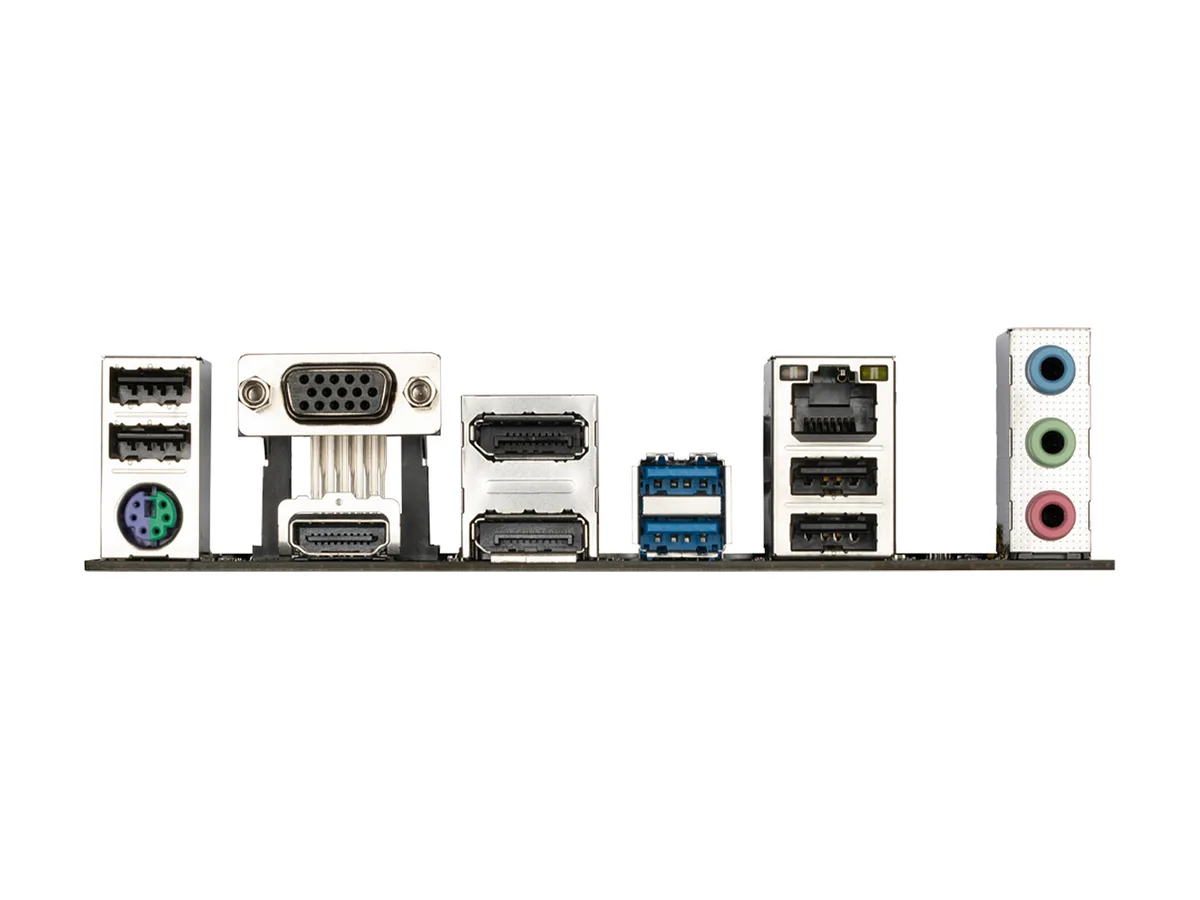

The 4+1+1 phase hybrid digital VRM uses DrMOS and solid capacitors for stable CPU power delivery. Solid-pin ATX 24-pin and 12V CPU connectors resist heat and insertion wear. Rear I/O includes HDMI 2.0, two DisplayPorts, D-Sub, two USB 3.2 Gen 1, four USB 2.0, Intel GbE LAN and 7.1 audio jacks. Internal headers add one USB 3.2 Gen 1, two USB 2.0, CPU and two system fan headers, RGB strip, TPM and front-panel connectors.

Highlights

  • LGA 1700 socket supports 12th and 13th Gen Intel Core processors
  • Dual-channel DDR4 3200 memory up to 64 GB for responsive multitasking
  • PCIe 4.0 x16 slot enables modern graphics cards at full speed
  • Single M.2 2280 slot with PCIe 3.0 x4 for fast NVMe storage
  • Intel GbE LAN with cFosSpeed reduces latency in busy networks

Specifications

BrandGIGABYTE
ModelH610I DDR4
CPU Socket TypeLGA 1700
CPU TypeSupports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
ChipsetIntel H610
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 2.0
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
Audio Channels7.1 Channels
Max LAN Speed1Gbps
Back I/O Ports1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x D-Sub port
2 x DisplayPorts
1 x HDMI 2.0 port
1 x RJ-45 port
3 x audio jacks
Onboard USB1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x serial port headers
1 x Clear CMOS jumper
1 x chassis intrusion header
Windows 11Supported
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
Shipping weight0.59 kg
Package size226 × 180 × 66 mm

Questions about this item

Should I choose the 3200 DDR4 kit or a slower one for this board?

The board runs DDR4 up to 3200 and supports XMP 2.0, so a 3200 kit will operate at its rated speed without manual tuning.

What does the single PCIe 4.0 x16 slot mean for a graphics card?

The slot provides a full PCIe 4.0 x16 link to the CPU, so a modern GPU can use the bandwidth the processor makes available.

The M.2 is PCIe 3.0 x4 — what does that cap in practice?

The M.2 connector is limited to PCIe 3.0 x4, so an NVMe SSD will top out at the 3.0 x4 throughput ceiling.
