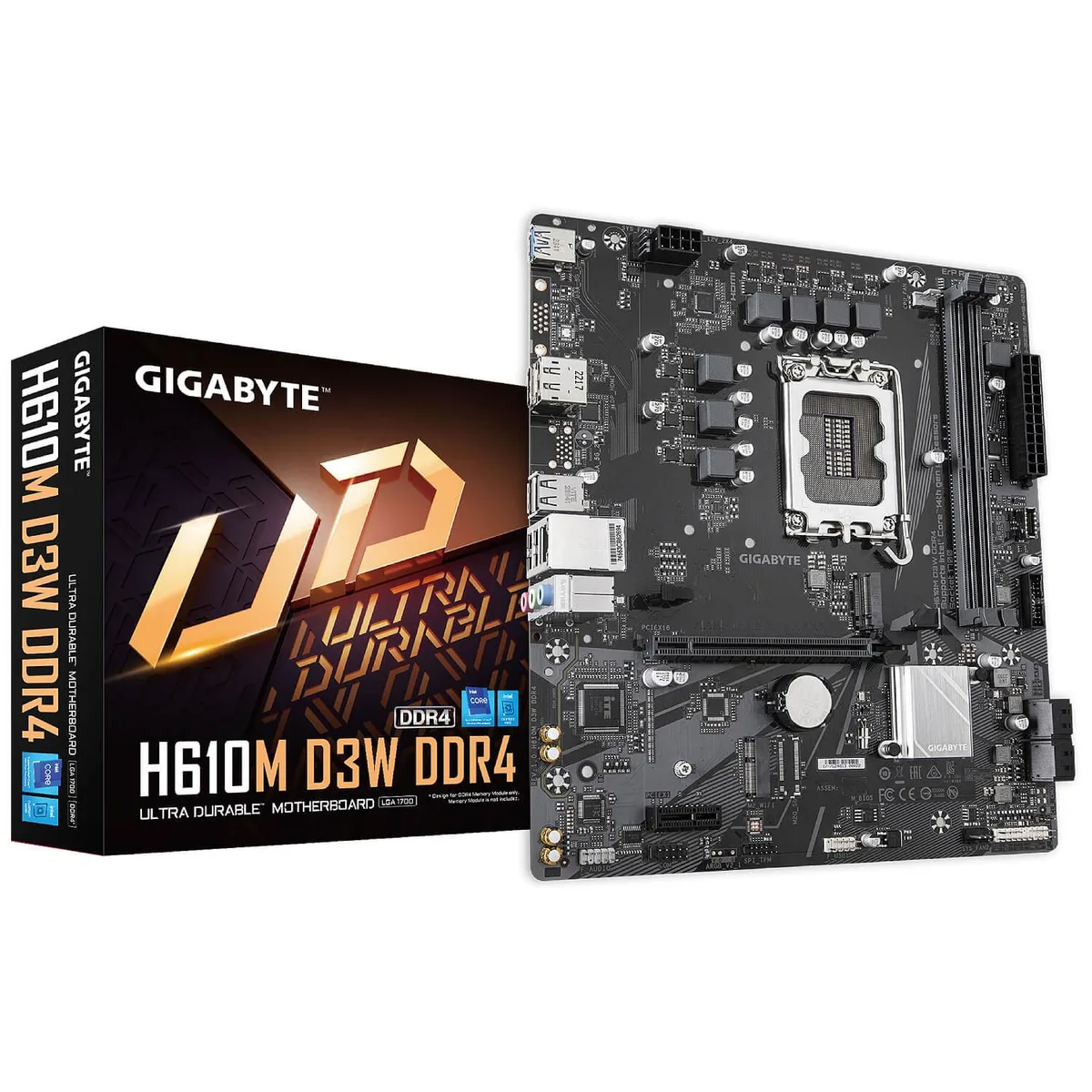

Micro-ATX motherboard, matte black PCB, silver I/O shield, LGA 1700 socket, two DDR4 slots, single M.2 slot

GIGABYTE

GIGABYTE H610M D3W DDR4 LGA 1700 Intel motherboard

SKU CH-DP3A-HKPRT

Micro-ATX Intel H610 board for LGA 1700 CPUs with dual DDR4 slots up to 64 GB, PCIe 4.0 design, Gen3 x4 M.2, GbE LAN and Smart Fan 6 cooling

  • Supports 14th, 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 up to 64 GB with XMP memory module support
  • PCIe 4.0 design and NVMe PCIe 3.0 x4 M.2 for fast storage
  • HDMI 2.1 and DisplayPort 1.2 outputs drive 4096x2160@60 Hz and 4096x2304@60 Hz
  • Smart Fan 6 with multiple sensors and hybrid headers enables fan stop for quiet operation

Socket LGA 1700 H610 motherboard

This Intel H610 micro-ATX board accepts 12th, 13th and 14th Generation Core, Pentium Gold and Celeron processors in the LGA 1700 socket. It provides two DDR4 DIMM slots for dual-channel memory up to 64 GB with XMP support. Integrated graphics outputs include DisplayPort 1.2 and HDMI 2.1 for 4096×2304 at 60 Hz and 4096×2160 at 60 Hz respectively.

Compatibility checklist

Verify that your CPU is on the manufacturer support list for 12th, 13th or 14th Generation Intel processors before ordering. Confirm your memory kit is DDR4 rated for 2133, 2400, 2666, 2933, 3000 or 3200 MT/s and does not exceed 32 GB per DIMM. Ensure your chassis accepts a micro-ATX form factor and provides a 24-pin ATX plus 8-pin CPU power connector for the 5+1+1 hybrid digital VRM.

Sustained load behaviour

The 5+1+1 hybrid digital VRM and Smart Fan 6 with multiple temperature sensors regulate power delivery and fan speed during extended workloads. Gen3 x4 M.2 NVMe storage maintains throughput without thermal throttling under continuous reads and writes. GbE LAN with bandwidth management keeps network traffic stable during long transfers, while high-quality audio capacitors and noise guard preserve signal integrity over time.

Highlights

  • Supports 14th, 13th and 12th Gen Intel Core processors via LGA 1700 socket
  • Dual-channel DDR4 up to 64 GB with XMP memory module support
  • PCIe 4.0 design and NVMe PCIe 3.0 x4 M.2 for fast storage
  • HDMI 2.1 and DisplayPort 1.2 outputs drive 4096x2160@60 Hz and 4096x2304@60 Hz
  • Smart Fan 6 with multiple sensors and hybrid headers enables fan stop for quiet operation

Specifications

No published specifications for this item yet.

Questions about this item

Does the board include the I/O shield and mounting screws, or do I need to buy them separately?

The motherboard ships with an I/O shield and the standard mounting screws required for installation. Memory modules, a CPU cooler and an M.2 NVMe drive are not included and must be purchased separately.

Should I choose 3200 MT/s or 2666 MT/s DDR4 modules for this H610 board?

The board supports DDR4 speeds from 2133 up to 3200 MT/s; 3200 MT/s modules will run at their rated speed when XMP is enabled, while 2666 MT/s modules operate at the lower speed without extra configuration.

What does the 4096 × 2304 @ 60 Hz DisplayPort figure mean when I connect a monitor?

That is the maximum resolution and refresh rate the integrated Intel HD Graphics can drive over the DisplayPort 1.2 output; your monitor must support the same resolution and 60 Hz to use it.
