Green rectangular motherboard with silver CPU socket, black RAM slots, and blue PCIe slot

GIGABYTE

GIGABYTE H610M H DDR4 Intel motherboard LGA1700

SKU CH-4039-E31AS

An Intel H610 micro-ATX board for 12th Gen Core CPUs with LGA1700 socket, dual-channel DDR4 up to 64 GB, a 6+1+1 phase digital VRM, PCIe 4.0 M.2 slot.

  • Supports 12th Gen Intel Core processors on LGA1700 socket
  • 6+1+1 Hybrid Digital VRM design delivers stable power
  • Dual-channel DDR4 memory up to 3200 MHz across two DIMMs
  • NVMe PCIe 3.0 x4 M.2 slot for fast storage
  • Intel GbE LAN with cFosSpeed software optimises network traffic

Socket LGA1700 platform board

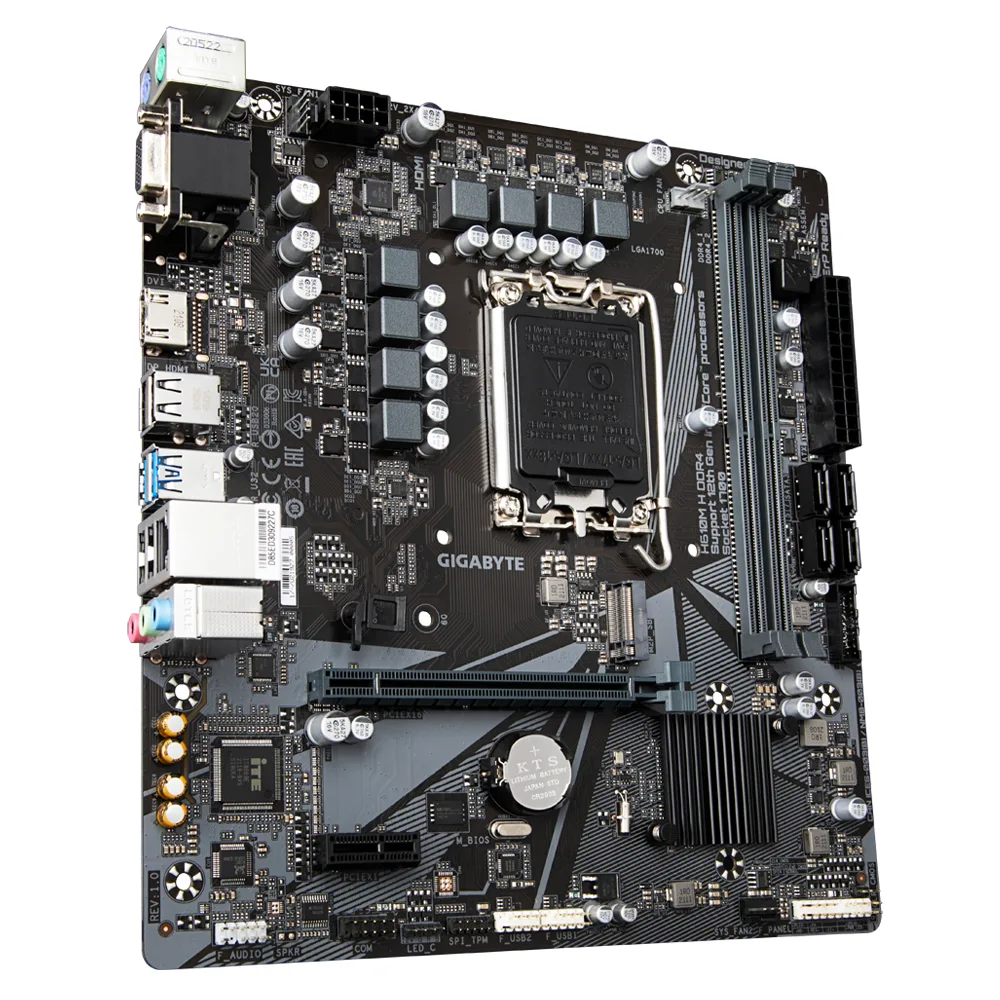

The GIGABYTE H610M H DDR4 is an Intel H610 motherboard built for 12th Generation Intel Core, Pentium Gold and Celeron processors in the LGA1700 socket. It provides dual-channel DDR4 memory across two DIMM slots with a maximum capacity of 64 GB. The board targets budget-conscious builders who need a reliable foundation for everyday computing and light productivity tasks.

Sustained-load behaviour

The 6+1+1 hybrid digital VRM design delivers stable power to the CPU during extended workloads rather than only brief bursts. Smart Fan 6 uses multiple temperature sensors and hybrid fan headers with a fan-stop function to keep thermals in check when the system runs hot for long periods. Intel GbE LAN with cFosSpeed software helps maintain consistent network throughput while other components are under pressure.

Build quality and connectivity

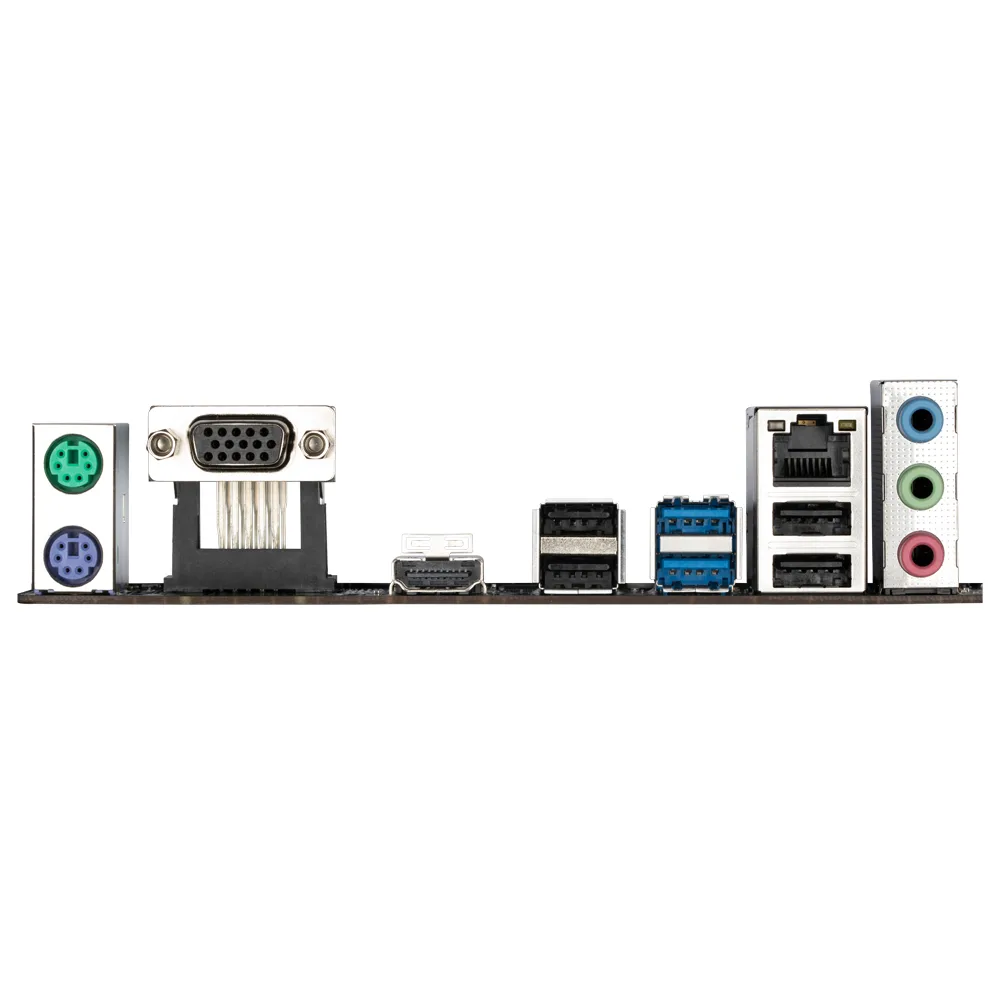

Anti-sulfur resistors protect the circuitry from environmental degradation over time, while high-quality audio capacitors and an audio noise guard reduce signal interference. A single NVMe PCIe 3.0 x4 M.2 slot provides fast storage expansion, and the rear panel includes both HDMI and VGA outputs for flexible display connections. The micro-ATX form factor fits a wide range of chassis without demanding excessive space.

Highlights

  • Supports 12th Gen Intel Core processors on LGA1700 socket
  • 6+1+1 Hybrid Digital VRM design delivers stable power
  • Dual-channel DDR4 memory up to 3200 MHz across two DIMMs
  • NVMe PCIe 3.0 x4 M.2 slot for fast storage
  • Intel GbE LAN with cFosSpeed software optimises network traffic

Specifications

No published specifications for this item yet.

Questions about this item

How loud or hot does the 6+1+1 Hybrid Digital VRM run under a 12th Gen Intel Core load all day?

The 6+1+1 Hybrid Digital VRM is paired with Smart Fan 6, which uses multiple temperature sensors and hybrid fan headers with Fan Stop to keep thermals and noise in check during sustained operation.

Which memory kit must I already have to populate the two DDR4 DIMM slots on this H610 board?

You need non-ECC unbuffered DDR4 modules rated at 3200, 3000, 2933, 2666, 2400 or 2133 MHz; each slot accepts up to 32 GB for a 64 GB dual-channel maximum.

Will my existing Gen3 x4 M.2 NVMe SSD work in the single M.2 slot on this H610 motherboard?

Yes, the board provides one NVMe PCIe 3.0 x4 M.2 connector, so a Gen3 x4 NVMe drive will operate at its rated speed.
