Green micro-ATX motherboard with black heatsinks, silver PCIe slot, rear I/O shield integrated, WiFi antenna connectors visible

GIGABYTE

GIGABYTE H810M G WIFI6 GEN5 Intel motherboard

SKU CH-HQ96-A0F59 MPN H810M G WIFI6 GEN5

mATX board for Intel Core Ultra (Series 2) with DDR5 support up to 128 GB, PCIe 5.0 x16, one M.2 slot, WiFi 6, 2.5 GbE LAN and Bluetooth 5.4

  • CPU Socket TypeLGA 1851
  • CPU TypeIntel Core Ultra Processors (LGA1851)
  • ChipsetIntel H810
  • South BridgeIntel H810 Express Chipset
  • Onboard Video ChipsetIntel HD Graphics
  • Number of Memory Slots2x288pin (DDR5)
  • Ready for Intel Core Ultra (Series 2) processors with LGA 1851 socket
  • Steady power from 4+1+2 hybrid VRM with 40 A DrMOS phases
  • DDR5 memory up to 6400 MT/s on two slots, 128 GB max
  • PCIe 5.0 x16 slot and PCIe 4.0 M.2 for fast GPU and storage
  • WiFi 6 up to 2.4 Gbps, 2.5 GbE and Bluetooth 5.4

Socket LGA 1851 Intel H810 mATX

This motherboard supports Intel Core Ultra Series 2 processors on the LGA 1851 socket using the H810 chipset. It is built for compact micro-ATX systems that need modern connectivity without the cost of a higher-end chipset.

DDR5 6400 dual channel up to 128 GB

Two 288-pin DDR5 slots run at 6400 MT/s in dual-channel mode, providing headroom for 128 GB of non-ECC unbuffered memory. The single PCIe 5.0 x16 slot and one PCIe 4.0 M.2 slot give fast GPU and SSD bandwidth, while four SATA 6 Gb/s ports handle additional storage.

WiFi 6 Bluetooth 5.4 2.5 GbE and EZ-Latch

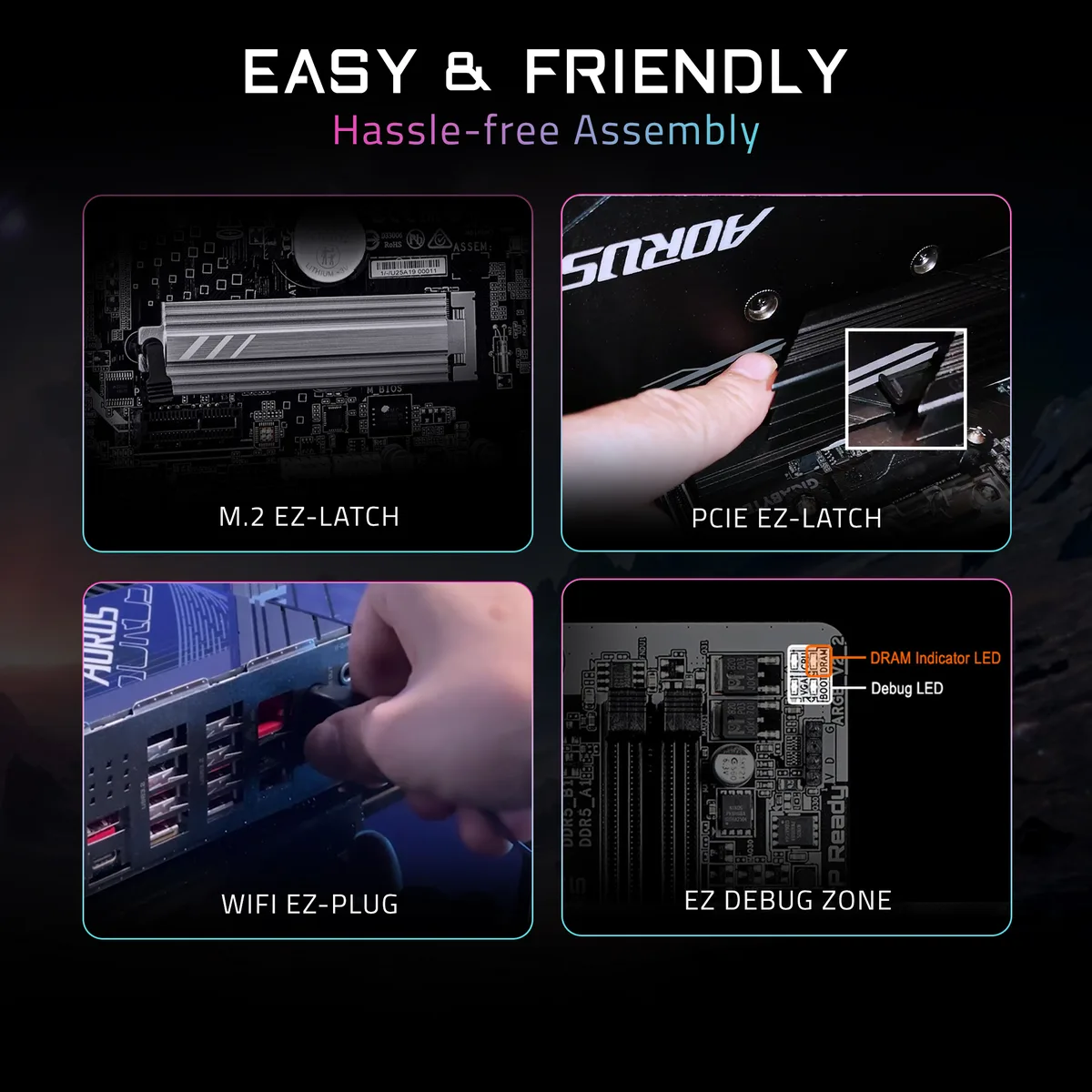

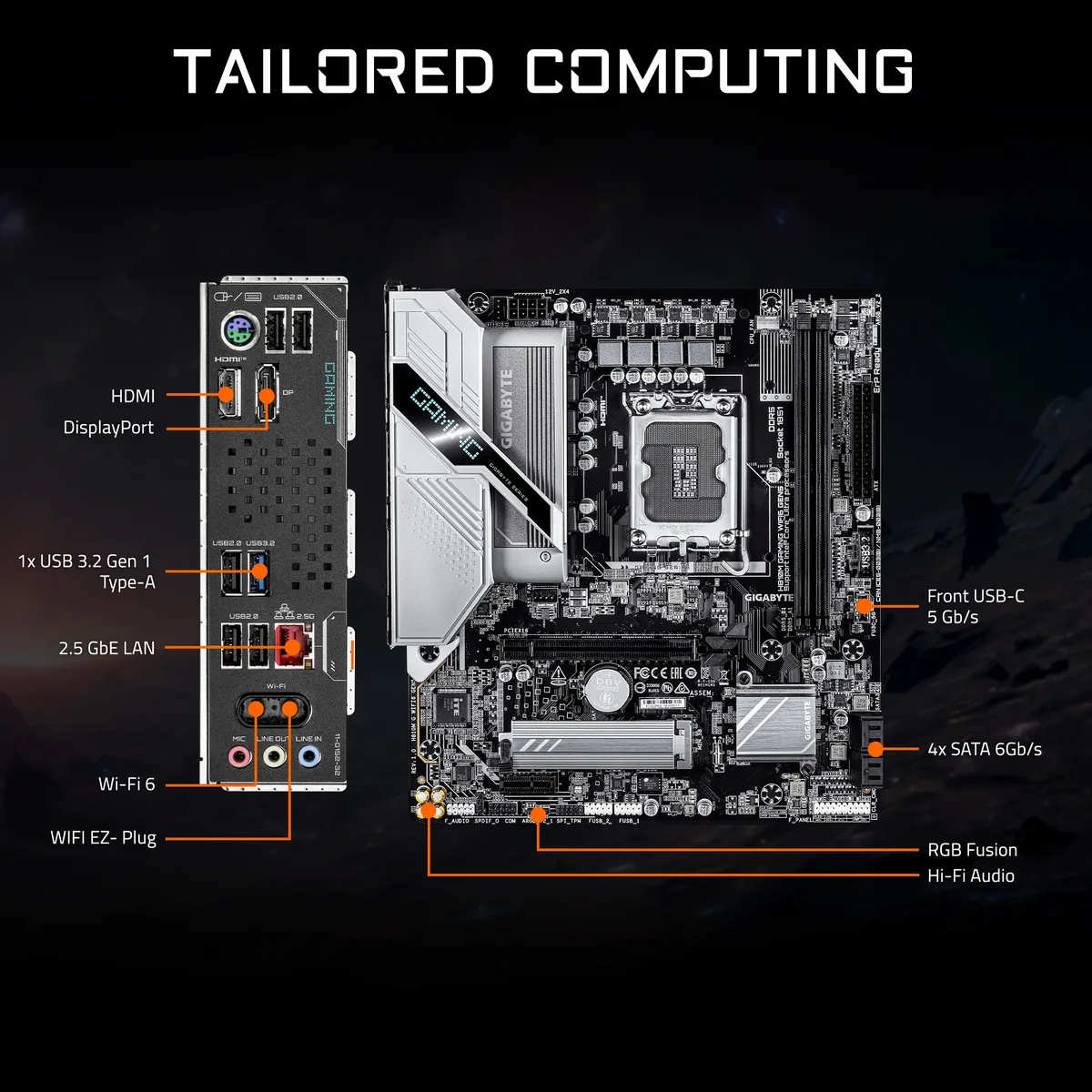

Integrated WiFi 6 reaches 2.4 Gbps alongside Bluetooth 5.4 and a 2.5 GbE LAN port for stable wired links. Front USB-C 5 Gb/s and USB 3.2 Gen 1 Type-A cover external devices. EZ-Latch mechanisms on the PCIe slot and M.2 socket plus a WiFi EZ-Plug antenna simplify assembly.

Highlights

  • Ready for Intel Core Ultra (Series 2) processors with LGA 1851 socket
  • Steady power from 4+1+2 hybrid VRM with 40 A DrMOS phases
  • DDR5 memory up to 6400 MT/s on two slots, 128 GB max
  • PCIe 5.0 x16 slot and PCIe 4.0 M.2 for fast GPU and storage
  • WiFi 6 up to 2.4 Gbps, 2.5 GbE and Bluetooth 5.4

Specifications

BrandGIGABYTE
CPU Socket TypeLGA 1851
CPU TypeIntel Core Ultra Processors (LGA1851)
ChipsetIntel H810
South BridgeIntel H810 Express Chipset
Onboard Video ChipsetIntel HD Graphics
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 6400
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x160 x PCI Express 4.0 x16
PCI Express x161 x PCI Express x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 (Support PCIe 4.0 x4/x2)
Audio ChipsetRealtek® Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek 2.5GbE
Max LAN Speed2.5Gbps
Wireless LANWiFi IEEE 802.11 a / b / g / n / ac / ax
BluetoothNo
Back I/O Ports1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x DisplayPort, 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors, 3 x audio jacks
PS/21 x PS/2 keyboard/mouse port
COM1
Video PortsHDMI + Display Port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.14 x USB 3.1
USB 3.04 x USB 3.0
USB 1.1/2.04 x USB 3.2 Gen 1 + 12 x USB 2.0/1.1 ports
USB Type-C1 x USB Type-C® port, with USB 3.2 Gen 1 support
S/PDIF OutYes
Game/MIDI Ports0
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 1 + 1 x USB 3.2 Gen 1 header + 2 x USB 2.0/1.1 headers
Windows 11Supported
Form FactorMicro ATX
LED LightingNone RGB
Dimensions (W x L)24.4cm x 21.5cm
Power Pin24 Pin
Shipping weight1.04 kg
Package size273 × 267 × 70 mm

Questions about this item

Will my existing DDR5-6400 memory modules work with the two 288-pin slots on this board?

Yes, the board supports DDR5 6400 in dual-channel mode up to 128 GB across its two 288-pin slots.

How can I confirm the PCIe 5.0 x16 slot is running at Gen 5 speeds after installing a graphics card?

Check the link width and speed in the UC BIOS EZ-Debug Zone or use a system-information tool that reports 32 GT/s per lane for the x16 slot.

Does the box include the Wi-Fi 6 antenna and the M.2 screw, or do I need to buy them separately?

The board ships with a WIFI EZ-Plug antenna and uses an M.2 EZ-Latch for screwless SSD installation, so no separate antenna or screw is required.
