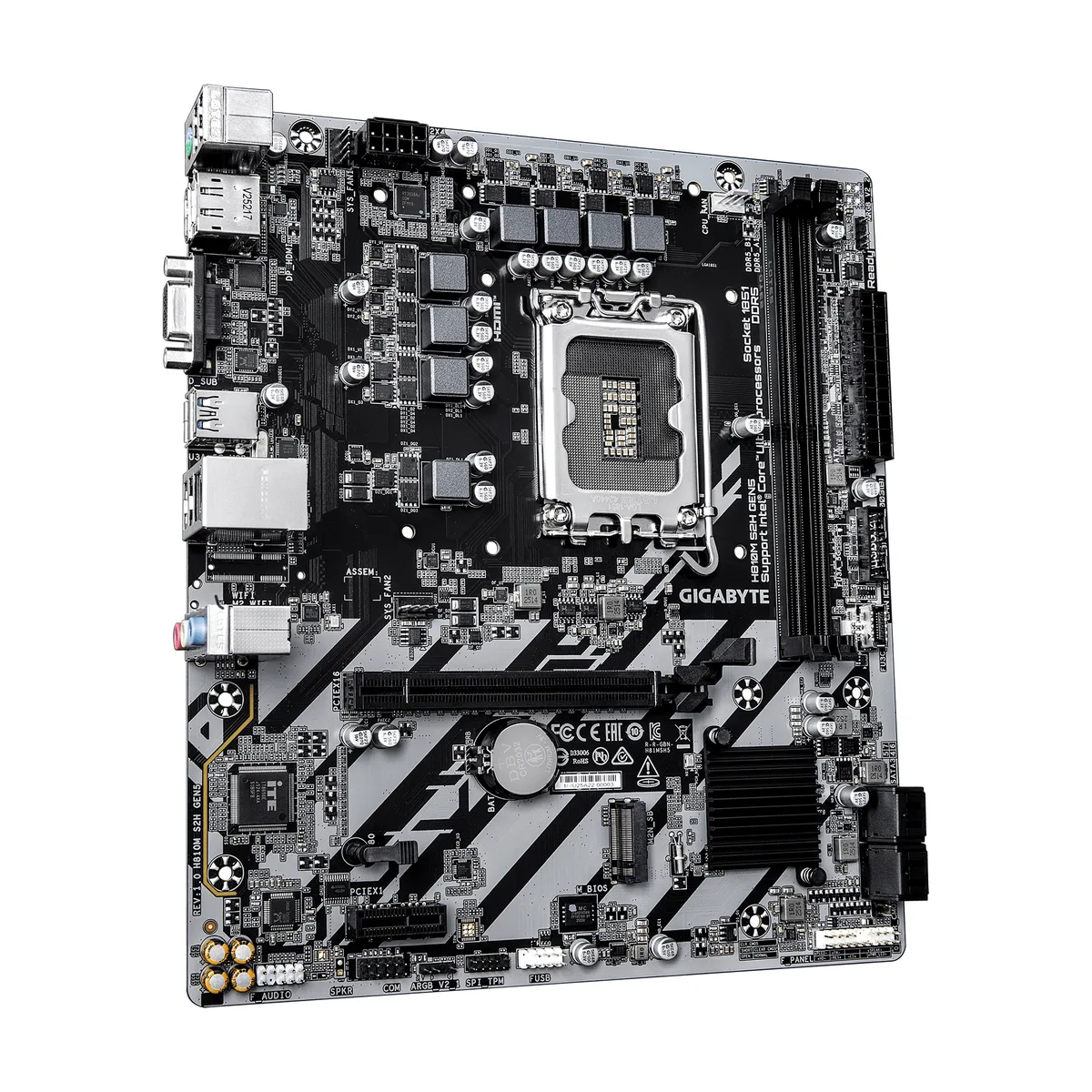

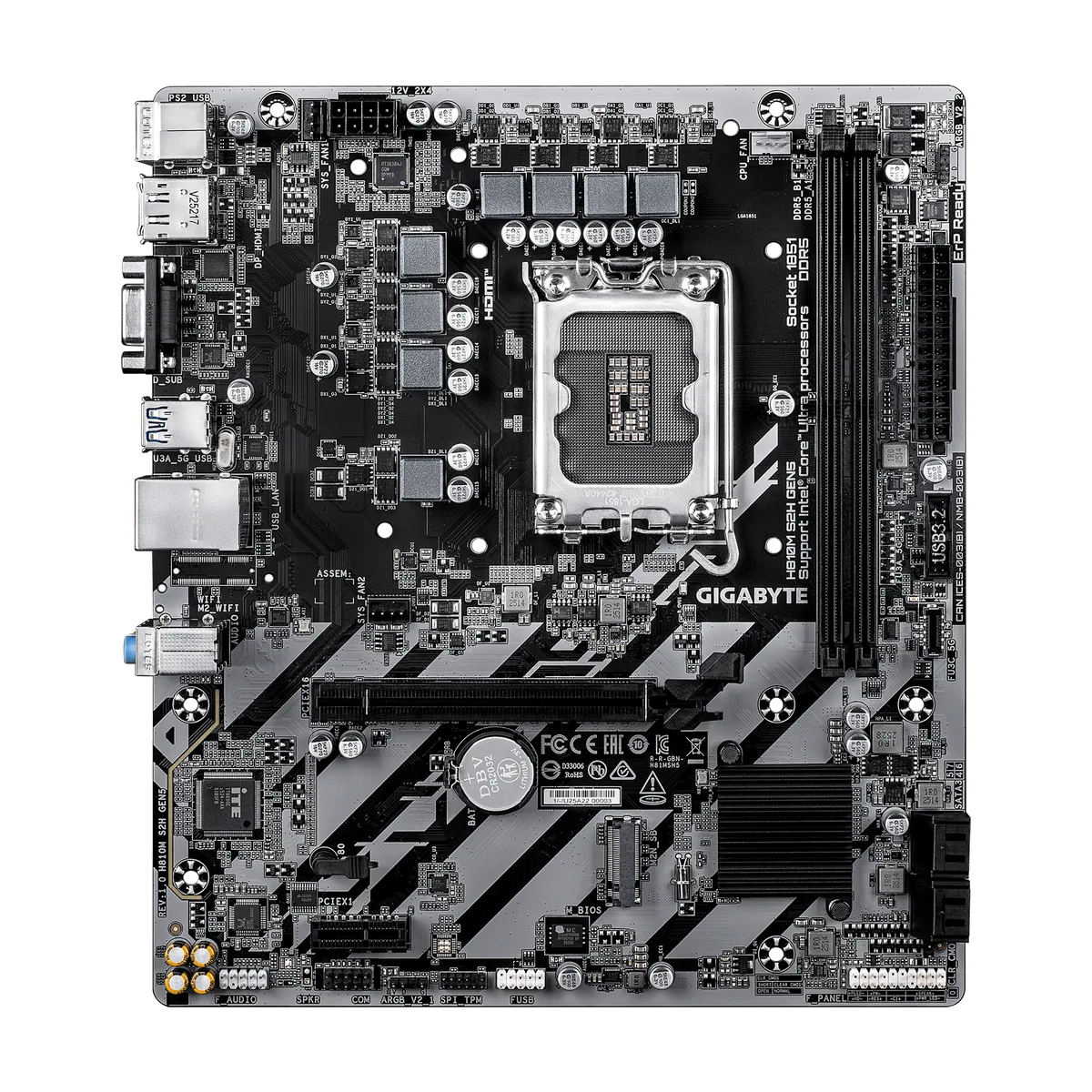

Green rectangular mATX motherboard with silver heatsinks, black PCB, single PCIe 5.0 x16 slot, two DDR5 slots, four SATA ports

GIGABYTE

GIGABYTE H810M S2H GEN5 Intel motherboard

SKU CH-Q7PR-601YY MPN H810M S2H GEN5

mATX board for Intel Core Ultra (Series 2) with DDR5 6400 support, 128 GB max memory, PCIe 5.0 x16 slot, one M.2 4.0 x4, 4 SATA ports, GbE LAN and front USB-C 5 Gb/s

  • CPU Socket TypeLGA 1851
  • CPU TypeCore Ultra Processors (LGA1851)
  • ChipsetIntel H810
  • South BridgeIntel H810 Express Chipset
  • Onboard Video ChipsetIntel HD Graphics
  • Number of Memory Slots2x288pin (DDR5)
  • LGA 1851 socket supports Intel Core Ultra Series 2 processors
  • 4+1+2 hybrid VRM design delivers steady power to the CPU
  • Dual-channel DDR5 memory runs at 6400 MT/s with XMP support
  • PCIe 5.0 x16 slot provides 32 GT/s bandwidth for graphics cards
  • Single M.2 slot accepts PCIe 4.0 x4 storage devices

Ready for Core Ultra (Series 2)

This mATX motherboard uses the Intel H810 chipset and an LGA 1851 socket to support Intel Core Ultra Series 2 processors. It provides a compact foundation for office workstations or entry-level builds that need modern platform features without a full-size ATX footprint.

4+1+2 Hybrid VRM and PCIe EZ-Latch

A 4+1+2 hybrid power phase design with premium chokes and capacitors delivers steady power to the CPU. The board includes one PCIe 5.0 x16 slot with EZ-Latch for tool-free graphics card removal, one PCIe 4.0 M.2 slot for storage, four SATA 6Gb/s ports, a front-panel USB-C 5Gb/s header and one rear USB 3.2 Gen 1 Type-A port alongside GbE LAN.

Dual-channel DDR5 to 128GB and Smart Fan 6

Two 288-pin DDR5 slots run at 6400 MT/s and support Intel XMP profiles up to 128GB total capacity. The UEFI BIOS adds Multi-Theme options, Smart Fan 6 curves and Q-Flash Auto Scan for simplified updates, while a chipset heatsink and EZ-Debug Zone assist with thermal management and troubleshooting.

Highlights

  • LGA 1851 socket supports Intel Core Ultra Series 2 processors
  • 4+1+2 hybrid VRM design delivers steady power to the CPU
  • Dual-channel DDR5 memory runs at 6400 MT/s with XMP support
  • PCIe 5.0 x16 slot provides 32 GT/s bandwidth for graphics cards
  • Single M.2 slot accepts PCIe 4.0 x4 storage devices

Specifications

BrandGIGABYTE
CPU Socket TypeLGA 1851
CPU TypeCore Ultra Processors (LGA1851)
ChipsetIntel H810
South BridgeIntel H810 Express Chipset
Onboard Video ChipsetIntel HD Graphics
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 6400
Maximum Memory Supported128GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x161 x PCI Express x16
PCI Express x11 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.21 x M.2 (Support PCIe 4.0 x4/x2)
Audio ChipsetRealtek® Audio CODEC
Audio Channels7.1 Channels
LAN ChipsetRealtek GbE LAN chip
Max LAN Speed1Gbps
BluetoothNo

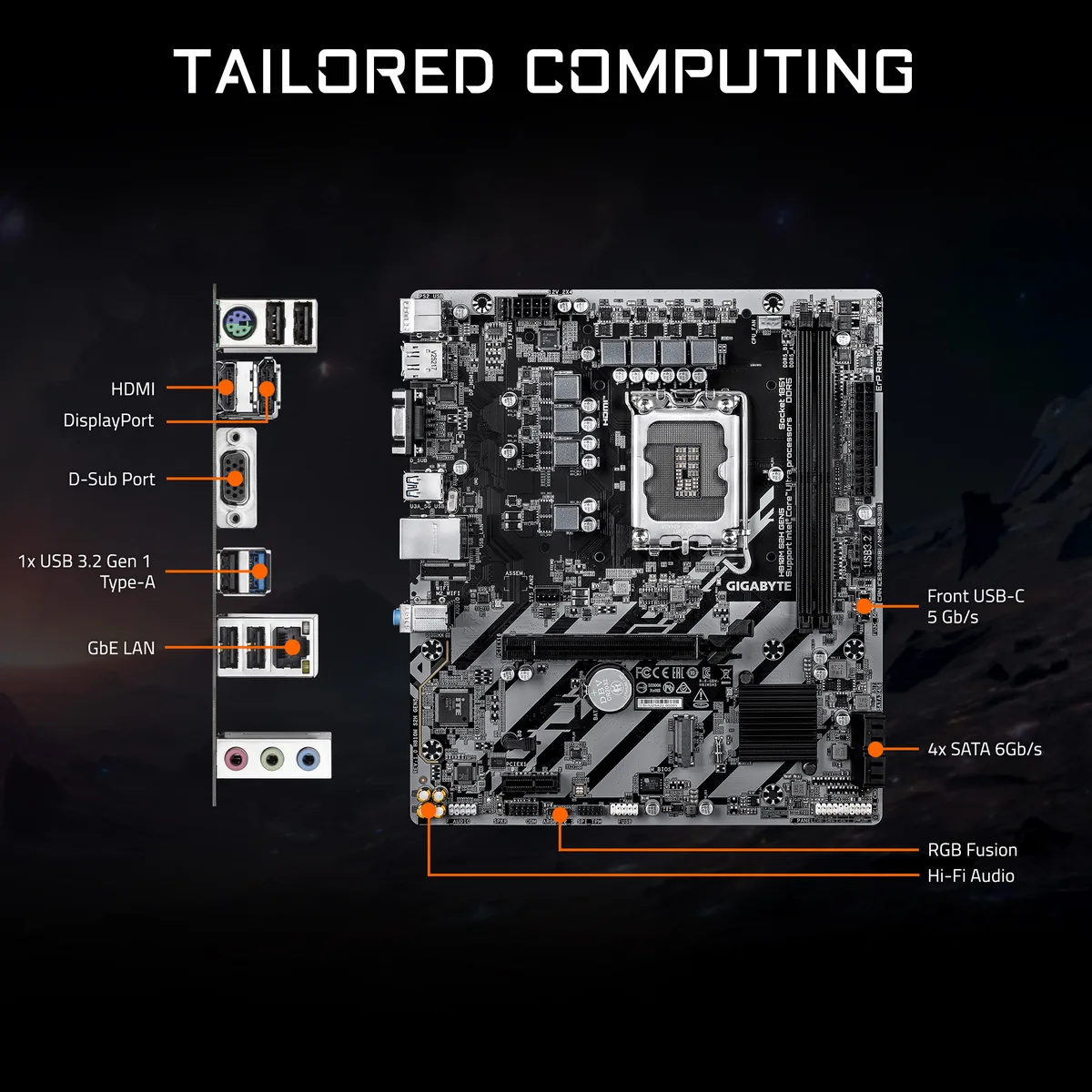

Back I/O Ports1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x DisplayPort, 1 x D-Sub port, 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
PS/21 x PS/2 keyboard/mouse port
COM1
Video PortsD-Sub + HDMI + Display Port
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.14 x USB 3.1
USB 3.04 x USB 3.0
USB 1.1/2.01 x USB 3.2 Gen 1 + 7 x USB 2.0/1.1 ports
USB Type-C1 x USB Type-C® port, with USB 3.2 Gen 1 support
Audio Ports3 Ports
Onboard USB1 x USB Type-C® header, with USB 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 1 x USB 2.0
Windows 11Supported
Form FactorMicro ATX
LED LightingNone RGB
Dimensions (W x L)24.4cm x 21.5cm
Power Pin24 Pin
Shipping weight0.77 kg
Package size267 × 267 × 53 mm

Questions about this item

What PCIe standard does the single x16 slot use and what bandwidth does it deliver?

The board provides one PCI Express 5.0 x16 slot running at 32 GT/s per lane, doubling the 16 GT/s rate of the previous generation for graphics cards and accelerators.

What form factor and mounting holes does this mATX board require?

It uses the standard micro-ATX footprint with four mounting holes that align with any mATX-compatible chassis.

How do I release the PCIe EZ-Latch when swapping a graphics card?

Press the small lever on the side of the PCIe 5.0 x16 slot to unlock the retention tab before pulling the card straight up.
