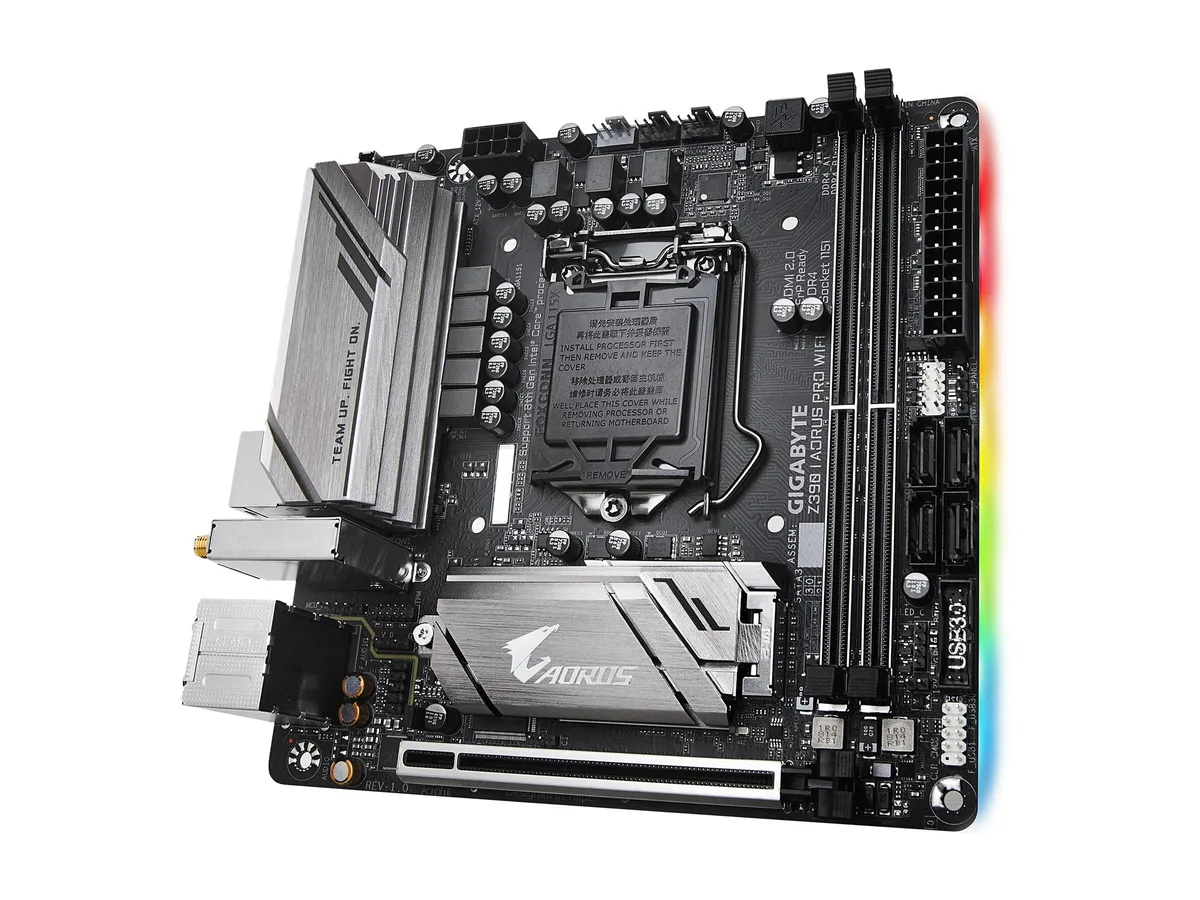

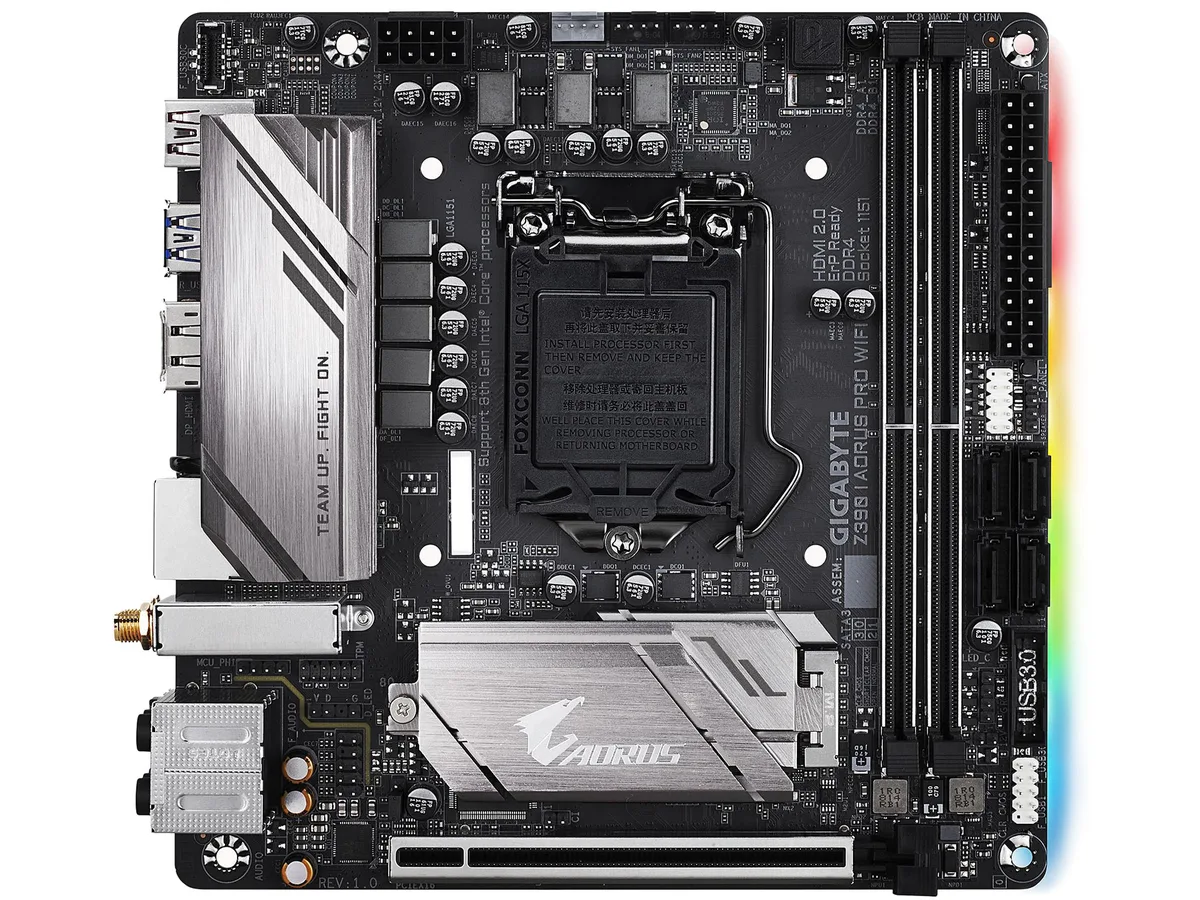

GIGABYTE Z390 I AORUS PRO WIFI Mini ITX motherboard, black PCB with silver heatsinks and rear I/O shield

GIGABYTE

GIGABYTE Intel motherboard

SKU CH-YSQM-WH37J

Mini ITX board for 8th and 9th Gen Intel CPUs with dual-channel DDR4, 6-phase digital VRM, extended heatsink, Intel Gigabit LAN, Wi-Fi 802.11 ac, HDMI 2.0 and DisplayPort 1.2 video outputs.

  • Supports 8th and 9th Gen Intel Core processors for high performance
  • 6-phase IR digital VRM with PowIRstage delivers stable power
  • Advanced thermal design with extended fin heatsink keeps temperatures low
  • Realtek ALC1220-VB audio codec provides 114dB rear and 110dB front SNR
  • Intel Gigabit LAN plus 802.11 ac 2x2 Wave 2 Wi-Fi for fast connectivity

Mini-ITX Z390 platform for 8th-9th Gen Intel builds

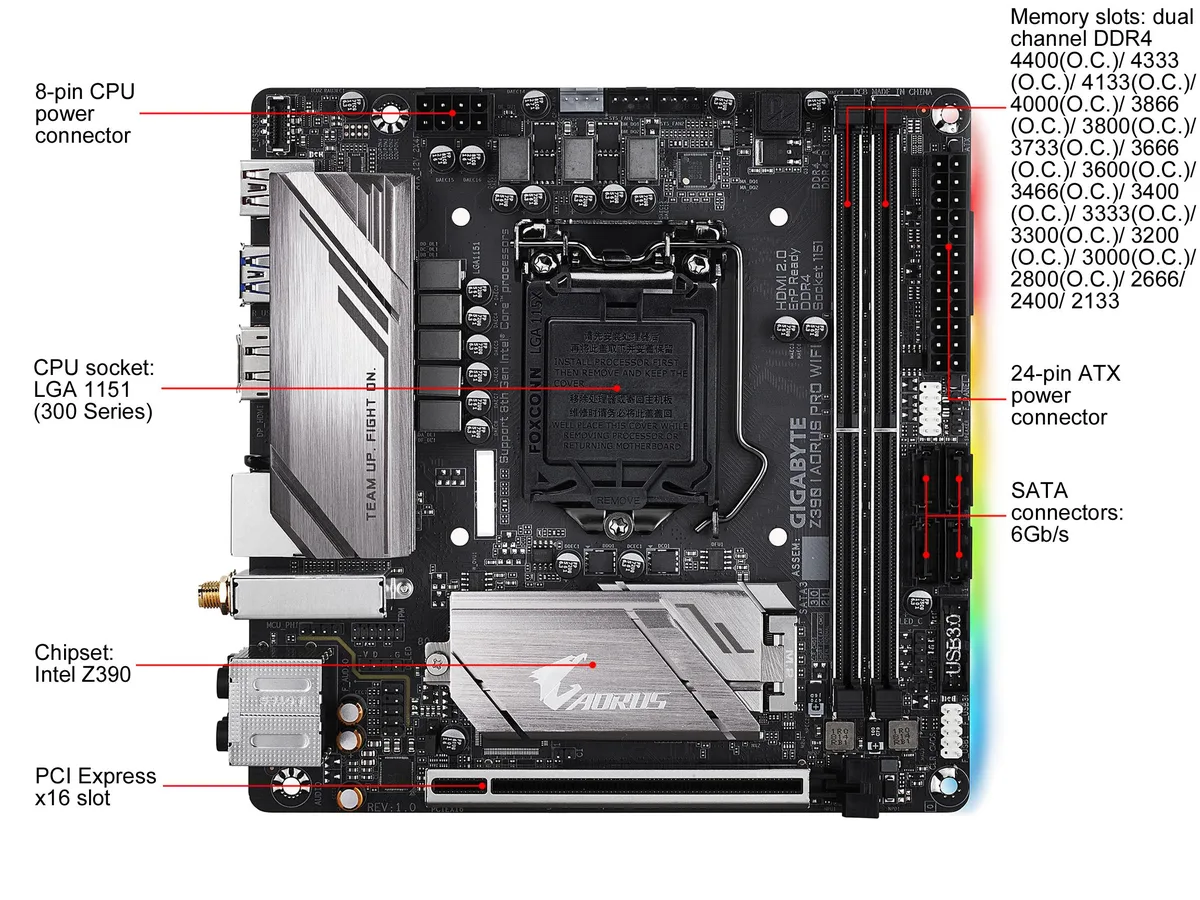

This GIGABYTE Z390 I AORUS PRO WIFI motherboard fits Intel 8th and 9th Generation Core i9, i7, i5, i3, Celeron and Pentium processors into a Mini-ITX footprint. The board provides two DDR4 DIMM slots and a single PCI Express x16 slot running at x16. Integrated Intel 802.11 ac 2x2 Wave 2 Wi-Fi and Intel Gigabit LAN handle wireless and wired networking.

Compact layout frees case space

The Mini-ITX form factor leaves room for small-form-factor cases and custom liquid-cooling loops. Dual-channel DDR4 support reaches 4400 MHz overclocked speeds across two 288-pin slots. A six-phase IR digital VRM with PowIRstage and an extended fin heatsink manage power delivery without large coolers. Onboard HDMI 2.0 and DisplayPort 1.2 outputs drive 4096x2160 and 4096x2304 displays at 60 Hz with HDR.

Ideal for high-performance small-form-factor PCs

Enthusiasts building compact gaming or workstation systems gain strong VRM cooling, high-resolution video outputs and premium audio in one slot. Builders needing more than two memory slots, multiple graphics cards or additional full-length expansion cards should choose a larger ATX or micro-ATX board. Users requiring newer processor generations must select a different chipset.

Highlights

  • Supports 8th and 9th Gen Intel Core processors for high performance
  • 6-phase IR digital VRM with PowIRstage delivers stable power
  • Advanced thermal design with extended fin heatsink keeps temperatures low
  • Realtek ALC1220-VB audio codec provides 114dB rear and 110dB front SNR
  • Intel Gigabit LAN plus 802.11 ac 2x2 Wave 2 Wi-Fi for fast connectivity

Specifications

No published specifications for this item yet.

Questions about this item

What VRM phase count limits sustained boost clocks on this Z390 board?

The 6 Phase IR Digital VRM Solution with PowIRstage delivers stable power to 8th and 9th Gen Core i9, i7, i5, i3, Celeron, and Pentium processors, making the VRM the first limit under heavy all core loads.

How loud does the AORUS PRO WIFI get when the CPU runs at full load all day?

The Advanced Thermal Design uses an Extended Fin Heatsink with no active chipset fan, so motherboard noise stays at case fan level even during extended high current operation.

Which memory kit must I already own to boot this Mini ITX board?

You need a DDR4 288 pin DIMM kit; the board has two slots supporting speeds from 2133 up to 4400 MT/s overclocked.
