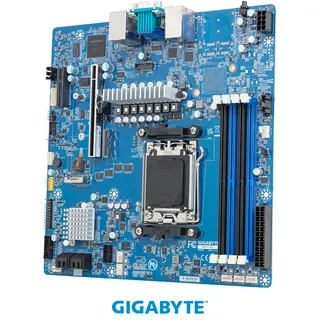

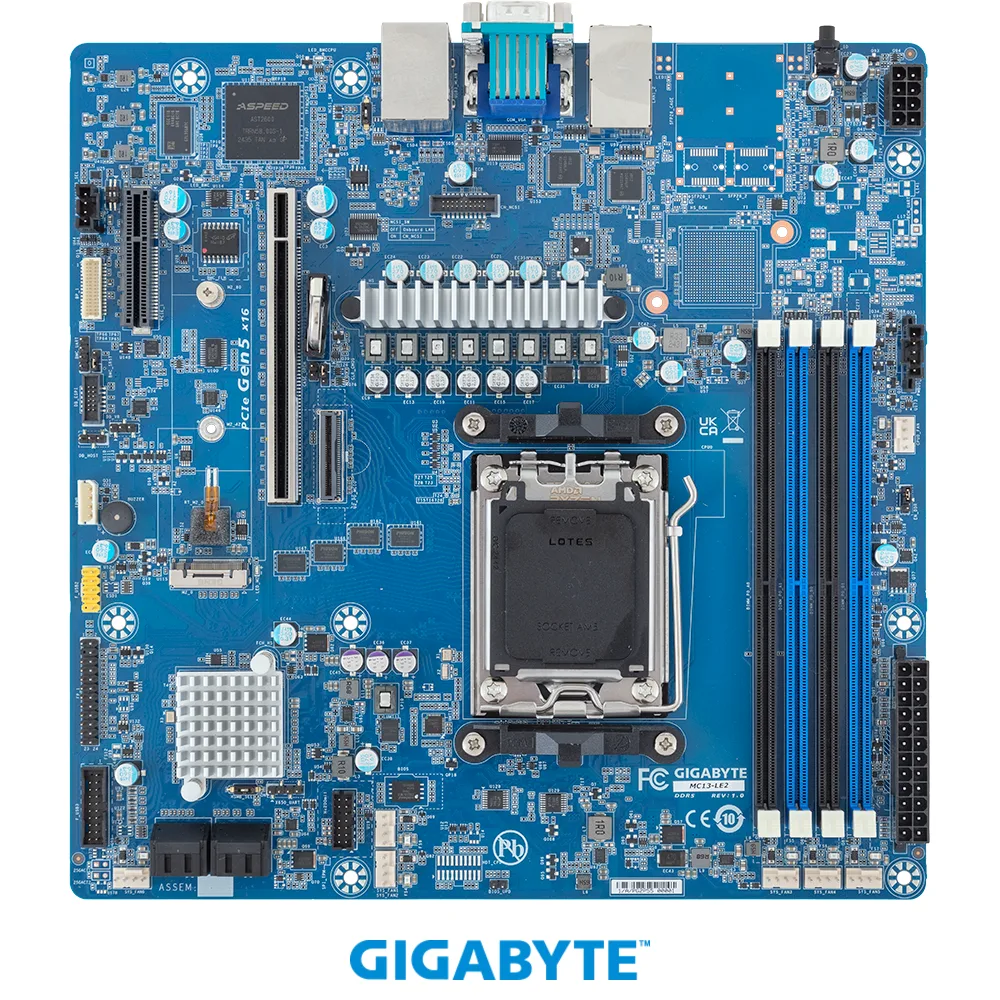

Green microATX server motherboard with four DDR5 slots, two LAN ports, PCIe x16 and x4 slots, M.2 and MCIO connectors, silver heatsinks

GIGABYTE

GIGABYTE MC13-LE2 server motherboard AM5 DDR5 ECC 1Gb LAN

SKU CH-CD00-9JB97 MPN MC13-LE2

microATX server board for AMD EPYC 4004, 4005, Ryzen 7000 and 9000 CPUs with DDR5 ECC memory, dual 1Gb LAN, PCIe 5.0 x16, Gen5 M.2 and four SATA ports

  • CPU Socket TypeSocket AM5
  • CPU TypeAMD EPYC 4004 Series / AMD EPYC 4005 Series / AMD Ryzen 7000
  • Number of Processor Support1
  • CPU FeaturesTDP up to 170W
  • North BridgeAMD B650
  • Memory Slots4 x DDR5 288-pin

Style 1 x MCIO 8i connector with PCIe Gen5 x8 interface

Struck-through versions exist but are not stocked here.

  • Supports AMD EPYC 4005 and Ryzen 9000 processors for server workloads
  • Dual-channel DDR5 ECC memory up to 5600 MT/s ensures data integrity
  • Two 1 Gbps LAN ports provide reliable network connectivity
  • PCIe Gen5 x16 slot and MCIO 8i enable high-speed expansion
  • Four SATA 6.0 Gb/s ports with RAID 0/1/10 for storage flexibility

Socket AM5 Server Board for SMB Workloads

The GIGABYTE MC13-LE2 is a microATX motherboard built around the AMD B650 chipset. It supports a single AMD EPYC 4004, EPYC 4005, Ryzen 7000 or Ryzen 9000 series processor with a TDP up to 170W. The board provides four DDR5 288-pin slots running in dual-channel mode with ECC support for data integrity. Two Intel I210-AT controllers deliver dual 1GbE LAN ports for basic network connectivity.

Suits Small Servers and Edge Deployments

This board fits builders assembling compact servers, hosted IT services or SMB infrastructure that require enterprise manageability features like GIGABYTE Management Console. It works well for single-socket systems needing ECC memory and dual 1GbE links. Builders who need more than four SATA ports, more than one M.2 slot, or more than two PCIe expansion slots should consider larger form-factor server boards with additional I/O capacity.

Dual-Channel DDR5 ECC Support Decides Fit

The four DDR5 slots operate in dual-channel mode and officially support ECC UDIMMs, which is the key specification for data-integrity workloads. With EPYC 4005 or Ryzen 9000 CPUs the board reaches 5600 MT/s at one DIMM per channel and 3600 MT/s at two DIMMs per channel. With EPYC 4004 or Ryzen 7000 CPUs the limits are 5200 MT/s and 3600 MT/s respectively. If your application requires registered DIMMs or more than four memory slots, this platform will not meet that need.

Highlights

  • Supports AMD EPYC 4005 and Ryzen 9000 processors for server workloads
  • Dual-channel DDR5 ECC memory up to 5600 MT/s ensures data integrity
  • Two 1 Gbps LAN ports provide reliable network connectivity
  • PCIe Gen5 x16 slot and MCIO 8i enable high-speed expansion
  • Four SATA 6.0 Gb/s ports with RAID 0/1/10 for storage flexibility

Specifications

BrandGIGABYTE
ModelMC13-LE2
CPU Socket TypeSocket AM5
CPU TypeAMD EPYC 4004 Series / AMD EPYC 4005 Series / AMD Ryzen 7000 Series / AMD Ryzen 9000 Series
Number of Processor Support1
CPU FeaturesTDP up to 170W
North BridgeAMD B650
Memory Slots4 x DDR5 288-pin
Memory StandardAMD EPYC 4005 / Ryzen 9000:
Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)
AMD EPYC 4004 / Ryzen 7000:
Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)
Channel SupportedDual Channel
ECC SupportedYes
PCI Express 5.0 x16Slot_3: PCIe x16 (Gen5 x16), from CPU, shared with MCIO
PCI Express x4Slot_1: PCIe x4 (Gen4 x4), from FCH
Other Slots1 x MCIO 8i (Gen5 x8)
SATA4 x SATA 6.0Gb/s
SATA RAID0/1/10
M.21 x M.2 (2242/2280), PCIe Gen5 x4, from CPU
Onboard Video ChipsetAspeed AST2600
LAN Speed10/100/1000Mbps
Max LAN Speed2 x 1Gbps

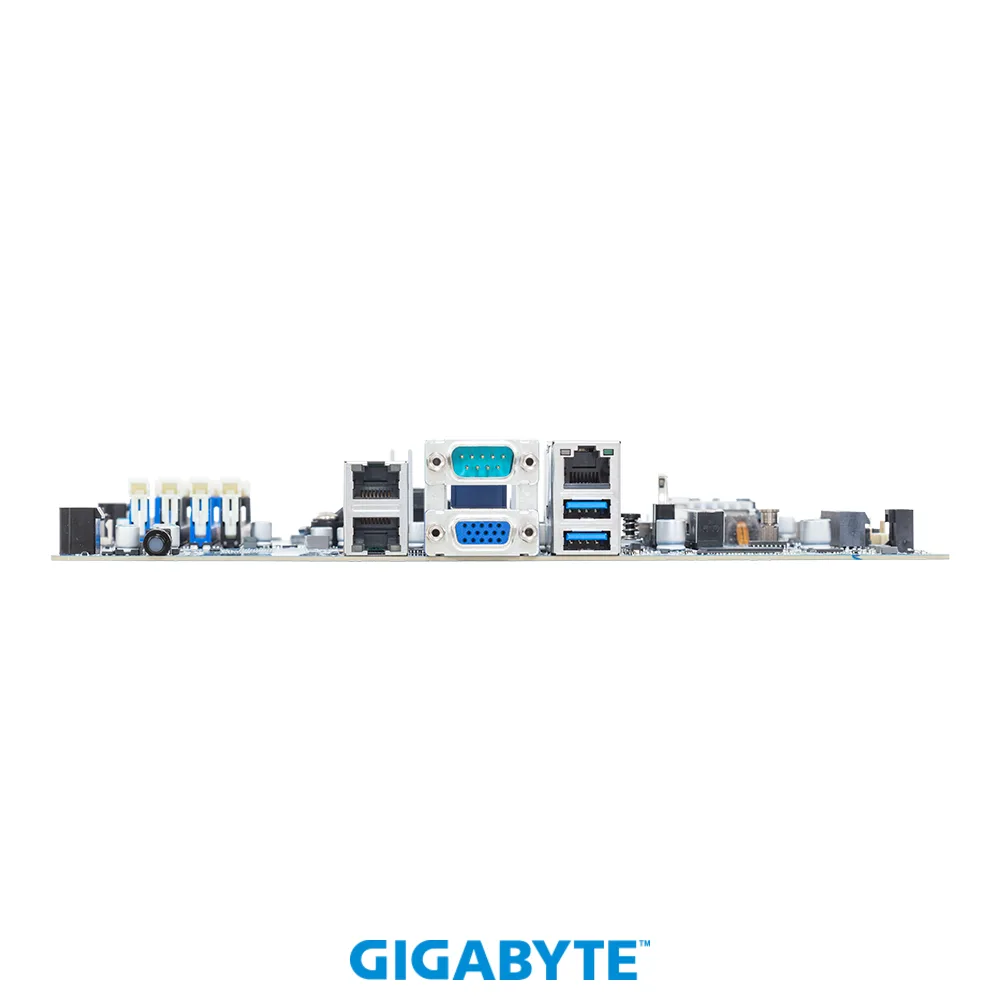

Back I/O Ports2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x Serial port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Other Connectors1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x M.2 slot
1 x MCIO 8i connector
1 x Front panel header
1 x Backplane board header
1 x PMBUS connector
1 x IPMB connector
1 x TPM header
Form FactorMicro ATX
Package Contents1 x MC13-LE2
1 x I/O shield
1 x Quick start guide
4 x SATA cables (500mm)
Shipping weight1.13 kg
Package size324 × 305 × 76 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 170 W TDP limit throttle my CPU during 24/7 workloads?

The board is rated for CPUs up to 170 W TDP; sustained loads at that level will need adequate case airflow and a cooler designed for 170 W dissipation.

How loud and hot does the Aspeed AST2600 management chip run when the server is on all day?

The AST2600 is a low-power BMC controller; it adds minimal heat and has no fan of its own, so system noise and thermals depend almost entirely on the CPU cooler and chassis fans.

Which DDR5 ECC UDIMMs and AM5 CPU do I need to have on hand before this board will post?

You need one AMD EPYC 4004, 4005, Ryzen 7000 or 9000 series processor plus DDR5 288-pin ECC or non-ECC UDIMMs — up to 5600 MT/s with one DIMM per channel or 3600 MT/s with two per channel.
