Green extended ATX server board with dual LGA 4189 sockets and sixteen DDR4 slots

GIGABYTE

GIGABYTE MD72-HB0 Dual LGA 4189 Server Motherboard

SKU CH-8JN7-WV1HM MPN MD72-HB0

Dual-socket server board for 3rd Gen Intel Xeon Scalable processors with 16 DDR4 slots supporting 4 TB memory, four PCIe 4.0 x16 slots, 12 SATA ports via SlimSAS.

  • CPU Socket TypeLGA 4189
  • CPU TypeSupports 3rd Gen Intel Xeon Scalable Processors Supports Int
  • Number of Processor Support2
  • CPU FeaturesDual processor, 10nm technology CPU TDP up to 270W
  • North BridgeIntel C621A
  • Number of DDR4 Slots16 x 288-pin
  • Dual LGA 4189 sockets support two 3rd Gen Intel Xeon Scalable processors up to 270W TDP each
  • 16 DDR4 DIMM slots deliver eight-channel memory per CPU with 3200 MT/s speed and 4TB maximum capacity
  • PCIe 4.0 x16 slots on both processors provide high-bandwidth expansion for GPUs and accelerators
  • Dual 10GbE Intel X710-AT2 ports plus dedicated management LAN enable fast data and remote administration
  • 12 SATA ports via three SlimSAS connectors plus two native SATA 6Gb/s ports offer dense storage connectivity

Dual LGA 4189 Server Board

The GIGABYTE MD72-HB0 is an Extended ATX server motherboard built for dual 3rd Gen Intel Xeon Scalable processors in LGA 4189 sockets. It uses the Intel C621A chipset and supports CPUs with a TDP up to 270W each. The board provides sixteen 288-pin DDR4 slots running at 3200 MT/s in an eight-channel configuration per processor, with a maximum memory capacity of 4TB using registered modules.

Suits dual-socket Xeon builds.

This motherboard targets deployments that need two processors and high memory bandwidth across sixteen DIMM slots. It suits virtualisation hosts, database servers and compute clusters that can use dual-socket scaling. Builders planning a single-CPU system or a standard desktop workstation should look elsewhere, as the board requires both sockets populated for full feature operation and does not fit consumer chassis or power layouts.

Verify E-ATX clearance.

Before ordering, confirm that your chassis accepts Extended ATX dimensions and can deliver adequate airflow for two processors rated up to 270W each. The board needs registered DDR4 RDIMM or LRDIMM modules; unbuffered desktop memory will not work. Check that your power supply provides the required EPS connectors for dual-CPU operation and that your storage plan matches the two SATA 6Gb/s ports, three SlimSAS connectors and two M.2 slots wired for PCIe 4.0 x4 from CPU 0.

Highlights

  • Dual LGA 4189 sockets support two 3rd Gen Intel Xeon Scalable processors up to 270W TDP each
  • 16 DDR4 DIMM slots deliver eight-channel memory per CPU with 3200 MT/s speed and 4TB maximum capacity
  • PCIe 4.0 x16 slots on both processors provide high-bandwidth expansion for GPUs and accelerators
  • Dual 10GbE Intel X710-AT2 ports plus dedicated management LAN enable fast data and remote administration
  • 12 SATA ports via three SlimSAS connectors plus two native SATA 6Gb/s ports offer dense storage connectivity

Specifications

BrandGIGABYTE
ModelMD72-HB0
CPU Socket TypeLGA 4189
CPU TypeSupports 3rd Gen Intel Xeon Scalable Processors
Supports Intel Xeon Platinum / Xeon Gold / Xeon Silver Processor
Number of Processor Support2
CPU FeaturesDual processor, 10nm technology
CPU TDP up to 270W
North BridgeIntel C621A
Number of DDR4 Slots16 x 288-pin
DDR4 StandardDDR4 3200
Maximum Memory Supported4TB
Channel SupportedEight Channel
RegisteredYes
PCI Express 4.0 x16Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_5: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
SATA2 x 7-pin SATA 6Gb/s ports
SATA RAID0/1/10/5
SAS3 x SlimSAS with 12 x SATA 6Gb/s ports
M.22 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports NGFF-2280/22110 cards
Onboard Video ChipsetAspeed AST2500
LAN ChipsetIntel X710-AT2
LAN Speed10Gbps
Second LAN ChipsetIntel I210-AT
Second LAN Speed10/100/1000Mbps
Max LAN Speed2 x 10Gbps + 2 x 1Gbps
Back I/O Ports2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
4 x RJ45
1 x MLAN
1 x ID button with LED
Onboard USB1 x USB 3.0 header
Other Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin PCIe power connector
3 x SlimSAS connectors
2 x 7-pin SATA connectors
2 x M.2 slots
1 x HDD backplane board header
2 x CPU fan headers
5 x System fan headers
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Case open header
Form FactorExtended ATX

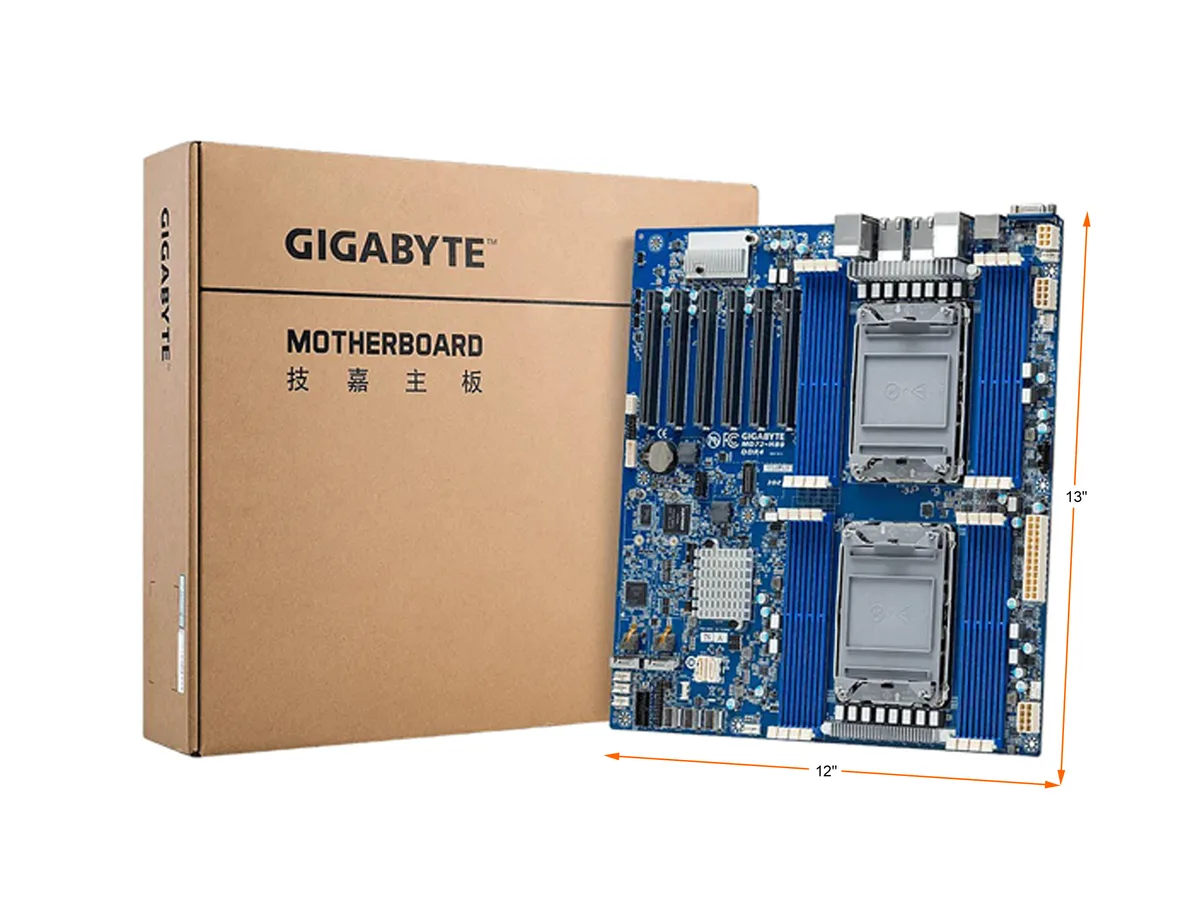

Dimensions (W x L)12" x 13"
Package Contents1 x MD72-HB0
1 x I/O shield
1 x Quick start guide
1 x SlimSAS for 4 x SATAIII 6Gb/s cable
Shipping weight2.27 kg
Package size411 × 357 × 79 mm

Questions about this item

What processors must I already own for this dual LGA 4189 board to work?

You need two 3rd Gen Intel Xeon Scalable processors, up to 40 cores each, with a TDP up to 270W per socket.

Will my existing DDR4-3200 registered DIMMs work in the sixteen 288-pin slots?

Yes, the board runs eight-channel DDR4-3200 per processor and supports up to 4TB total using RDIMM or LRDIMM modules.

How can I confirm the dual 10 GbE ports from the Intel X710-AT2 are active after installation?

Check the OS network adapter list for two 10 Gbps links and verify the dedicated management port shows a separate 1 Gbps connection.
