Green ATX server motherboard with silver CPU socket, eight black DIMM slots, multiple PCIe slots, four SlimSAS connectors

GIGABYTE

GIGABYTE MZ01-CE0 server motherboard SP3 ATX

SKU CH-V8TC-ZXS4G MPN MZ01-CE0

ATX server board for single AMD EPYC 7003/7002 CPUs with 8-channel DDR4, 16 SATA ports, dual 10GbE and dual 1GbE LAN plus dedicated management

  • CPU Socket TypeSocket SP3
  • CPU TypeAMD EPYC 7000 series processor family Single processor, 14nm
  • DDR4 StandardDDR4 2666 / 2400 / 2133 MHz
  • Maximum Memory SupportedRDIMM modules up to 64GB supported LRDIMM modules up to 128G
  • Channel Supported8-Channel
  • PCI Express 3.0 x16Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus) Slot_5 (PCIe_5)
  • Supports up to 32-core AMD EPYC processors
  • 8-channel DDR4 architecture scales to 4 TB memory
  • Dual 10 Gb/s LAN plus dual 1 Gb/s LAN for flexible networking
  • Sixteen SATA 6 Gb/s ports via four SlimSAS connectors
  • Five PCIe 3.0 expansion slots plus M.2 PCIe Gen3 x4

Single-socket EPYC ATX server board

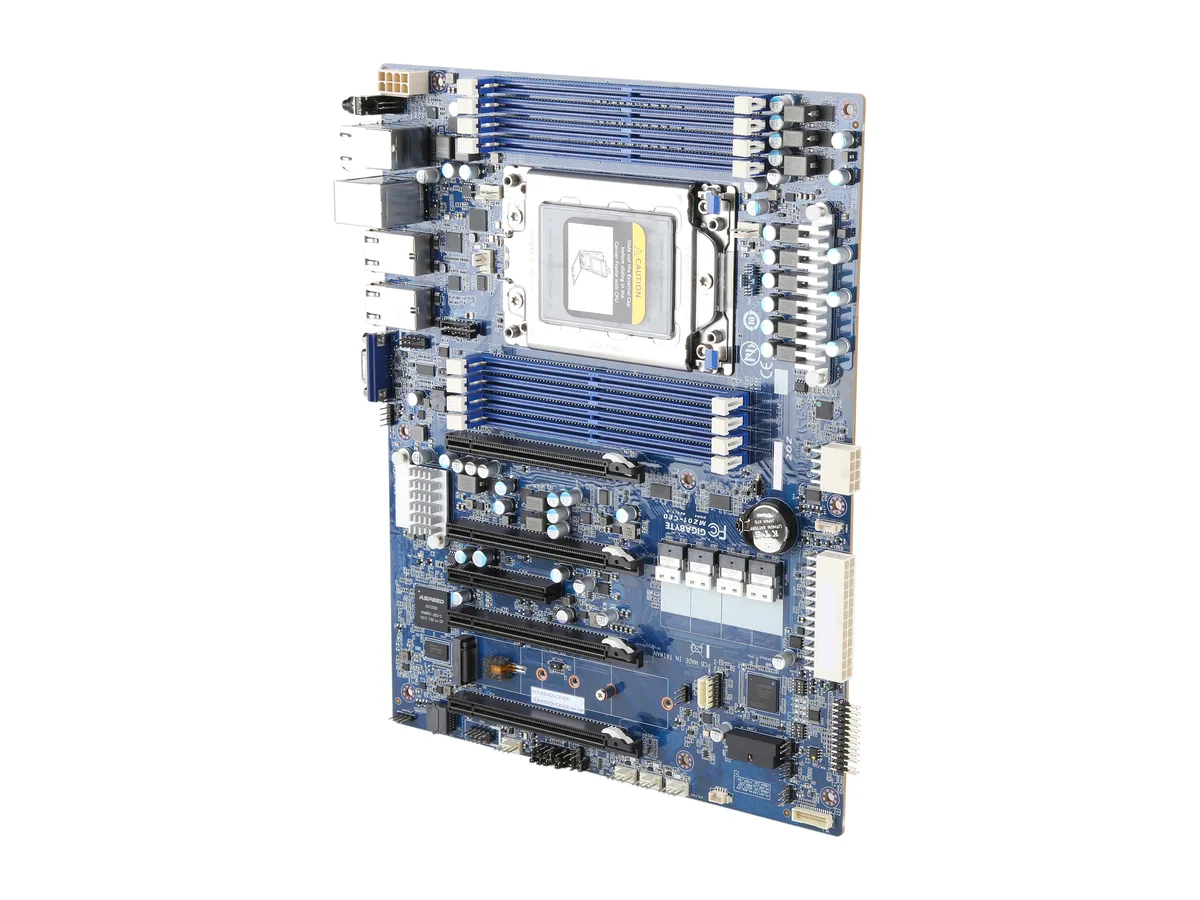

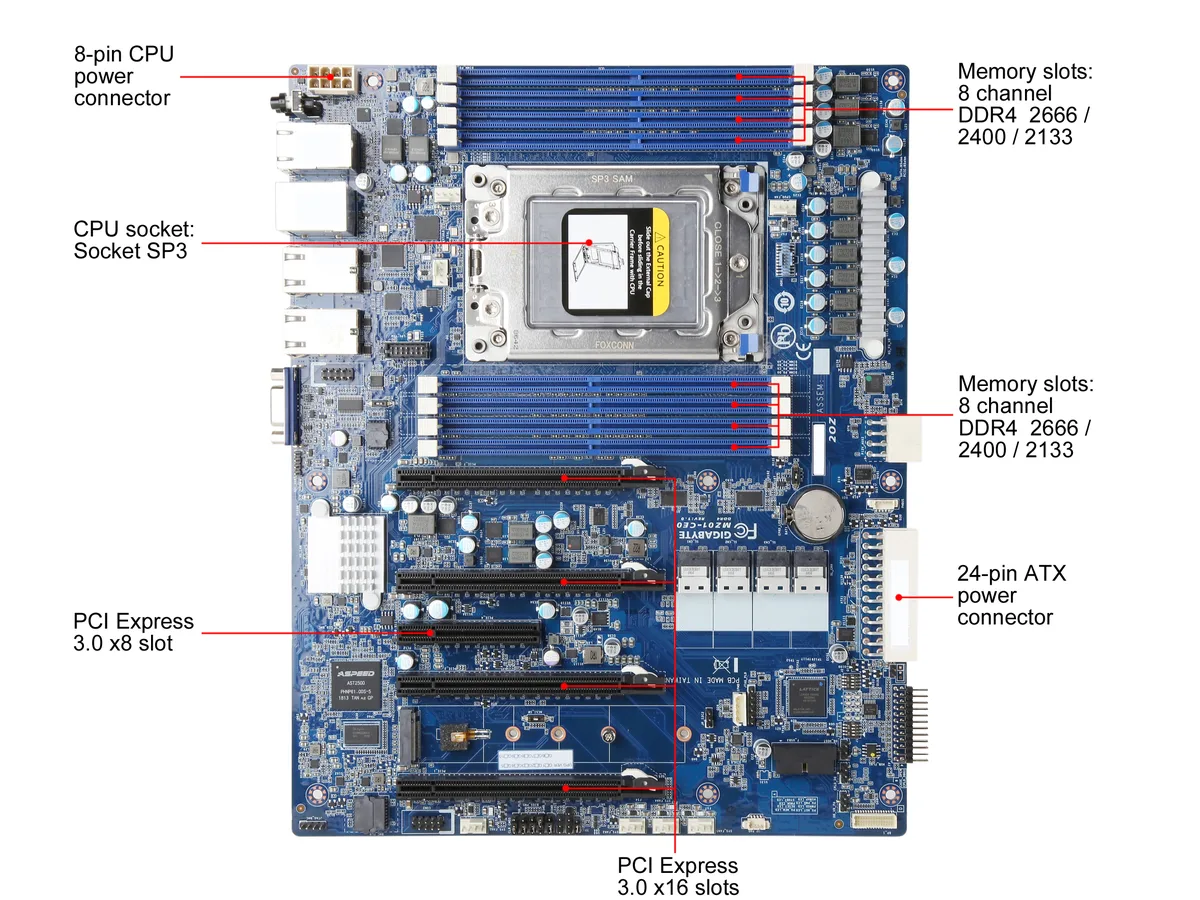

The MZ01-CE0 is a new ATX motherboard built for one AMD EPYC 7002 or 7003 series processor in Socket SP3. It targets builders who need enterprise compute density in a standard chassis footprint rather than a proprietary rackmount tray. Eight DDR4 channels feed up to eight DIMM slots, and the board delivers four full-length PCIe 3.0 x16 slots plus one x8 slot for accelerator or networking cards.

8-channel DDR4 with 128 GB LRDIMM ceiling

Memory runs at 2666, 2400 or 2133 MT/s across eight channels, accepting RDIMMs up to 64 GB each or LRDIMMs up to 128 GB each for a theoretical maximum of 1 TB per processor. Four SlimSAS connectors break out to sixteen SATA 6 Gb/s ports, while a single M.2 M-key slot wired for PCIe 3.0 x4 accepts 2242 through 22110 form-factor drives. The Aspeed AST2500 provides basic VGA output for headless management.

Dual 10 GbE and dedicated management LAN

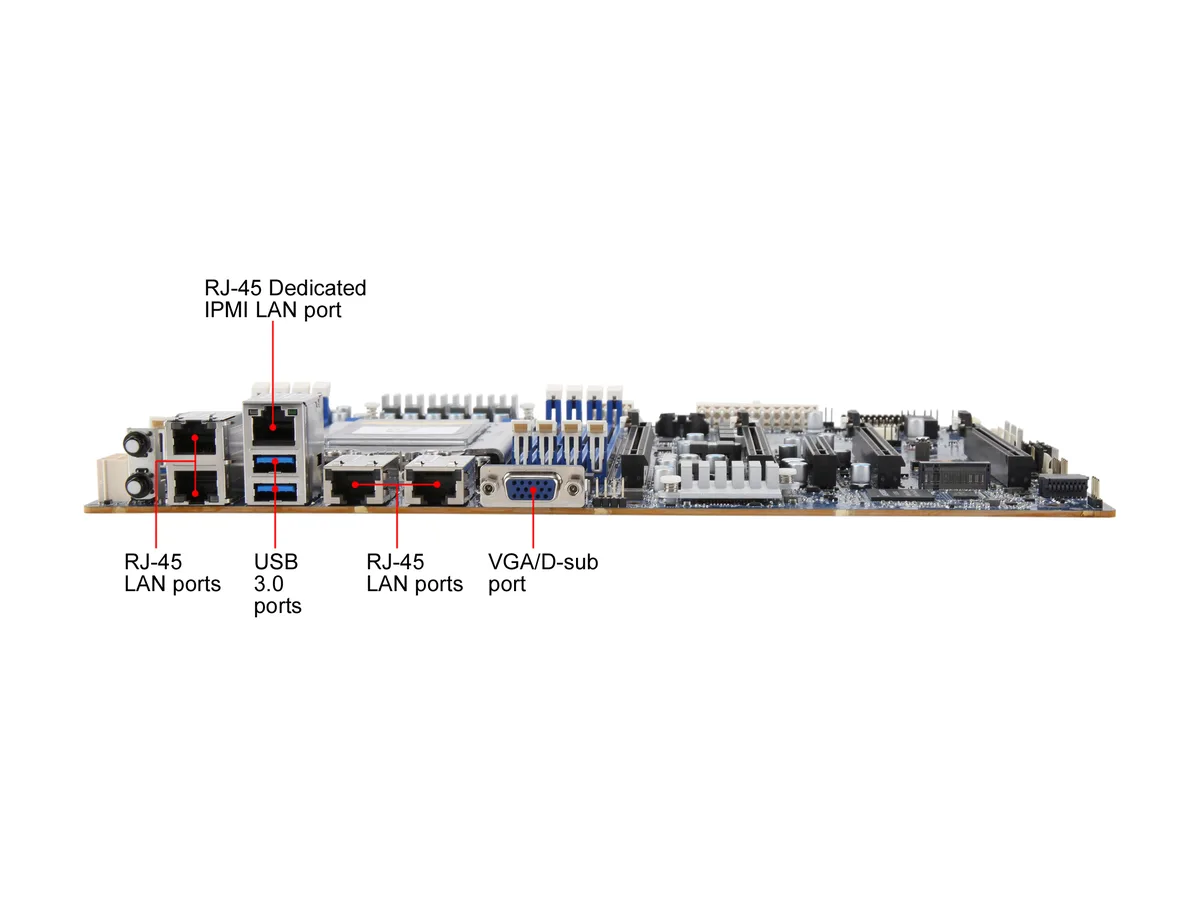

Networking comprises two Intel X550-AT2 10 Gb/s BASE-T ports, two Intel I210-AT 1 Gb/s ports and a separate 10/100/1000 management interface, all on RJ45. Two USB 3.0 headers and a VGA port complete the rear I/O. This board suits migrations from older single-socket SP3 platforms that lack 10 GbE or sufficient PCIe lane count; it does not address workloads requiring dual-socket memory interleaving or PCIe 4.0 endpoint speeds.

Highlights

  • Supports up to 32-core AMD EPYC processors
  • 8-channel DDR4 architecture scales to 4 TB memory
  • Dual 10 Gb/s LAN plus dual 1 Gb/s LAN for flexible networking
  • Sixteen SATA 6 Gb/s ports via four SlimSAS connectors
  • Five PCIe 3.0 expansion slots plus M.2 PCIe Gen3 x4

Specifications

BrandGIGABYTE
ModelMZ01-CE0
CPU Socket TypeSocket SP3
CPU TypeAMD EPYC 7000 series processor family
Single processor, 14nm
Up to 32-core, 64 threads
TDP up to 180W
DDR4 StandardDDR4 2666 / 2400 / 2133 MHz
Maximum Memory SupportedRDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Channel Supported8-Channel
PCI Express 3.0 x16Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus)
Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus)
Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus)
Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus)
PCI Express x8Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus)
Other Slots1 x M.2 slot:
M-key
PCIe Gen3 x4
Supports NGFF-2242/2260/2280/22110 cards
SATA4 x SlimSAS for 16 x SATA III 6Gb/s ports
Onboard Video ChipsetAspeed AST2500
LAN Chipset2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
2 x 1Gb/s LAN ports (Intel I210-AT)
1 x 10/100/1000 management LAN
Video Ports1 x VGA port
RJ454 x RJ45
USB 3.02 x USB 3.0
FeaturesAMD EPYC 7000 series processor family
8-Channel RDIMM / LRDIMM DDR4, 8 x DIMMs
2 x 10Gb/s BASE-T LAN ports (Intel X550-AT2)
2 x 1Gb/s LAN ports (Intel I210-AT)
1 x dedicated management port
4 x SlimSAS (for 16 x SATA 6Gb/s) ports
Ultra-Fast M.2 with PCIe Gen3 x4 interface
Up to 5 x PCIe Gen3 expansion slots
Aspeed AST2500 remote management controller
Form FactorATX
Dimensions (W x L)12.0" x 9.6"

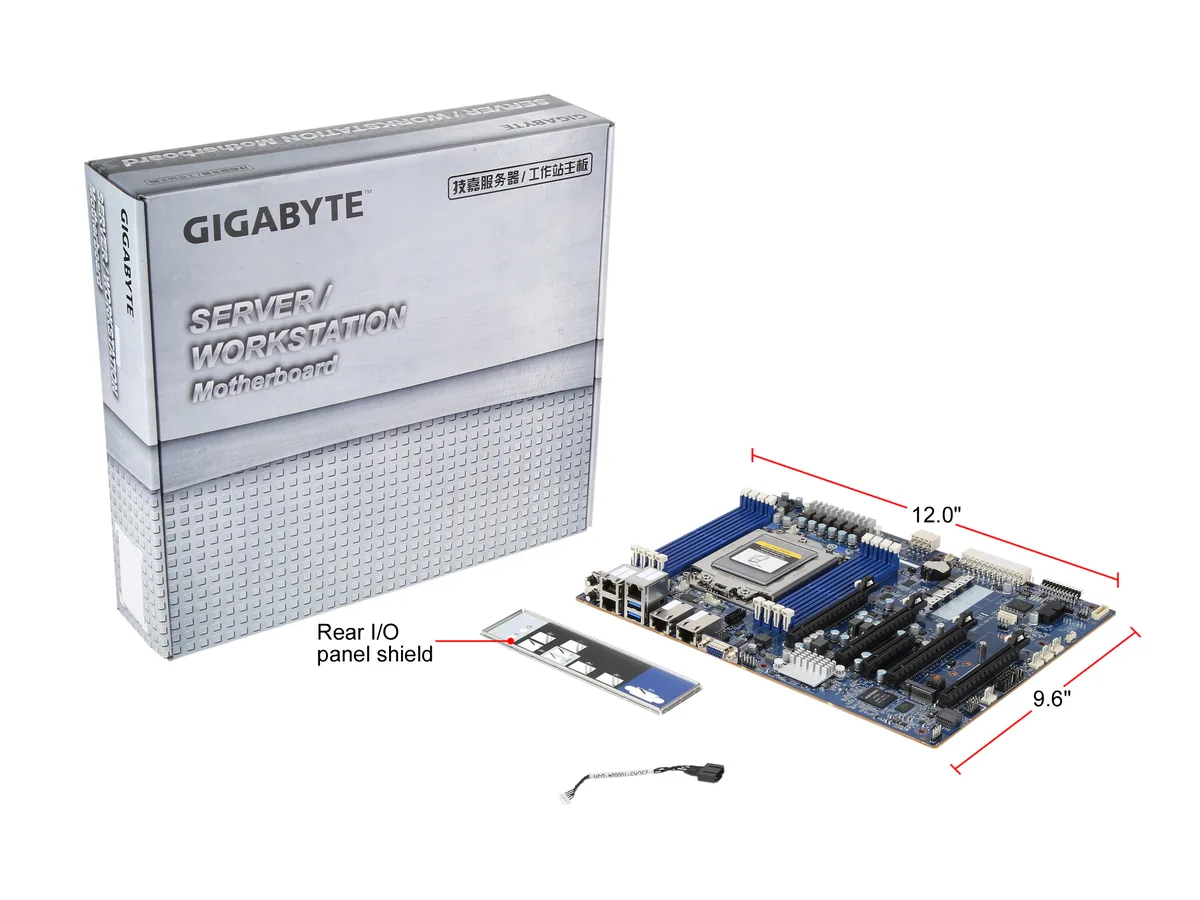

Package Contents1 x MZ01-CE0
1 x I/O shield
1 x Quick start guide
2 x SlimSAS for 8 x SATAIII 6Gb/s cables
Shipping weight1.63 kg
Package size363 × 338 × 81 mm

Questions about this item

Will my existing DDR4-2666 RDIMMs work with the MZ01-CE0's 8-channel memory architecture?

Yes, the board supports DDR4 2666 / 2400 / 2133 MHz RDIMMs up to 64 GB per module across its eight DIMM slots, so your current modules will run at their rated speed.

How can I verify the dual 10GbE Intel X550-AT2 ports are linked at full speed after installation?

Check the port LEDs on the rear I/O panel — solid amber indicates a 10 Gb/s link, while green shows 1 Gb/s; the OS network adapter properties will also report 10 Gbps duplex when the connection is negotiated correctly.

Which cables and accessories are included with the motherboard and what must I source separately?

The box contains the MZ01-CE0 board, I/O shield, quick-start guide and two SlimSAS cables that break out to eight SATA III ports each; you will need to buy an SP3 processor, DDR4 RDIMM or LRDIMM modules, M.2 SSD, additional SlimSAS cables for the remaining eight SATA ports and any PCIe add-in cards separately.
