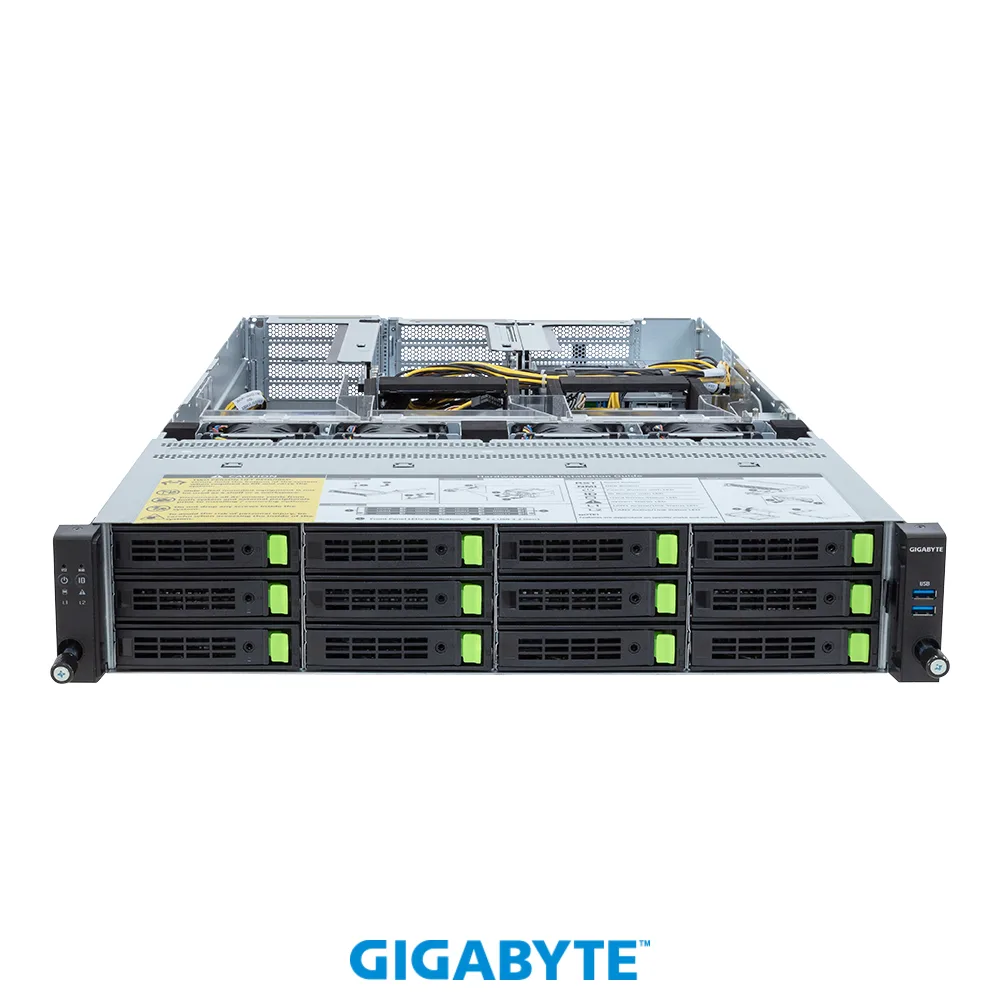

Silver 2U rackmount chassis with twelve front drive bays and four full-height GPU slots visible

GIGABYTE

GIGABYTE R283-SF0-AAL1 barebone server 2U dual Xeon 32 DIMM 12 bay 4 GPU

SKU CH-XMYS-NMJEG MPN R283-SF0-AAL1

2U rackmount barebone supporting dual Xeon Scalable or Xeon CPU Max Series processors, 32 DDR5 RDIMM slots, 12 hot-swap 3.5 or 2.5-inch NVMe/SATA/SAS-4 drive bays.

  • Form Factor2U Rackmount
  • WorkloadGeneral Purpose Server
  • CPU TypeSupports 4th/5th Generation Intel Xeon Scalable and Intel Xe
  • CPU SocketLGA 4677
  • Installed CPUNo CPU Installed
  • Max Processors2
  • Dual Xeon Scalable processors deliver high compute density
  • 32 DDR5 RDIMM slots enable massive memory capacity
  • 12 hot-swap bays support NVMe SATA SAS storage
  • Four PCIe Gen5 GPU slots accelerate AI workloads
  • OCP NIC 3.0 slot provides flexible networking

Dual-processor Xeon barebone for GPU compute

The GIGABYTE R283-SF0-AAL1 is a 2U rackmount barebone built for dual 4th- or 5th-generation Xeon Scalable or Xeon CPU Max Series processors up to 350W TDP each. It targets organisations deploying dense AI training, HPC or rendering workloads that need four full-height PCIe Gen5 GPU slots in a compact chassis.

12 hot-swap bays and Gen5 expansion layout

Twelve front-accessible 3.5- or 2.5-inch bays accept NVMe, SATA or SAS-4 drives with hot-swap capability. The board provides four FHFL PCIe Gen5 x16 slots for dual-slot GPUs, one FHHL PCIe Gen5 x16 slot and an OCP NIC 3.0 Gen5 x16 slot for high-speed networking. An Aspeed AST2600 handles baseboard management graphics.

Eight-channel DDR5 memory and dual-ROM firmware

Thirty-two 288-pin RDIMM slots operate in eight channels at up to 5600 MT/s with one DIMM per channel or 4400 MT/s with two. Dual ROM architecture adds firmware redundancy for unattended operation. The platform supports registered DDR5 only and ships without CPUs, memory or storage installed.

Highlights

  • Dual Xeon Scalable processors deliver high compute density
  • 32 DDR5 RDIMM slots enable massive memory capacity
  • 12 hot-swap bays support NVMe SATA SAS storage
  • Four PCIe Gen5 GPU slots accelerate AI workloads
  • OCP NIC 3.0 slot provides flexible networking

Specifications

BrandGIGABYTE
ModelR283-SF0-AAL1
Form Factor2U Rackmount
WorkloadGeneral Purpose Server
CPU TypeSupports 4th/5th Generation Intel Xeon Scalable and Intel Xeon CPU Max Series Processor
CPU SocketLGA 4677
Installed CPUNo CPU Installed
Max Processors2
CPU FeaturesDual processor, TDP up to 350W
North BridgeIntel C741
Contains Embedded BatteryNo
Memory Slots32 x 288Pin
Installed Memory SizeNo Memory Installed
Memory Type Supported5th Gen Intel Xeon:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel Xeon:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel Xeon Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Channel Supported8 Channel
RegisteredYes
Installed HDDNo Storage Installed
GPU/VPUAspeed AST2600
PCI Express4 x FHFL PCIe Gen5 x16 slots for GPUs
1 x FHHL PCIe Gen5 x16 slot
1 x OCP NIC 3.0 Gen5 x16 slot
Max. LAN Speed1 Gigabit
Hot-Swap BaysFront hot-swap:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
Buttons1 x NMI button
1 x Reset button
LEDs1 x Power button with LED
1 x ID button with LED
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED
Front USB2 x USB 3.2 Gen1 ports (Type-A)
DisplayPort1 x Mini DisplayPort
Rear USB2 x USB 3.2 Gen1 ports (Type-A)
RJ452
Other Ports1 x MLAN
Max. PowerDual 2700W 80 PLUS Titanium redundant power supply
Fans1 x 40x40x28mm (34,000rpm)
4 x 80x80x38mm (18,300rpm)
TemperatureOperating temperature: 10°C to 30°C
Non-operating temperature: -40°C to 60°C
HumidityOperating humidity: 8%-80% (non-condensing)
Non-operating humidity: 20%-95% (non-condensing)
Dimensions3.44" x 17.24" x 32.09"
Weight64.73 lbs.
Package Contents1 x R283-SF0-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 100mm)
1 x GPU power cable (12VHPWR, 300mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 650mm)
6 x Carriers
1 x 2-Section Rail kit
Shipping weight29.94 kg
Package size1080 × 686 × 305 mm

Questions about this item

What speed does the PCIe Gen5 x16 interface on the GPU slots actually deliver?

The four FHFL slots and the FHHL slot all run at PCIe Gen5 x16, and the OCP NIC 3.0 slot is also Gen5 x16.

What physical space and power budget must the rack provide for this 2U server?

It occupies a 2U rackmount form factor and supports dual processors with a TDP up to 350W each.

How are the CPUs and memory installed, and what step is often missed?

Install both LGA 4677 processors first, then populate the 32 DDR5 RDIMM slots across the 8 channels; the step often missed is matching the 1DPC or 2DPC configuration to the rated 5600, 4800 or 4400 MT/s speeds.
