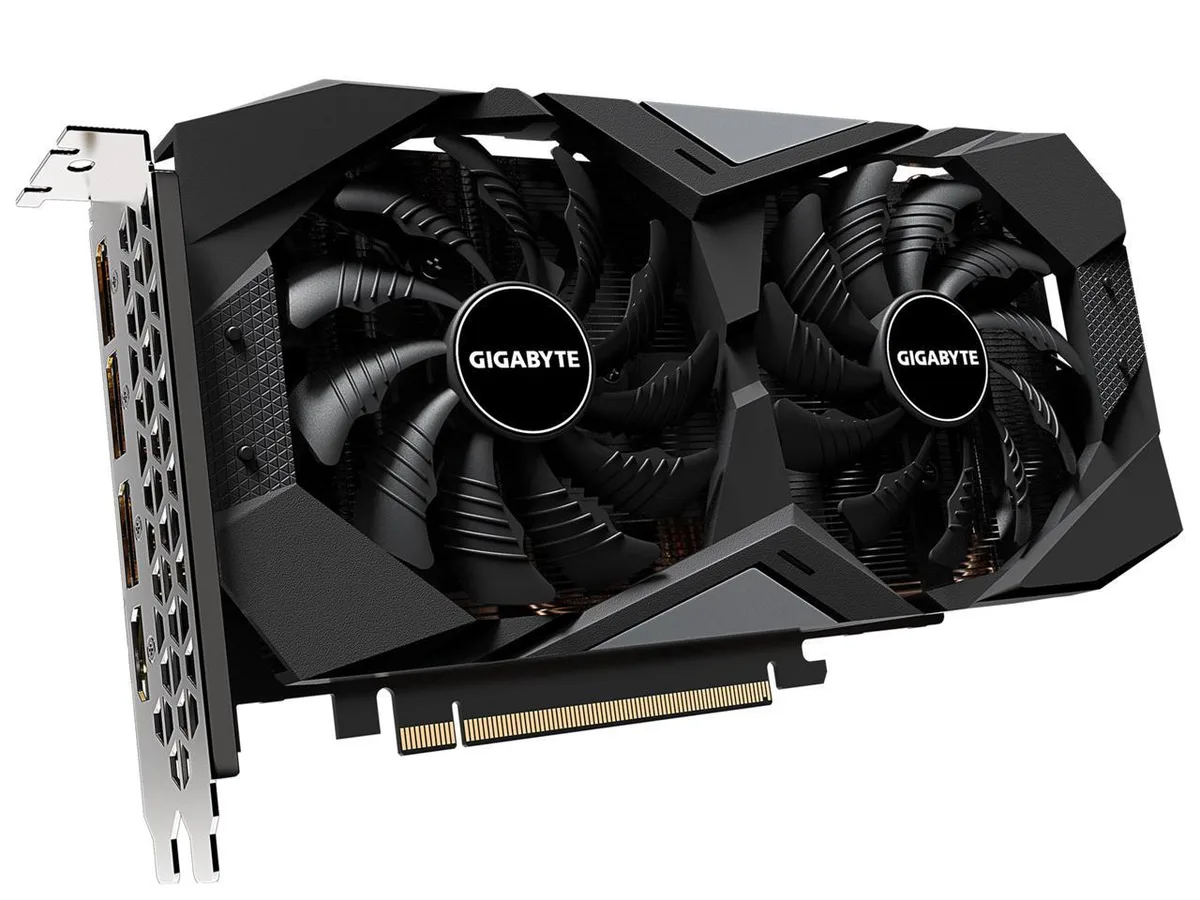

Dual-fan graphics card with silver backplate, black shroud and PCIe bracket

GIGABYTE

GIGABYTE Radeon RX 5500 XT OC 4G rev. 2.0 graphics card

SKU CH-7WGH-TVZ21

Mid-range AMD GPU with 4 GB GDDR6 memory, 128-bit bus, PCIe 4.0 x8 interface and dual-fan WINDFORCE cooling

  • InterfacePCI Express 4.0 x8
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5500 Series
  • GPURadeon RX 5500 XT
  • Boost Clock1845 MHz
  • Stream Processors1408
  • Boost clock reaches 1845 MHz for responsive 1080p gaming
  • 4 GB GDDR6 on a 128-bit bus delivers 14000 MHz effective memory speed

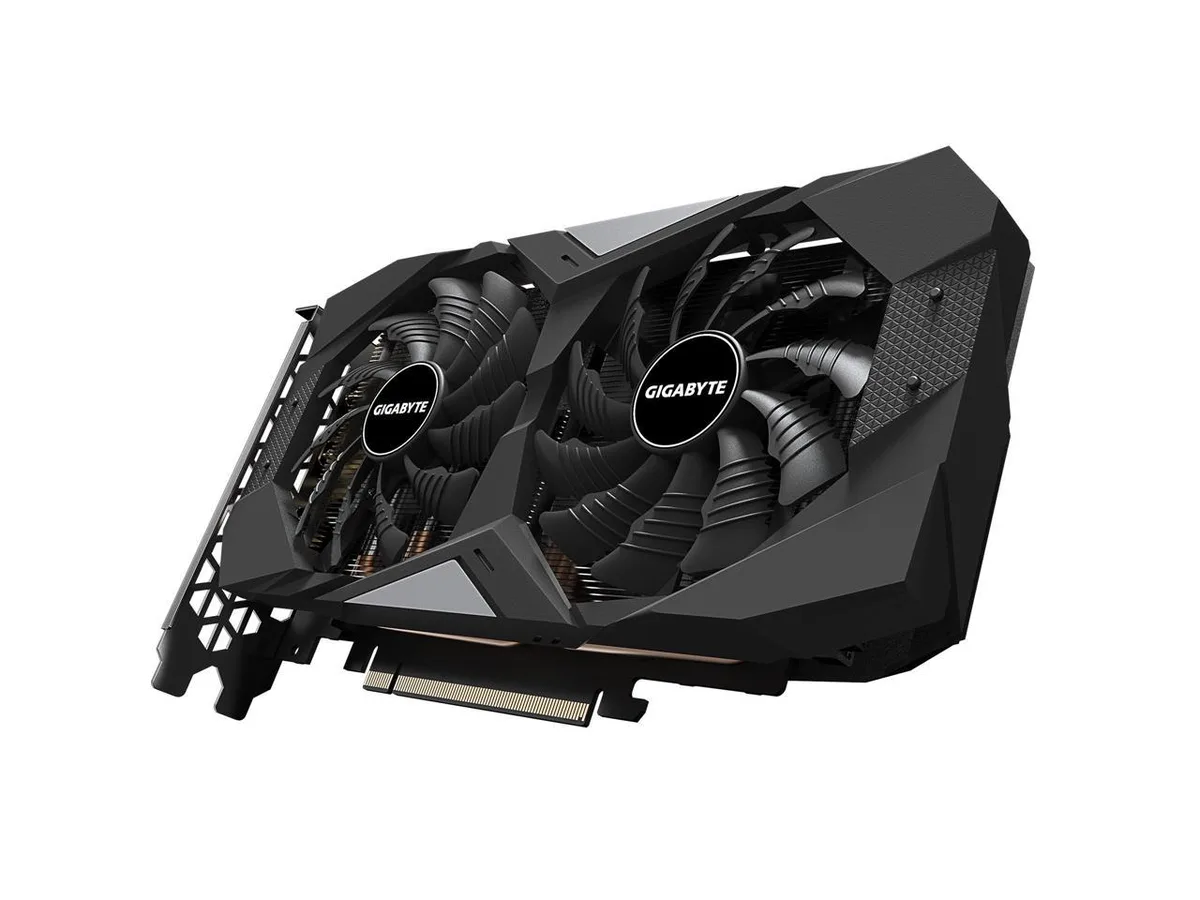

  • WINDFORCE 2X cooler uses alternate-spinning fans to lower GPU temperatures
  • PCI Express 4.0 x8 interface doubles bandwidth over the previous standard
  • Three DisplayPort 1.4 and one HDMI 2.0b drive up to four displays at 7680 x 4320 @ 60 Hz

4GB GDDR6 for 1080p Gaming

The GIGABYTE Radeon RX 5500 XT OC 4G rev. 2.0 is a graphics card built on the AMD Radeon RX 5500 XT GPU with 1408 stream processors. It carries 4GB of GDDR6 memory across a 128-bit interface running at an effective 14000 MHz. The card targets entry-level gaming builds that need modern display outputs and PCIe 4.0 connectivity.

PCIe 4.0 x8 and Display Limits

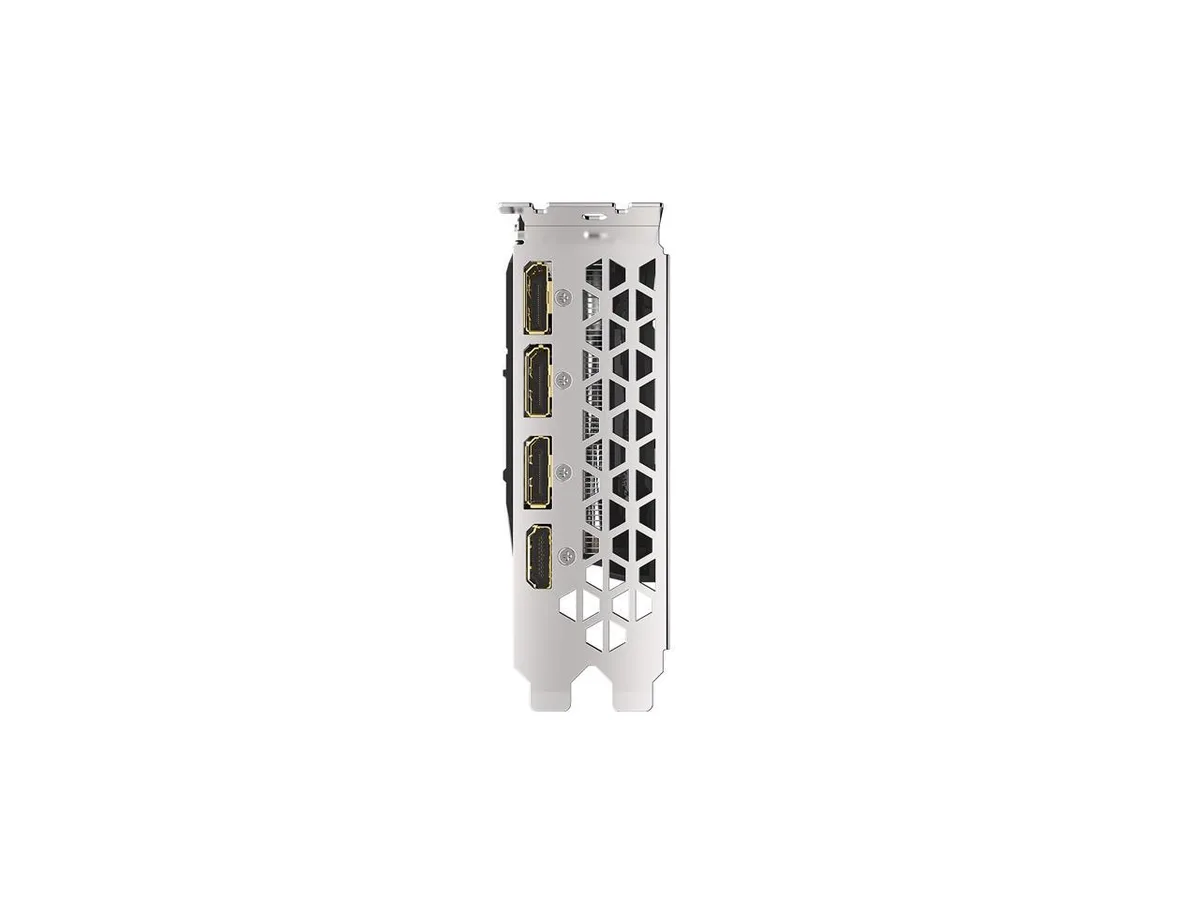

The board uses a PCI Express 4.0 x8 interface, so bandwidth scales with a compatible platform. Video outputs comprise one HDMI 2.0b port and three DisplayPort 1.4 connectors, supporting up to four monitors simultaneously. Maximum digital resolution reaches 7680 x 4320 at 60 Hz, and the card is marked as Virtual Reality Ready for headset use.

Upgrade from Older Entry Cards

This model replaces earlier 4GB cards based on GCN or Polaris architectures by delivering a 1845 MHz boost clock and a 1733 MHz game clock on the RDNA architecture. DirectX 12 and OpenGL 4.6 support improve compatibility with current titles. The jump is worth it when a system has a 450 W power supply and needs higher frame rates at 1080p without moving to a larger memory buffer.

Highlights

  • Boost clock reaches 1845 MHz for responsive 1080p gaming
  • 4 GB GDDR6 on a 128-bit bus delivers 14000 MHz effective memory speed
  • WINDFORCE 2X cooler uses alternate-spinning fans to lower GPU temperatures
  • PCI Express 4.0 x8 interface doubles bandwidth over the previous standard
  • Three DisplayPort 1.4 and one HDMI 2.0b drive up to four displays at 7680 x 4320 @ 60 Hz

Specifications

BrandGIGABYTE
ModelGV-R55XTOC-4GD (rev. 2.0)
InterfacePCI Express 4.0 x8
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5500 Series
GPURadeon RX 5500 XT
Boost Clock1845 MHz
Stream Processors1408
Effective Memory Clock14000 MHz
Memory Size4GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
Virtual Reality ReadyYes
System RequirementsSystem PSU Limitation (W): 450
Power Connector8-Pin
FeaturesPowered by AMD Radeon RX 5500 XT Integrated with 4GB GDDR6 128-bit memory interface WINDFORCE 2X Cooling System with alternate spinning fans Protection Back Plate PCI-Express 4.0 Support
Form FactorATX
Max GPU Length225 mm
Card Dimensions (L x H)8.86" x 4.69"
Slot WidthDual Slot
Package ContentsAccessories: Quick Guide

Questions about this item

Should I choose the 4 GB version or look for a larger frame buffer?

The card ships with 4 GB of GDDR6 on a 128-bit bus, so the frame buffer is fixed at 4 GB; there is no larger variant of this model.

What does the 1845 MHz boost clock mean once the card is in my PC?

The GPU can reach 1845 MHz under load; the game clock sits at 1733 MHz for typical gaming workloads.

Does the PCIe 4.0 x8 interface limit bandwidth on a PCIe 3.0 motherboard?

The card uses PCIe 4.0 x8; on a PCIe 3.0 slot it will run at 3.0 x8 speeds, which still feeds the 1408 stream processors adequately.
