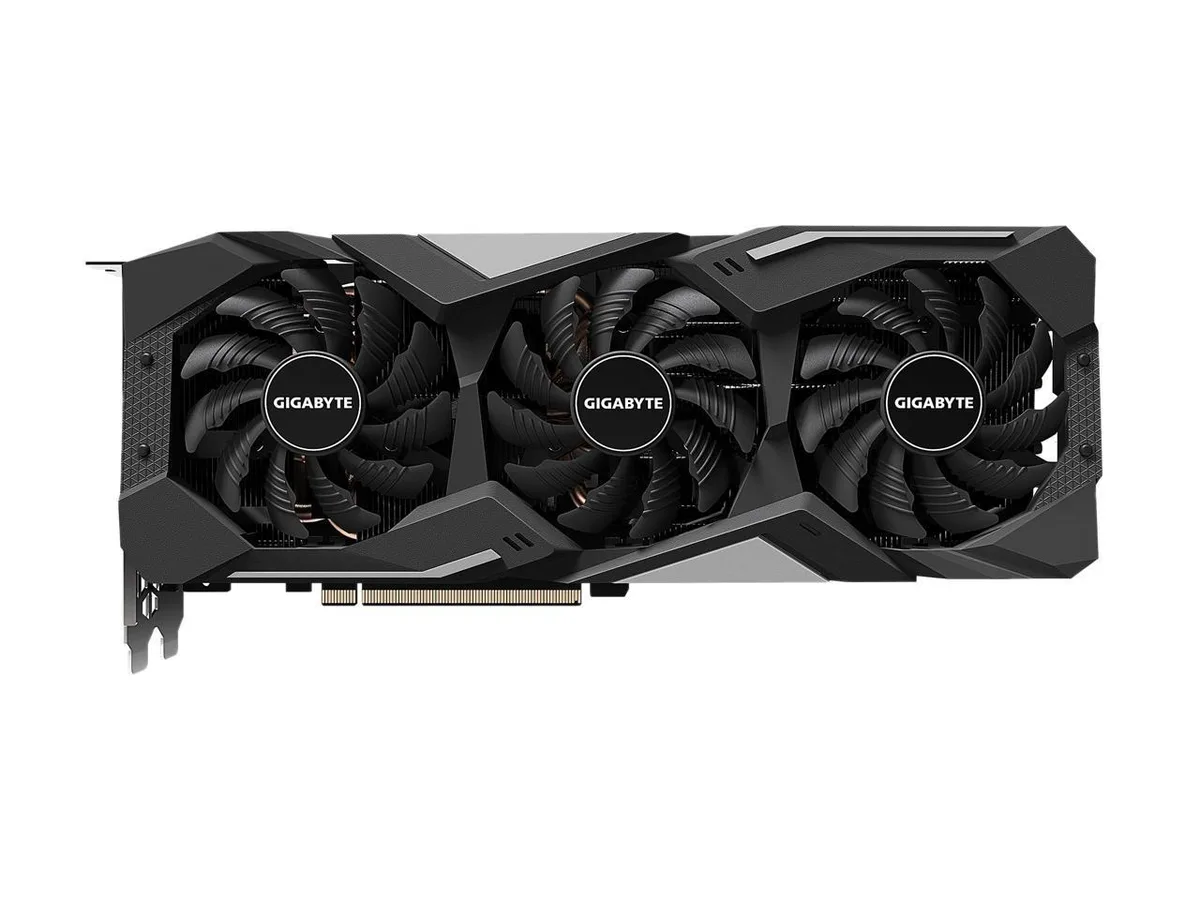

Triple-fan graphics card with metal backplate and silver shroud

GIGABYTE

GIGABYTE Radeon RX 5700 XT GAMING OC 8G graphics card

SKU CH-NS32-A9RK9

PCIe 4.0 graphics card with 8 GB GDDR6 on a 256-bit bus, boost clock to 1905 MHz and triple-fan WINDFORCE cooling

  • InterfacePCI Express 4.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5700 Series
  • GPURadeon RX 5700 XT
  • Core Clock1650 MHz
  • Boost Clock1905 MHz
  • 8 GB GDDR6 memory and 256-bit bus deliver high bandwidth for 1440p gaming
  • WINDFORCE 3X cooler with alternate spinning fans and five direct-touch copper heatpipes keeps temperatures low
  • Factory overclock to 1905 MHz boost clock provides extra performance out of the box
  • PCI Express 4.0 x16 interface doubles host bandwidth versus PCIe 3.0
  • Three DisplayPort 1.4 and one HDMI 2.0b drive up to four monitors at 7680 x 4320 @ 60 Hz

GIGABYTE Radeon RX 5700 XT GAMING OC 8G

This graphics card uses the AMD Radeon RX 5700 XT GPU with 2560 stream processors and a boost clock of 1905 MHz. It provides 8GB of GDDR6 memory across a 256-bit interface running at 14000 MHz. The card connects via PCI Express 4.0 x16 and suits 1440p gaming builds.

Cooling and display outputs

The WINDFORCE 3X cooler uses alternate spinning fans and five direct-touch copper heatpipes alongside a metal back plate. Video outputs include three DisplayPort 1.4 ports and one HDMI 2.0b port supporting up to 7680 x 4320 resolution at 60 Hz for four monitors. Buyers needing ray-tracing hardware or smaller form factors should consider other models.

Sustained load behaviour

Under continuous load the alternate spinning fan design reduces turbulence across the heatsink while the heatpipes transfer heat from the GPU core. AORUS Engine software allows manual fan curve adjustment to balance acoustics and thermals during extended sessions. The 7nm RDNA architecture maintains efficiency when the boost clock holds at 1905 MHz over long periods.

Highlights

  • 8 GB GDDR6 memory and 256-bit bus deliver high bandwidth for 1440p gaming
  • WINDFORCE 3X cooler with alternate spinning fans and five direct-touch copper heatpipes keeps temperatures low
  • Factory overclock to 1905 MHz boost clock provides extra performance out of the box
  • PCI Express 4.0 x16 interface doubles host bandwidth versus PCIe 3.0
  • Three DisplayPort 1.4 and one HDMI 2.0b drive up to four monitors at 7680 x 4320 @ 60 Hz

Specifications

BrandGIGABYTE
ModelGV-R57XTGAMING OC-8GD
InterfacePCI Express 4.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5700 Series
GPURadeon RX 5700 XT
Core Clock1650 MHz
Boost Clock1905 MHz
Stream Processors2560
Effective Memory Clock14000 MHz
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320 @ 60 Hz
Eyefinity SupportYes
Virtual Reality ReadyYes
CoolerWINDFORCE 3X
Thermal Design Power225W
Power Connector1 x 8-pin and 1 x 6-pin
Form FactorATX

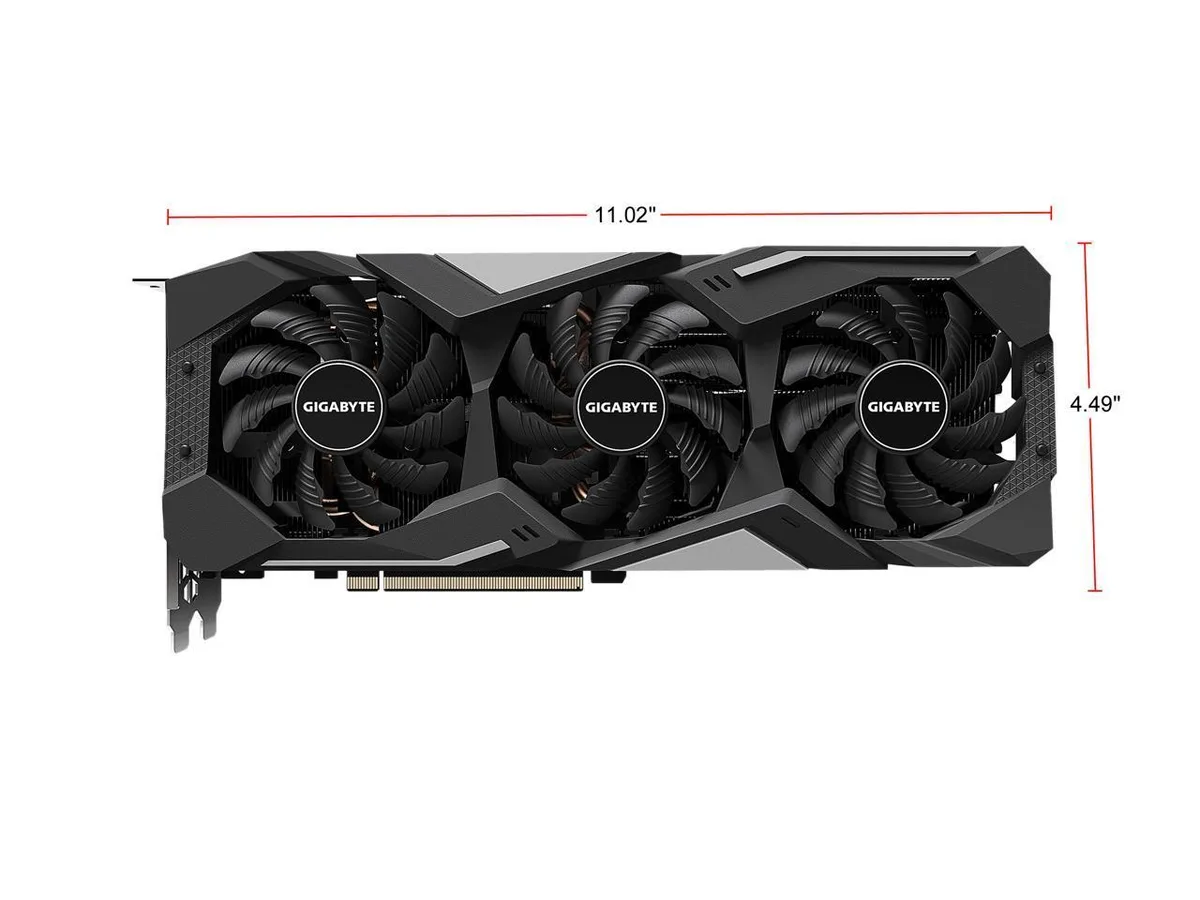

Max GPU Length280 mm
Slot Width2.5 slot

Questions about this item

What power supply and slot are required for the PCIe 4.0 x16 interface?

A motherboard with a PCIe 4.0 x16 slot and a power supply with two 8-pin PCIe connectors are required.

Will the HDMI 2.0b and DisplayPort 1.4 outputs drive my existing 60 Hz 4K monitor?

Yes, the HDMI 2.0b and three DisplayPort 1.4 connectors support up to 7680 x 4320 at 60 Hz, so a 4K 60 Hz display works without adapters.

How can I verify the 1905 MHz boost clock and 14000 MHz memory speed are active?

Open the AORUS Engine utility or GPU-Z to confirm the core reaches 1905 MHz and memory runs at 14000 MHz under load.
