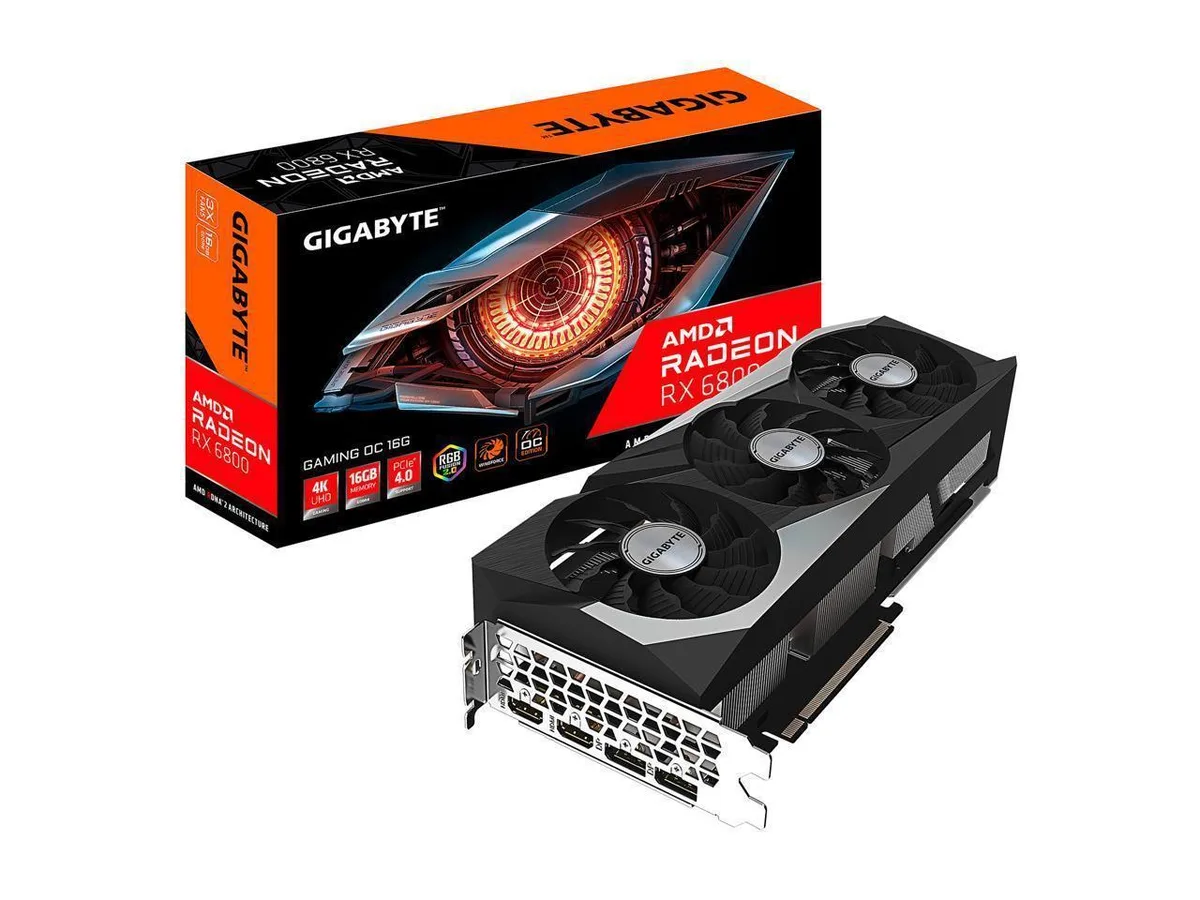

GIGABYTE Radeon RX 6800 GAMING OC 16G graphics card with triple-fan WINDFORCE cooler and metal backplate

GIGABYTE

GIGABYTE Radeon RX 6800 GAMING OC 16G graphics card

SKU CH-4KK4-SS2DR

A 16GB GDDR6 graphics card with a 256-bit interface and WINDFORCE 3X cooling, delivering a 2155 MHz boost clock for 4K gaming and multi-monitor setups

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6800
  • Boost Clock2155 MHz
  • Stream Processors3840 Stream Processors
  • 16 GB GDDR6 memory handles large textures and high-resolution assets
  • 2155 MHz boost clock pushes frame rates in demanding titles
  • WINDFORCE 3X cooler with alternate spinning fans keeps temperatures low under load
  • Dual BIOS lets you switch between performance and quiet profiles
  • HDMI 2.1 and DisplayPort 1.4a drive up to four 8K displays

Powered by Radeon RX 6800

The GIGABYTE Radeon RX 6800 GAMING OC 16G is built around AMD RDNA 2 architecture with 3840 stream processors and a 2155 MHz boost clock. It carries 16GB of GDDR6 memory on a 256-bit interface running at 16000 MHz effective speed. The card connects through a PCI Express 4.0 slot and supports DirectX 12 Ultimate plus OpenGL 4.6. It is aimed at enthusiasts who want high frame rates at 1440p or entry 4K gaming.

Sustained load behaviour

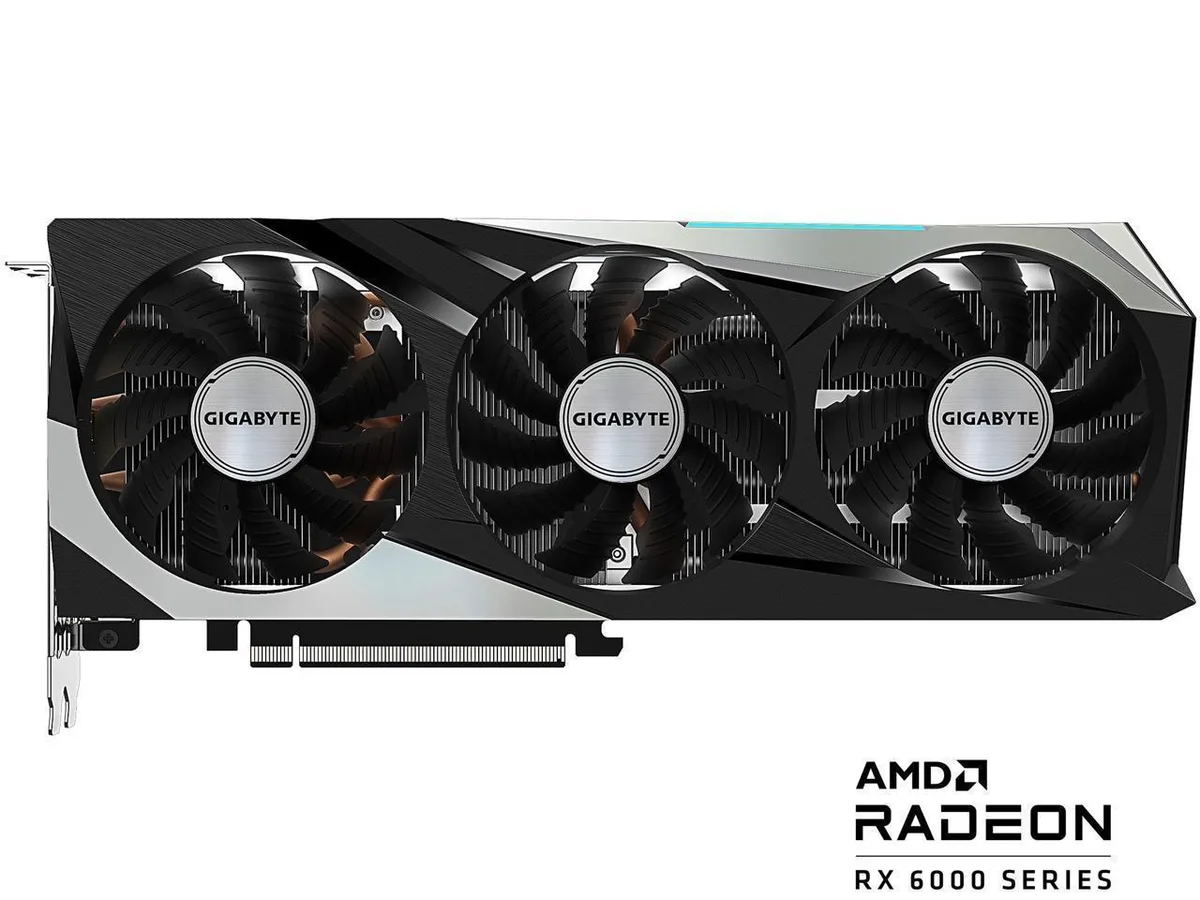

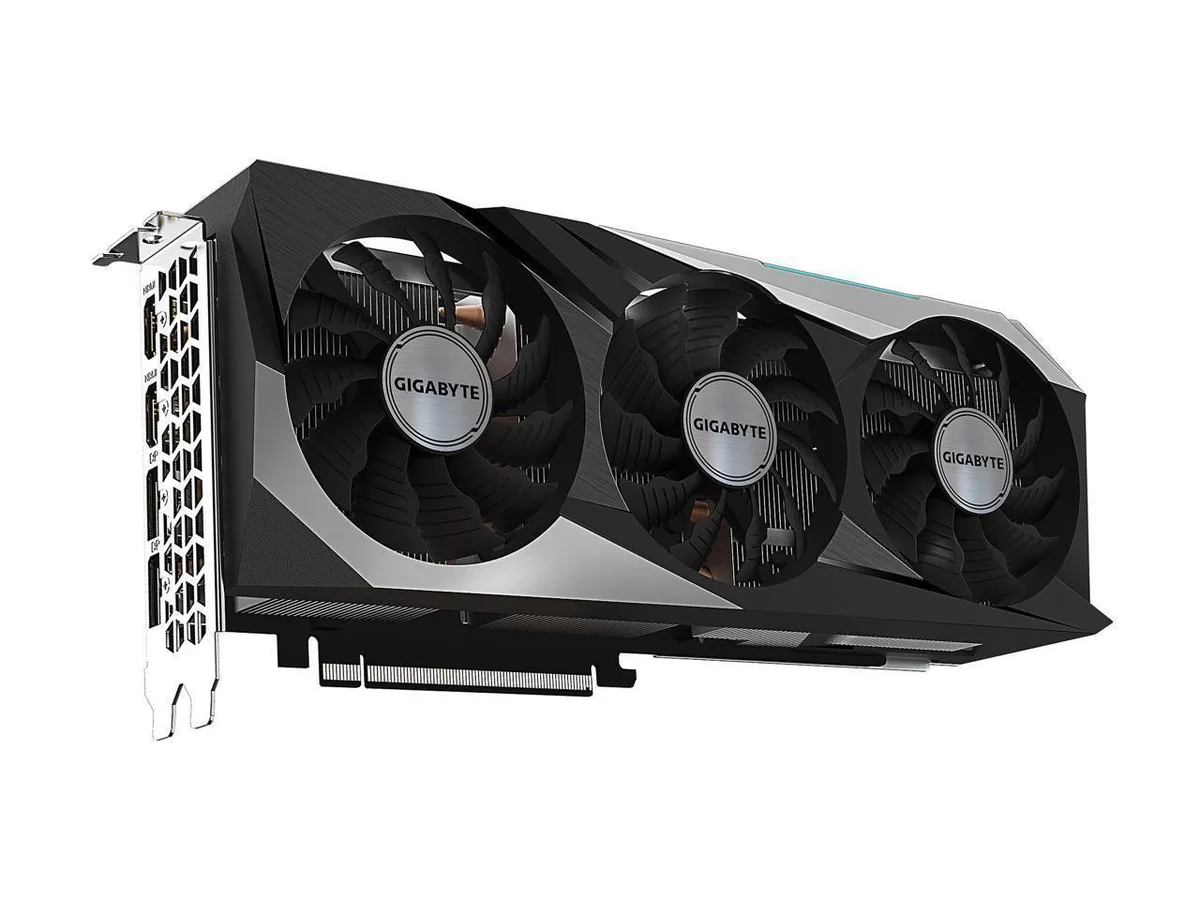

The WINDFORCE 3X cooler uses three alternate spinning fans together with screen cooling and graphene nano lubricant to keep airflow consistent during long sessions. A protection metal back plate adds structural rigidity and helps dissipate heat from the PCB. Dual BIOS lets you choose between a performance profile and a quieter profile without software intervention. These features work together to maintain stable clocks when the GPU is pushed continuously.

Connectors and daily use

Video output comes from two HDMI 2.1 ports and two DisplayPort 1.4a connectors, enabling up to four simultaneous displays at a maximum resolution of 7680 x 4320. RGB Fusion 2.0 lighting can be synchronised with other compatible components for a unified look. The metal back plate also protects the rear of the card during installation and transport. The PCI Express 4.0 interface ensures full bandwidth on current platforms.

Highlights

  • 16 GB GDDR6 memory handles large textures and high-resolution assets
  • 2155 MHz boost clock pushes frame rates in demanding titles
  • WINDFORCE 3X cooler with alternate spinning fans keeps temperatures low under load
  • Dual BIOS lets you switch between performance and quiet profiles
  • HDMI 2.1 and DisplayPort 1.4a drive up to four 8K displays

Specifications

BrandGIGABYTE
SeriesGaming
ModelGV-R68GAMING OC-16GD
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6800
Boost Clock2155 MHz
Stream Processors3840 Stream Processors
Effective Memory Clock16000 MHz
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI2 x HDMI 2.1
DisplayPort2 x DisplayPort 1.4a
Max Resolution7680 x 4320
CoolerWINDFORCE 3X
System RequirementsSystem PSU Limitation: 650W
Power Connector2 x 8-Pin
Form FactorATX
Max GPU Length286 mm
Card Dimensions (L x H)11.26" x 4.41"

Questions about this item

Will this card fit in a standard mid-tower case with three expansion slots available?

The WINDFORCE 3X cooler uses a triple-slot design, so you need three free rear brackets and enough internal length for a full-size card.

What power connectors are required to run the RX 6800 Gaming OC?

The board draws auxiliary power through two 8-pin PCIe connectors; ensure your power supply has both cables and meets the recommended wattage.

Can I drive two 4K monitors at high refresh rates over the provided ports?

Yes, the two HDMI 2.1 and two DisplayPort 1.4a outputs support up to 7680 x 4320 resolution, allowing dual 4K high-refresh configurations.
