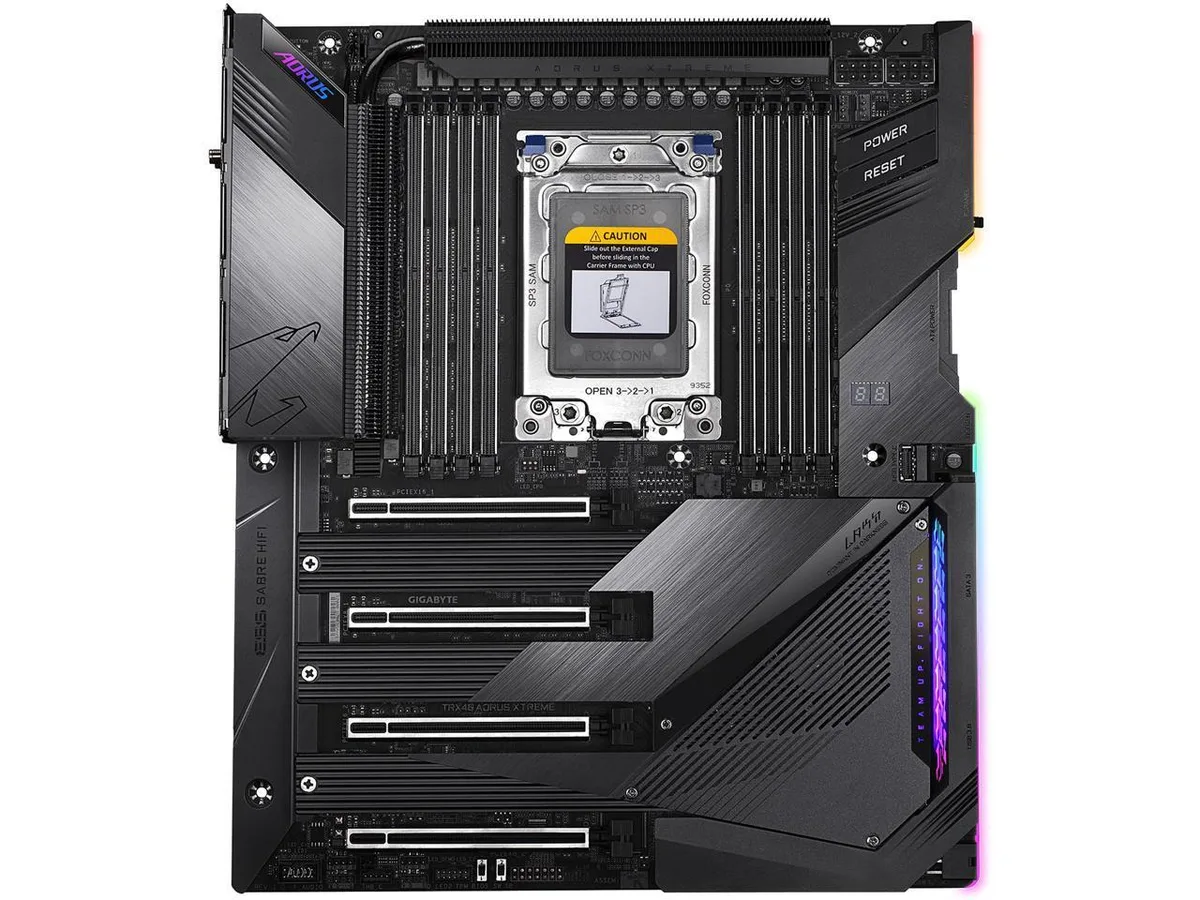

Large black ATX motherboard with silver heatsinks and integrated I/O shield

GIGABYTE

GIGABYTE TRX40 AORUS XTREME sTRX4 AMD motherboard with 10GbE LAN

SKU CH-D8Z6-9MCWG

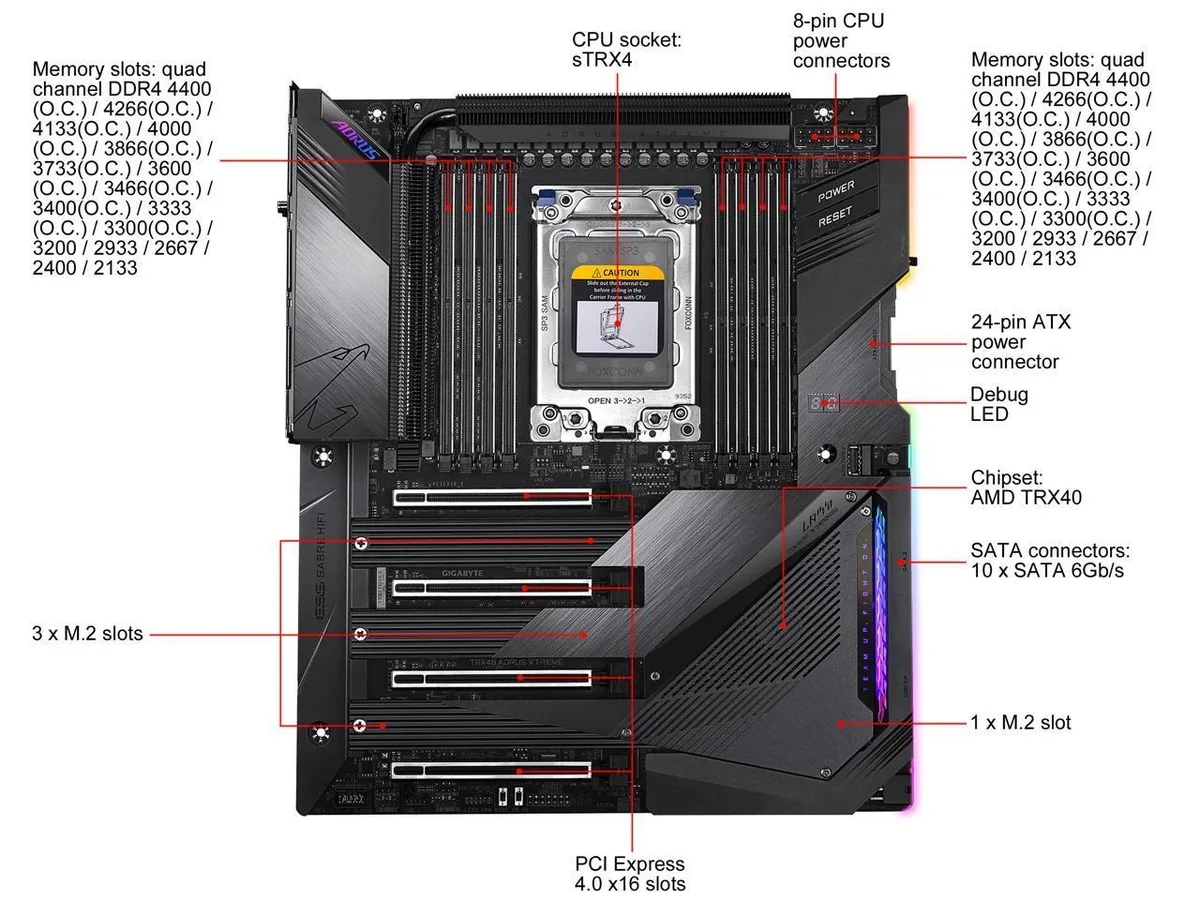

XL-ATX board for 3rd Gen Threadripper CPUs with quad-channel DDR4 to 256GB, dual 10GbE LAN, Wi-Fi 6, Bluetooth 5.0 and four PCIe 4.0 M.2 slots

  • CPU Socket TypesTRX4
  • CPU TypeSupport 3rd Generation AMD Ryzen Threadripper processors
  • ChipsetAMD TRX40
  • Number of Memory Slots8x288pin (DDR4)
  • Memory StandardSupport for DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.
  • Maximum Memory Supported256GB
  • Supports 3rd Gen AMD Ryzen Threadripper processors for high-core-count workloads
  • 16+3 phase Infineon digital VRM with 70A power stages delivers stable power
  • Quad-channel DDR4 across 8 DIMM slots up to 256GB maximum capacity
  • Intel X550-AT2 dual 10GbE LAN plus Wi-Fi 6 and BLUETOOTH 5.0 connectivity
  • ESS SABRE 9218 DAC with Realtek ALC1220-VB achieves 130dB SNR audio quality

Threadripper Workstation Foundation

The sTRX4 socket board is built for 3rd Generation AMD Ryzen Threadripper processors, targeting creators and engineers who need many cores and large memory capacity. Eight DDR4 slots support quad-channel operation up to 256 GB, enabling heavy multitasking and data-intensive workloads.

Armored Power Delivery And Connectivity

A 16+3 phase Infineon digital VRM with 70 A power stages is covered by a finned heatsink, heatpipe and NanoCarbon baseplate for sustained loads. Rear I/O provides dual 10 GbE RJ-45 ports, Intel Wi-Fi 6 and Bluetooth 5.0, plus seven USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2 Type-C port and optical S/PDIF output.

Four PCIe 4.0 M.2 Slots With Thermal Guards

CPU and chipset M.2 connectors accept 2260, 2280 and 22110 drives running at PCIe 4.0 x4 or x2, each shielded by a dedicated heatsink. Quad-channel memory, 10 GbE networking and four guarded NVMe slots make this board a logical step up from earlier Threadripper platforms when storage throughput and network speed become bottlenecks.

Highlights

  • Supports 3rd Gen AMD Ryzen Threadripper processors for high-core-count workloads
  • 16+3 phase Infineon digital VRM with 70A power stages delivers stable power
  • Quad-channel DDR4 across 8 DIMM slots up to 256GB maximum capacity
  • Intel X550-AT2 dual 10GbE LAN plus Wi-Fi 6 and BLUETOOTH 5.0 connectivity
  • ESS SABRE 9218 DAC with Realtek ALC1220-VB achieves 130dB SNR audio quality

Specifications

BrandGIGABYTE
ModelTRX40 AORUS XTREME
CPU Socket TypesTRX4
CPU TypeSupport 3rd Generation AMD Ryzen Threadripper processors
ChipsetAMD TRX40
Number of Memory Slots8x288pin (DDR4)
Memory StandardSupport for DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported256GB
Channel SupportedQuad Channel
PCI Express 4.0 x162 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
(The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.)
Serial ATA (SATA)Chipset:
8 x SATA 6Gb/s connectors (SATA3 0~7)
ASMedia SATA 6Gb/s Controller:
2 x SATA 6Gb/s connectors (SATA3 8, 9), supporting AHCI mode only
M.2CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SOCKET)
SATA RAID0/1/10
Audio ChipsetRealtek ALC4050H codec + Realtek ALC1220-VB codec (rear panel audio)
Realtek ALC4050H codec + ESS SABRE9218 DAC (front panel audio)
Audio Channels2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN ChipsetIntel 10GbE LAN chip
Max LAN Speed10Gbps
Wireless LANIntel Wi-Fi 6 AX200:
Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
BluetoothBLUETOOTH 5.0
Back I/O Ports1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2 support
7 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
1 x optical S/PDIF Out connector
5 x audio jacks
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
Other Connectors1 x OC_PEG power connector
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
3 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x GIGABYTE add-in card connector
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)
1 x power button
1 x reset button
2 x temperature sensor headers
2 x BIOS switches
Voltage Measurement Points
Form FactorXL ATX
LED LightingRGB
Dimensions (W x L)12.8" x 10.8"
Power Pin1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
FeaturesMulti-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 4-Way/3-Way/2-Way AMD CrossFire technologies
Support for NVIDIA Quad-GPU SLI and 4-Way/3-Way/2-Way NVIDIA SLI technologies
I/O Controller:
iTE I/O Controller Chip
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Noise detection
BIOS:
2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS

Questions about this item

What PCIe generation does the M.2 interface use and what speed does it cap at?

The CPU-linked M.2 slots run at PCIe 4.0 x4, giving a 4.0 x4 ceiling for NVMe SSDs.

What physical clearance does the XL ATX board need in a case?

The XL ATX form factor requires a case that accepts boards wider than standard ATX; verify the chassis spec lists XL ATX support.

How is the 10 GbE LAN enabled and what step is often missed?

Install the Intel X550-AT2 driver from the support page, then enable the 10 GbE ports in BIOS; skipping the driver leaves the links at 1 Gbps.
