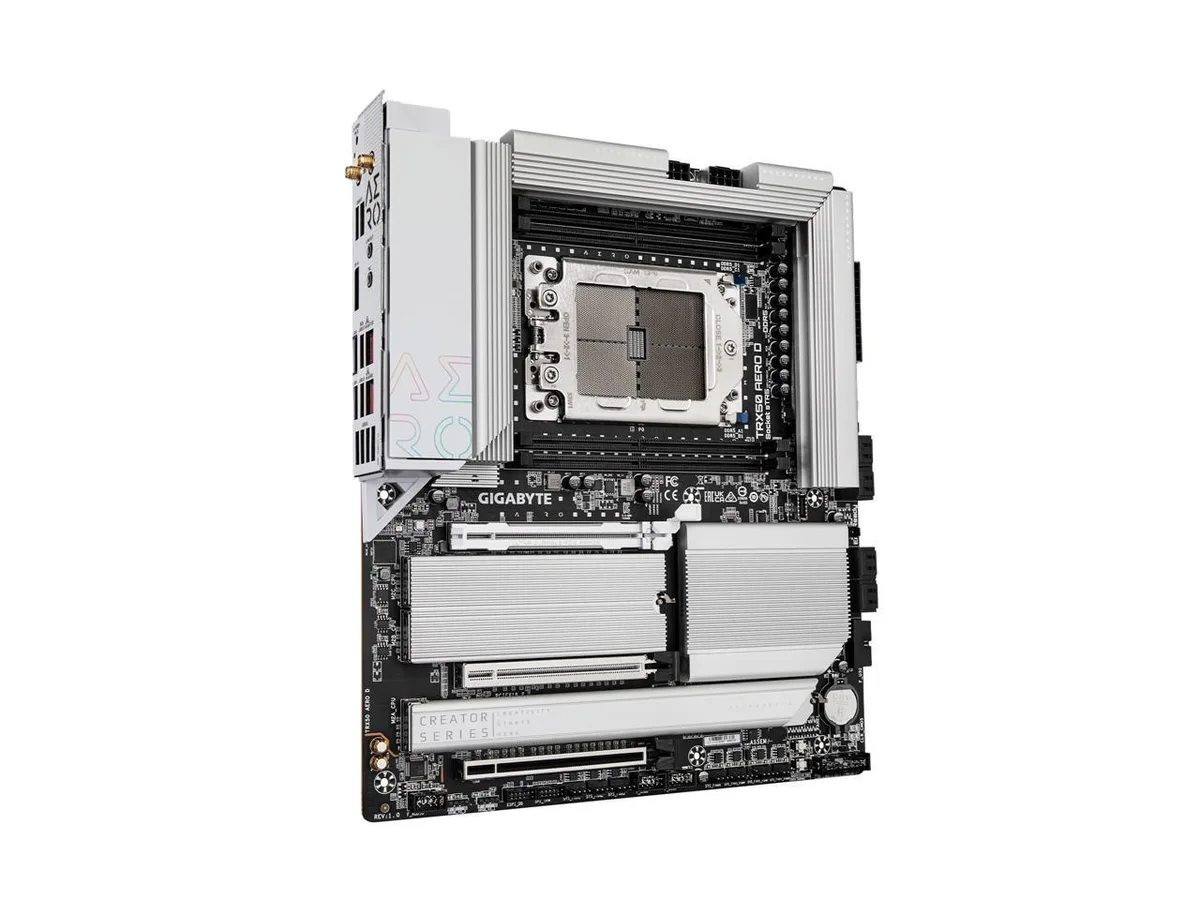

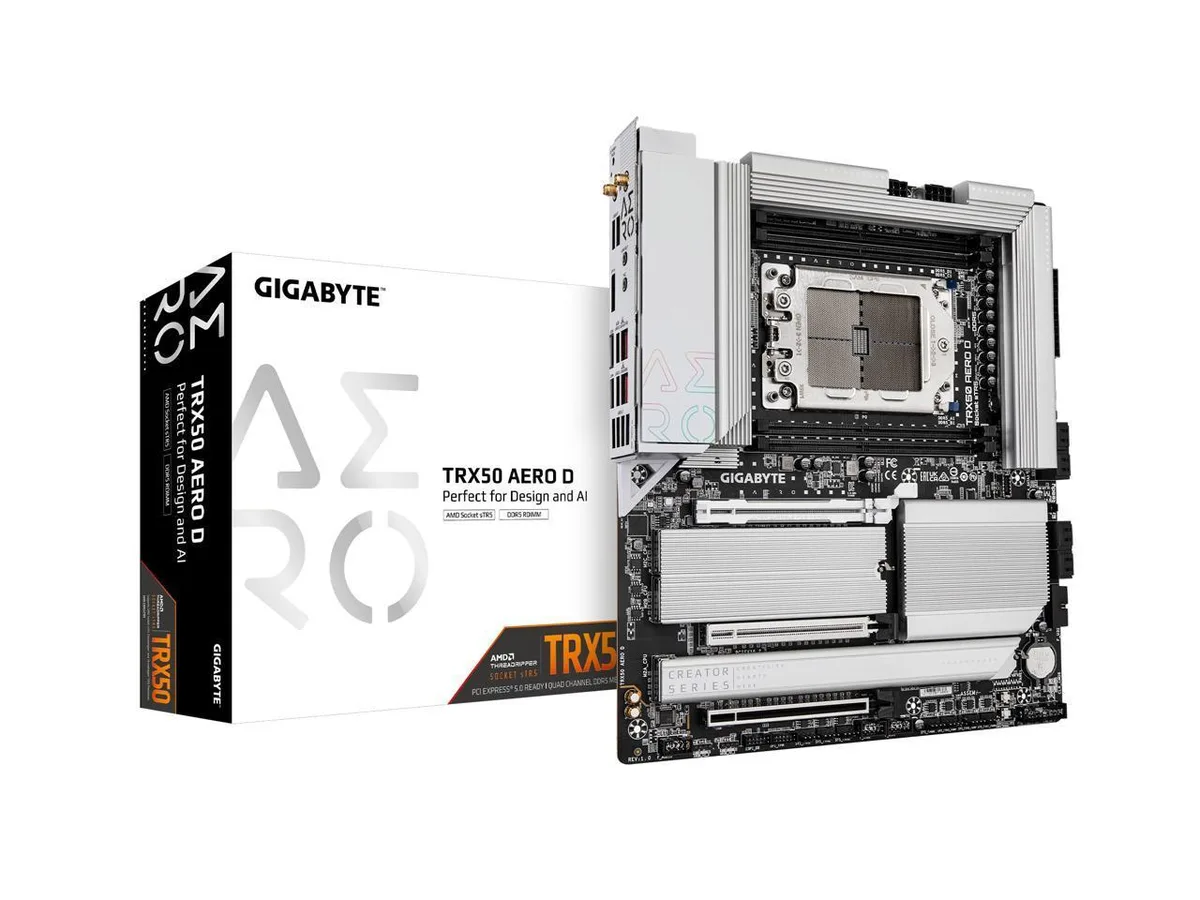

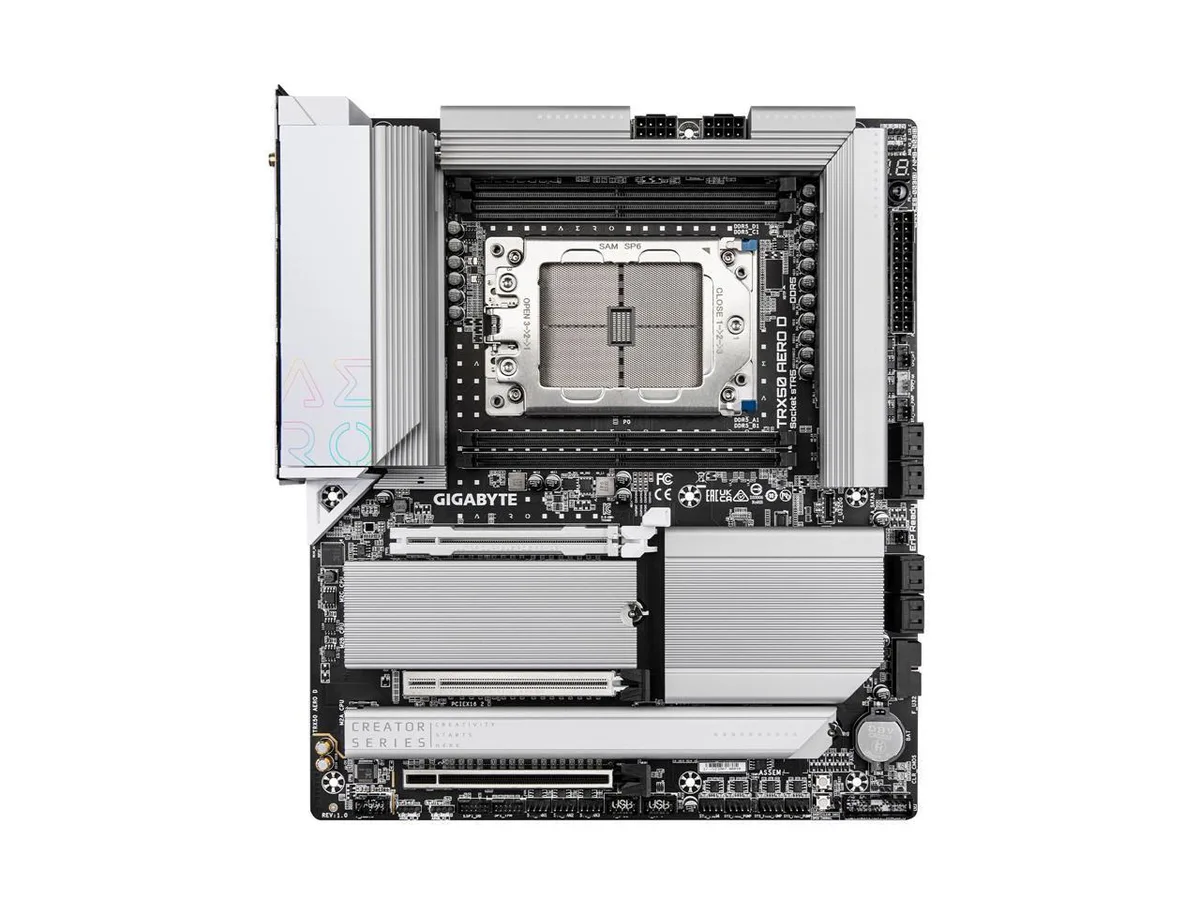

Large rectangular EATX motherboard with silver VRM heatsinks and black PCB

GIGABYTE

GIGABYTE TRX50 AERO D AMD sTR5 EATX Motherboard

SKU CH-2PR6-YZQ5W

EATX board for Threadripper 7000 CPUs with 1TB DDR5 capacity, dual PCIe 5.0 x16 slots, four M.2 sockets, dual USB4 Type-C, 10GbE and 2.5GbE LAN, plus Wi-Fi 7

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket sTR5, support for: AMD Ryzen™ Threadripper™ PRO 7
  • ChipsetAMD TRX50
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupport for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/
  • Maximum Memory Supported1TB
  • Supports Ryzen Threadripper PRO 7000 processors with AMD sTR5 socket
  • 16+8+4 phase digital VRM delivers stable power for heavy workloads
  • Four DDR5 RDIMM slots support up to 1 TB with EXPO and XMP 3.0
  • Dual USB4 Type-C and PCIe 5.0 slots enable ultra-fast storage and peripherals
  • 10 GbE, 2.5 GbE, Wi-Fi 7 and Bluetooth 5.3 provide high-speed wired and wireless networking

AMD sTR5 workstation board

The GIGABYTE TRX50 AERO D is an EATX motherboard built for AMD Ryzen Threadripper PRO 7000 Series and Threadripper 7000 Series processors. Its 16+8+4 phase digital VRM delivers stable power for heavily threaded workloads. Four DDR5 RDIMM slots support up to 1 TB of ECC registered memory with AMD EXPO and Intel XMP 3.0 profiles. Dual PCIe 5.0 x16 slots and multiple PCIe 5.0 M.2 connectors provide high-bandwidth expansion for GPUs and storage.

Verify CPU cooler clearance and PSU connectors

Confirm your chassis accommodates the EATX form factor and that the CPU cooler mounting pattern matches the sTR5 socket. The board requires a 24-pin ATX connector plus two 8-pin ATX 12V connectors; ensure your power supply provides both. Memory must be DDR5 RDIMM or RDIMM-3DS modules; standard UDIMMs are not compatible. Check that your M.2 drives use the M-key 2280 or 22110 form factor for the CPU-attached slots.

Sustained load thermal behaviour

VRM Thermal Armor and M.2 Thermal Guards dissipate heat during extended compile, render or compute sessions. The 10 GbE Marvell AQC113C and 2.5 GbE Realtek controllers maintain throughput without throttling under continuous network traffic. Wi-Fi 7 with 320 MHz channels and BLUETOOTH 5.3 preserve low latency during prolonged wireless transfers. Fan and pump headers allow active cooling curves tuned for long-duration workloads.

Highlights

  • Supports Ryzen Threadripper PRO 7000 processors with AMD sTR5 socket
  • 16+8+4 phase digital VRM delivers stable power for heavy workloads
  • Four DDR5 RDIMM slots support up to 1 TB with EXPO and XMP 3.0
  • Dual USB4 Type-C and PCIe 5.0 slots enable ultra-fast storage and peripherals
  • 10 GbE, 2.5 GbE, Wi-Fi 7 and Bluetooth 5.3 provide high-speed wired and wireless networking

Specifications

BrandGIGABYTE
ModelTRX50 AERO D
Part NumberTRX50 AERO D
CPU Socket TypeAM5
CPU TypeAMD Socket sTR5, support for:
AMD Ryzen™ Threadripper™ PRO 7000 processors / AMD Ryzen™ Threadripper™ 7000 Series processors
(Go to GIGABYTE's website for the latest CPU support list.)
ChipsetAMD TRX50
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupport for DDR5 7800(O.C.)/7600(O.C.)/7200(O.C.)/7000(O.C)/6800(O.C.)/6400(O.C.)/6000(O.C.)/5600(O.C.)/5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS)
4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory
Quad channel memory architecture
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for
Maximum Memory Supported1TB
Memory Performance ProfileIntel XMP 3.0 / AMD EXPO
PCI Express 5.0 x162 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
PCI Express 4.0 x16- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)
Serial ATA (SATA)8 x SATA 6Gb/s connectors
M.2CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
SATA RAIDRAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Audio ChannelsRealtek® ALC4080 CODEC (rear panel audio)
- Support for DTS:X® Ultra
- High Definition Audio
- 2-channel
Realtek® ALC897 CODEC (front panel audio)
Max LAN SpeedMarvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN)
Wireless LANQualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)
Note:
Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
Back I/O Ports1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x DisplayPort In port
1 x USB4® USB Type-C® port (DisplayPort)
1 x USB4® USB Type-C® port
4 x USB 3.2 Gen 2 Type-A ports (red)
4 x USB 3.2 Gen 1 ports
2 x RJ-45 ports
2 x audio jacks
Other Connectors1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
4 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
8 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 m
Form FactorE-ATX
Dimensions (W x L)30.5cm x 26.4cm
Windows 11Support for Windows 11 64-bit
FeaturesSupports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors?
Breakthrough Performance:16+8+4 Phases Digital VRM Solution
Quad Channel DDR5:4*SMD R-DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
Reinforced Overall Thermal:VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultimate Scalibility: 3*PCIe x16 slots for Multi-GPU and 4*PCIe x4 M.2 slots
Next-gen Connectivity: Dual USB4® Type-C ports
Blazing Fast Networks: 10GbE + 2.5 GbE Dual LAN and Wi-Fi 7
PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card
EZ-Latch Click:M.2 heatsi

Questions about this item

Which Threadripper processors does this board support?

It supports AMD Ryzen Threadripper PRO 7000 series and AMD Ryzen Threadripper 7000 series processors for the sTR5 socket.

How much DDR5 ECC registered memory can I install?

Four 288-pin slots accept up to 1TB of DDR5 RDIMM or RDIMM-3DS modules with speeds from 4400 to 7800 MT/s via AMD EXPO or Intel XMP 3.0 profiles.

What high-speed storage and networking does the rear I/O provide?

Two USB4 Type-C ports with DisplayPort, four USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 ports, a Marvell 10GbE LAN port, a Realtek 2.5GbE LAN port, Wi-Fi 7 with BLUETOOTH 5.3, and two SMA antenna connectors.
