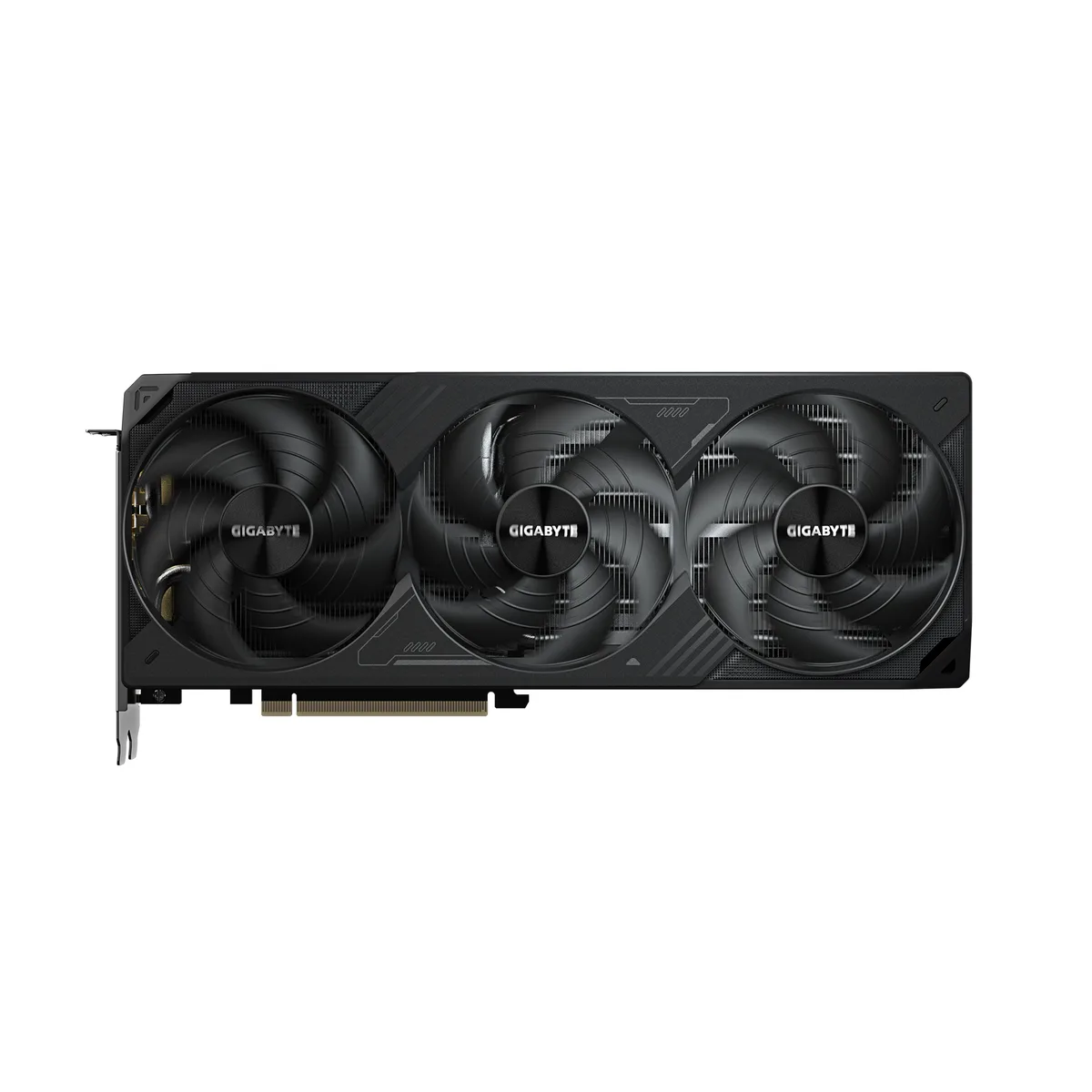

Black triple-fan graphics card, 304 mm long, 2.5-slot width

GIGABYTE

GIGABYTE WINDFORCE GeForce RTX 5080 16GB GV-N5080WF3OC-16GD

SKU CH-VT19-Z2RCS MPN GV-N5080WF3OC-16GD

16 GB GDDR7 graphics card with 10752 CUDA cores, 2670 MHz core clock and triple-fan cooling

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5080
  • Core Clock2670 MHz
  • CUDA Cores10752
  • 16 GB GDDR7 memory at 30 Gbps for high-resolution textures
  • 10 752 CUDA cores and 2 670 MHz boost clock for heavy compute workloads
  • Triple-fan WINDFORCE cooler keeps thermals in check during sustained loads
  • PCIe 5.0 x16 plus HDMI 2.1b and three DisplayPort 2.1b outputs for modern displays
  • Compact 304 mm length fits small-form-factor ATX builds with 850 W PSU

16GB GDDR7 graphics card

The GIGABYTE WINDFORCE GeForce RTX 5080 delivers 16GB of GDDR7 memory on a 256-bit bus with a 30 Gbps effective clock. It targets enthusiasts building high-refresh 4K gaming rigs or workstations needing large frame buffers for rendering and AI workloads. The triple-fan cooler fits a standard ATX form factor.

PCI Express 5.0 x16 upgrade

Moving from a PCIe 4.0 board to this PCIe 5.0 x16 card removes the link bottleneck for GPU compute and high-speed storage passthrough. The jump is worthwhile when the motherboard and CPU both support Gen 5 and the workload saturates Gen 4 bandwidth. A recommended 850W PSU with a single 16-pin connector is required.

DisplayPort 2.1b and HDMI 2.1b limits

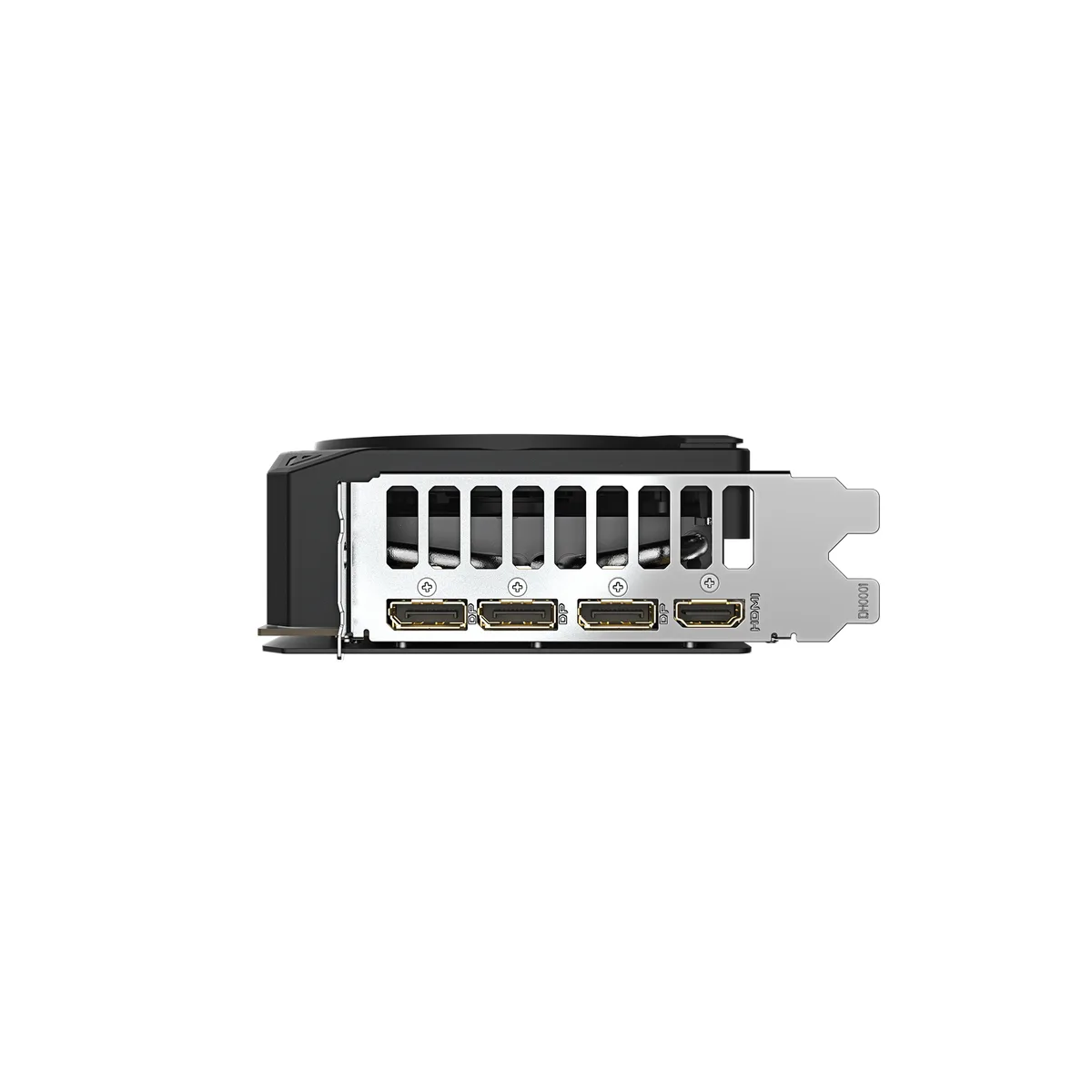

Three DisplayPort 2.1b outputs and one HDMI 2.1b port drive up to four displays at 7680 x 4320 resolution. Cable length and display panel capabilities often limit practical refresh rates below the interface maximum. The card occupies 2.5 slots and measures 304 mm in length.

Highlights

  • 16 GB GDDR7 memory at 30 Gbps for high-resolution textures
  • 10 752 CUDA cores and 2 670 MHz boost clock for heavy compute workloads
  • Triple-fan WINDFORCE cooler keeps thermals in check during sustained loads
  • PCIe 5.0 x16 plus HDMI 2.1b and three DisplayPort 2.1b outputs for modern displays
  • Compact 304 mm length fits small-form-factor ATX builds with 850 W PSU

Specifications

BrandGIGABYTE
SeriesWINDFORCE
ModelGV-N5080WF3OC-16GD
Part NumberGV-N5080WF3OC-16GD
InterfacePCI Express 5.0 x16
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5080
Core Clock2670 MHz
CUDA Cores10752
Effective Memory Clock30 Gbps
Memory Size16GB
Memory Interface256-Bit
Memory TypeGDDR7
DirectXDirectX 12
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage850W
Power Connector1 x 16-Pin
HDCP ReadyYes
FeaturesSmall Form Factor Ready
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 126 x 50 mm
Slot Width2.5 Slots
Shipping weight1.91 kg
Package size406 × 237 × 89 mm

Questions about this item

Will the 304 mm length and 2.5-slot width fit my case and motherboard spacing?

The card measures 304 mm long, 126 mm tall and 50 mm thick, occupying 2.5 expansion slots; verify your case clearance and that adjacent PCIe slots are free.

What power connector does the 16-pin 12VHPWR socket require and how should it be seated?

Connect one native 16-pin 12VHPWR cable from an 850 W or larger PSU, pushing straight in until the latch clicks; avoid daisy-chain adapters and do not bend the cable near the plug.

How often should the triple-fan cooler be cleaned to keep the 2670 MHz core clock stable?

Remove dust from the three fans and heatsink fins every 6 to 12 months using compressed air; hold the fans still while blowing to prevent bearing damage.
