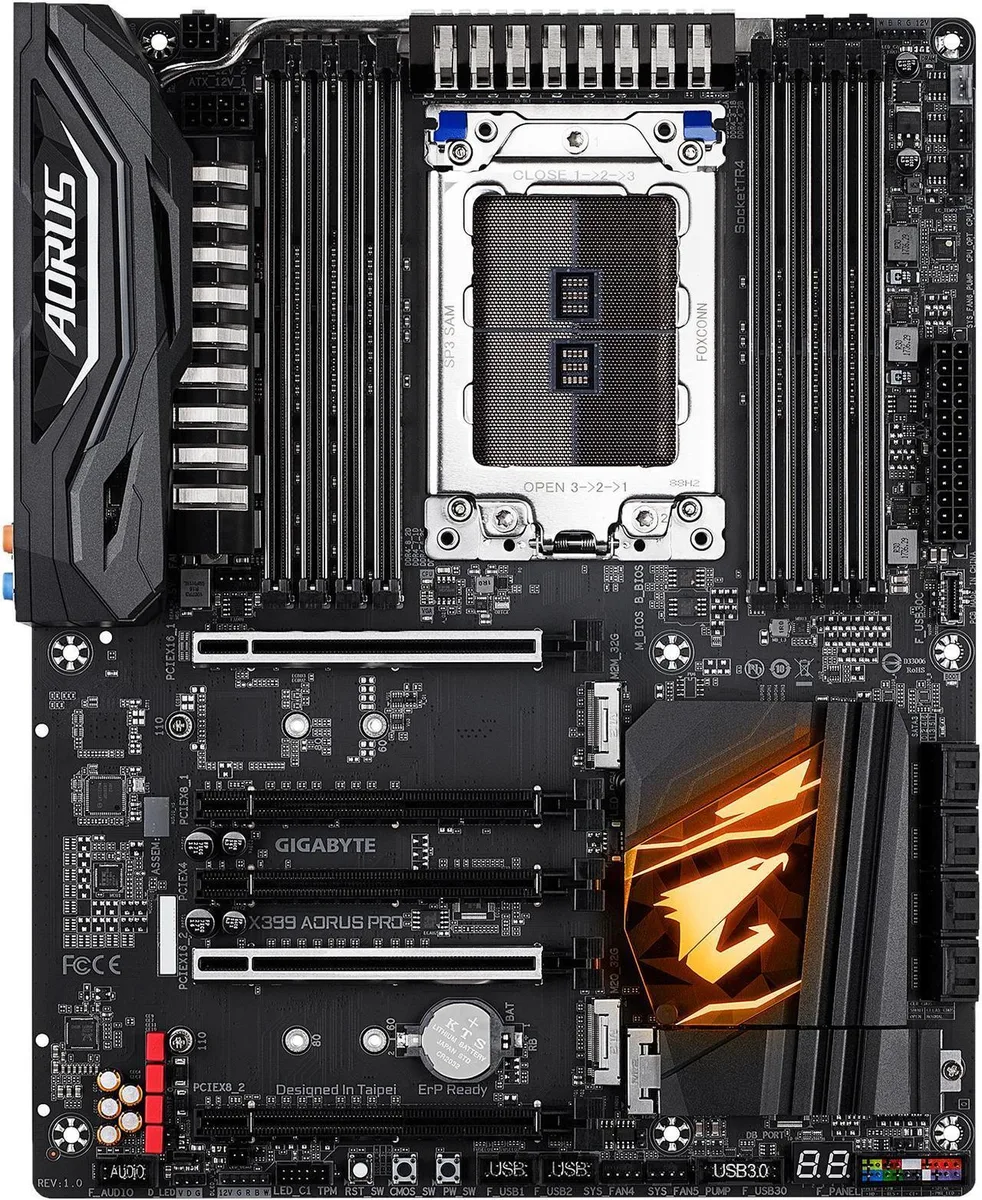

ATX motherboard with eight DDR4 slots and multiple expansion connectors

GIGABYTE

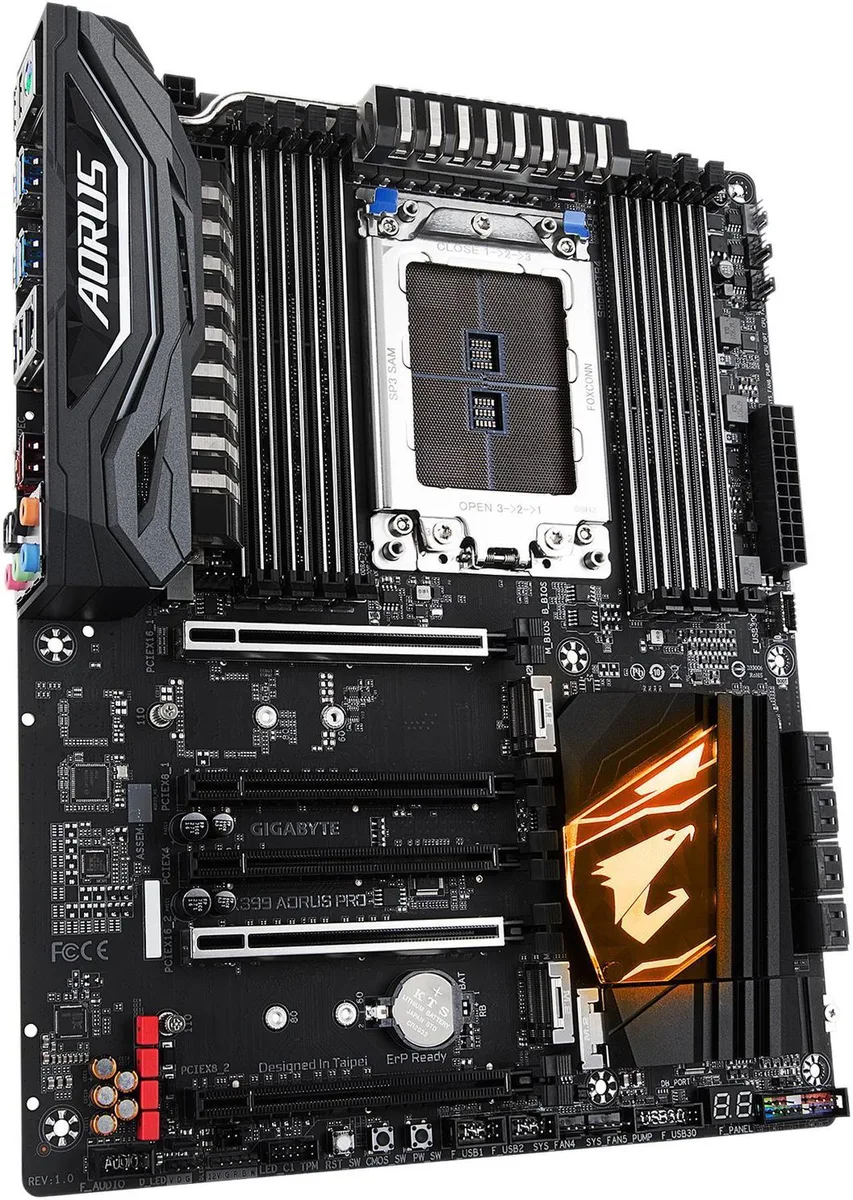

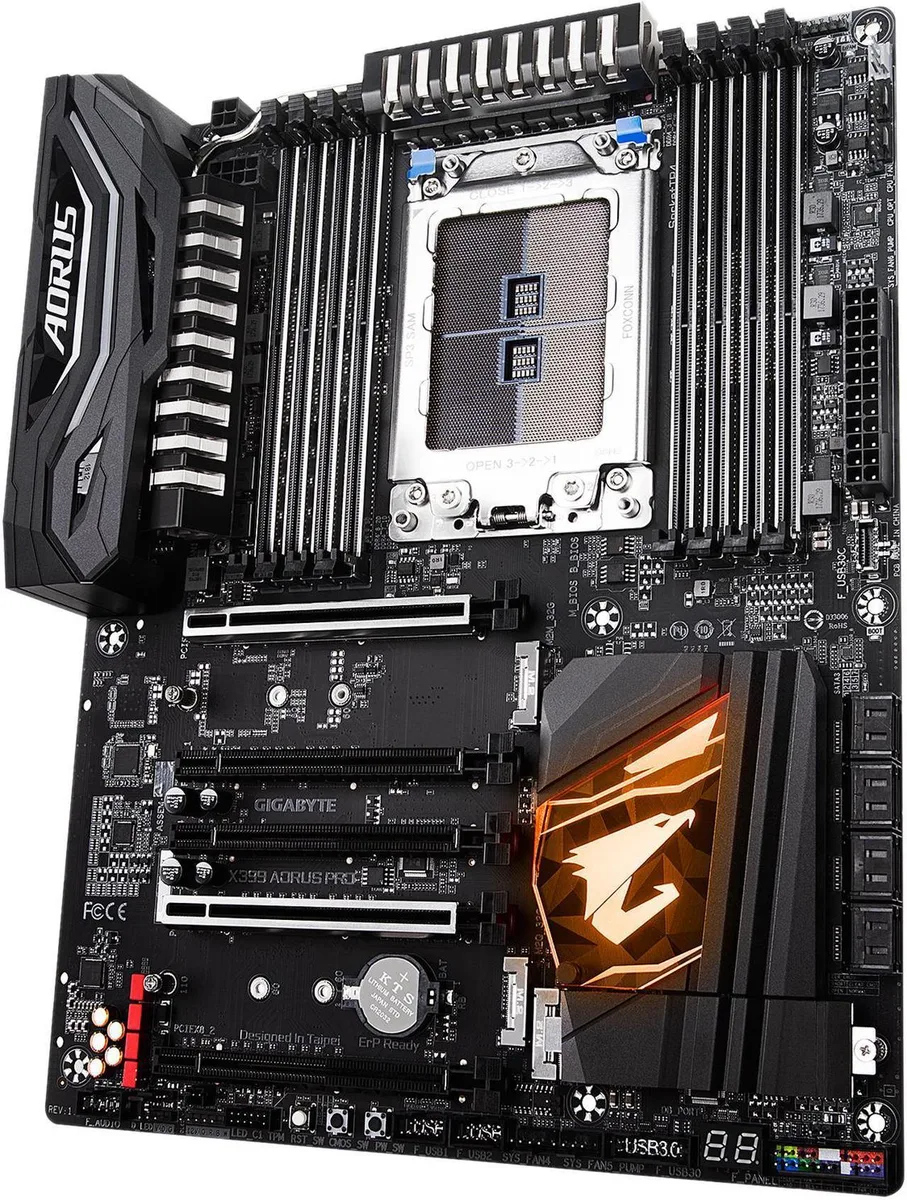

GIGABYTE X399 AORUS PRO AMD motherboard

SKU CH-ZK7S-CPSJ4

ATX board for TR4 CPUs with eight DDR4 slots up to 128GB, dual x16 PCIe 3.0, eight SATA ports, Intel gigabit LAN, Realtek ALC1220 7.1 audio, and USB 3.1 Gen 2 Type-C

  • ChipsetAMD X399
  • Maximum Memory Supported128GB
  • PCI Slots2 PCI Express x16 slots for x16 operation (PCIEX16_1/PCIEX16
  • SATA RAID3XM.2 interface, 8xSATA III interface
  • Audio Chipset1. Built-in Realtek ALC1220 chip ® 2. Support High Definitio
  • LAN ChipsetBuilt-in Intel GbE network chip (10/100/1000 Mbit)
  • Supports up to 128GB DDR4 memory capacity
  • AMD X399 chipset for TR4 socket processors
  • Intel Gigabit LAN for 10/100/1000 Mbit networking
  • Realtek ALC1220 audio with 7.1 channel support
  • ATX form factor measuring 30.5cm x 24.4cm

AMD X399 chipset motherboard

The GIGABYTE X399 AORUS PRO motherboard is built on the AMD X399 chipset and uses the TR4 CPU slot. It supports DDR4 memory up to 128 GB across eight DIMM slots. The ATX form factor measures 30.5 cm by 24.4 cm.

High core-count desktop builds

This board suits builders who need many cores and large memory capacity for workstation workloads. It is not aimed at mainstream consumer platforms or small form factor cases. Buyers wanting a compact layout or standard desktop CPUs should look elsewhere.

Eight DDR4 slots for 128 GB maximum

The eight DDR4 DIMM slots allow a total of 128 GB of memory, the single specification that determines if this board matches your capacity needs. Populate all slots to reach the supported limit.

Highlights

  • Supports up to 128GB DDR4 memory capacity
  • AMD X399 chipset for TR4 socket processors
  • Intel Gigabit LAN for 10/100/1000 Mbit networking
  • Realtek ALC1220 audio with 7.1 channel support
  • ATX form factor measuring 30.5cm x 24.4cm

Specifications

BrandGIGABYTE
SeriesGIGABYTE X399 AORUS PRO
ChipsetAMD X399
Maximum Memory Supported128GB
PCI Slots2 PCI Express x16 slots for x16 operation (PCIEX16_1/PCIEX16_2)
2 PCI Express x16 slots for x8 operating specifications (PCIEX8_1/PCIEX8_2)
(PCIEX16 and PCIEX8 slots support PCI Express 3.0)
3. 1 PCI Express x16 slot, supporting x4 operating specifications (PCIEX4)
(PCIEX4 slot supports PCI Express 2.0)
SATA RAID3XM.2 interface, 8xSATA III interface
Audio Chipset1. Built-in Realtek ALC1220 chip ®
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
4. Support S/PDIF output
LAN ChipsetBuilt-in Intel GbE network chip (10/100/1000 Mbit)
Onboard USBBuilt-in CPU:
1.8 USB 3.1 Gen 1 ports on the rear panel
Built-in chipset:
2.1 USB Type-C ™ interface on the rear panel, supporting USB 3.1 Gen 2
3.1 USB 3.1 Gen 2 Type-A interface (red) on the rear panel
4. 1 USB Type-C ™ interface, support USB 3.1 Gen 1, need to be connected from the USB socket in the main board through the cable
5. 2 USB 3.1 Gen 1 ports need to be connected from the USB socket in the main board via a cable
4 USB 2.0/1 ports need to be connected from the USB socket in the main board via a cable

Questions about this item

How do I install this board in an ATX case and which standoff pattern catches people out?

Mount the 30.5 by 24.4 cm ATX board using the standard nine-hole standoff layout; the lower-right corner hole near the I/O shield is the one builders most often miss.

What component will need replacement first and how do I do it?

The metal battery holder on the board takes a standard coin cell; when the system starts losing time or BIOS settings after power-off, pop out the old cell and press a fresh one in.

Which thermal or power limit appears first during a long all-core workload?

The 8-pin and 4-pin CPU power connectors feed the VRM; under sustained load the VRM temperature rises first, so keep airflow over the heatsink area to avoid throttling.
