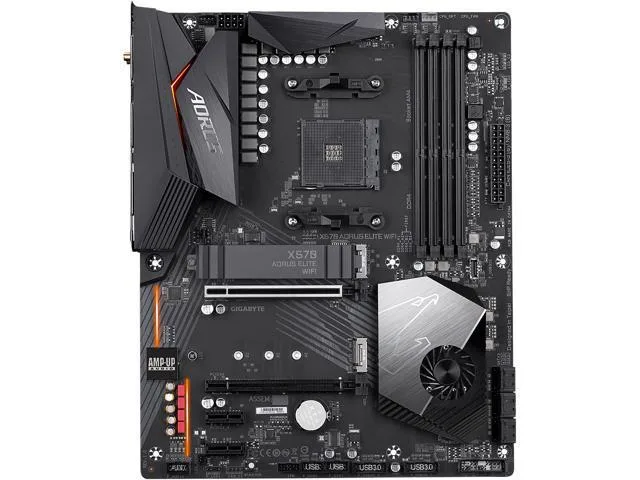

Rectangular ATX motherboard with black PCB, silver heatsinks and silver I/O shield armor

GIGABYTE

GIGABYTE X570 AORUS ELITE WIFI AMD motherboard

SKU CH-QZY5-R3QBJ

An ATX board for AM4 Ryzen CPUs with 12+2 phase VRM, dual PCIe 4.0 M.2 slots, six SATA ports, Intel Wi-Fi, and 128 GB DDR4 support

  • CPU Socket TypeAM4
  • CPU TypeRyzen Series
  • ChipsetAMD X570
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Maximum Memory Supported128GB
  • Ryzen 5000 series ready after a BIOS update
  • 128 GB DDR4 across four slots for heavy multitasking
  • 12+2 phase digital VRM for stable CPU power
  • Dual PCIe 4.0 M.2 slots with a thermal guard
  • Intel Wi-Fi 802.11 ac plus Gigabit LAN

AM4 X570 Board for Ryzen Builds

The GIGABYTE X570 AORUS ELITE WIFI fits the AM4 socket and supports Ryzen 5000 Series, 5000 G-Series, 3rd Gen and 2nd Gen processors. A BIOS update enables the newest CPUs. It also accepts 1st Gen Ryzen with Radeon Vega graphics. Dual Channel DDR4 runs across four 288-pin slots at 3200 MHz standard speed.

128 GB Dual Channel DDR4 Headroom

Four slots hold up to 128 GB of Un-buffered DDR4 with ECC or Non-ECC modules. Two M.2 sockets take PCIe 4.0 and 3.0 x4 drives and share a single Thermal Guard. Six SATA 6Gb/s ports provide RAID 0, 1 and 10 arrays. The board runs out of M.2 slots after two drives and SATA ports after six devices.

12+2 Phase VRM with Wi-Fi and USB 3.2 Gen 2 Type-C

A 12+2 Phases Digital VRM and enlarged heatsinks cool the power delivery. Intel Dual-Band 802.11 ac Wi-Fi and BT 4.2 handle wireless. Intel Gigabit LAN, ALC1200 audio and RGB FUSION 2.0 lighting are onboard. Smart Fan 5 headers include FAN STOP. Q-Flash Plus updates BIOS without CPU, memory or GPU installed. Front-panel USB 3.2 Gen 2 Type-C and I/O Shield Armor complete the rear I/O.

Highlights

  • Ryzen 5000 series ready after a BIOS update
  • 128 GB DDR4 across four slots for heavy multitasking
  • 12+2 phase digital VRM for stable CPU power
  • Dual PCIe 4.0 M.2 slots with a thermal guard
  • Intel Wi-Fi 802.11 ac plus Gigabit LAN

Specifications

BrandGIGABYTE
ModelX570 AORUS ELITE WIFI
CPU Socket TypeAM4
CPU TypeRyzen Series
ChipsetAMD X570
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported128GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x161 x PCI Express x16
PCI Express x12 x PCI Express x1
PCI Slots2 x PCI Slots
Serial ATA (SATA)6 x SATA 6Gb/s
M.22 x M.2
SATA RAID0/1/10
Onboard Video ChipsetSupported only by CPU with integrated graphic
Audio ChipsetRealtek ALC1200
Audio Channels5.1 Channels
LAN ChipsetIntel GbE LAN chip
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ac
Back I/O Ports4 x USB 2.0/1.1 ports2 x SMA antenna connectors (1T1R)1 x HDMI port4 x USB 3.2 Gen 1 ports2 x USB 3.2 Gen 2 Type-A ports (red)1 x RJ-45 port1 x optical S/PDIF Out connector5 x audio jacks
USB 3.06 x USB 3.0
Onboard USB5 x USB 3.2 + 4 x USB 2.0
Other Connectors1 x CPU fan header1 x water cooling CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header1 x front panel header1 x front panel audio header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x Clear CMOS jumper1 x Q-Flash Plus button
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin24 Pin
Windows 11Supported
FeaturesMulti-Graphics Technology:Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologiesNote: For 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors only.I/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.BIOS:1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Suppo

Questions about this item

Will my Ryzen 5000 CPU work without a BIOS update?

The board requires a BIOS update for Ryzen 5000 series; Q-Flash Plus lets you flash it without installing a CPU or memory

How many NVMe drives can I run at PCIe 4.0 speed?

Two M.2 slots support PCIe 4.0 x4 NVMe, one includes a thermal guard

Can I use ECC memory with a non-ECC Ryzen processor?

Yes, the board supports un-buffered ECC and non-ECC DDR4 up to 128 GB across four slots
